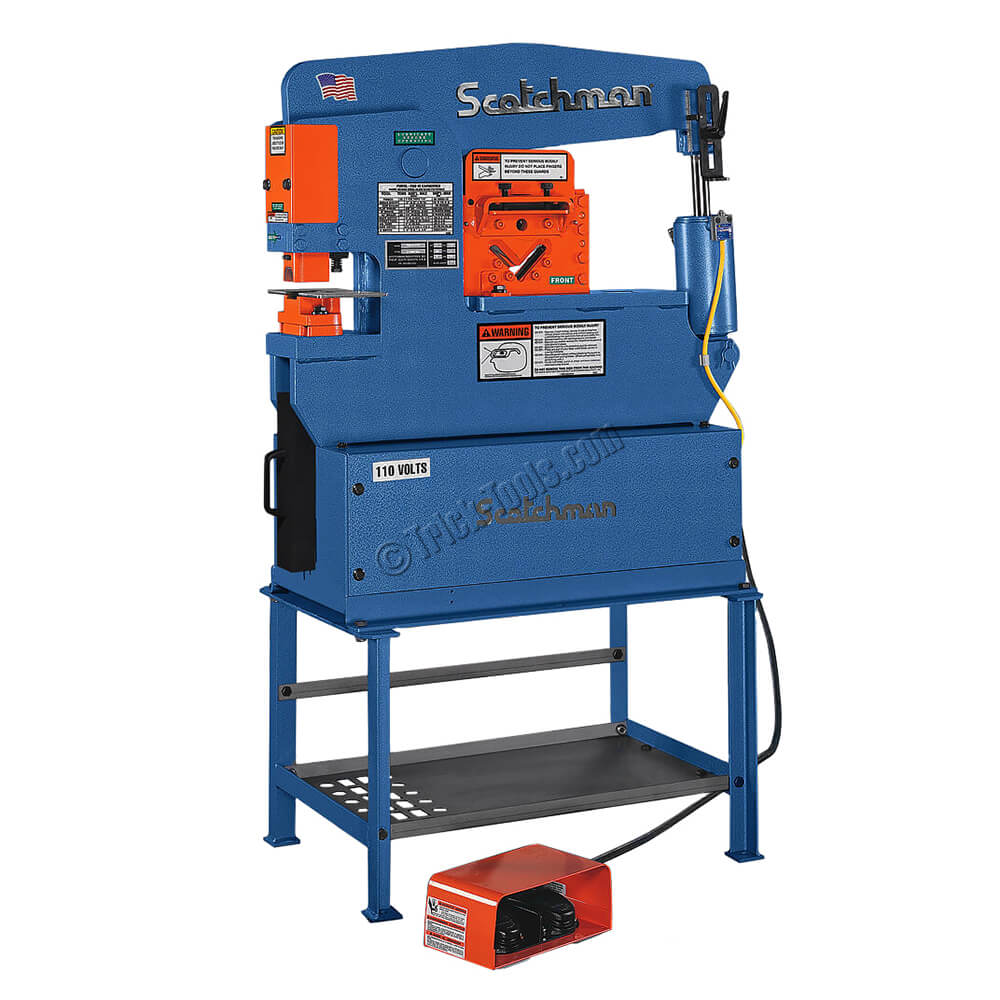

Scotchman Porta-Fab, 45 ton Ironworker

Part #: PF-45
Model: Porta-Fab 45
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,950.00

4 stations
Universal open tooling station
6 inch capacity bar shear
Punching station: 1-1/8 inch hole through 1/2 inch steel plate
Angle shear 3 x 3 x 5/16

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

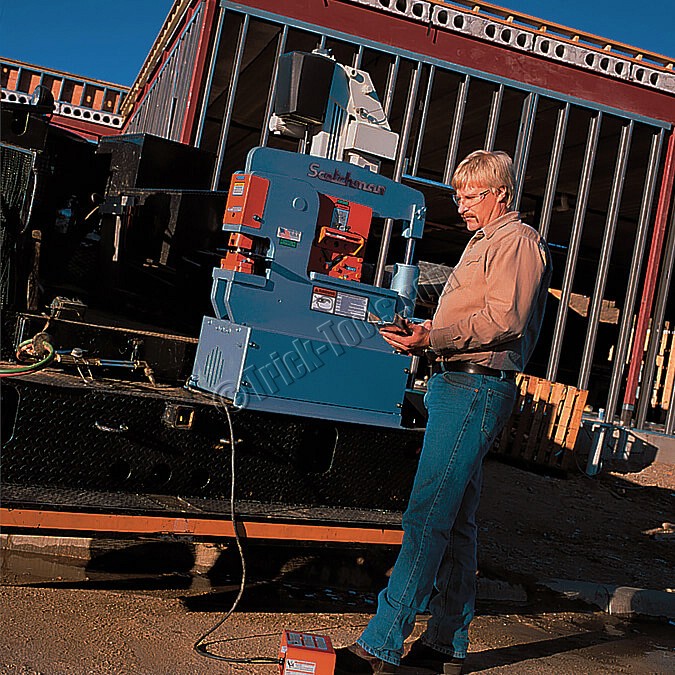

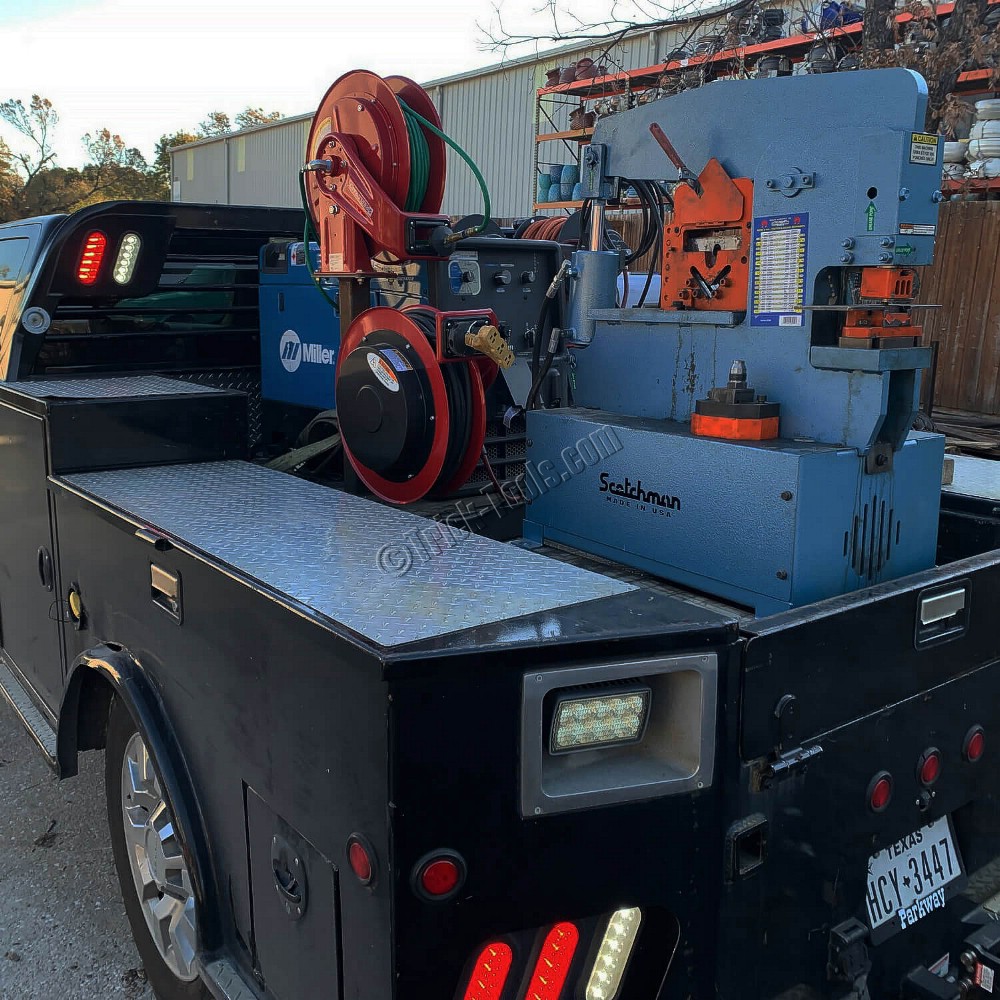

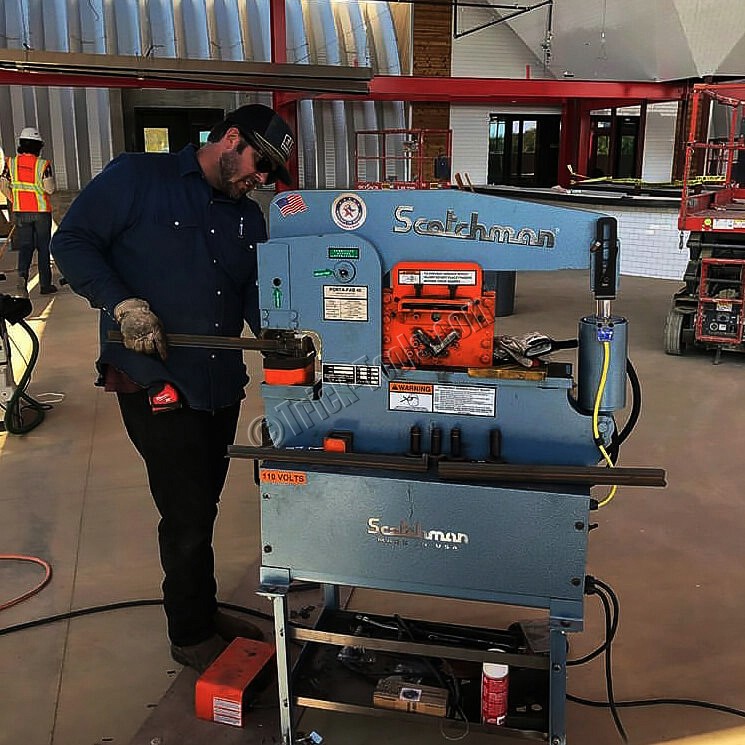

The Porta-Fab machine is Scotchman's entry level Ironworker. With 45 tons of hydraulic power in a portable 110 volt package, this unit is extremely handy because it can be moved around the shop or even taken to a job site. Comes standard with punching station, angle, rod, and bar shears.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 45
•Punching Capacity (Std): 1-1/8 inch OD in 1/2 inch plate, 13/32 inch OD in 3/4 inch plate
•Punching Throat Depth (inches): 4.25
•Flat Bar Shearing Max Width (inches): 3/8 x 6
•Flat Bar Shearing Max Thickness (inches): 1/2 x 4
•Angle Shear Max Size 90 Deg (inches): 3 x 3 x 5/16
•Angle Shear Max Size 45 Deg (inches): 2 x 2 x 1/4
•Throat Depth (inches): 4.25
•Special Tooling Max Cap: 2.25
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2 x 1.75 x .25
•90 Deg V Notcher Capacity (inches): 6 x 6 x .125
•Rod Angle Combo Capacity (inches): 2 x 2 x 1/4
•Square Tube Shear Capacity (inches): 1/2 to 1
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 20 spm; 3/4 inch stroke = 6 spm
•Motor (Std): 2 hp, 110 volt, 1 phase
•Hydraulics: 2500 psi
•Weight (pounds): 640
•Dimensions (LxWxH): 18 x 36 x 39

INCLUDES

45 ton punch station: 1-1/8 inch hole in 1/2 inch steel plate
Keyed punch ram for safety
4-1/4 inch throat depth
2 inch die holder
Punch nut with wrench and stripper
One round punch and die: max diameter 1 inch
Adjustable electric stroke control with scale
Three-in-one combination tool: Angle shear capacity: 3 x 3 x 5/16 inch at 90 degrees and 2 x 2 x 1/4 inch at 45 degrees, Bar shear capacity: 3/8 x 6 inch, Rod shear capacity: 3/4 inch round
Tool table work area
Machine stand with punch and die and tooling storage rack
110 volt/1-ph electrics
All guards necessary to comply with ANSI B 11-5 standards
Made in the USA
