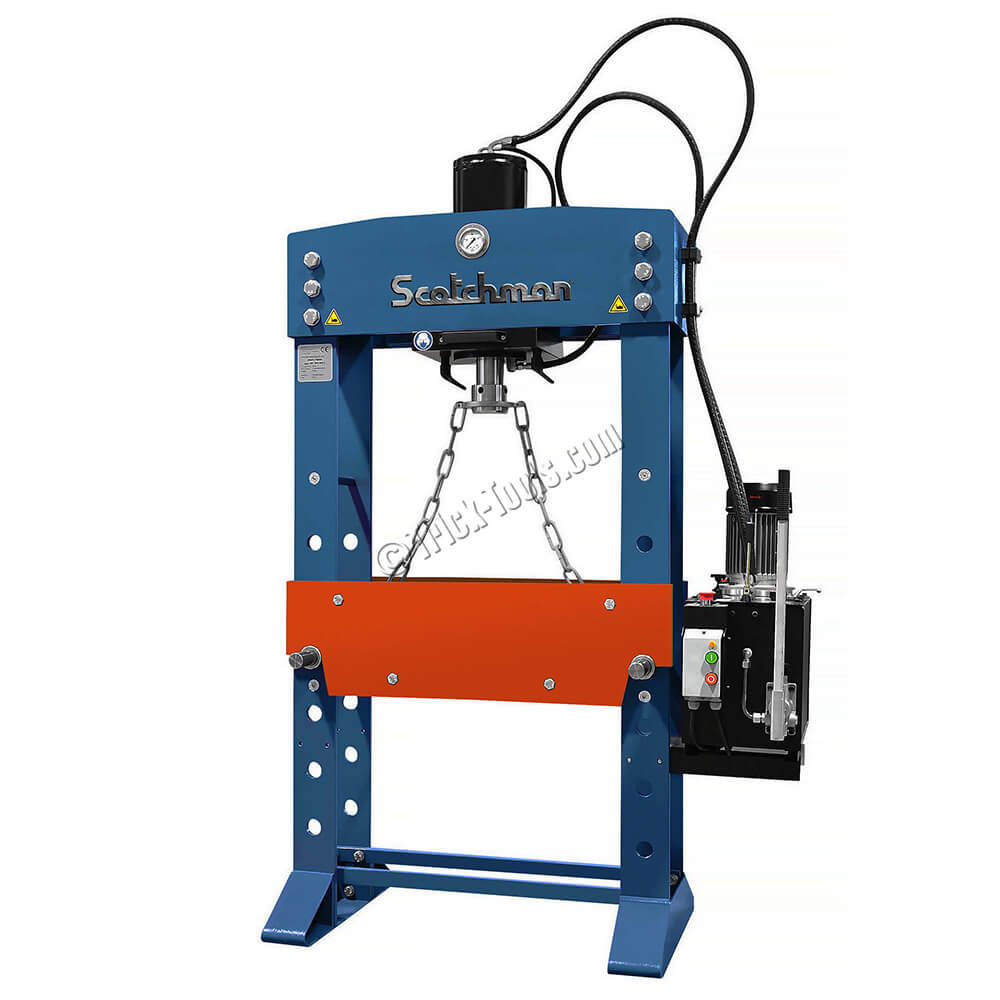

Scotchman PressPro Electric H-Frame Press, 66 ton

Part #: PP-66
Model: 850662, 850664
Ships From: Factory shipped
Lead Time: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $16,995.00
NEW
  • 66 ton capacity
  • 2 hp, 230 or 460 volt, 3 phase electric pump
  • Adjustable table
  • Rapid ram advance
FREIGHT:
Freight
ORIGIN:
BRAND:
Scotchman logo
Voltage:
Quantity:

Configuration

DESCRIPTION

Scotchman’s PressPro 66 ton H-frame shop press features an industrial-grade hydraulic system, three ram speeds, lateral ram movement, and heavy-duty welded steel frame. The three ram speeds are 20 inches per minute on approach, 4 inches per minute on press, and 25 inches per minute on return. This shop press also includes a hand pump for precision pressing. The ram accepts a wide variety of tooling for almost any job. Manufactured in the USA.

Warranty:

3 year manufacturer's warranty

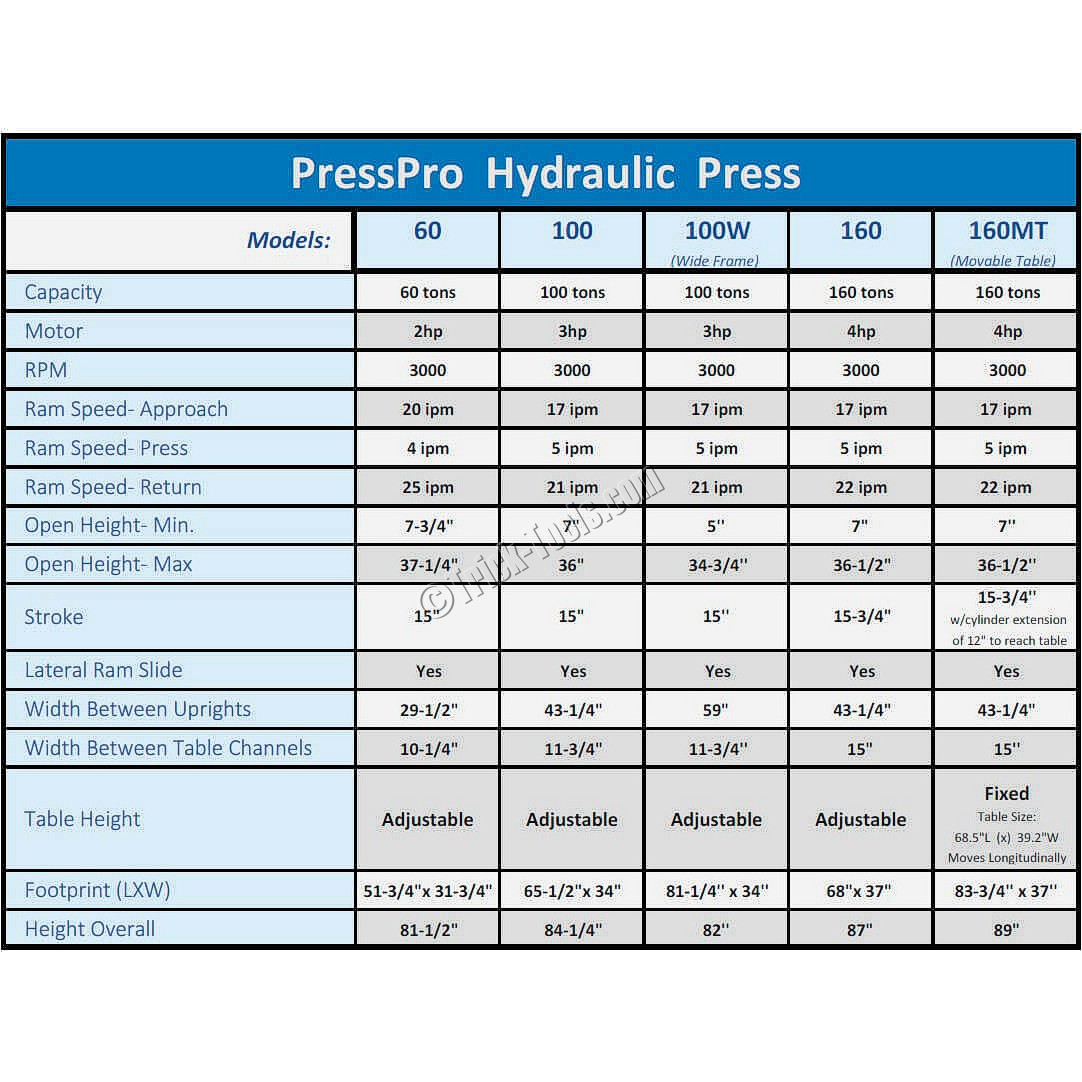

SPECIFICATIONS

Maximum Capacity: 66 tons
Stroke (inches): 15
Width Between Uprights (inches): 29-1/2
Min Ram To Table (inches): 7-3/4
Max Ram To Table (inches): 37-1/4
Ram Speed (advance): 20
Ram Speed (pressing): 4
Motor: 2 hp electric
Voltage: 220/440 volt, 3 phase
Weight (pounds): 1191
Dimensions (LxWxH): 51-3/4 x 31-3/4 x 81-1/2

INCLUDES

  • PressPro 66 ton press with 230v or 460v electric motor
  • Pressure gauge
  • Hand pump for precision pressing
  • Hydraulic pressure gauge
  • V-block set
  • Table lifting chain
