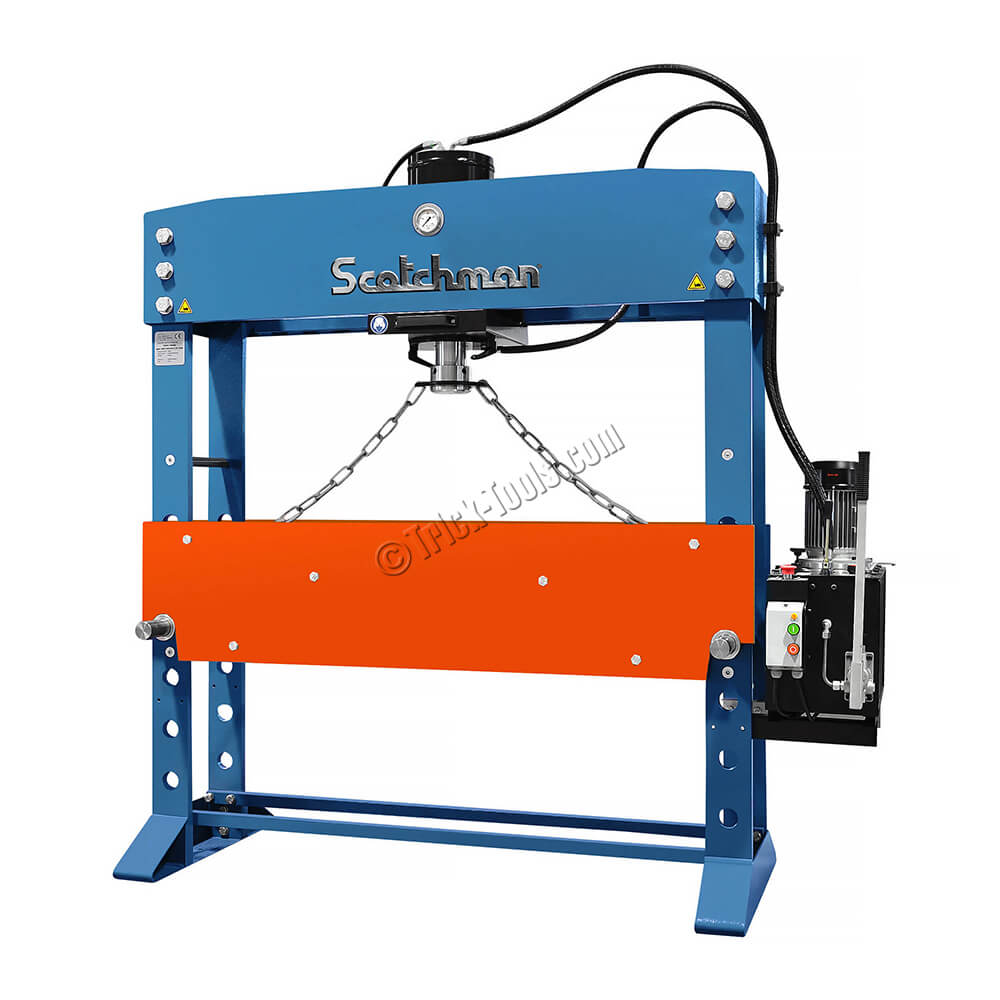

Scotchman PressPro Wide Electric H-Frame Press, 110 ton

Part #: PP-110W
Model: 851112, 851114
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $22,595.00

NEW

110 ton capacity
3 hp, 230 or 460 volt, 3 phase electric pump
Wide frame with 59 inch opening
Rapid ram advance

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

Scotchman’s PressPro 110 ton wide H-frame shop press features an industrial-grade hydraulic system, three ram speeds, lateral ram movement, and heavy-duty welded steel frame. The three ram speeds are 17 inches per minute on approach, 5 inches per minute on press, and 21 inches per minute on return. The extra wide frame offers over 15 more inches than the standard frame for opening of 59 inches between uprights. This shop press also includes a hand pump for precision pressing. The ram accepts a wide variety of tooling for almost any job. Manufactured in the Netherlands, this unit meets all European CE standards.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 110 tons
•Stroke (inches): 15
•Width Between Uprights (inches): 59
•Min Ram To Table (inches): 5
•Max Ram To Table (inches): 36
•Ram Speed (advance): 17
•Ram Speed (pressing): 5
•Motor: 3 hp electric
•Voltage: 220/440 volt, 3 phase
•Weight (pounds): 3307
•Dimensions (LxWxH): 81-1/4 x 34 x 82
