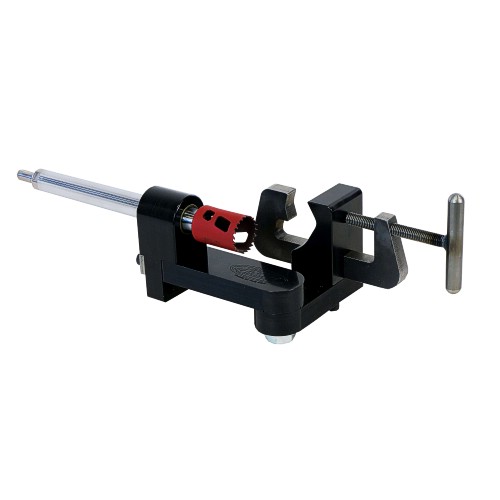

RaceLine Hole Saw Tube Notcher

Part #: TN300
Availability: Discontinued
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $349.95
  • Capable of notching in a 210 degree arc
  • 3 inch tube, 2-1/2 inch pipe capacity
  • Billet aluminum construction
  • Shaft supported by sealed needle bearings
SHIPPING:
UPS
ORIGIN:
BRAND:
We're sorry but this product is currently unavailable.

DESCRIPTION

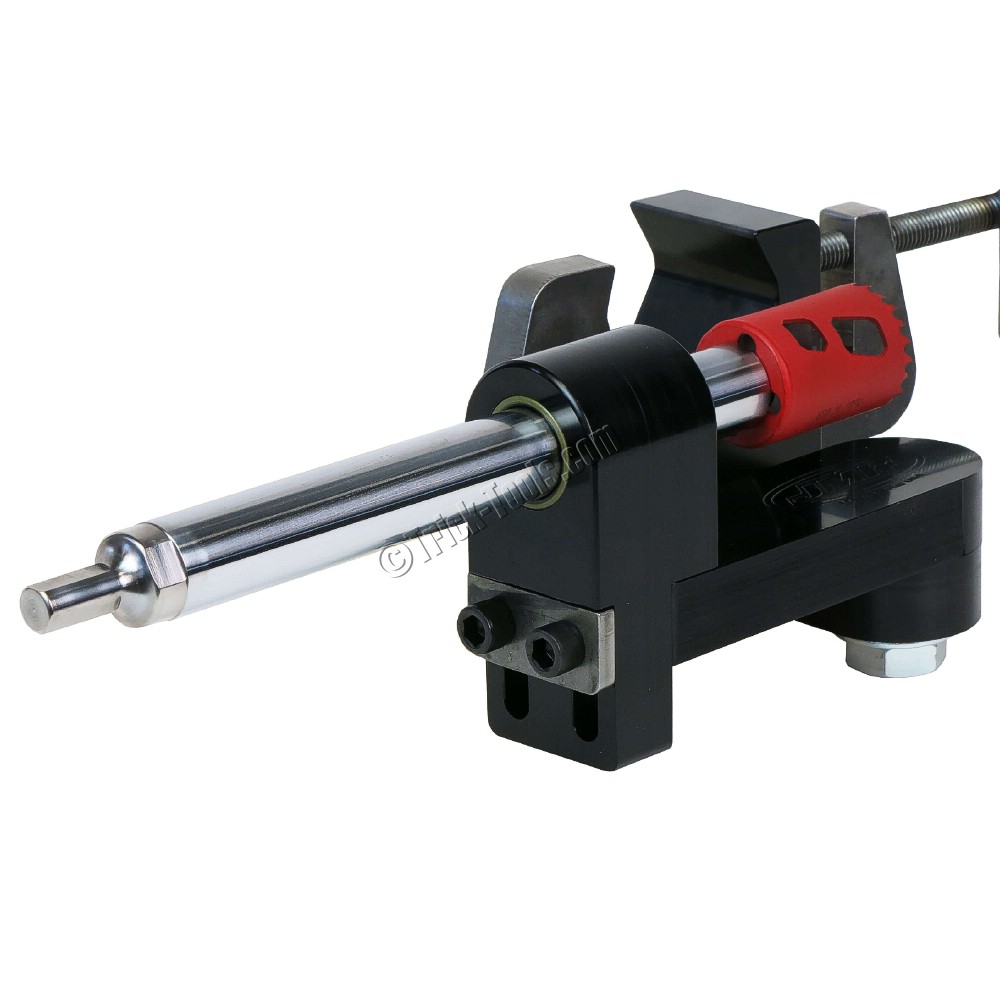

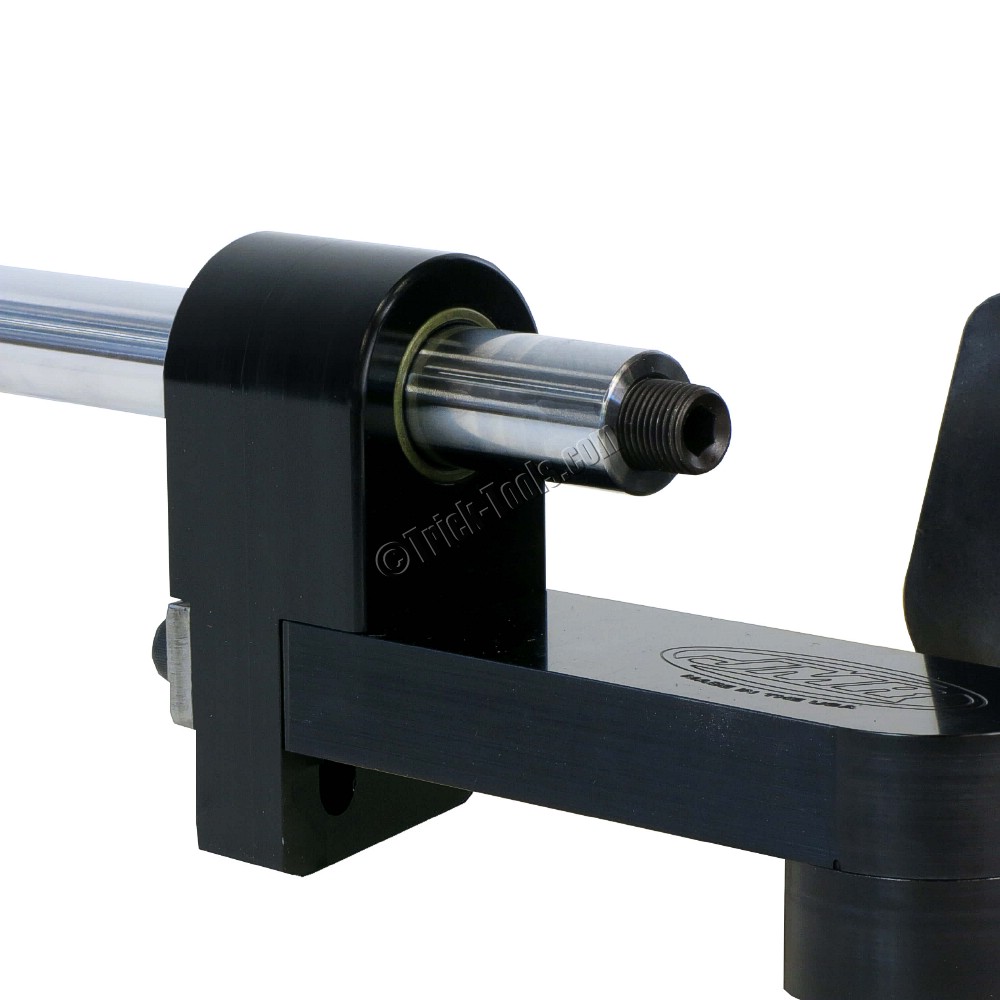

The RaceLine Tubing and Pipe Notcher by JMR is designed for the fabricator on a budget who is looking for a precision made, quality, and fully functional hole saw notcher. The notcher is constructed from CNC machined billet aluminum with heavy duty 1 inch thick arms, and sealed needle bearings to support the 1 inch OD shaft. An easily replaceable threaded insert on the shaft eliminates the need to buy a new shaft if a hole saw damages the threads, and a thrust bearing at the pivot point of the notcher eliminates movement and aides in accurately tightening at the desired notch angle.

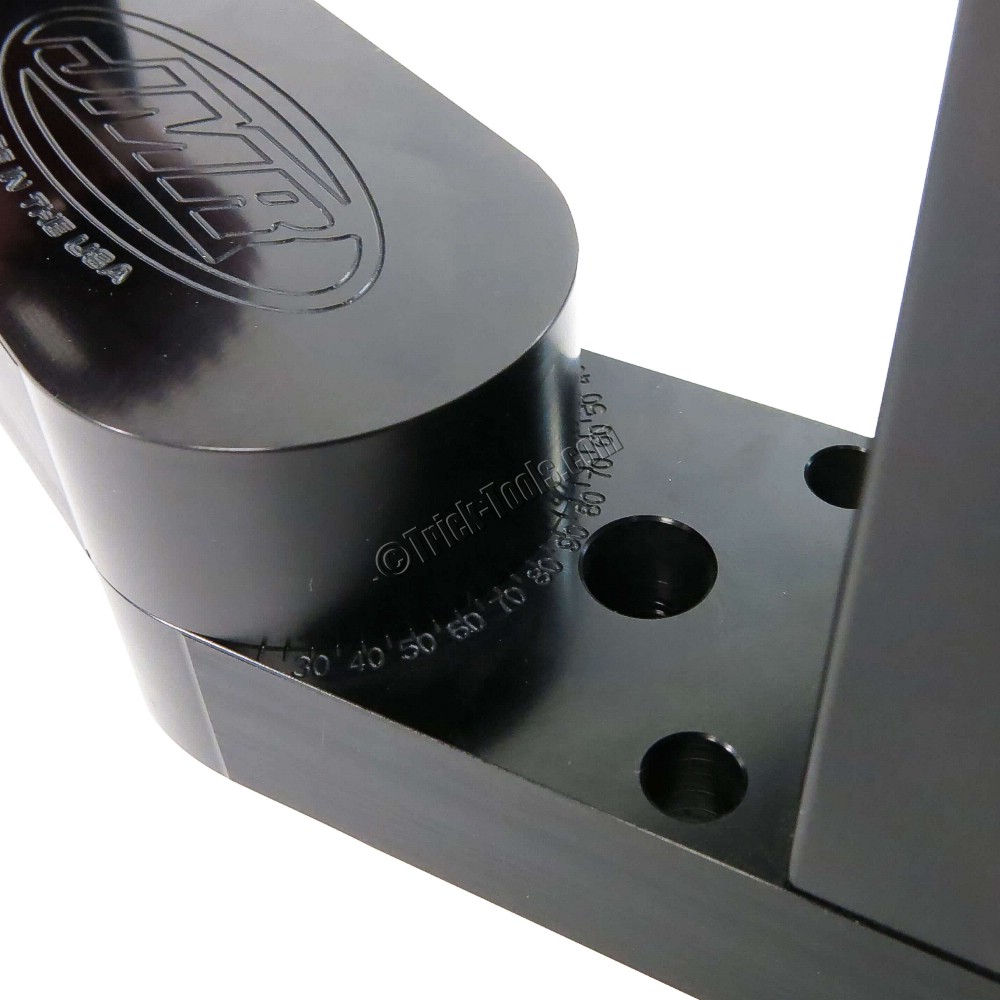

This notcher features 3 inch OD capacity, and can notch anywhere in a 210 degree arc around the end of the tube. Offset notches up to 1 inch can be performed with ease while the unique shaft support design allows a positive, accurate return to the zero point for a centered notch. Degree reference points are engraved into the arms of the notcher, and the frame design allows the notching angle to be easily double checked with an angle finder. Additionally, the notcher is light and compact enough to be clamped to an existing tube or pipe for boring holes.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Arc Capacity: 210 degrees
Max Notch Angle: Unlimited
Max Diameter: 3
Min Diameter: 1/2 inch
Max Offset (inches): 1
Weight (pounds): 9
Dimensions (LxWxH): 11 x 6 x 5
