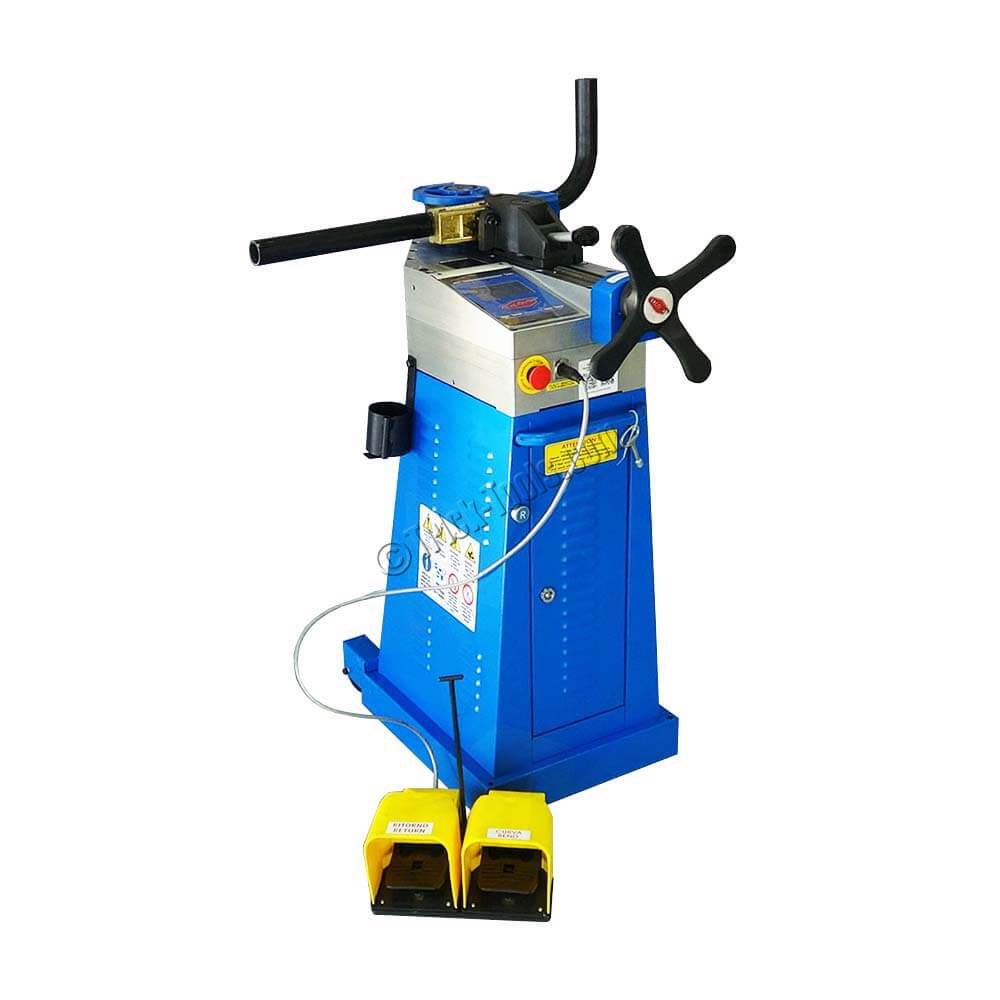

Ercolina SB48 Super Bender Tubing Bender

Part #: SB48
Model: SB48, SB48P, SB48T, SB48TSR
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $14,300.00

NEW

2 inch OD capacity
Electric gear drive
Stores up to 30 bend programs
Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Ercolina SB48 Super Bender is a great choice for any serious fabricator needing to make consistent, repeatable bends. The SB48 can store 30 programs with 9 bends per program and is able to bend from 1/4 inch up to 2 inch OD tubing or 1-1/2 inch schedule 40 pipe. The electric motor is quiet and efficient with no hydraulic components that may wear out or leak.

Extra savings when purchasing one of the 3 die kits below with this bender. (Selected in the packages dropdown above add to cart)

PIPEKIT2

1/2 inch NPS (0.840 inch OD) x 1.8 inch CLR

3/4 inch NPS (1.050 inch OD) x 2.2 inch CLR

1 inch NPS (1.315 inch OD) x 2.6 inch CLR

1-1/4 inch NPS (1.660 inch OD) x 3.5 inch CLR

1-1/2 inch NPS (1.900 inch OD) x 3.9 inch CLR

TUBEKIT2 - Large Radius

3/4 inch OD x 2.6 inch CLR

7/8 inch OD x 2.6 inch CLR

1 inch OD x 3.2 inch CLR

1-1/4 inch OD x 4.4 inch CLR

1-1/2 inch OD x 5.9 inch CLR

1-3/4 inch OD x 6.7 inch CLR

TUBEKIT2SR - Small Radius

3/4 inch OD x 2.6 inch CLR

7/8 inch OD x 2.2 inch CLR

1 inch OD x 2.6 inch CLR

1-1/4 inch OD x 3.2 inch CLR

1-1/2 inch OD x 3.9 inch CLR

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2 x .188
•Round Dom Capacity (inches): 2 x .134
•Nominal PIPE Capacity: 1-1/2 inch Sch 40
•Square Mild Steel Capacity (inches): 1-1/2 x .083
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 8-7/8
•Max Degree of Bend: 180
•Motor: 110v

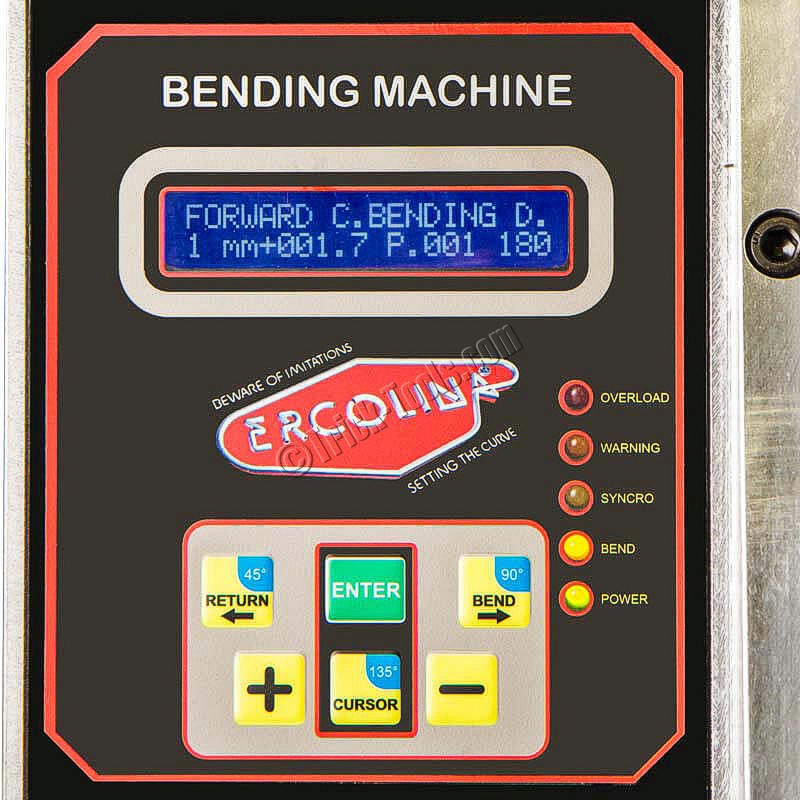

•Control Method: programmable on board computer
•Maximum OD (inches): 2
•Weight (pounds): 300
•Dimensions (LxWxH): 22.5 x 16.25 x 39.5 inches
