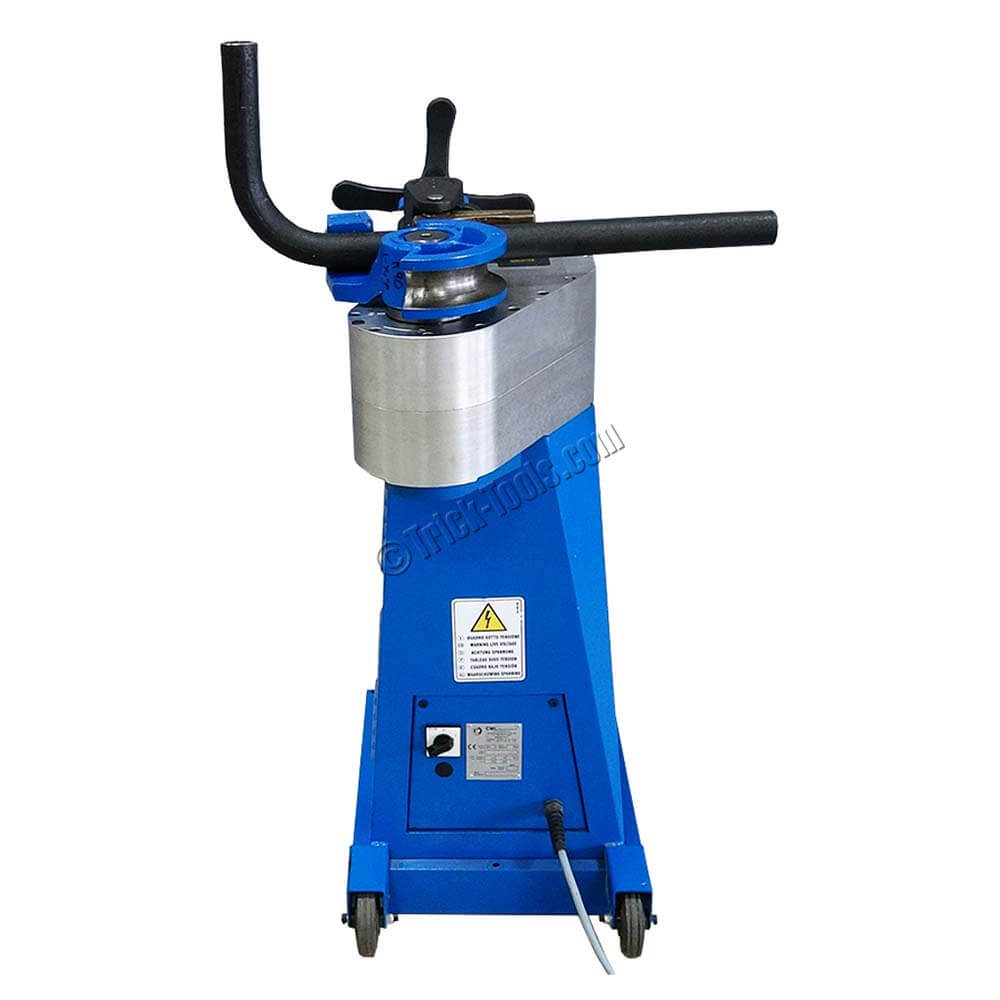

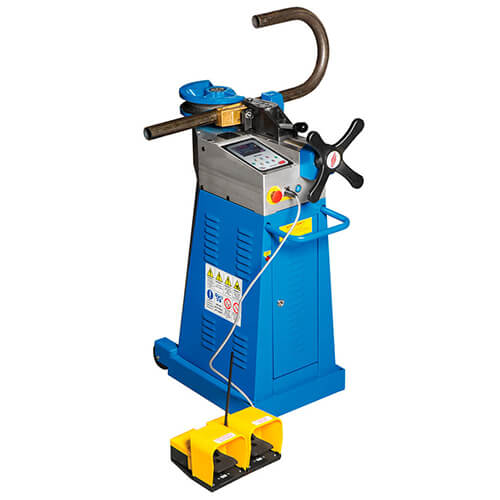

Ercolina Super Bender Plus Tubing Bender

Part #: SB48PLUS
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $11,900.00

BEST SELLER

2 inch OD capacity
Electric gear drive
Single bend control
Foot pedal operated

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

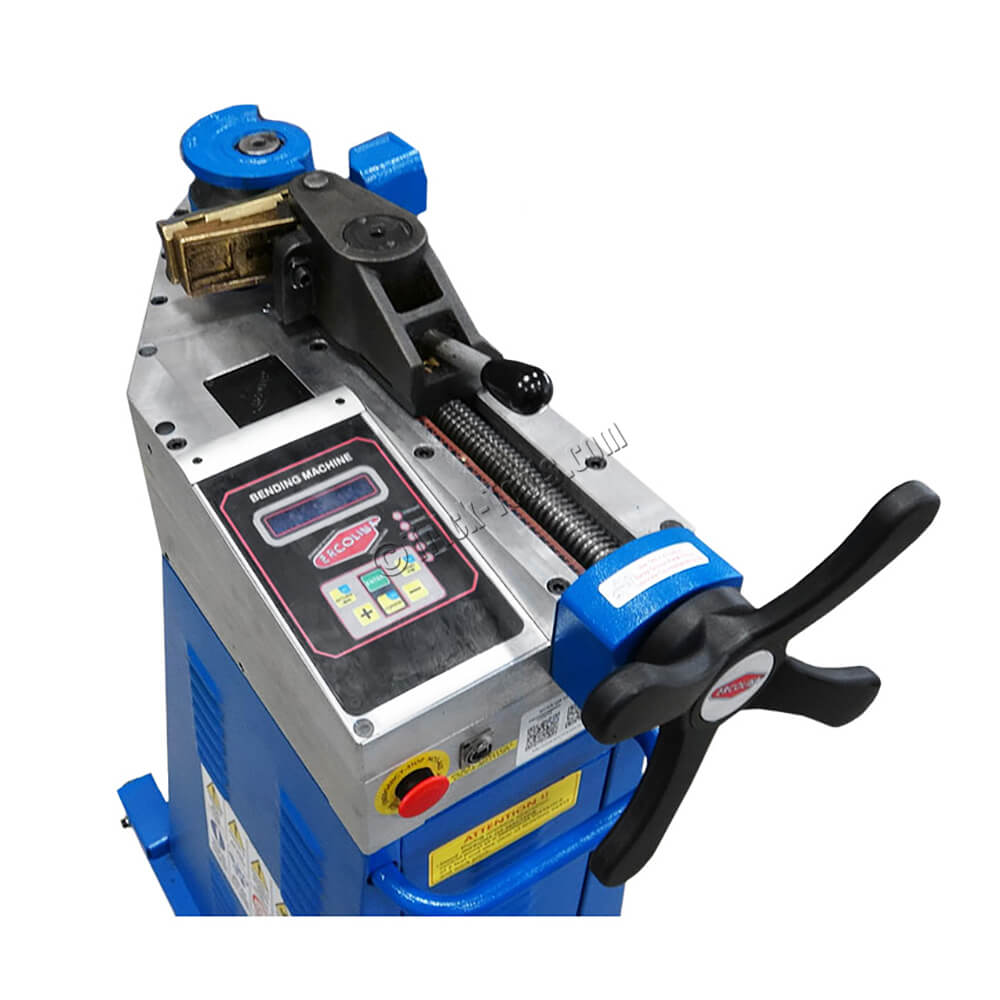

The Ercolina Super Bender Plus is a great choice for anyone needing to make quick, consistent, repeatable bends. The Super Bender Plus has a one-touch single bend control with spring-back programming screen and is able to bend from 1/4 inch up to 2 inch OD tubing or 1-1/2 inch schedule 40 pipe. The electric motor is quiet and efficient with no hydraulic components that may wear out or leak.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2 x .188
•Round Dom Capacity (inches): 2 x .134
•Nominal PIPE Capacity: 1-1/2 inch Sch 40
•Square Mild Steel Capacity (inches): 1-1/2 x .083
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 8-7/8
•Max Degree of Bend: 180
•Motor: 220v, 1 phase
•Control Method: one-touch single bend programming with foot pedals
•Maximum OD (inches): 2
•Weight (pounds): 300
•Dimensions (LxWxH): 22.5 x 16.25 x 39.5 inches
