Standard V-Tap Guide

Part #: STD500NP
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $30.75
Sale Price: $27.95

NEW

Tap straight holes on corners, tubing, or flat
9 holes cover 32 standard tap sizes
Lifetime warranty
Made in the USA

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

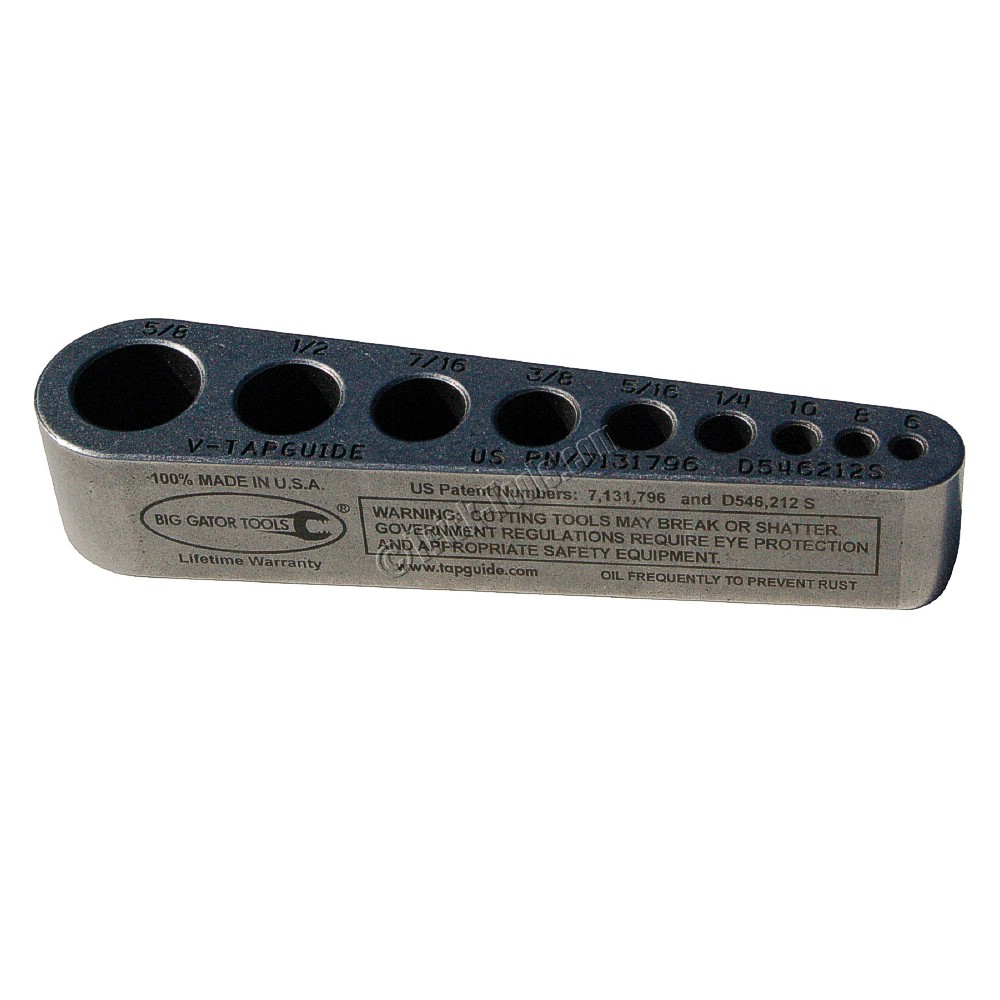

The Big Gator Tools Standard V-TapGuide® makes tapping straight holes on corners, in round tubing, or on flat material quick and easy. Using the V-TapGuide® reduces tap breakage from improper alignment and will increase the life of your taps. Machined from high nickel steel alloy and hardened, this USA made tool is made to last and comes with a lifetime warranty.

This Standard V-TapGuide® offers 9 holes to cover 32 standard tap sizes.
Sizes supported include: 0-80, 1/64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-36, 4-40, 4-48, 5-40, 5-44, 6-32, 6-36, 6-40, 8-32, 8-36, 8-40, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 5/8-11, 5/8-18. (The guide does not cover #12 and 9/16 sizes. 0-80 to #6 have the same size shank so only one hole size is needed.)

Warranty:

Lifetime manufacturer's warranty
