Scantool 75CG Centerless Grinder

Part #: ST-75CG
Model: 75CG
Ships From: Factory shipped

Lead Time: While supplies last - Closeout Item

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $5,595.00

3 x 79 inch belt
7000 feet per minute belt speed
Centerless grind up to 3 inch OD tubing
Available in 220v 3ph or 480v 3ph

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

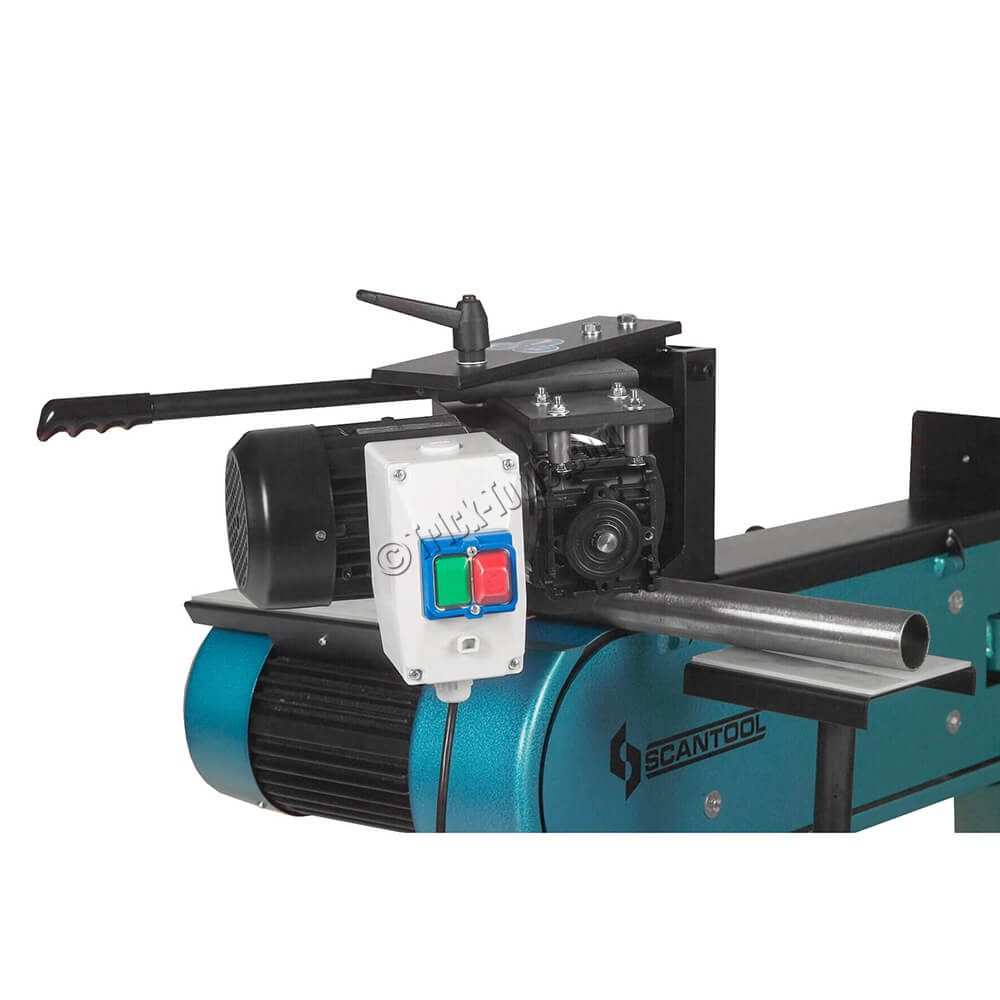

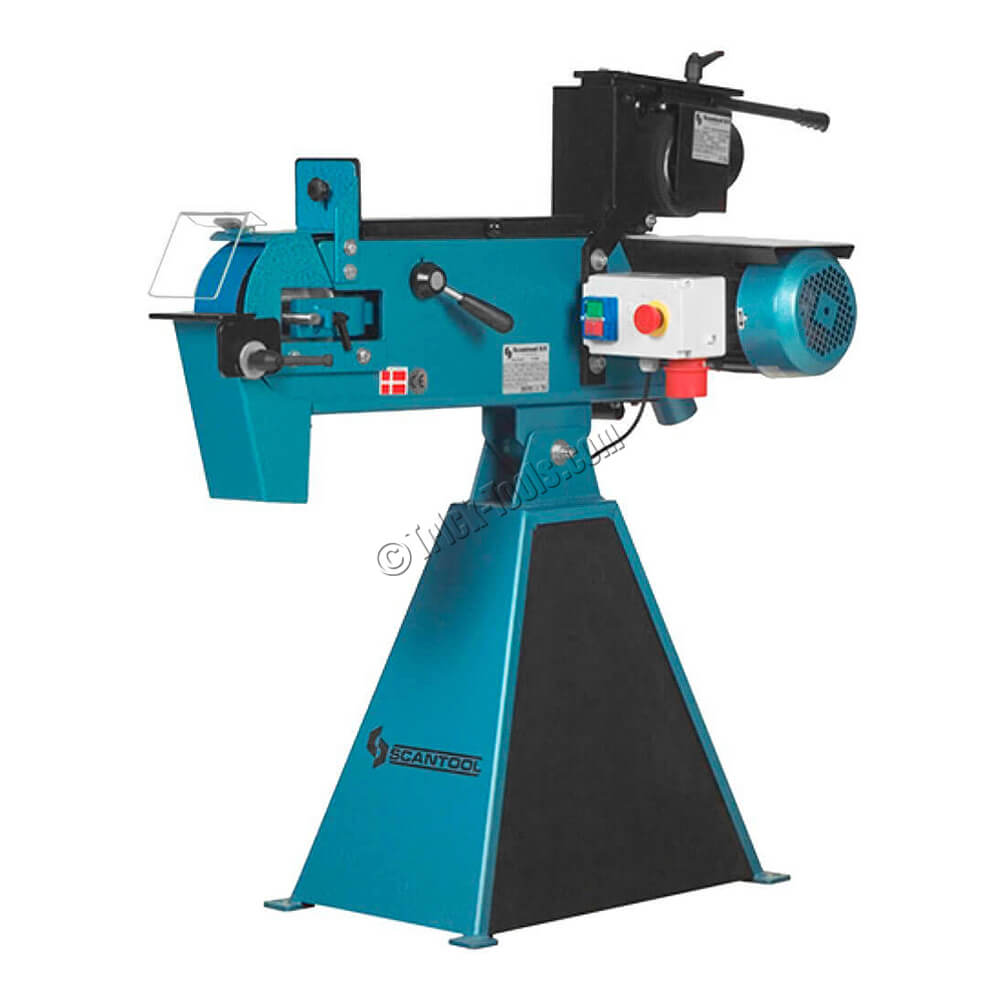

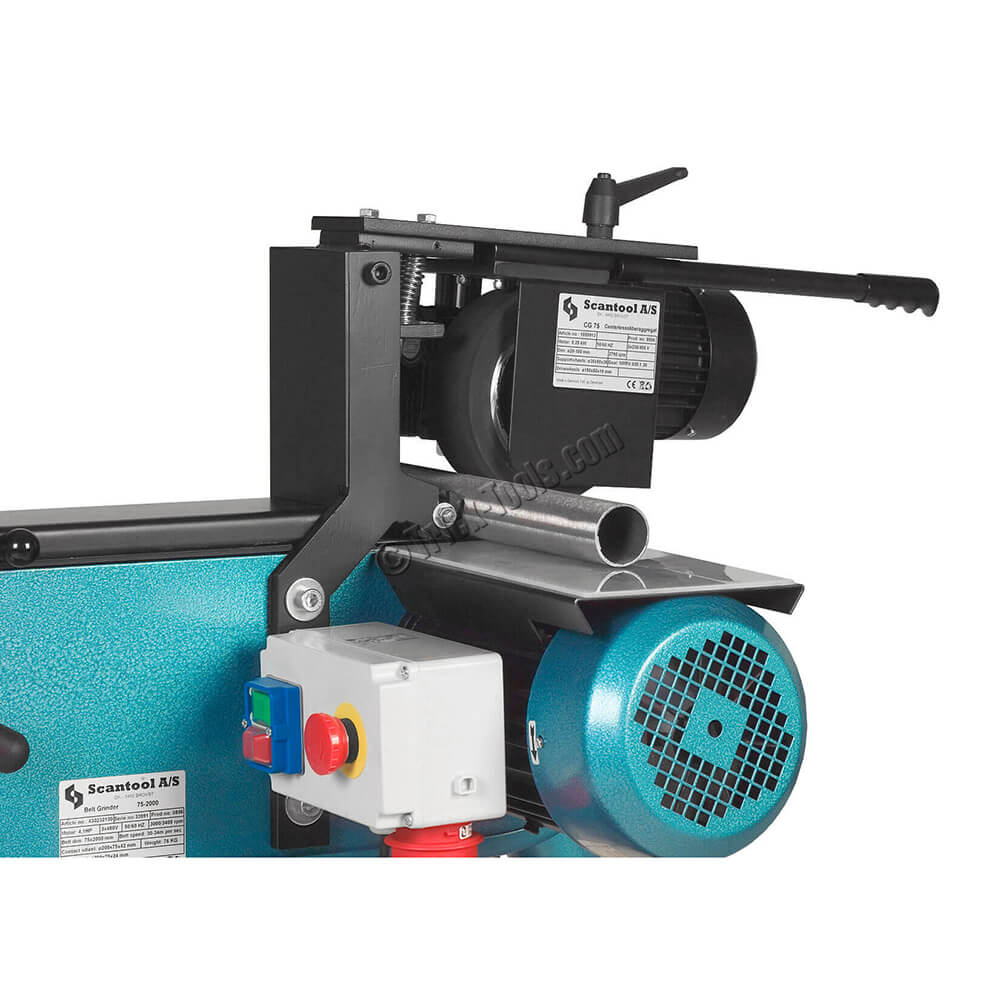

This high-quality European built Scantool 75CG 3x79 belt grinder is ideal for heavy material removal and centerless grinding of round stock, tubing, and pipe. It is equipped with a heavy duty 4.1 hp motor that turns the 3x79 inch belt at 7000 feet per minute. Grinding can be performed on the front contact wheel or on the flat platen on top of the machine. The centerless grinding module mounts to the rear of the machine leaving access to the other grinding surfaces. The 75CG can handle 7/8 inch OD to 3 inch OD material and down to 1/4 inch with the small diameter accessory.

Adjustable working height, tool free belt changes and belt tracking make these grinders a pleasure to operate. A detachable spark arrestor box also makes cleanup easier than with other grinders.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 4.1 hp
•Belt Width (inches): 3
•Belt Length (inches): 79
•Contact Wheel Diameter (inches) : 8.0
•Platen Size (inches): 3 x 16.5
•Table Size: 2 x 4.5
•Weight (pounds): 300
•Dimensions (LxWxH): 40 x 20 x 40
