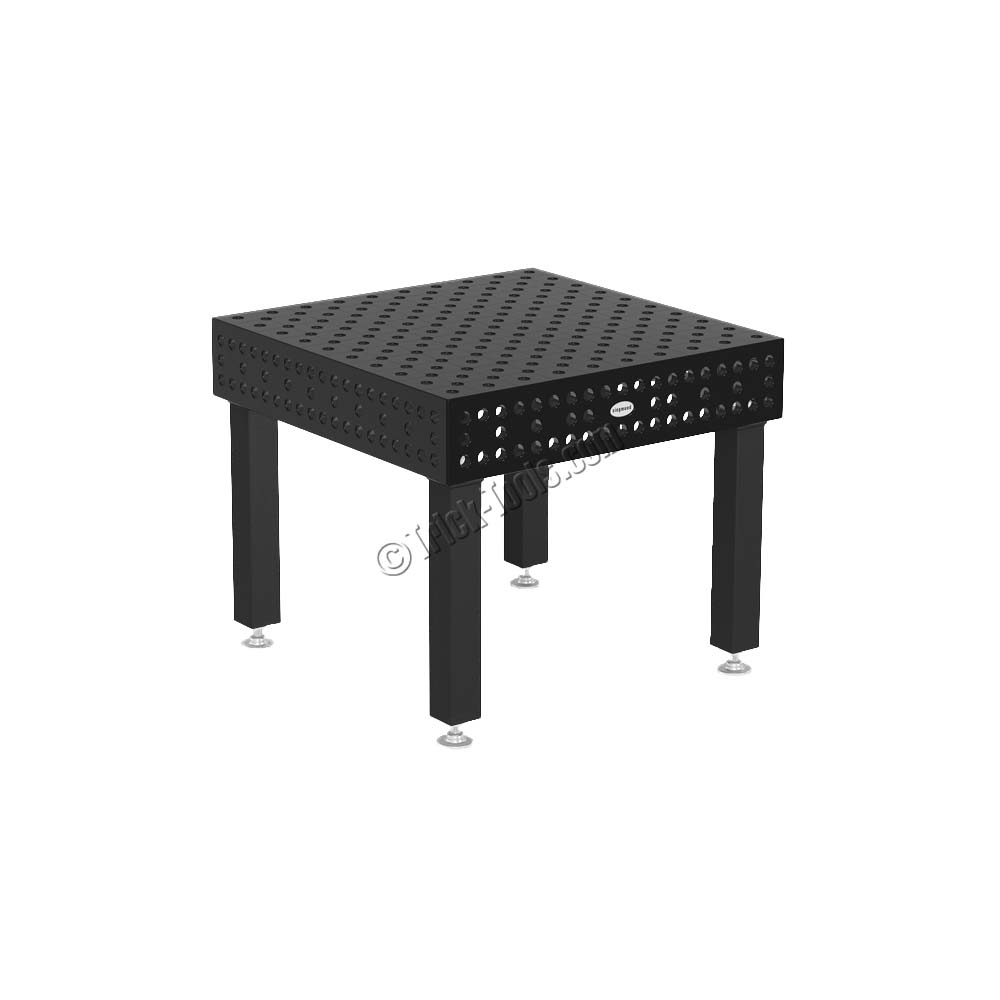

Siegmund System 28 XD7 Welding Table, 1000 x 1000mm

Part #: 4-280010.XD7D
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $4,463.00

Five fixturing surfaces
25mm thick work surface
28mm holes spaced 100mm apart
Nitride plasma finish for corrosion protection and anti-spatter
Includes stationary legs

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

Siegmund XD7 Professional Extreme Series Welding Tables are second to none for modular fixturing. These German constructed tables are built from hardened steel to begin with, and then go through an additional plasma nitride process to harden the top work surface to a Vickers rating of more than 750.

The tables feature five fixturing surfaces constructed from 1 inch (25mm) thick plate with additional reinforcement underneath the work surface. Fixture mounting holes are CNC machined to 28mm diameter, feature radiused edges, and are laid out in a diagonal grid for superior clamping flexibility. The tables also feature a flatness rating of +/- .0025 inches per foot, and radiused edges to prevent damage to fixture components and work pieces.

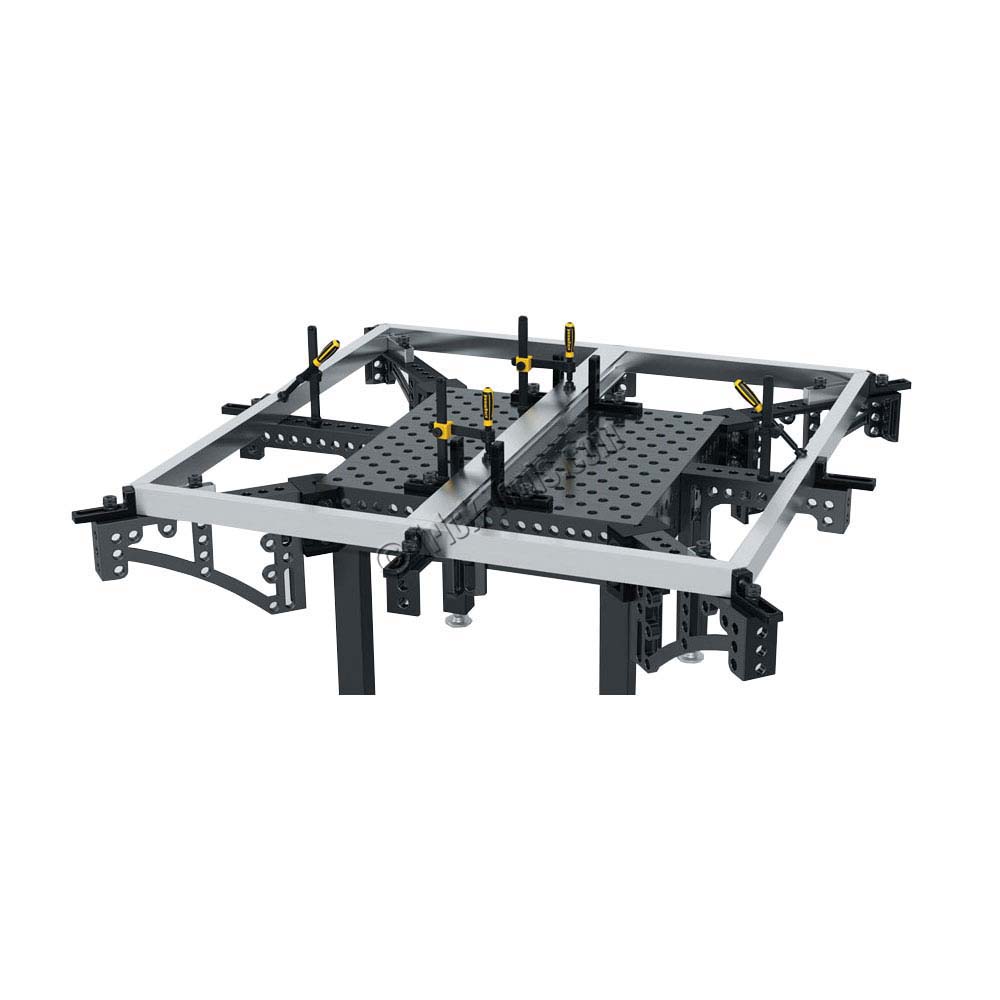

A wide variety of clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See accessories tab for more information.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: Total static load based on even distribution

Standard Legs: 16879 lbs
Caster Legs: 6159 lbs

•Size: 39 x 39 inches
•Flatness: +/- .0025 inches per foot
•Finish: Nitrided
•Hole diameter: 28mm
•Hole spacing: 100mm
•Plate thickness: 24.5 - 27 mm
•Weight (pounds): 881
