Strong Hand Rhino Cart Mobile Fixturing Station - Less Fixture Tooling

Part #: TD5-4830Q-F3
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,565.00

FREE SHIPPING

48 x 30 inch mobile table with storage
Includes caster and leveling feet
5/8 inch holes spaced 2 inches apart
Accepts all BuildPro accessories

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

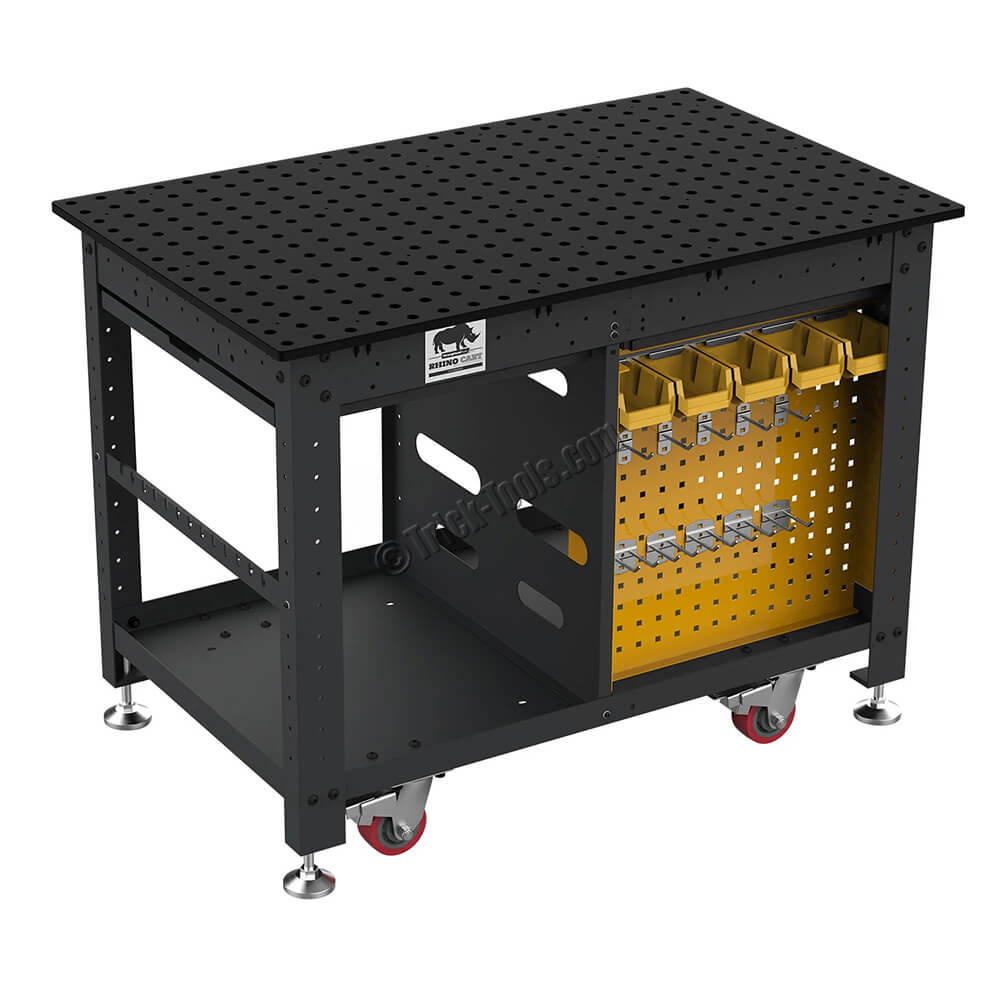

The 48 x 30 inch Rhino Mobile Fixturing Station is unlike any welding cart on the market! This revolutionary design takes the popular BuildPro welding table top, with its precision finish and unique modular fixturing design, and combines it with a handy mobile cart. The nitride treated steel top features a black oxide finish and is reversible if one side is damaged.

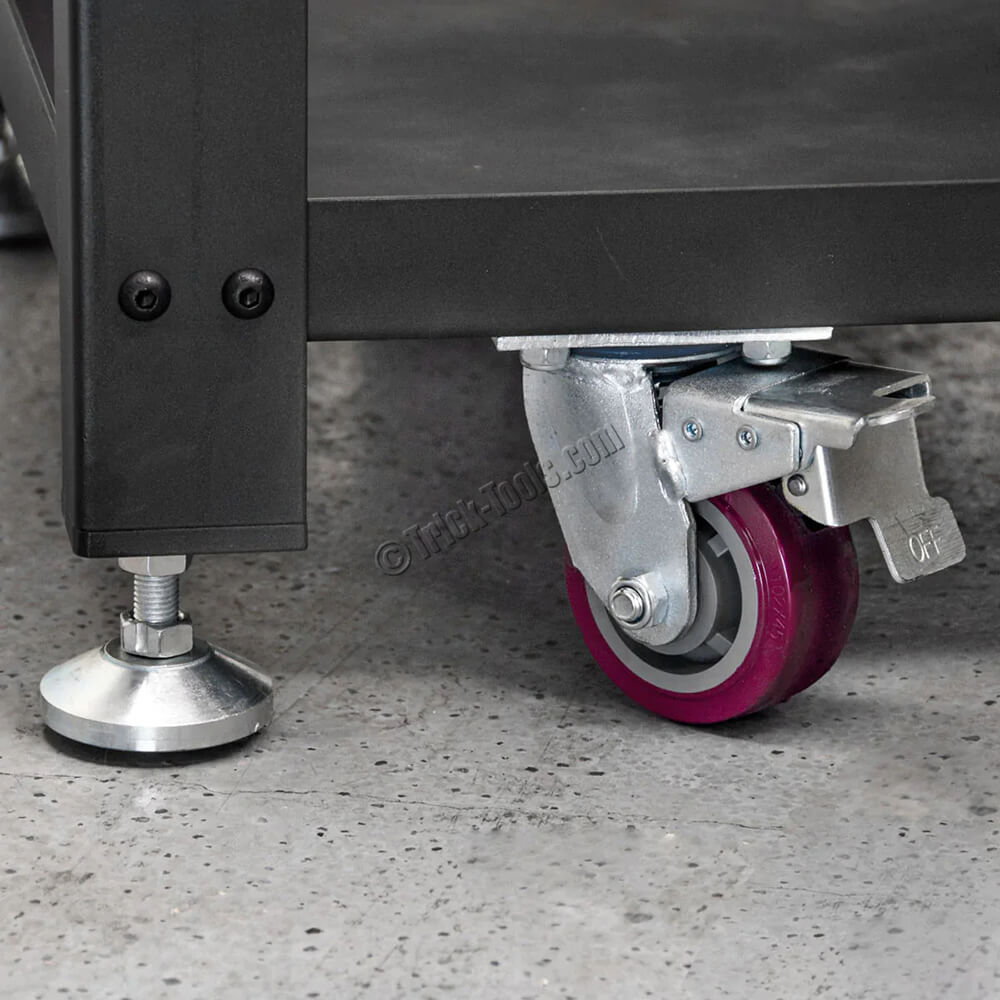

The cart features heavy-duty casters as well as leveling feet for more permanent placement. The 36-inch tall cart features plenty of storage to keep necessary fabrication tools readily at hand and a multitude of accessories for customizing it to fit your needs. The new F3 series includes some new improvements including removable slag trays, pass through cable slots, and improved storage for ball lock bolts and clamps.

Sold less fixture tooling, see Accessories tab for available options.

Table Top Specifications

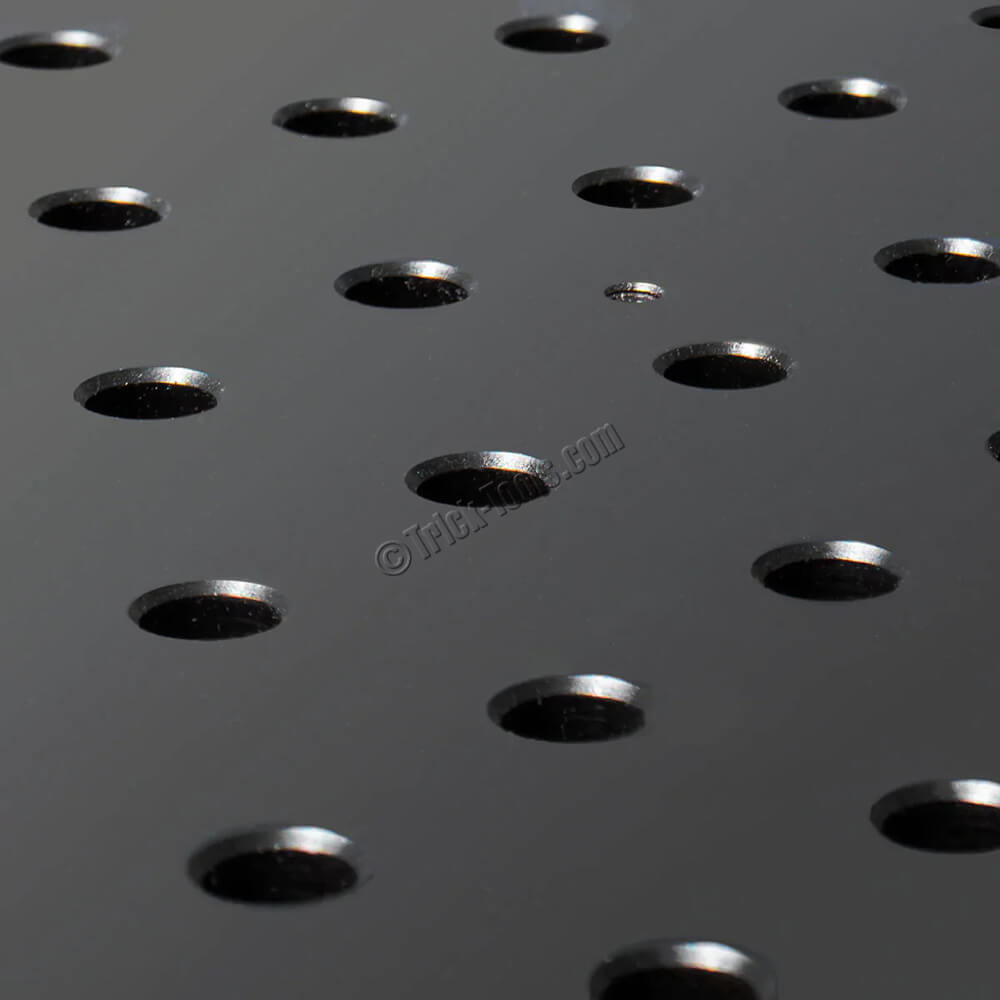

Hole diameter: .625 +.001/+.003
Hole spacing: 2.000 +/- .002
Plate thickness: .625

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1500 lbs
•Size: 30 x 48 inches
•Flatness: ±0.015 inch per 24 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 470
•Dimensions (LxWxH): 48 x 30 x 36
