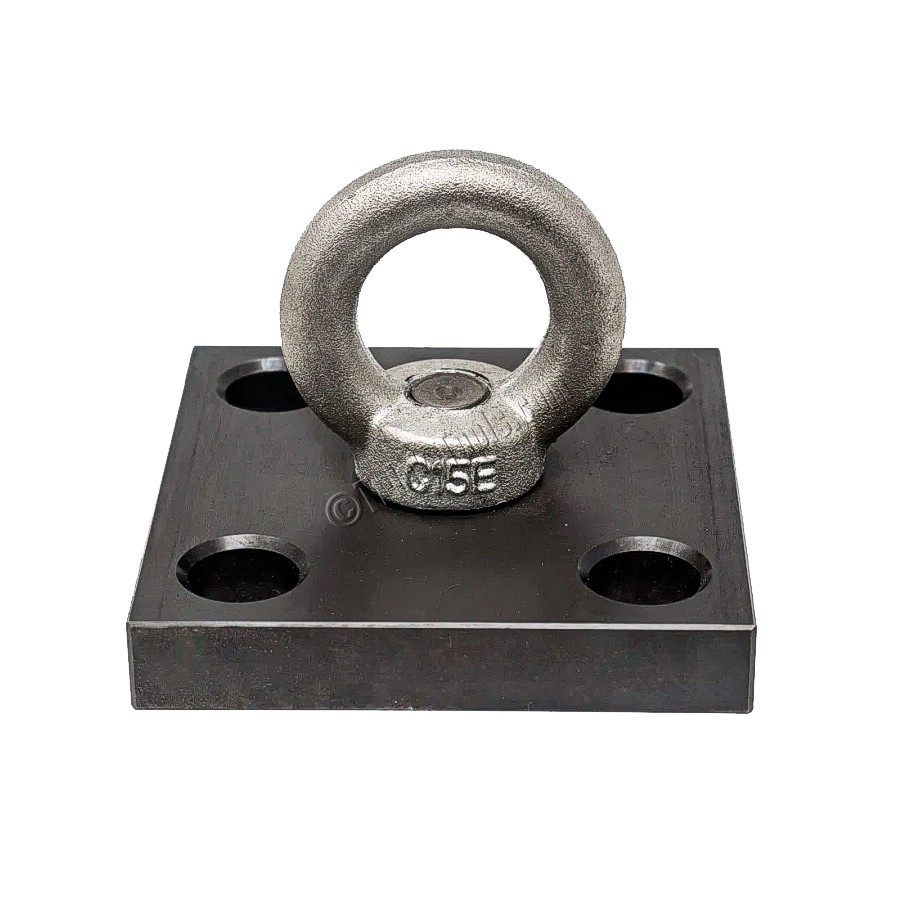

ALPHA28 Lifting Bracket

Part #: T28-97150
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $93.00

For ALPHA28 welding tables
Lifting bracket
1800kg lifting capacity
Fits most welding tables with 28mm holes

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

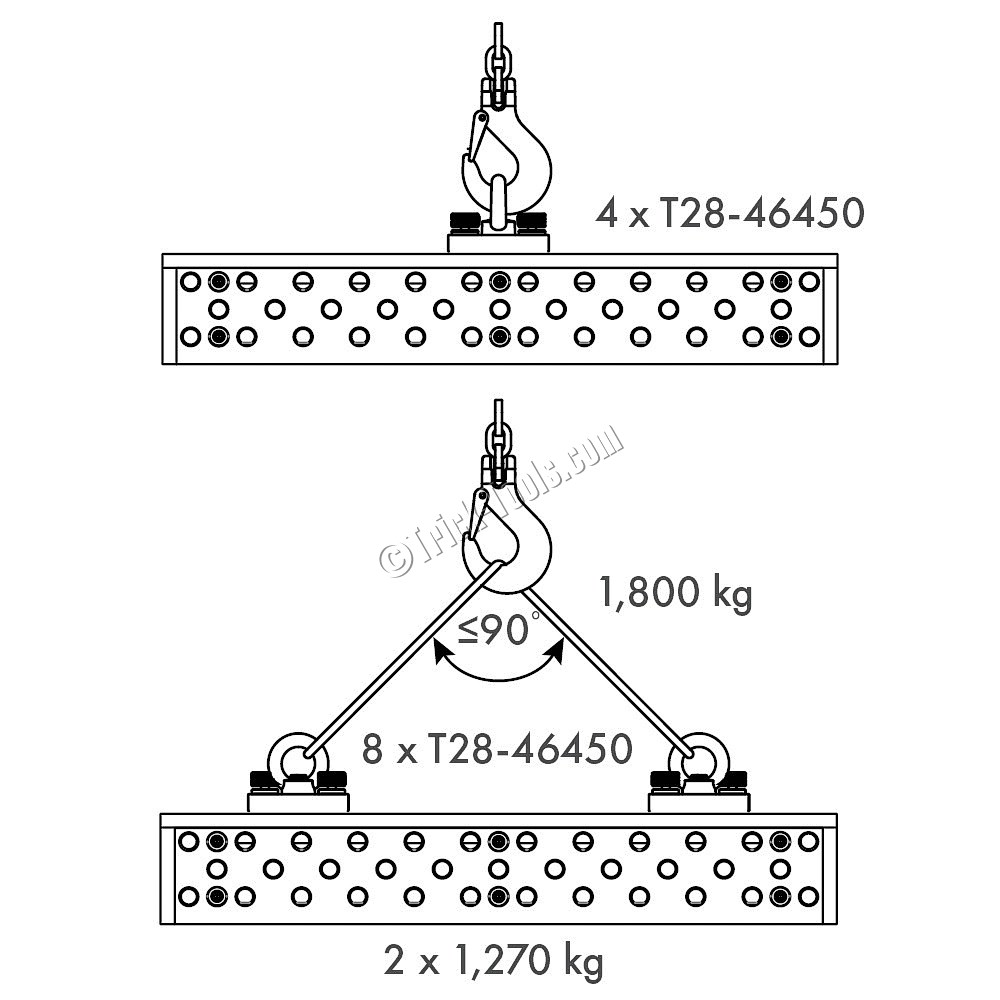

The ALPHA28 lifting bracket makes lifting the table from overhead safe and easy. Each bracket has a lifting capacity of 1,800 kg (3,968 lbs) and requires four clamping bolts (PN:T28-46450). ALPHA28 accessories fit most tables with 28mm mounting holes.

Safety Notes:
Lateral forces should be avoided on the lifting bracket eye nut as this will decrease its load capacity. With all lifting brackets users must observe general rules and regulations for material handling safety. Users must ensure Eye Nut or Hoist Rings are fully threaded and sit flat on the bearing surface. Users must ensure clamping bolts are fully seated onto the lifting bracket so that bolts can achieve full clamping capacity. Objects should not be lifted further than 100 mm off the ground and personnel are not allowed under objects being lifted or moved.

Warranty:

90 day manufacturer's warranty
