  Home > Welding & Plasma Cutting > Welding Accessories > Strong Hand Rhino Lift Mobile Fixturing Station Bundle, 48 x 30 inch

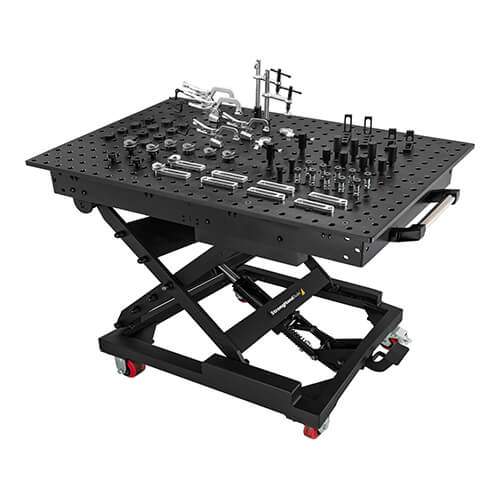

Strong Hand Rhino Lift Mobile Fixturing Station Bundle, 48 x 30 inch

Part #: TDSL4830-K1
 Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $4,145.00
FREE SHIPPING
  • Includes 66-piece fixutre kit
  • Adjustable from 21.6 to 38.2 inch table height
  • 48 x 30 inch mobile table
  • 5/8 inch holes spaced 2 inches apart
FREIGHT:
Freight
ORIGIN:
Import
BRAND:
Strong Hand Tools logo
Quantity:

DESCRIPTION

Always have your work at a comfortable height with the Rhino Lift. This 48 x 30 inch Rhino Lift Fixturing Station has a manual pump lift peddle and is adjustable from 21.6 to 38.2 inches. The nitride treated steel top features a black oxide finish and is reversible if one side is damaged.

The package comes complete with a 66-piece fixturing kit to get you up and running quickly and ready for most jobs. Additional 5/8 inch fixuturing can be found under the accessories tab.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1100 lbs
•Size: 30 x 48 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 502
•Dimensions (LxWxH): 48 x 30 x 36.4

INCLUDES

  • 48 x 30 adjustable height Rhino Lift with casters
  • (10) T55057 - Ball Lock Bolts
  • (2) T54201 - Locating Pins
  • (2) PTT522K - 2.3 inch Inserta Pliers
  • (2) PTT634K - 4 inch Inserta Pliers
  • (2) UDN5150 - Inserta Clamps
  • (2) T54217 - Inserta Clamp Top V-Pads
  • (2) TCX5210 - Side Clamps
  • (4) T54205 - 2 inch Locate Stops
  • (4) T54203 - 1.5 inch Locate Stops
  • (8) T54216 - V-Block
  • (4) T54211 - V-Block Spacers
  • (8) T50632-01 - D-Stop Bars
  • (12) T50737 - Magnetic Rest Spacers
  • (2) T50304 - 2 inch Right Angle Brackets
  • (2) T50305 - 4 inch Right Angle Brackets

DOCUMENTATION

PDF User Manual
