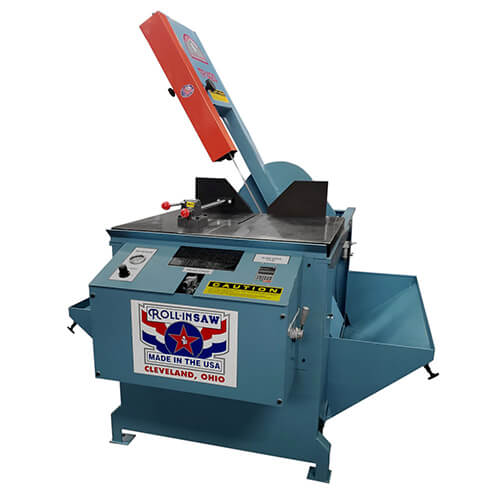

Roll-In TF1420 Tilt-Frame Gravity Feed Vertical Band Saw

Part #: TF1420
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $17,895.00

NEW

2 hp motor
Head tilts 45 degrees both directions
14 x 20 inch rectangle capacity at 90 degrees
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

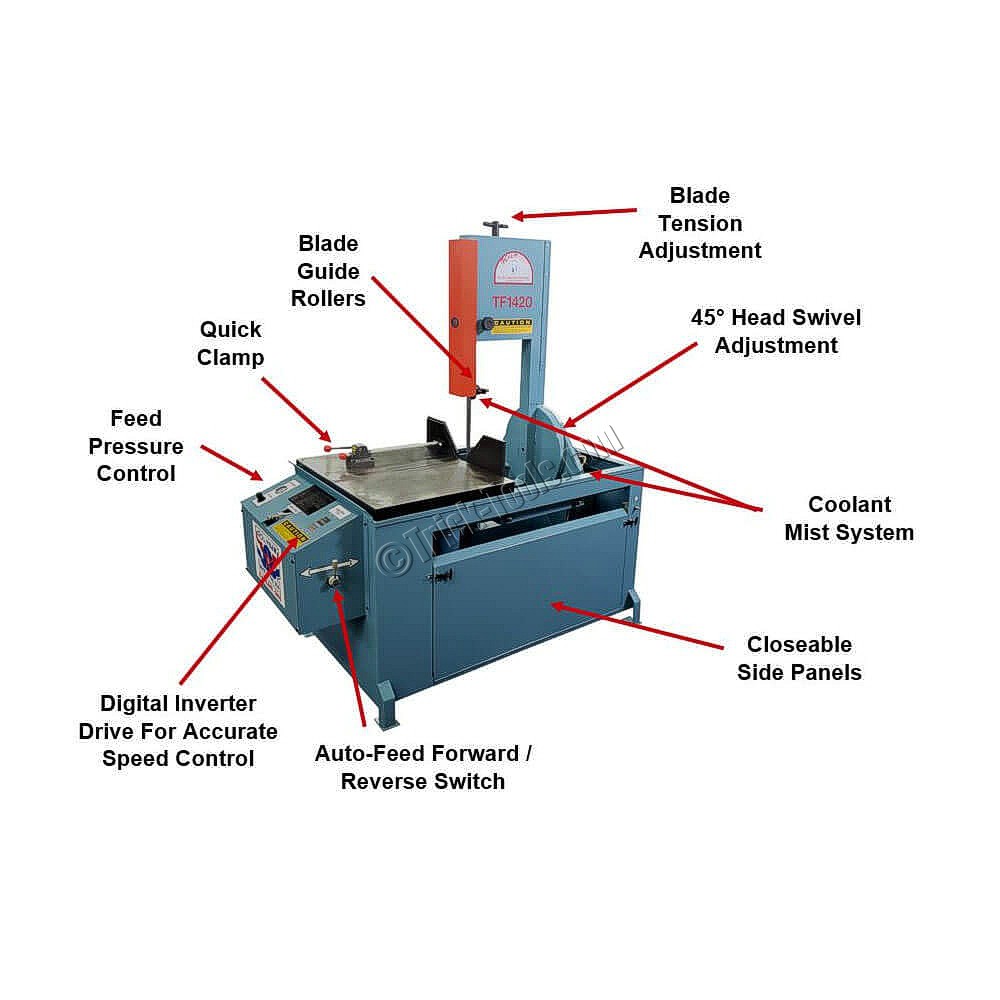

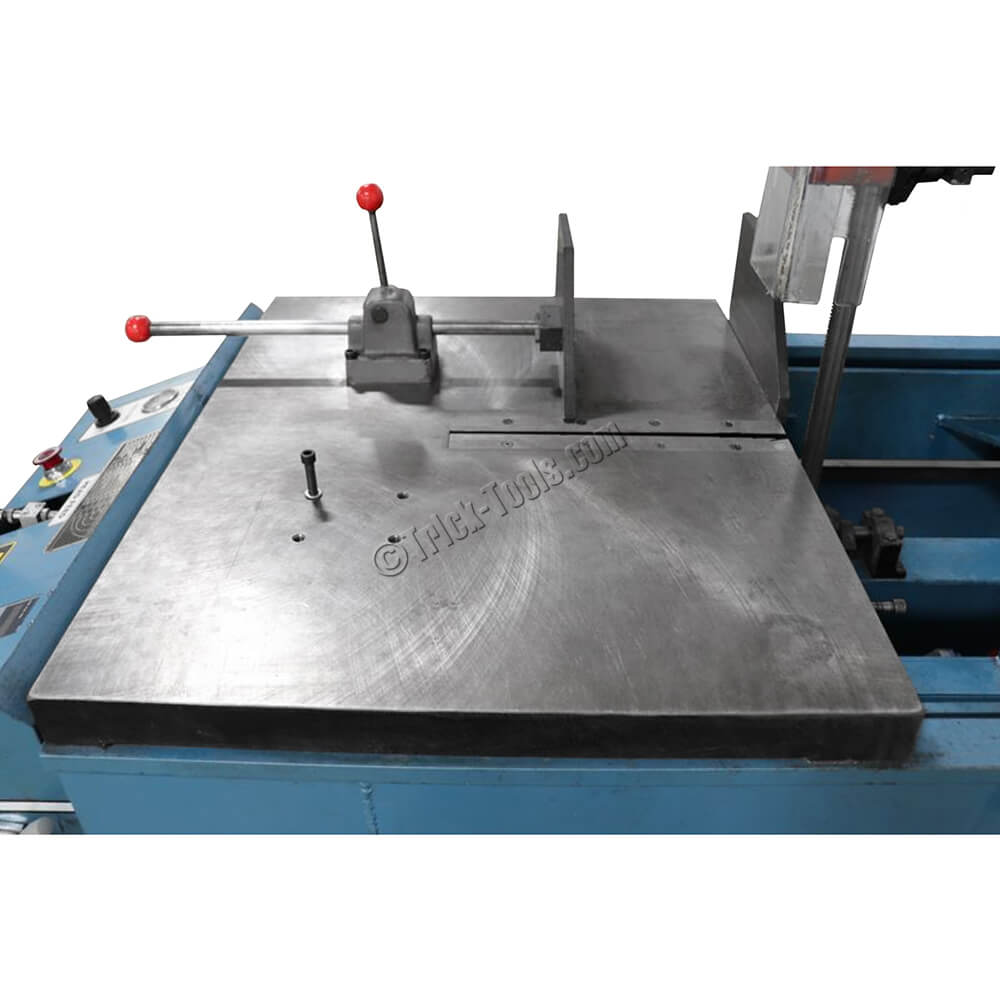

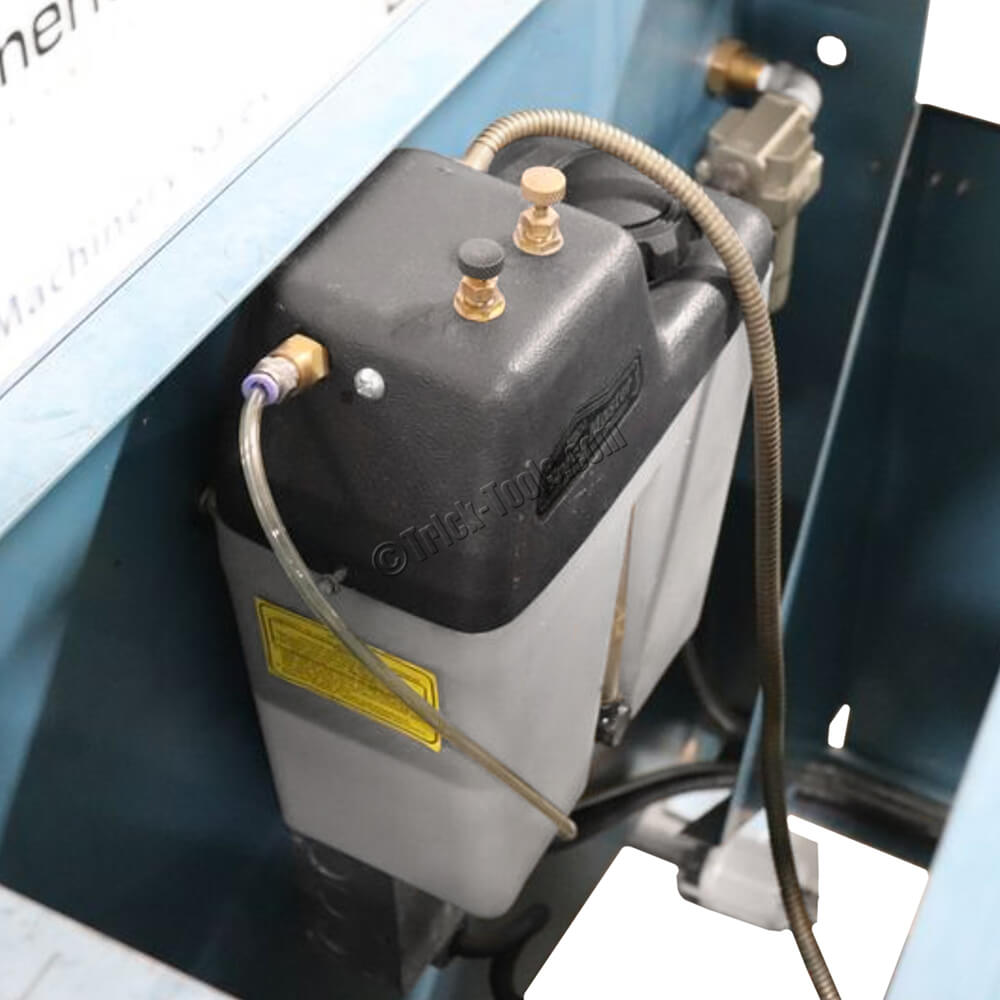

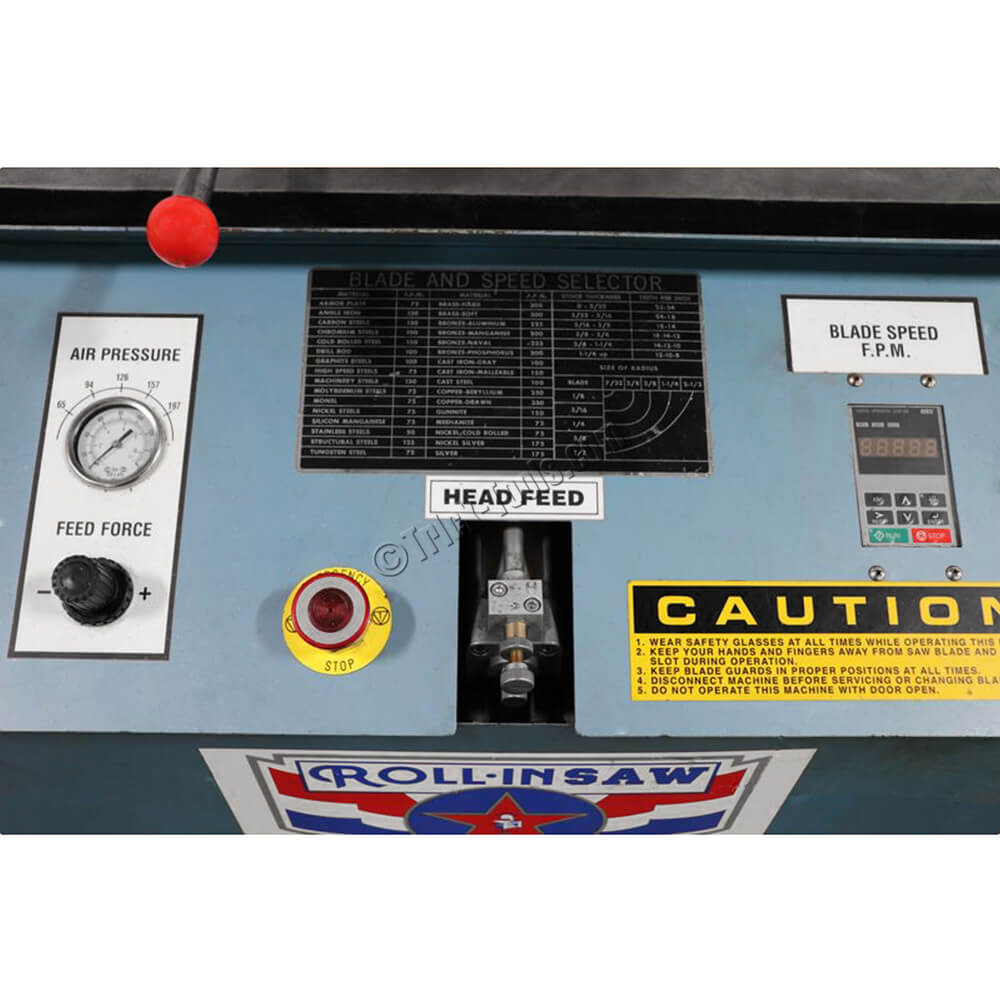

The TF1420 is a horizontal band saw built on a vertical frame making it a great all-purpose saw. This saw features a large 14 inch round or 14 x 20 inch rectangle cutting capacity, 45 degree tilting head, a precision ground cast iron table. The control panel allows the user to digitally adjust blade speed, hydraulically control the feed rate, and adjust blade pressure via compressed air. This industrial saw will provide years of cutting and improved efficiency for your business.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 2.0 hp
•Blade Width (inches): .25 - 1
•Blade Length (inch): 155
•Blade Thickness (inches): .035
•Throat (inches): 14 @ 90 degrees/13 @ 45 degrees
•Number of Speeds: variable
•Speed(s): 70-400 feet per minute
•Work Height (inches): 37
•Mitering Range: 45 degrees
•Round Solid Capacity 90 Deg (inches): 14
•Round Solid Capacity 45 Deg (inches): 13
•Round Tube Capacity 90 Deg (inches): 14
•Round Tube Capacity 45 Deg (inches): 13
•Square Tube Capacity 90 Deg (inches): 14 x 14
•Square Tube Capacity 45 Deg (inches): 13 x 13
•Rectangle Tube Capacity 90 Deg (inches): 14 x 20
•Rectangle Tube Capacity 45 Deg (inches): 13 x 20
•Weight (pounds): 1400
•Dimensions (LxWxH): 66 x 60 x 80
