Tin Knocker 8 foot Straight Brake, 16 gauge

Name: Tin Knocker 8 foot Straight Brake, 16 gauge
Brand: Tin Knocker
SKU: TK816
Price: 6150.00 USD
Availability: InStock

Part #: TK816
Model: 816
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,150.00

Heavy steel construction
Easily adjusted
Replaceable nose bar and apron inserts
Fully adjustable counter weights

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

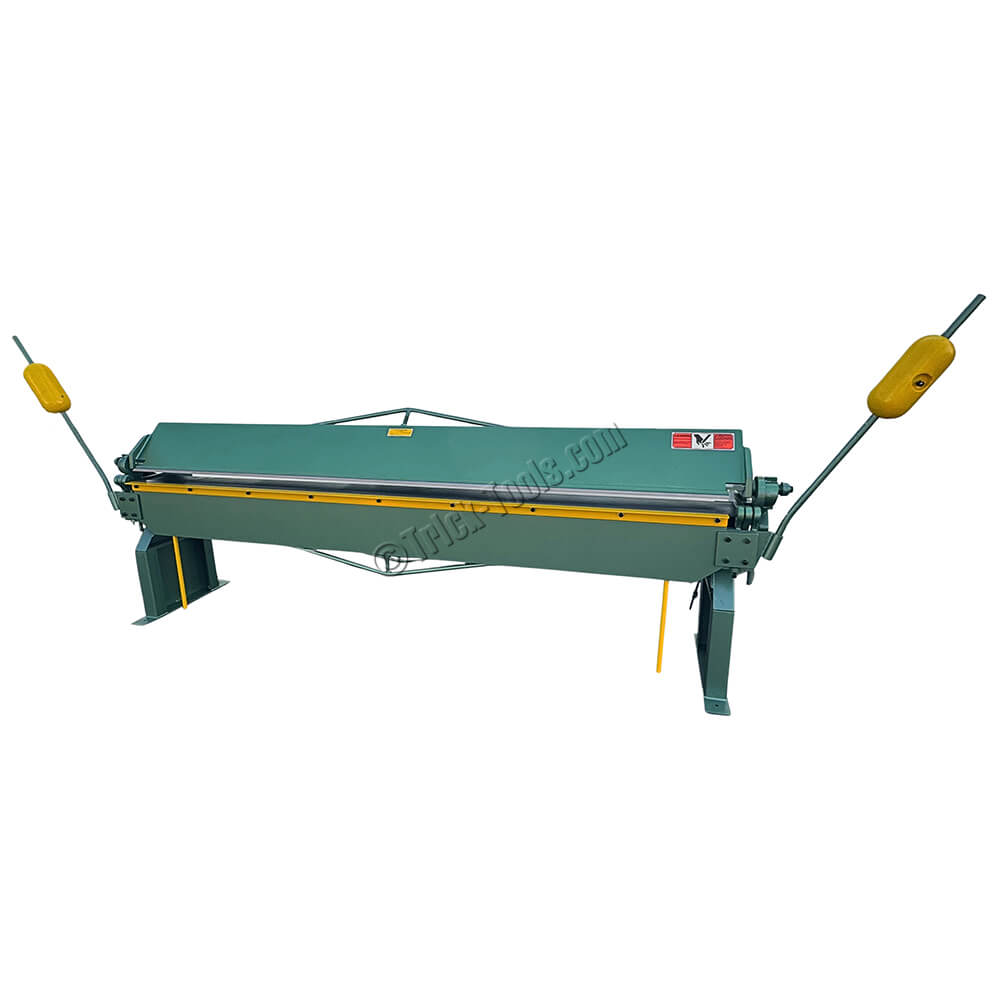

The Tin Knocker 816 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 8 feet wide and 16 gauge weight. The 816 is an industrial-quality brake, designed and built to last.

The Tin Knocker 816 Leaf Brake includes the following features:

A spring steel nose bar for durability and long-lasting service
A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.

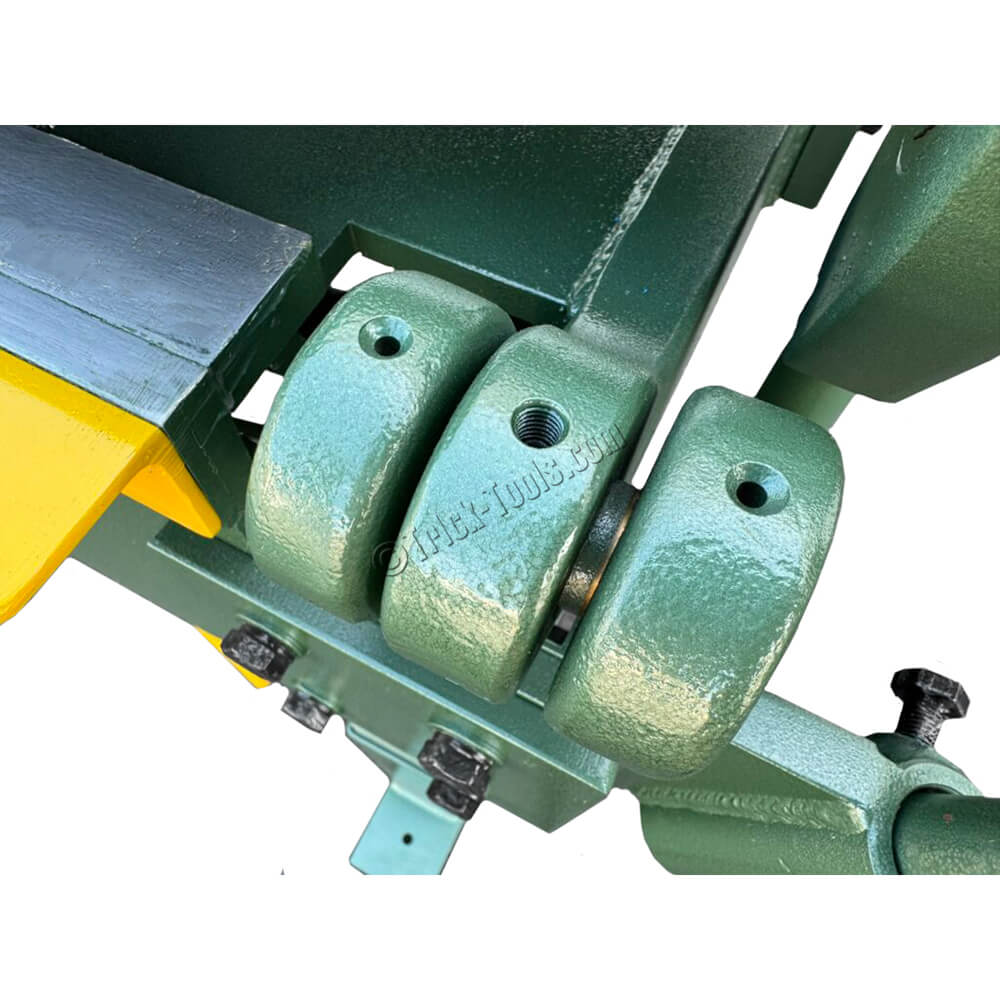

A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.

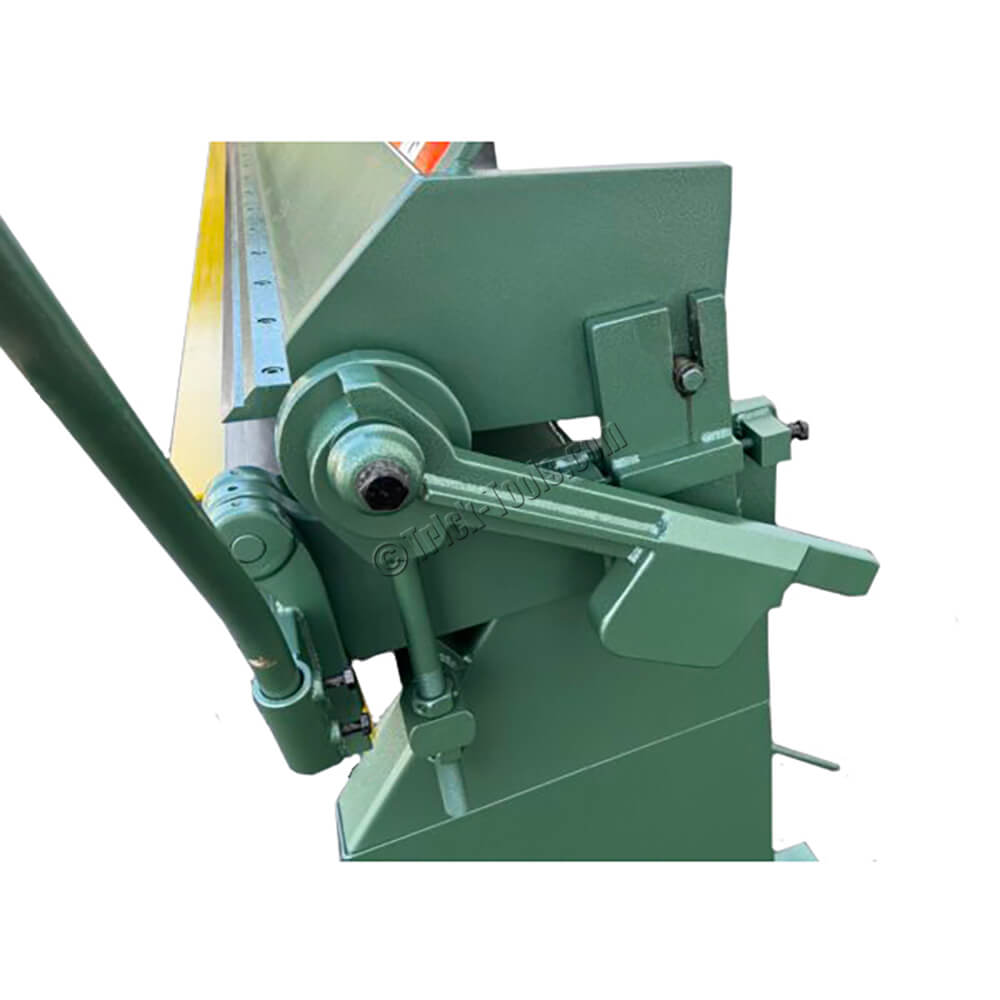

A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 96
•Max Lift Of Beam (inches): 2.25
•Front To Rear Adj (inches): .5
•Min Reverse Bend (inches): .25
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 97
•Weight (pounds): 2480
•Dimensions (LxWxH): 120 x 32 x 43
