Tennsmith Corner Notcher, 16 gauge

Part #: 16-18
Model: 86100
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,250.00

IN STOCK

Heavy cast frame
Choose from standard or box flange blades
3 year warranty
Create up to a 6 x 6 inch notch

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The Tennsmith Model 16-18 notcher is a versatile, heavy duty bench tool for shearing, notching, and piercing work. The heavy cast iron construction allows the notcher to be used to side shear six inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction. The large 12 inch by 18 inch worktable provides support for the material being worked.

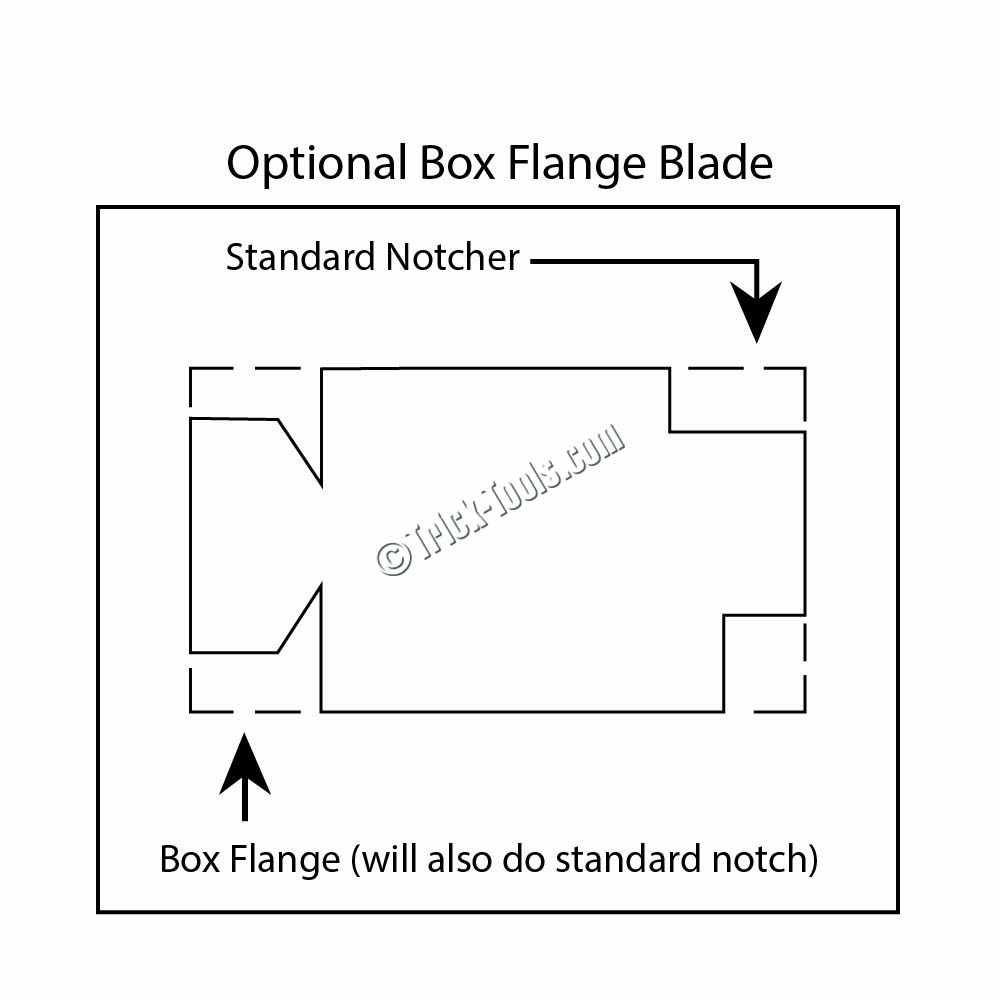

Notches of more than 90 degrees can be accomplished in two operations. The upper blades can be reversed for nose to heel cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations. This notcher can be configured with flange blades for forming reinforced corners in boxes, pans, and chassis corners.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Blade Length (inches): 6
•Cutting Width (inches): 6 x 6 x 90 degree
•Weight (pounds): 170
•Dimensions (LxWxH): 19 x 18 x 15
