Siegmund Imperial 16 Rotary Positioner Bundle, 72 inch

Part #: USM051016.25
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $12,565.00
Sale Price: $11,066.00

SALE

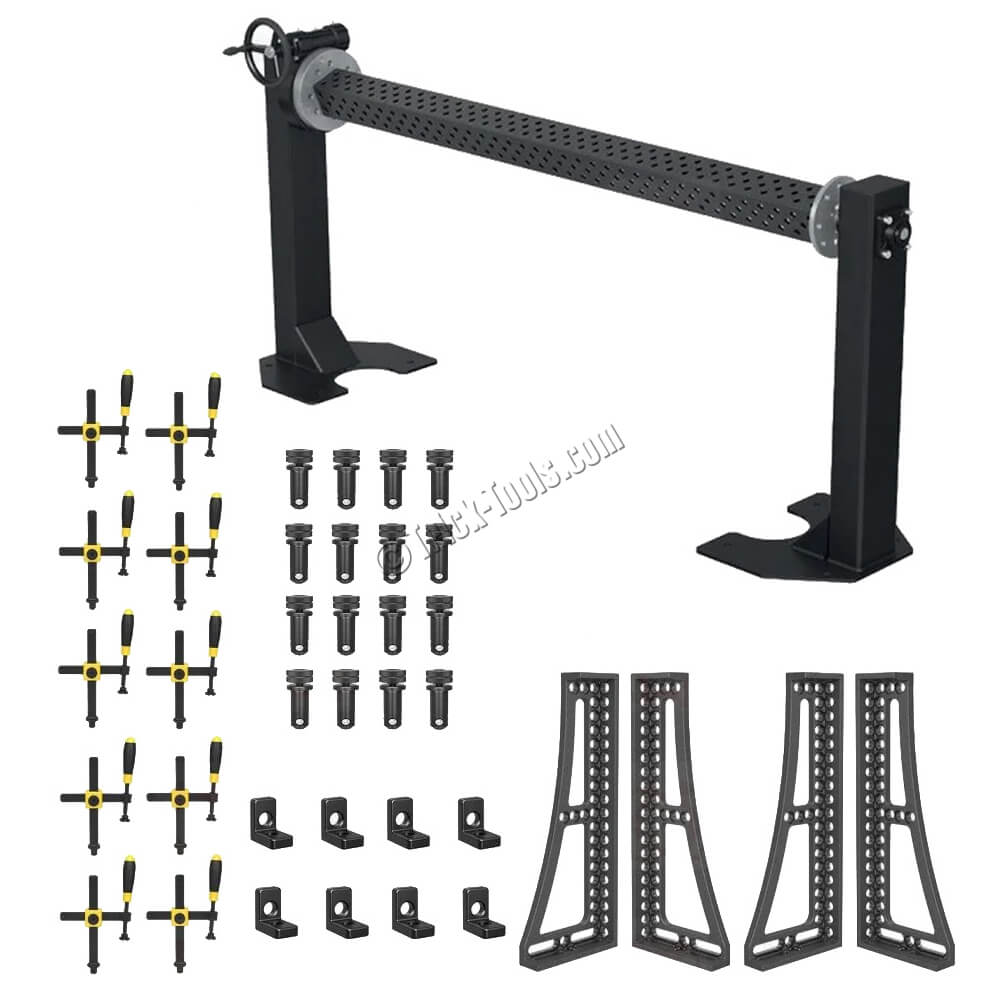

40-piece positioner and fixture bundle
Includes 72 inch U-Shape Square
1100 lbs capacity
16mm holes spaced 2 inches apart

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

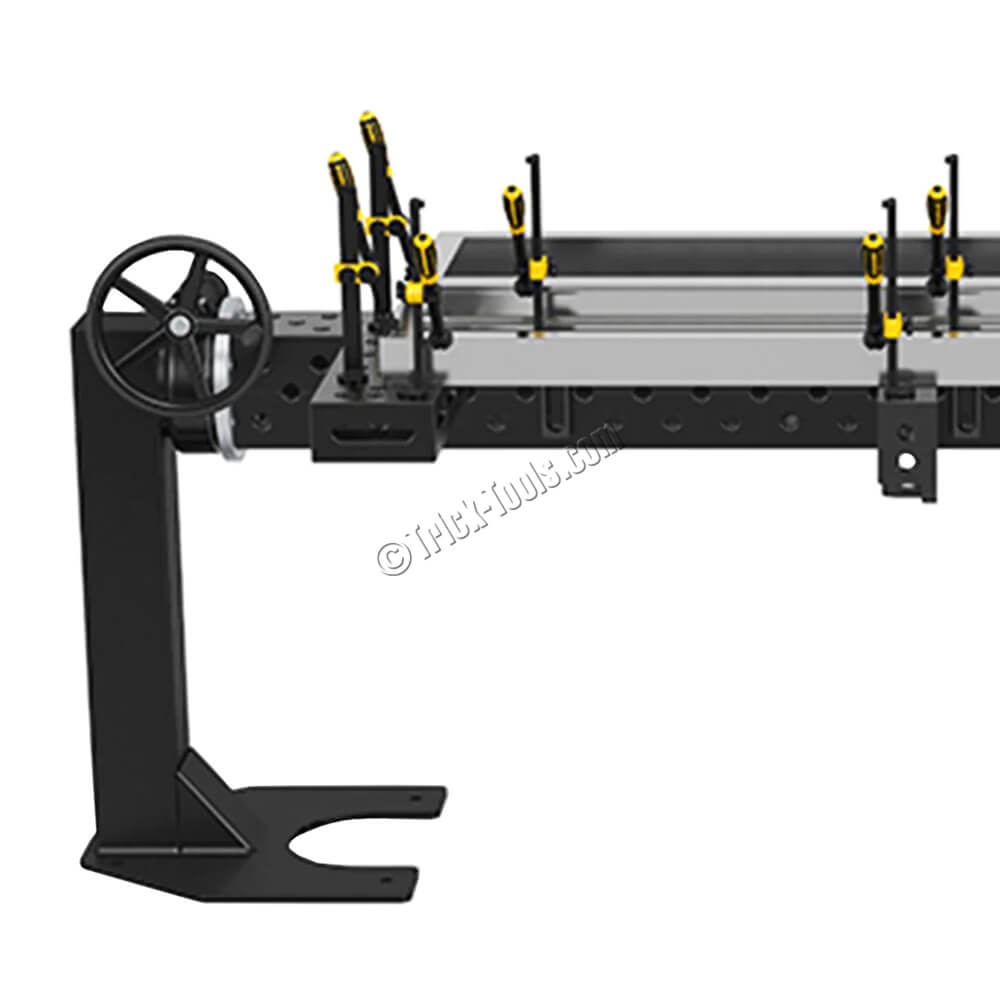

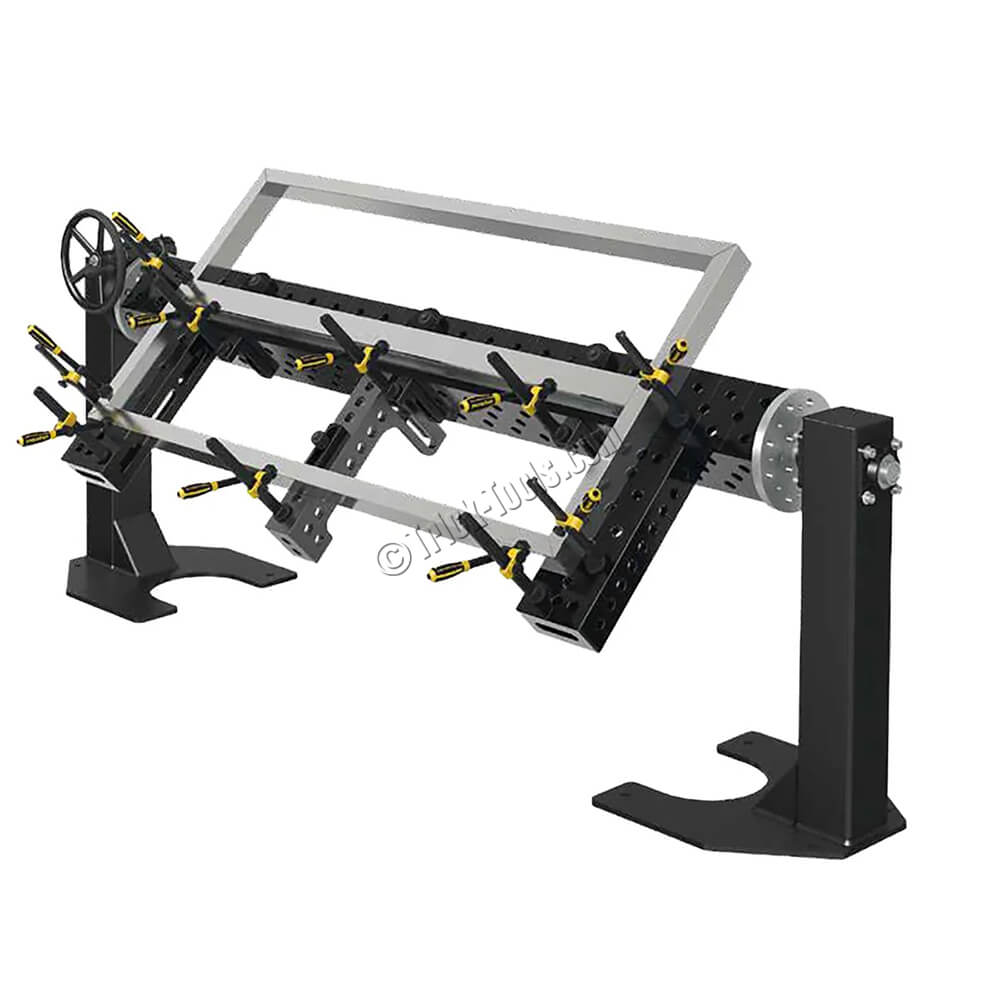

With an 1,100 lbs capacity and a 72 inch U-Shape Square for mounting to, the Siemgund Imperial 16 MP 500 Rotary Positioner allows for easy access to the top, bottom, or side of your component. The 8 inch hand wheel connects to a heavy duty gearbox with 1:73 gear ratio for smooth easy rotation and the included fixture kit ensures you have a nice selection to get you started. The 72 inch U-Shape Square features 16mm holes spaced 2 inches apart and a plasma nitride coating to increase the hardness and reduce weld spatter from sticking.

This 40-piece kit includes fixture and layout bundle. Siegmund has a wide variety of additional clamps and fixturing components available to make this positioner useful for virtually any welding project. See the Accessories tab for more information.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1100 lbs
•Finish: Nitrided
•Hole diameter: 16mm
•Hole spacing: 2 inch
•Plate thickness: 1/2 inch
•Weight (pounds): 350

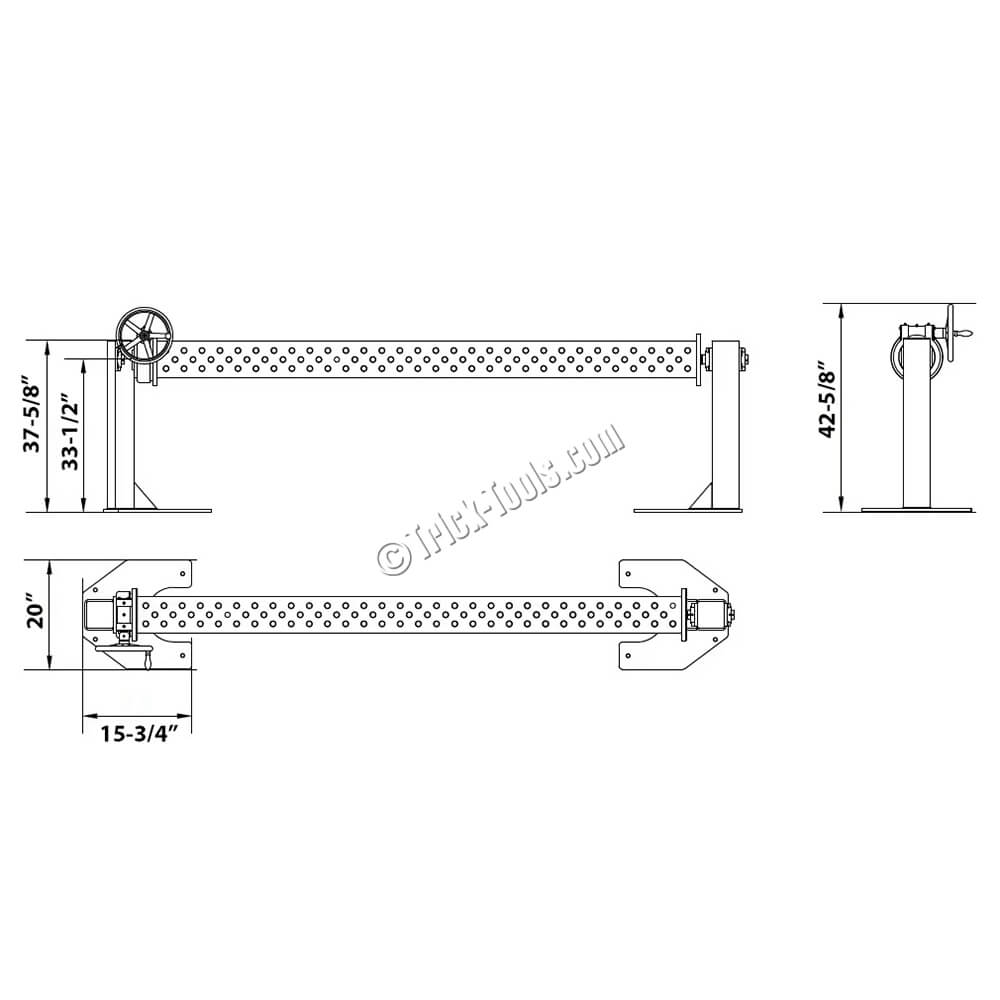

•Dimensions (LxWxH): 85 x 20 x 42.625
