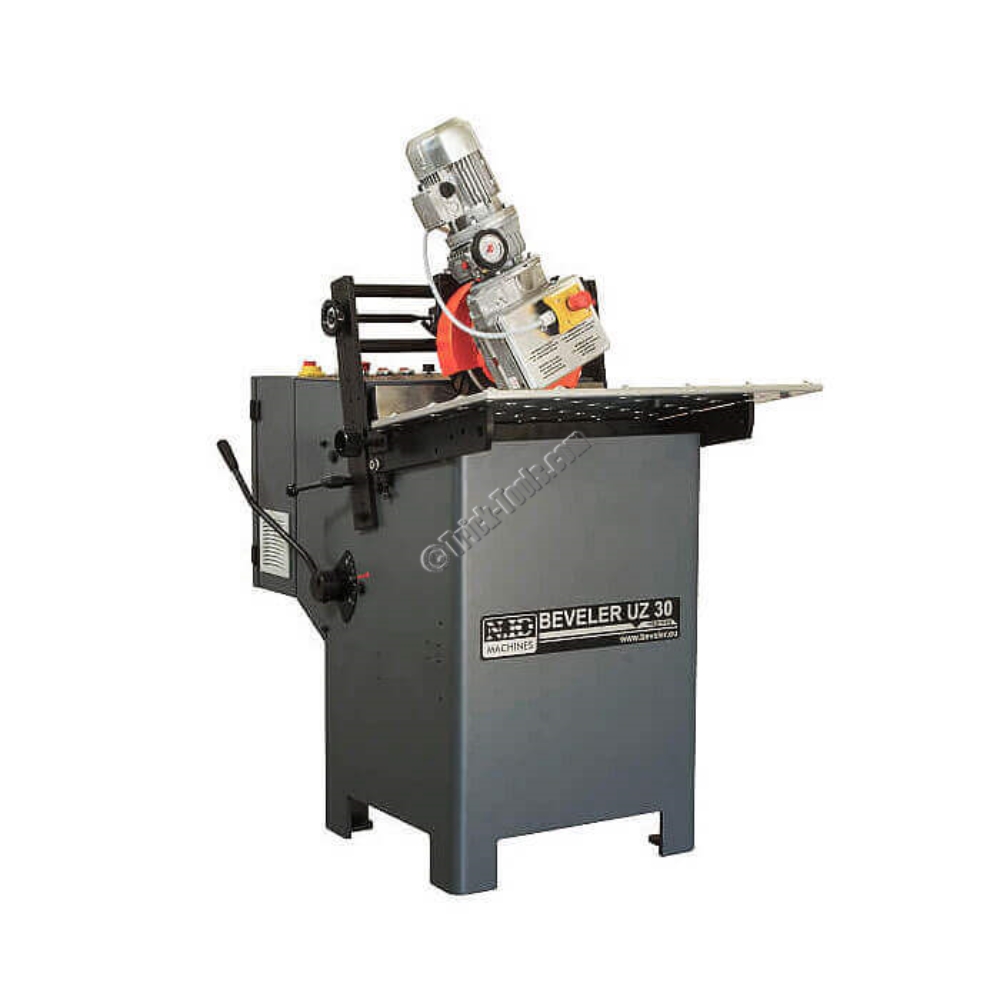

Beveler USA UZ30 Express Beveling Station

Part #: UZ30
Model: UZ 30 Express, 25997, 25998
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $35,567.00

NEW

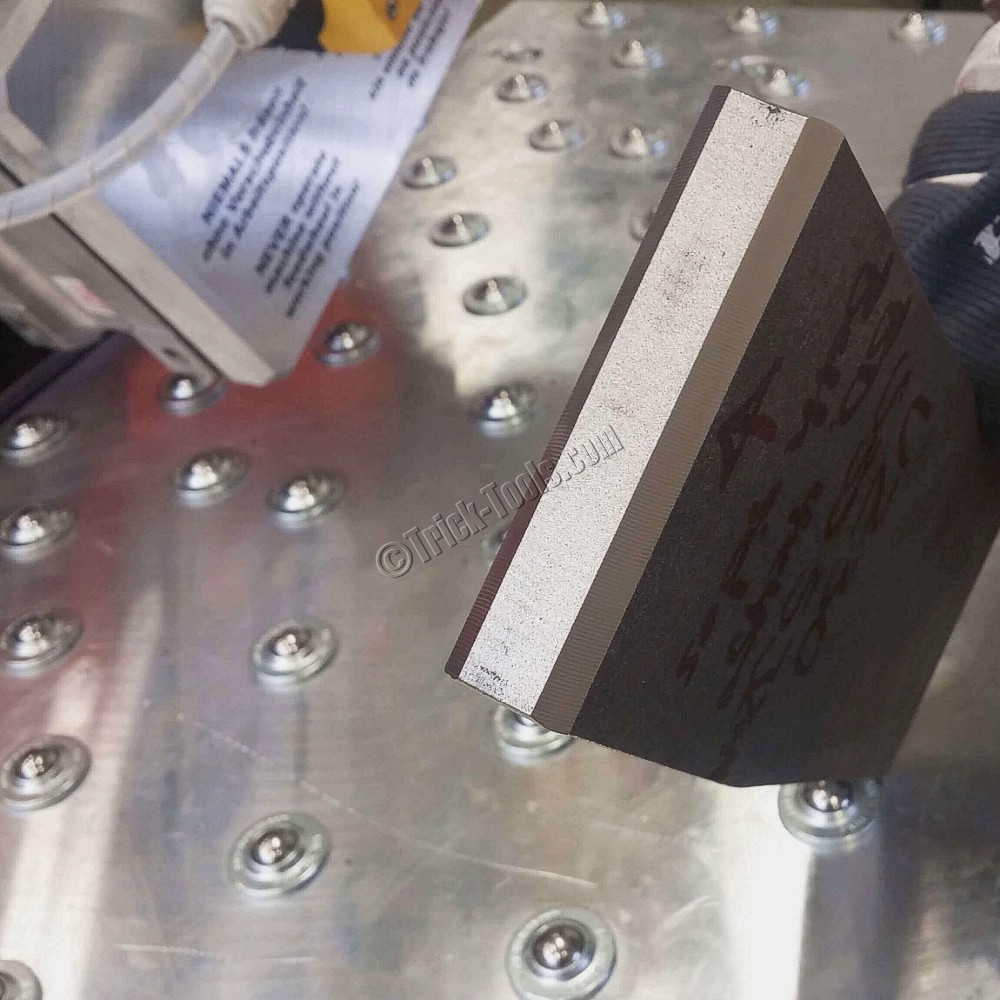

Quickly bevel and deburs to a near mirror finish
.080 to 4 inch thick material
Excellent for production runs
1.9 - 11.5 feet/min

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

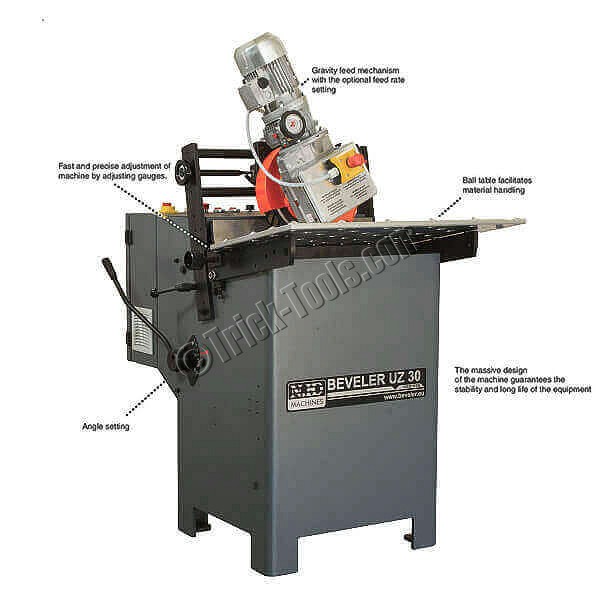

If you're looking for a machine to create large volumes of precise bevels or finished edges quickly, the Beveler USA UZ30 Express Beveling Station is the right tool for the job. It will give a mirrored finish edge on material ranging from .080 to 4 inches thick and you can quickly adjust the angle from 30 to 60 degrees and depth of cut with no tools.

This machine is a must for large volume runs or when you need a finished edge. See the documents tab for additional information or feel free to call or e-mail one of our experts with questions or to request a formal quote.

Additional Specs:

Power input: 220v, 3ph
Bevel angle: Continusously adjustable from 30° to 60°
Bevel width maximum: 30mm at 30°, 20mm at 45°, and 17mm at 60° (see documents tab for additional specs)
Material thickness min/max: 0.080 - 4 inches (2 - 100 mm)
Speed 0-5,500 rpm
Feed type: Variable
Feed rate: 1.9 to 11.5 feet/min
Weight: 882 lb (400 kg)
Number of cutting inserts: 5 pcs

Warranty:

1 year manufacturer's warranty
