Beveler USA UZ50 Triumph Beveler

Part #: UZ50
Model: UZ50 Triumph, 1952, 1953, 1954, 1957
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $25,540.00

NEW

Adjustable from 15 to 60 degrees

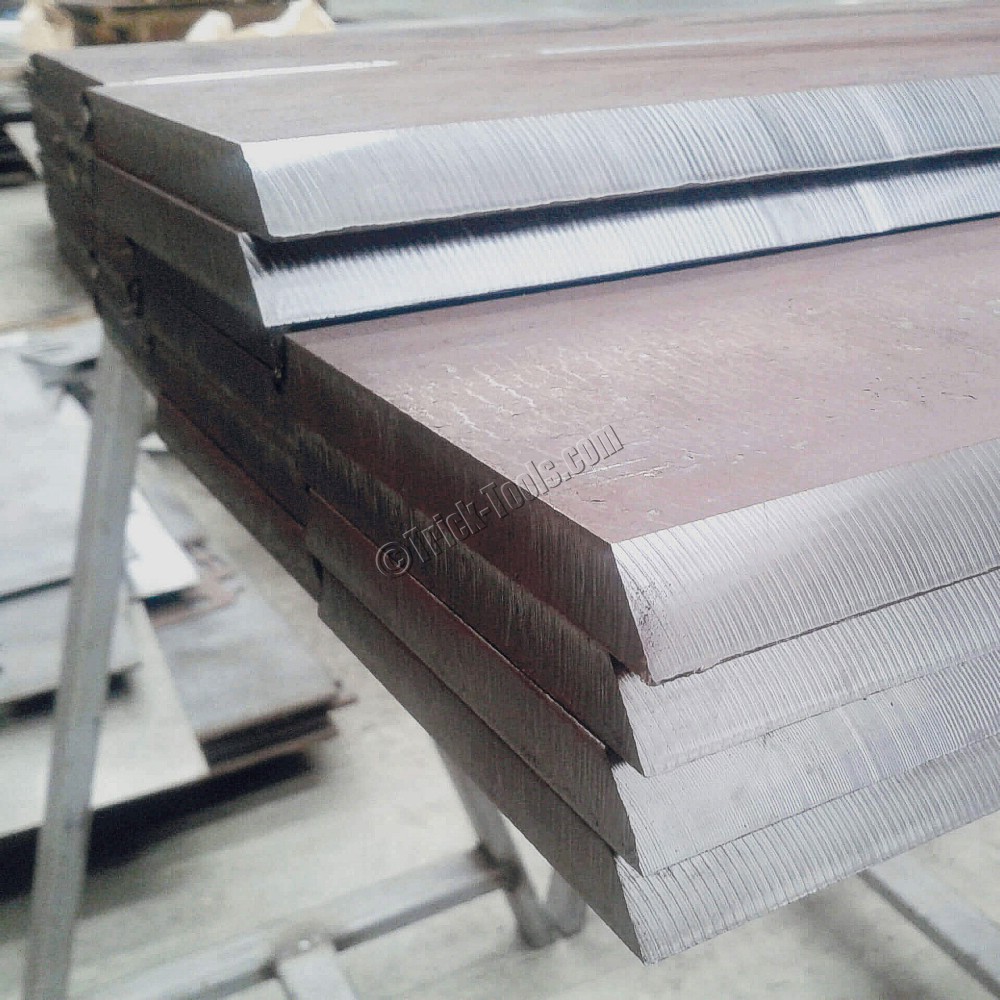

Bevel or create a finished edge
Up to 62mm bevel widths
Feeds at 3.93 feet per minute

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

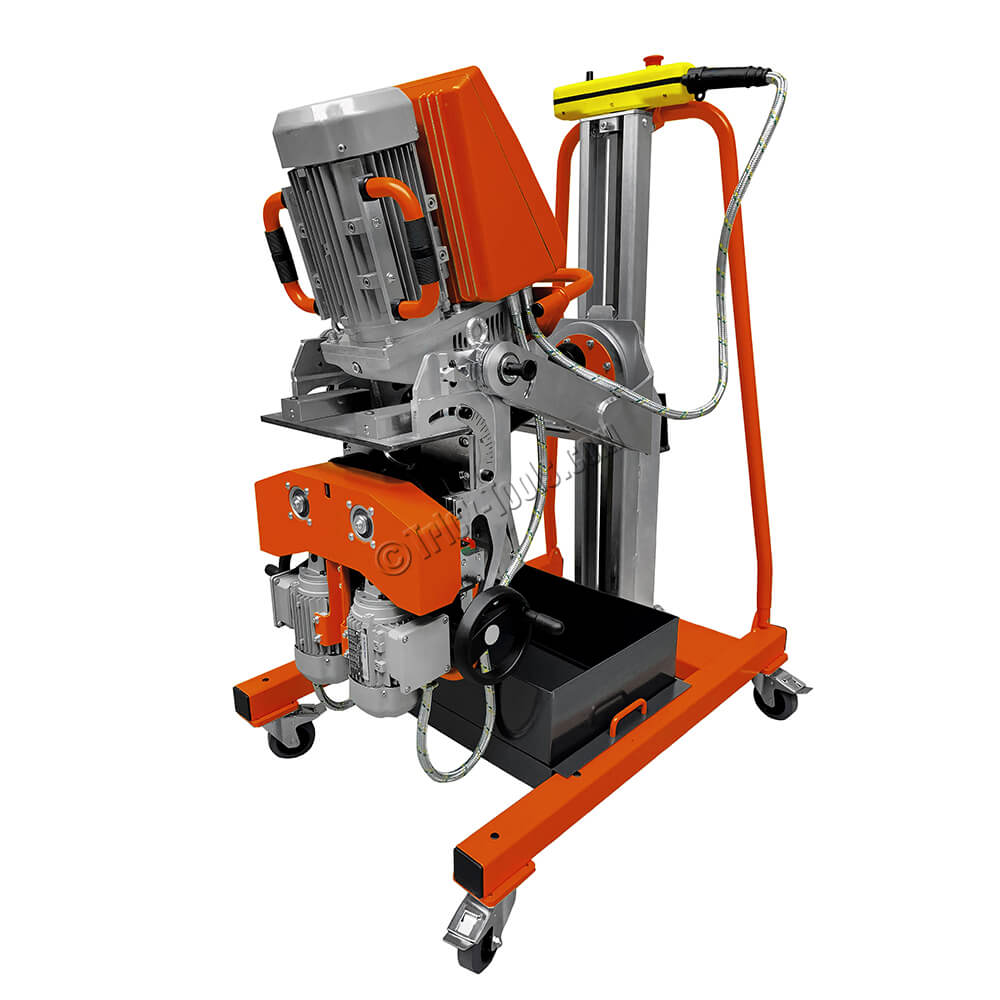

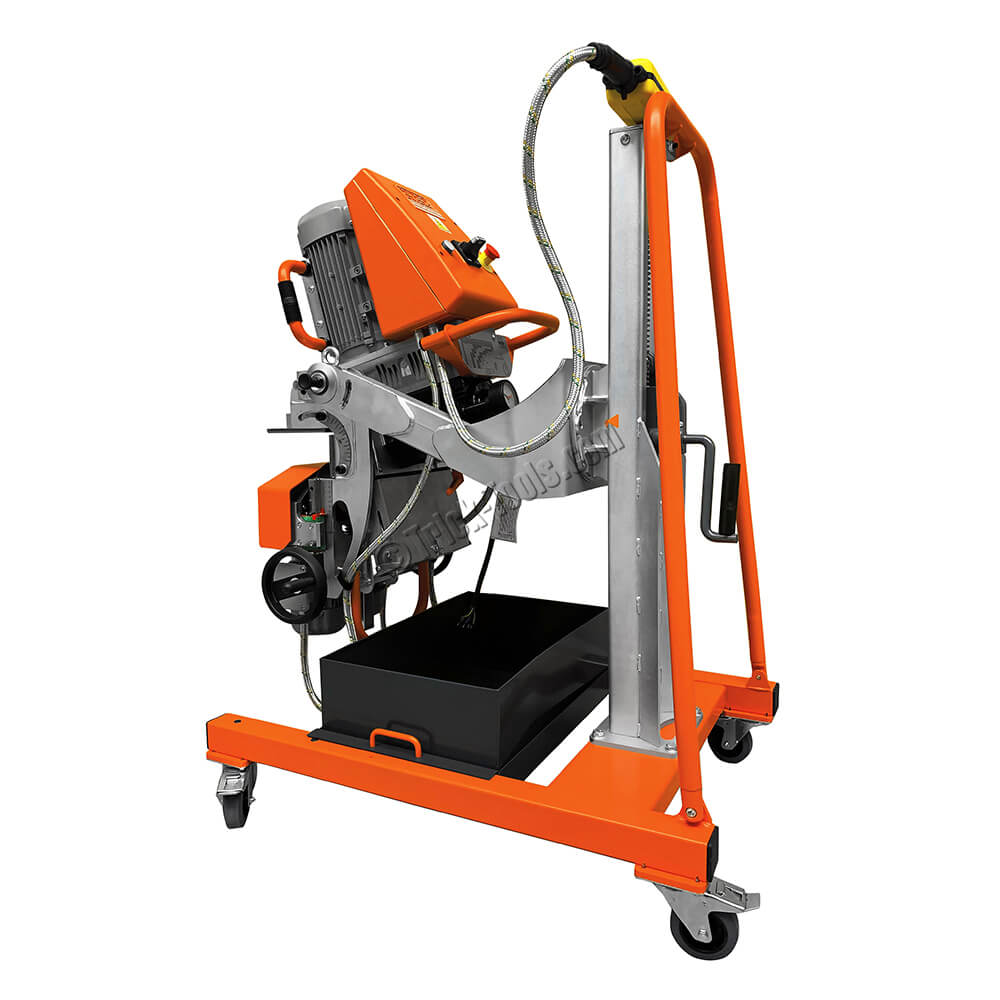

The UZ50 Triumph from Beveler USA has the largest capacity of any machine in their lineup at a maximum of 62mm. It uses a powerful 4000 watt (5hp) motor along with a 5 cutter milling head for a smooth, near mirror finish bevel. Along with the cutting motor, the UZ50 also features dual synchronized feed motors. The adjustable head on the UZ50 makes changing the bevel angle anywhere from 15 degrees to 60 degrees very quick and easy.

Additional Specs:

Power input: 220/480 volt 3 phase, 5hp (4000 watt)

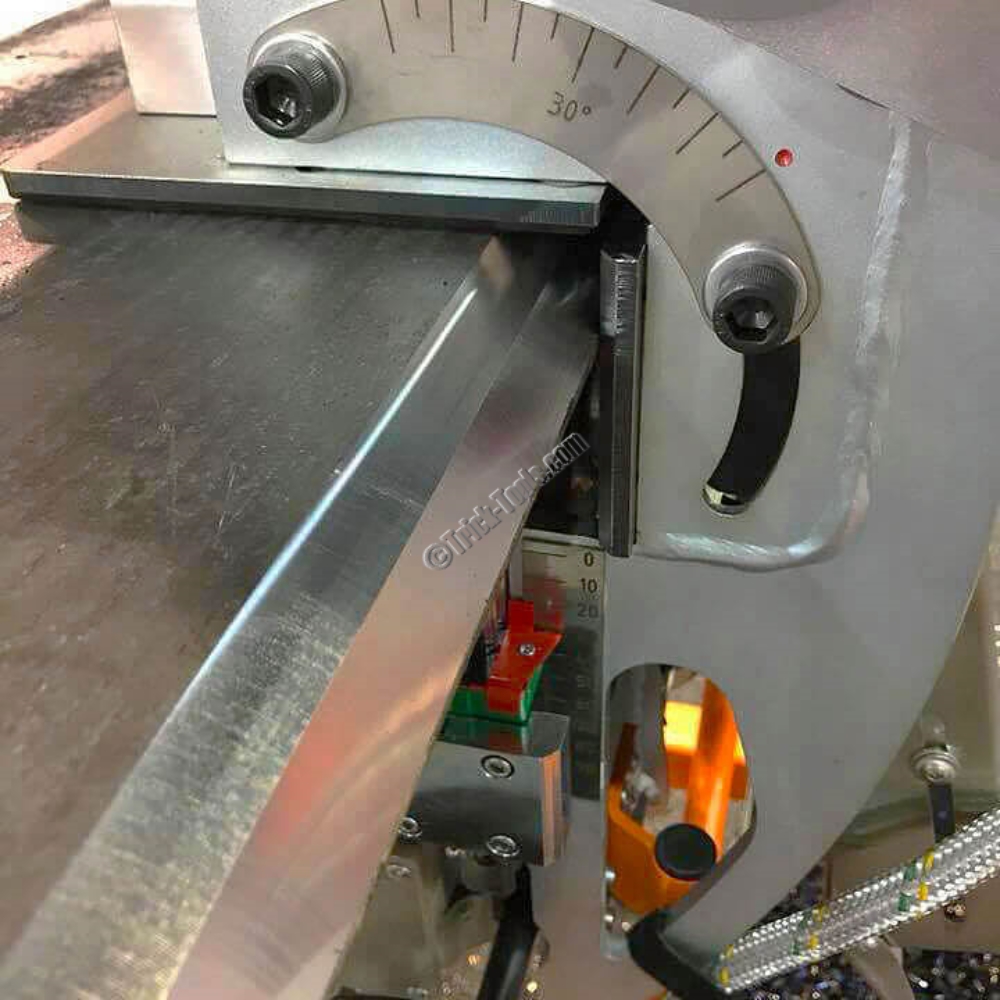

Bevel angle: Adjustable from 15° to 60°
Bevel width maximum: 2.44 inches (62 mm)
Bevel thickness maximum (per pass): 0.2 inches (5mm)
Material thickness: 0.27-3.15 inches (7-80mm)
Feed type: automatic
Feed rate: 0 to 3.9 ft/min (0 to 1.2 m/min)
Weight: 385.8 lb (175 kg)

Maximum Bevel Specs:

Bevel Angle	Max Width of Bevel	Recommended Number of Passes
15°	2.44 in (62mm)	3 passes
20°	2.44 in (62mm)	4 passes
25°	2.2 in (56mm)	4 passes
30°	2.04 in (52mm)	5 passes
35°	2 in (51mm)	5 passes
40°	2 in (51mm)	5 passes
45°	1.97 in (50mm)	5 passes
50°	2 in (51mm)	5 passes
55°	2 in (51mm)	5 passes
60°	2.04 in (52mm)	5 passes

Warranty:

1 year manufacturer's warranty
