Dake Hydraulic Corner Notcher, 4 gauge

Part #: 960400
Model: DLN-6200
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,250.00

NEW

Fixed 90 degree notching angle
Up to 6mm/0.225 inch capacity
4HP 220v 3 phase motor
15 strokes per minutes

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

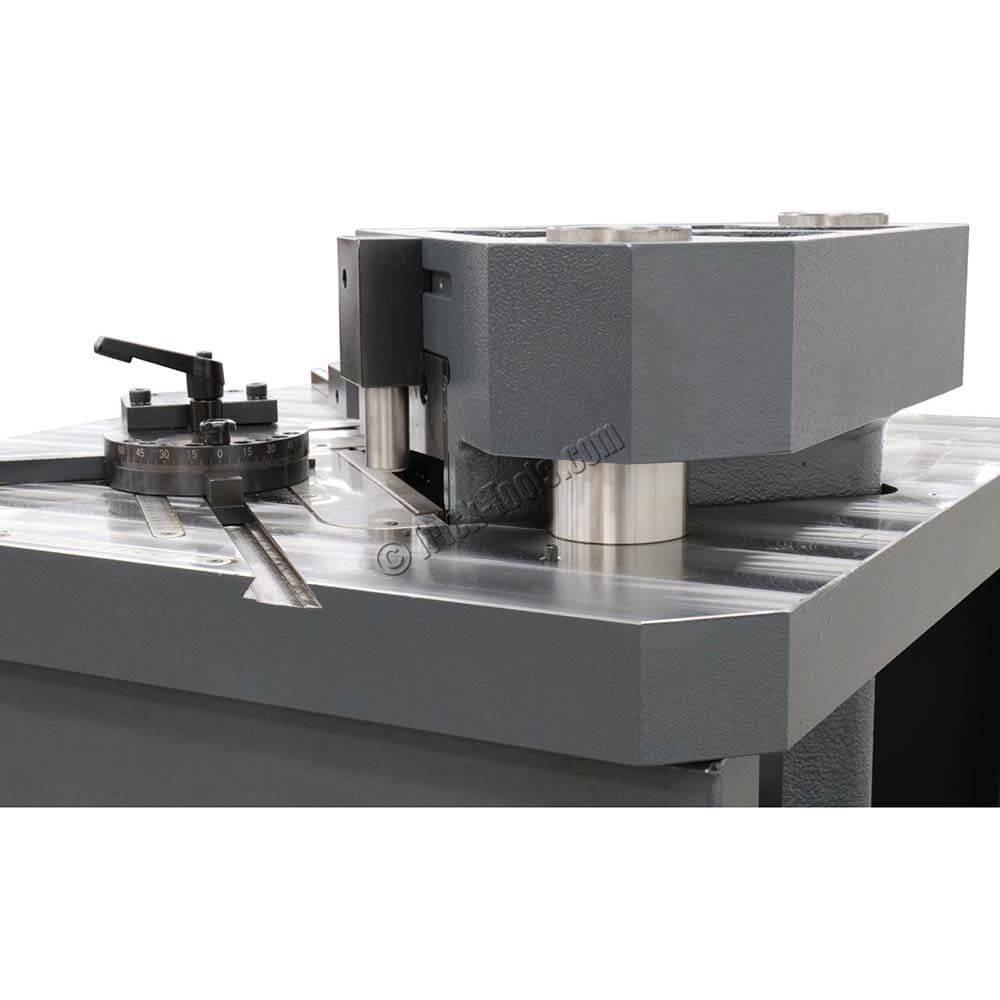

The Dake DLN-6200 heavy-duty corner notcher features a 4 HP (220v 3 phase) motor that is rated at 15 strokes/ min and allows up to an 8.5 inch deep notch in 4 gauge (6mm/0.225 inch) mild steel. The fixed 90 degree blades and 25 inch work table ensure accuracy with every notch.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: hydraulic
•Mild Steel Capacity: 4 gauge (6mm)
•Stainless Capacity: 14 gauge (2mm)
•Blade Length (inches): 8.5
•Motor: 220v 3ph, 4 HP
•Cutting Speed: 15 strokes/min
•Cutting Width (inches): 8.5 x 8.5 x 90 degree
•Weight (pounds): 1,092
•Dimensions (LxWxH): 31.5 x 25.5 x 46.8
