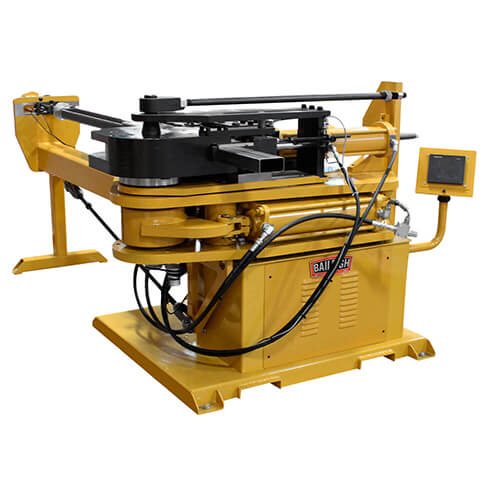

Baileigh MB-4x2 Mandrel Tube Bender

Part #: MB-4X2
Model: 1013922
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $73,714.29
Sale Price: $59,999.99

FREE SHIPPING

Bends 4x2 the easy or hard way
Up to 11 gauge (.120 wall)
Perfect for custom chassis work
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

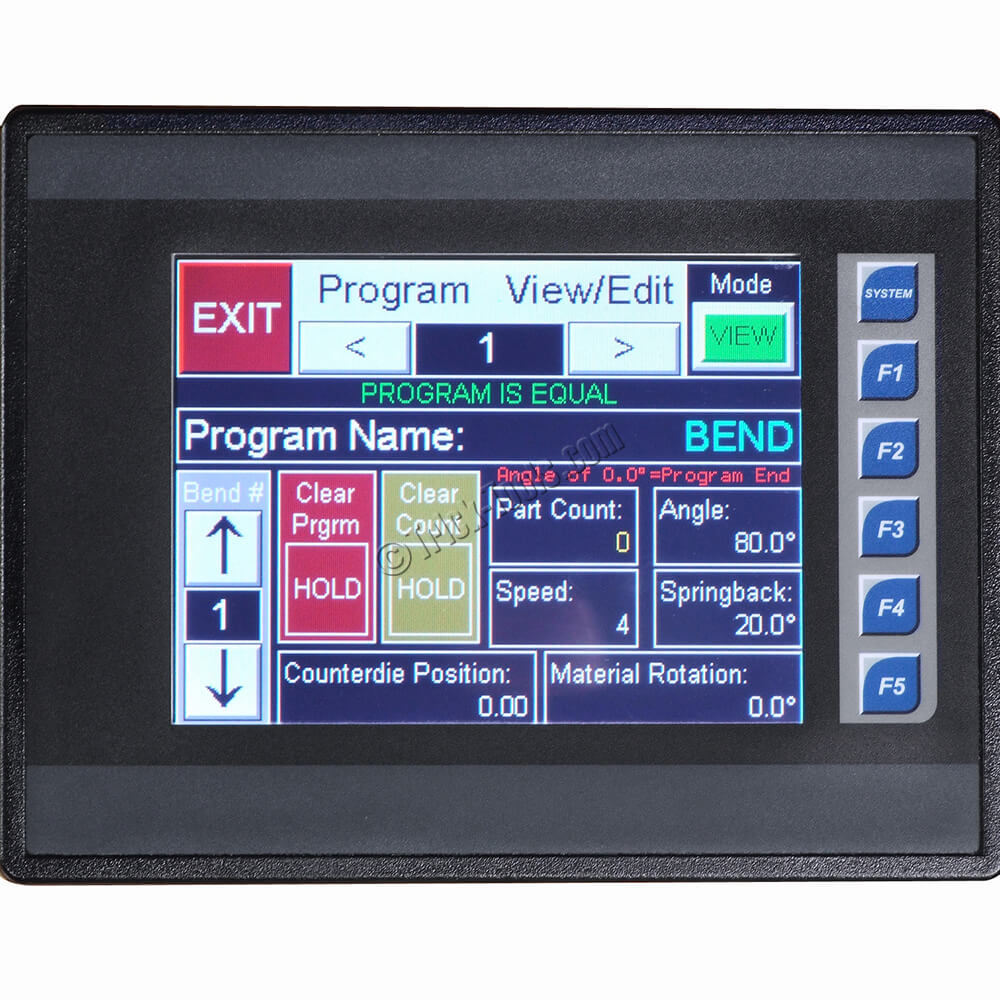

Proudly made in the USA this affordable square and rectangle mandrel bender is perfect for doing custom chassis and frame rail work. The MB-4X2 features a fully programmable touch screen, USB port for external storage, a growing tooling library for square and round tubing, and early mandrel retraction to endure a smooth bend every time. This bender is capable of bending 100 degrees and can make a 90 degree bend in less than 10 seconds.

Note:A mandrel table is required and can be found in a 10 foot or 20 foot option under the accessories tab along with standard tooling. Contact us for additional tooling sizes.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2 x 4 - 11 gauge hard way
•Square Mild Steel Capacity (inches): 3 x 3 - 11 gauge
•Max Bending Speed: 90 degrees in 5-10 seconds
•Bending Style: mandrel
•Min Center Line Radius (inches): 7
•Max Center Line Radius (inches): 12
•Max Degree of Bend: 100
•Motor: 5 hp, 220 volt, 3 phase
•Hydraulics: 3000 psi max
•Control Method: programmable on board computer
•Repeatability Control: yes
•Weight (pounds): 3500
