Baileigh RDB-350 Programmable Tubing Bender

Part #: RDB-350-TS
Model: 1006817
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $32,409.69
Sale Price: $26,379.99

FREE SHIPPING

3 inch OD capacity
Electric planetary gear drive
Stores up to 170 bend programs
Foot pedal controls
24 inch maximum CLR

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

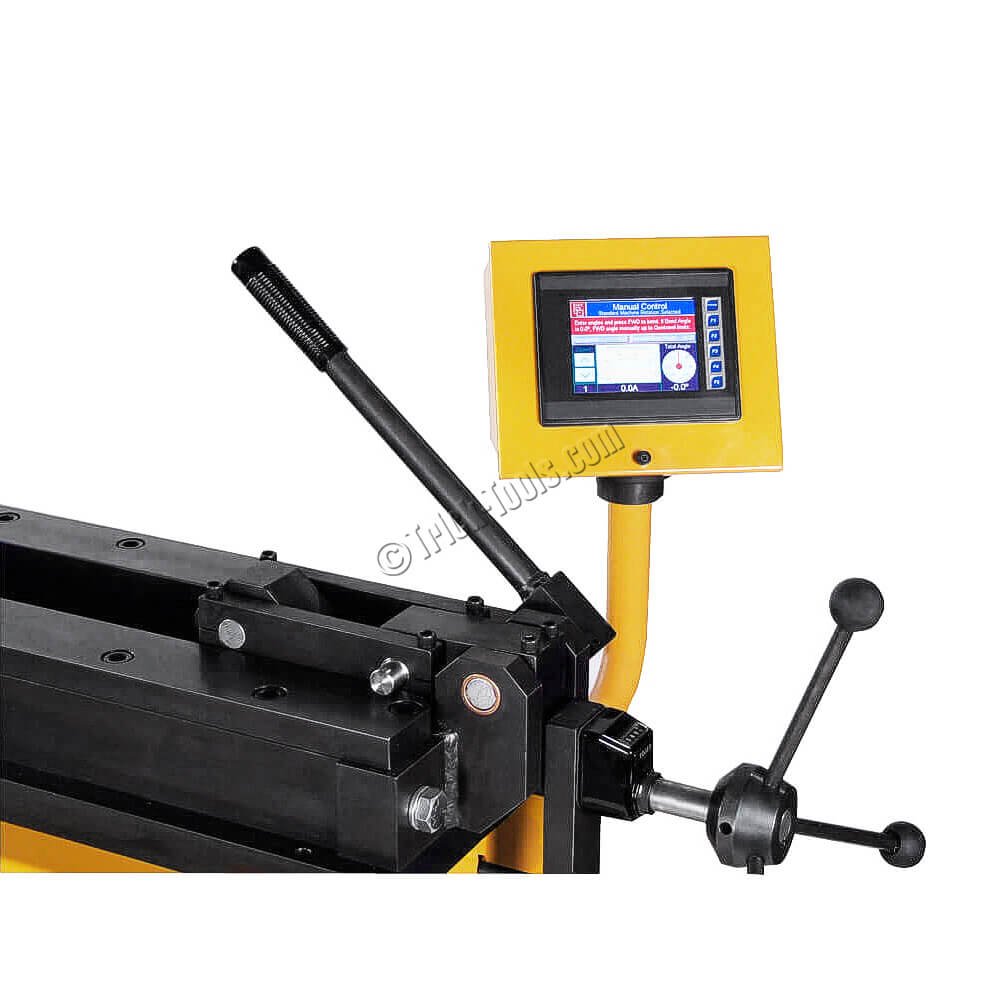

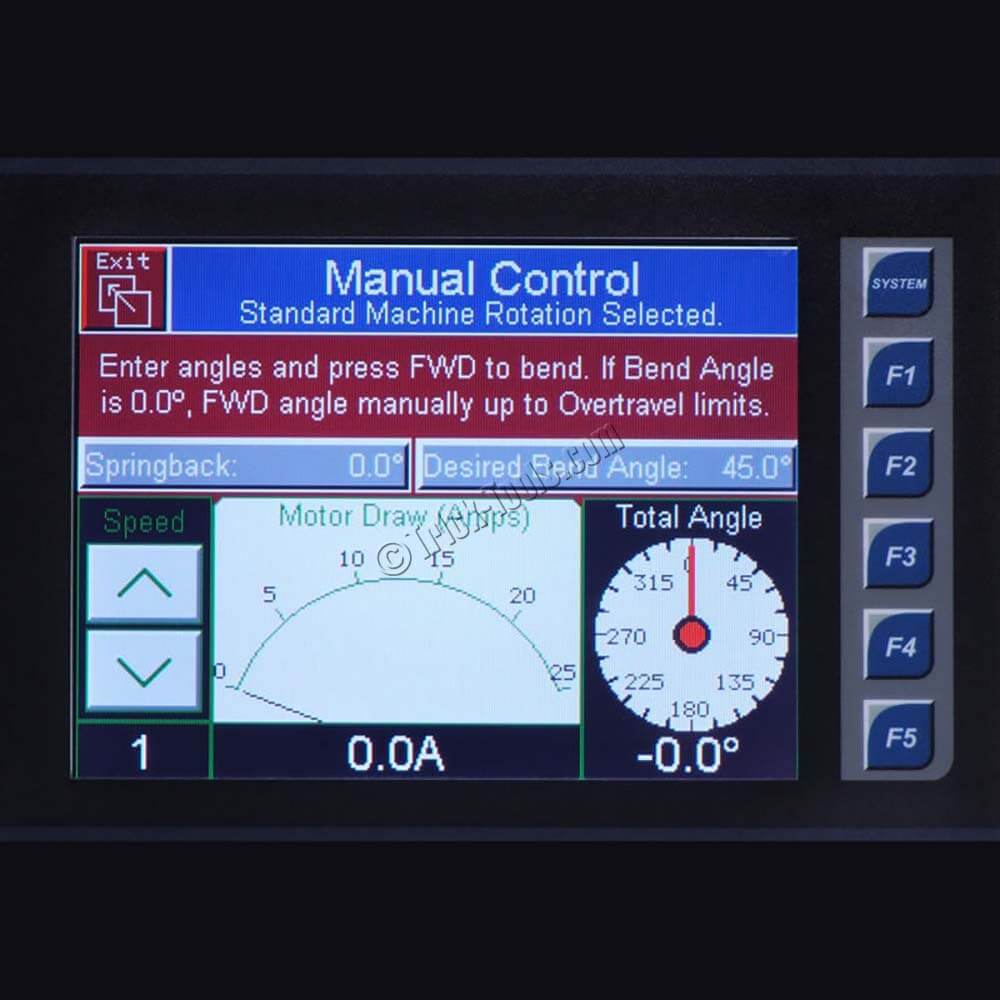

The RDB-350 tubing bender is a programmable control machine that can bend up to 3-inch tubing and 2-1/2 inch Schedule 40 Pipe. The touch screen PLC control allows up to 170 programs with 10 bends per program. Optional indexing tables give repeatability for both rotation points and length measurements between bends. Tables up to 20 feet long are available.

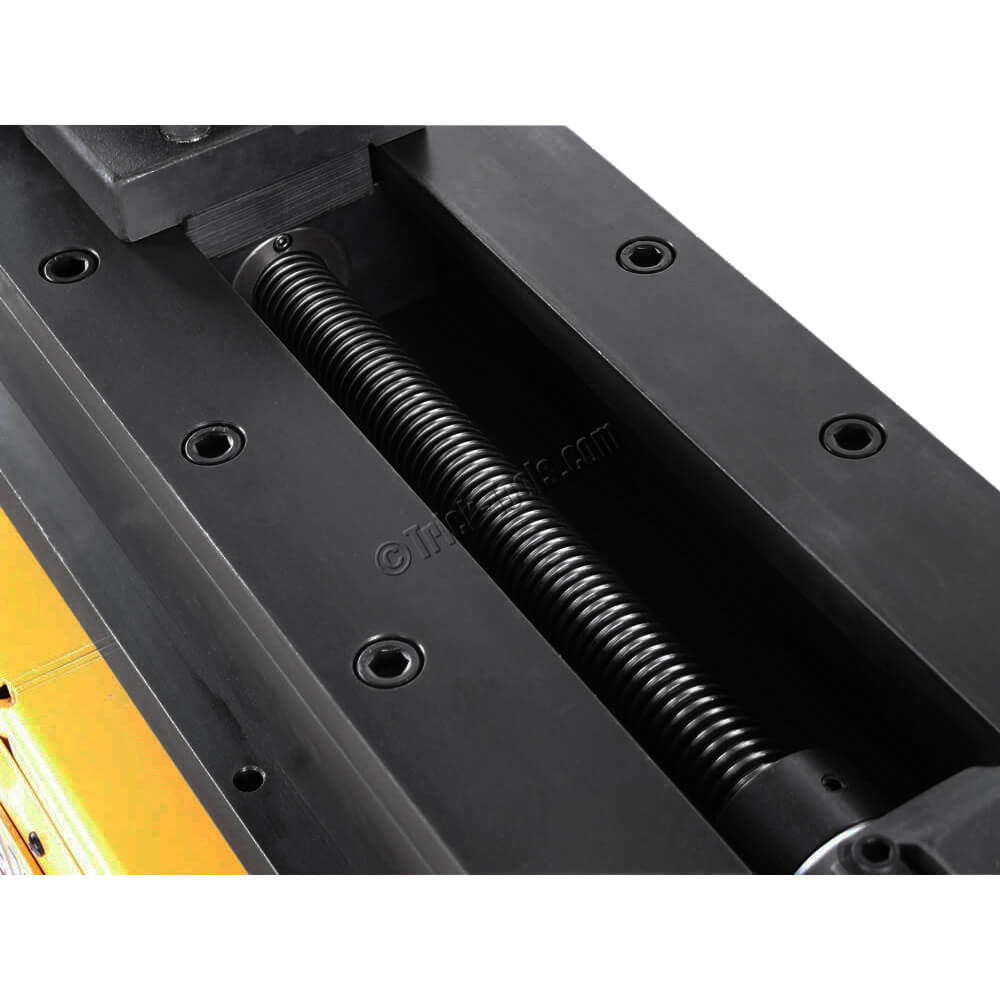

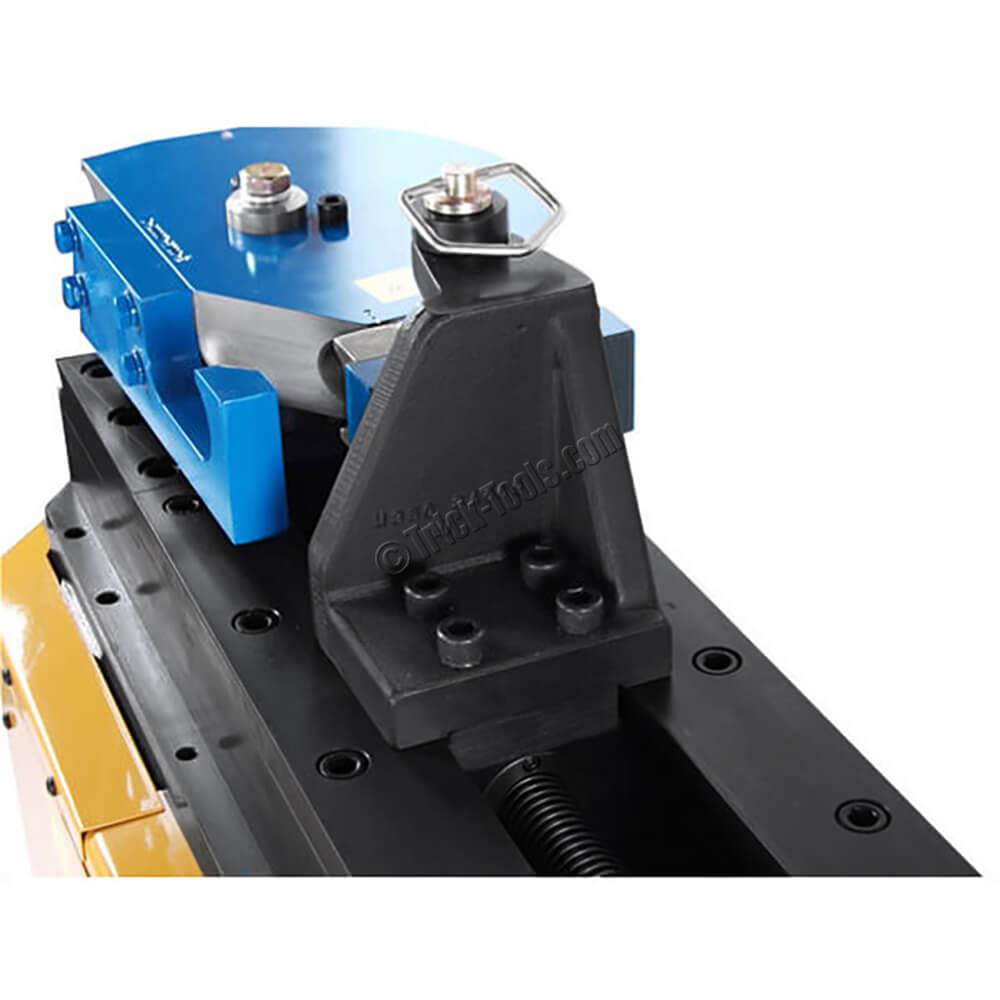

This rotary draw tube bender can bend at 16 seconds for a 180-degree bend and can be programmed to bend up to 360 degrees, great for solid rod applications. Complex serpentine bends can be done with ease. A quick counter die release allows for easy removal of bends. The counter die positioner has a numerical counter so repositioning of the counter die is a breeze when recalling bend programs. Engaging bends is as simple as pressing the forward foot pedal, and reverse pedal when complete.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 3 x .188
•Round Chrome Moly Capacity (inches): 2-1/2 x .120
•Round Aluminum Capacity (inches): 3-1/2 x .250
•Nominal PIPE Capacity: 2-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 3 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/2
•Minimum OD (inches): 1/4
•Max Bending Speed: 16 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 24
•Max Degree of Bend: 180
•Motor: 220 volt, 3 phase
•Control Method: programmable on board computer
•Maximum OD (inches): 3-1/2
•Weight (pounds): 1500
