Baileigh WP-1800B Benchtop Welding Positioner with 8 inch Chuck

Part #: WP-1800B
Model: BA9-WP1800B
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,081.39
Sale Price: $4,949.99

SALE

8 inch chuck
Variable speed
2-3/8 inch thru hole
Reversible control

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

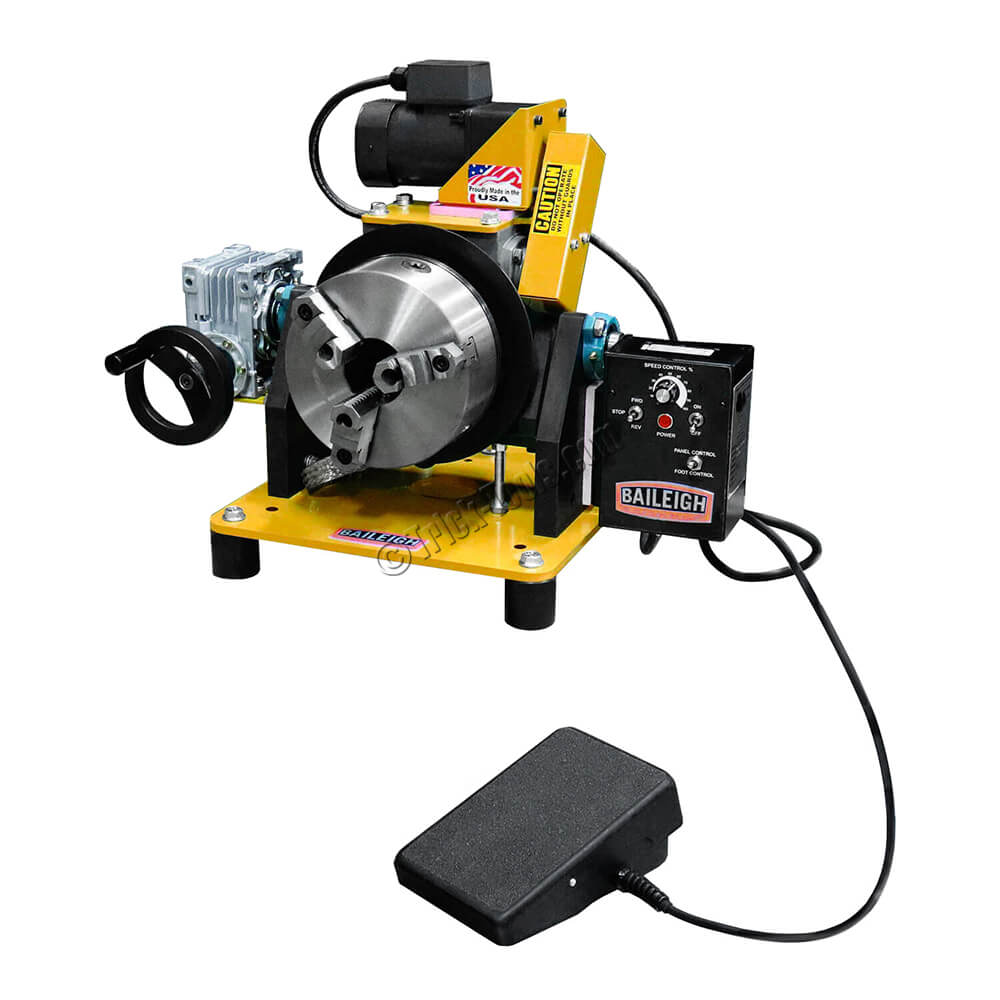

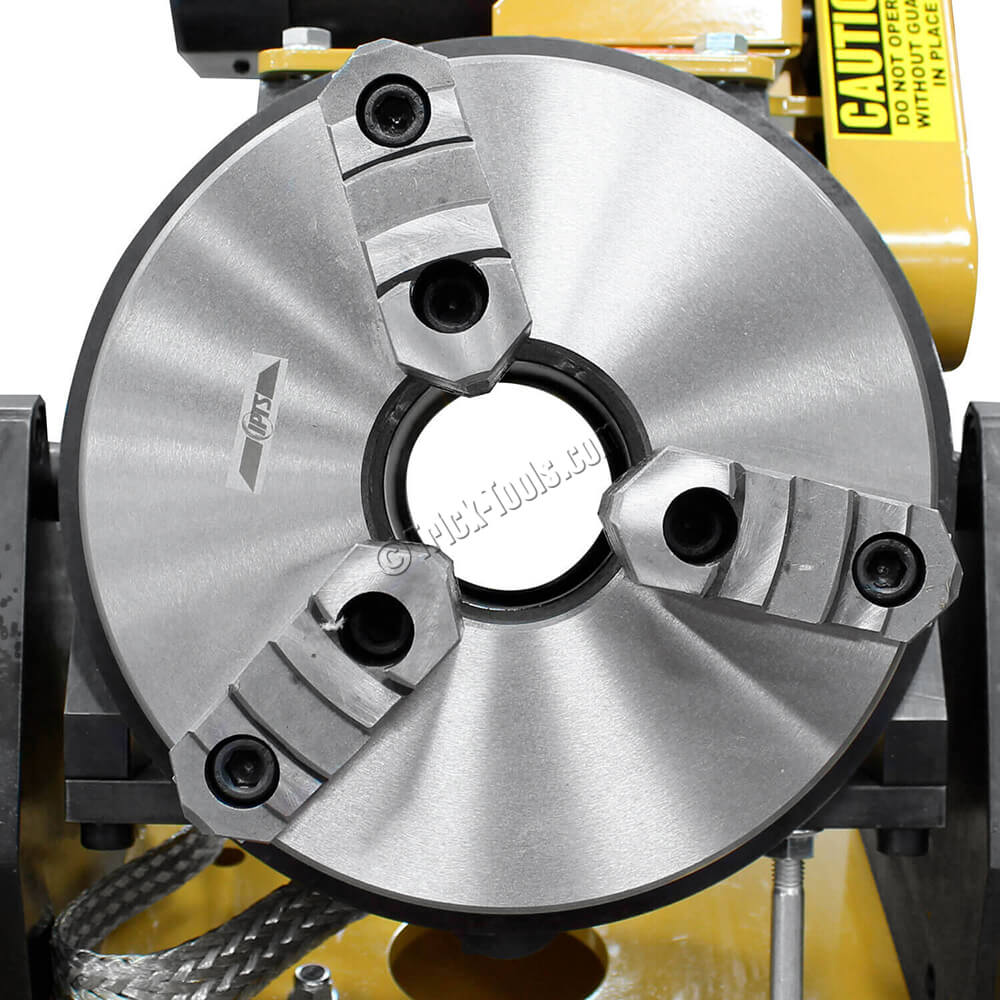

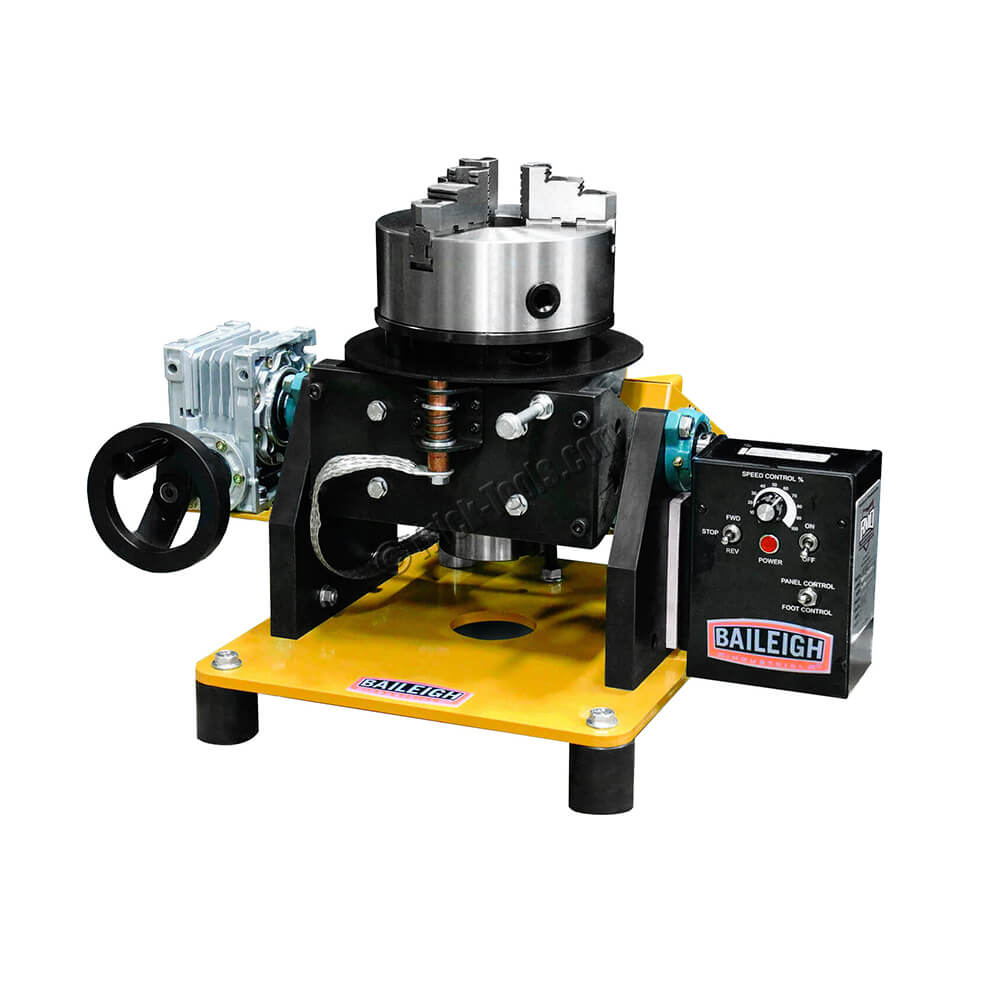

Increase speed and weld quality while reducing fatigue with the Baileigh Industrial WP-1800B welding position. This rugged and portable benchtop positioner has a 2-3/8 inch thru hole and can clamp from 1/4 inch OD all the way up to 10-3/4 inch ID material with the 3 jaw, 8 inch chuck. The WP-1800B can be used in the vertical, horizontal, or any position in between. The variable speed control can go from 0-6 RPM and can be controlled by the panel for a constant speed or by the foot pedal.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Angle(s): 0 - 90 degrees
•Max Clamp Opening (inches): 10-3/4
•Chuck: 3 jaw
•Vertical Weight Cap (pounds): 250
•Thru Spindle Capacity (inches): 2-3/8
•Spindle Rotation: 360 degrees
•Spindle RPM: 0-6
•Grounding Cap: 300 amp
•Voltage: 110 volt
•Weight (pounds): 180
•Dimensions (LxWxH): 26 x 20 x 18
