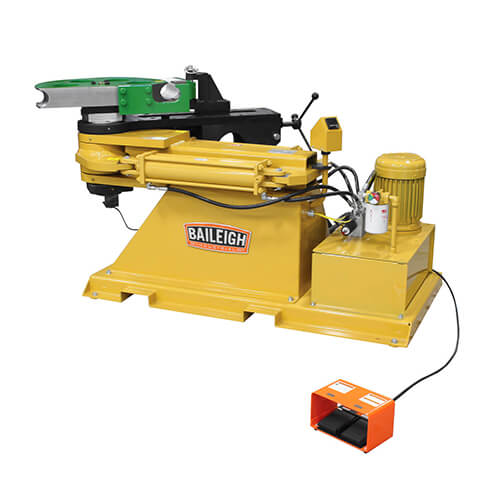

Baileigh RDB-500 Hydraulic Tubing Bender

Part #: RDB-500
Model: 1006819
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $38,392.79
Sale Price: $31,249.99

FREE SHIPPING

3-1/2 inch OD capacity
Electric/hydraulic power
Auto-stop
180 degree bends in one shot
Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The RDB-500 tube and pipe bender features massive bending capacity coupled with a highly repeatable digital auto-stop, and foot pedal controls. The RDB-500 is designed for bending large heavy wall pipe and tubing up to 3-inch Schedule 40 pipe. With the auto-stop control of this machine repeatable bends can be performed very easily, making this the perfect machine for those needing to produce small production quantities of large diameter, heavy wall pipe and tubing.

The new easy to read digital degree indicator with auto stop programming comes standard on the RDB-500. The foot pedal controls make repositioning of material and very quick and easy, aiding the user in making complex serpentine bends. With tooling available for round, pipe, and square materials the RDB-500 is one of the most flexible large capacity benders on the market today.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 3-1/2 x .188 or 3 x .250
•Round Chrome Moly Capacity (inches): 3-1/2 x .188
•Round Aluminum Capacity (inches): 3-1/2 x .250
•Nominal PIPE Capacity: 3 inch schedule 40
•Square Mild Steel Capacity (inches): 3 x .250
•Solid Bar Mild Steel Capacity (inches): 2
•Minimum OD (inches): 1/4
•Degrees Per Stroke: 180
•Max Bending Speed: 36 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 20
•Max Degree of Bend: 180
•Motor: 220 volt, 3 phase
•Control Method: foot controls
•Repeatability Control: programmable auto-stop
•Maximum OD (inches): 4
•Weight (pounds): 1800
