Bend-Tech SM Sheet Metal Software

Part #: BTSM
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $295.00

Quickly and correctly design sheet metal parts
Design 3D parts in 2D
Create .dxf files for CNC cutting systems
Creates templates for manual cutting

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

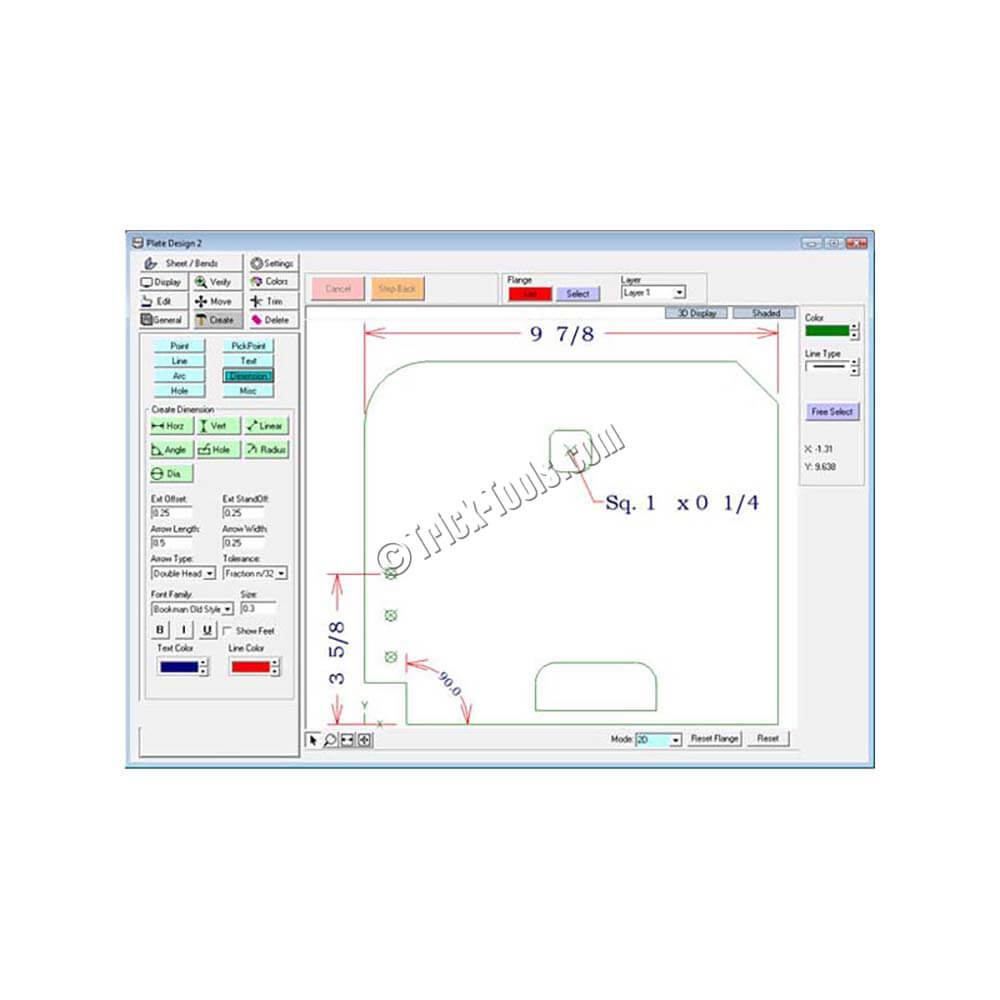

Bend-Tech Sheet Metal is used for designing sheet metal parts and assemblies. This software approaches sheet metal design from an easy to understand 2D perspective, however final product models are presented in full 3D for review.

Bend Tech Sheet Metal takes a practical approach to sheet metal design, and is by far the most easy-to-use sheet metal design product on the market. Customers who have never used a CAD system before are productive the first time they sit down to use it.

Bend-Tech Sheet Metal is designed for the serious hobbyist or small shop. It allows the user to export .dxf files for CNC cutting systems or printing templates. You will find many specific features to make your design faster, such as: path text, bridging, slots for bend relief, void slots for bend zones and manual bending, corner notches, and specific hole shapes including dimple die and ellipse; just to name a few.

SPECIFICATIONS

•Format: PC software, version 7.x
•System Requirements:

Minimum Requirements

Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1 GHz Processor
2 GB RAM (Memory)
1 GB Hard Drive Space
1024 x 768 Screen Resolution
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 Installed
Active Internet Connection (Internet connection is needed during the first activation and then every 6 month, software can run offline in between).

Recommended Requirements
Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1GHz Dual-Core Processor
4GB Ram (Memory)
1 GB Hard Drive Space
1280 x 800 Screen Resolution or greater
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 SP1 Installed
PDF Reader Installed (for Help Guides)
Full Keyboard and Mouse
CD Drive (for install from CD)
High-Speed Internet
MacOS Requirements
Windows OS running on Emulator/Parallels.
Same requirements as above.
Bend-Tech does NOT run directly on MacOS.
