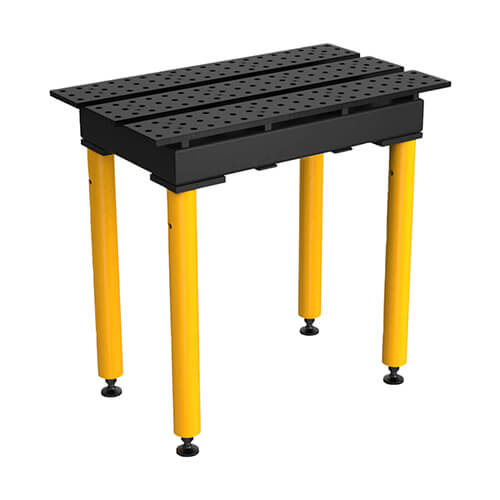

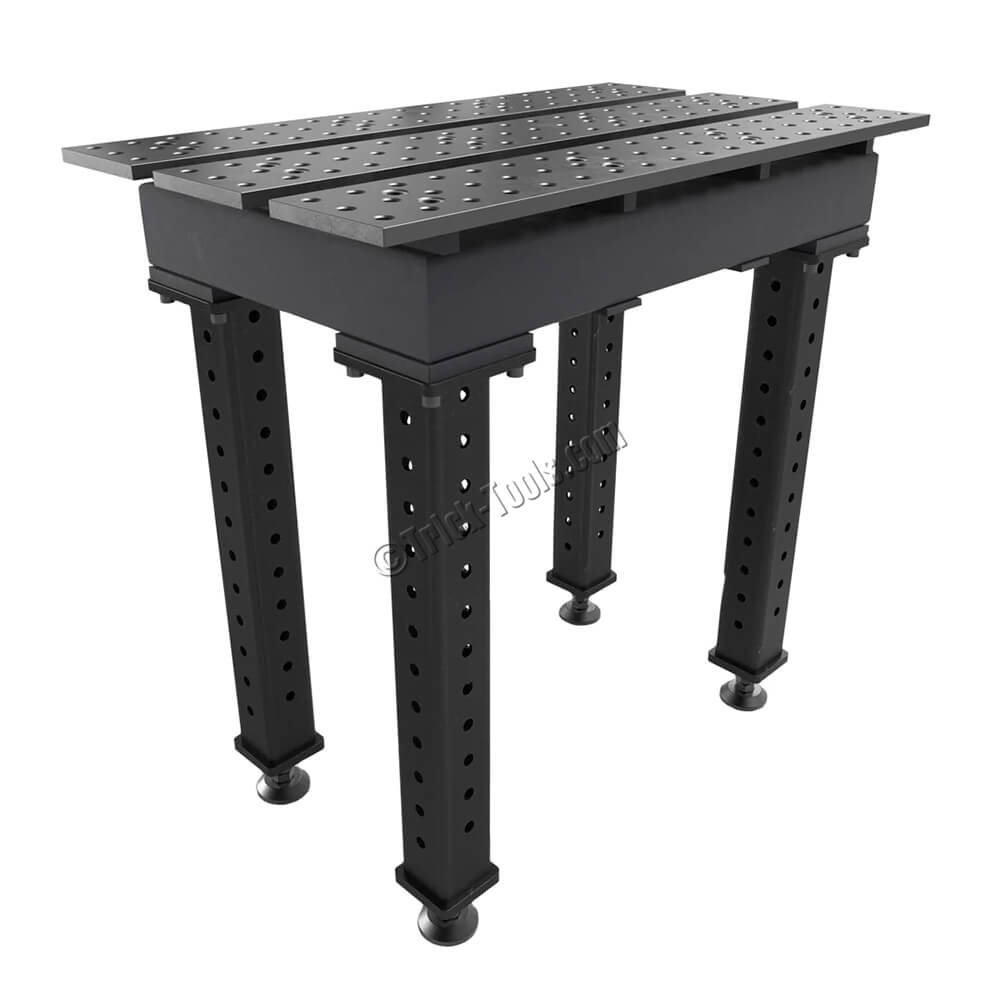

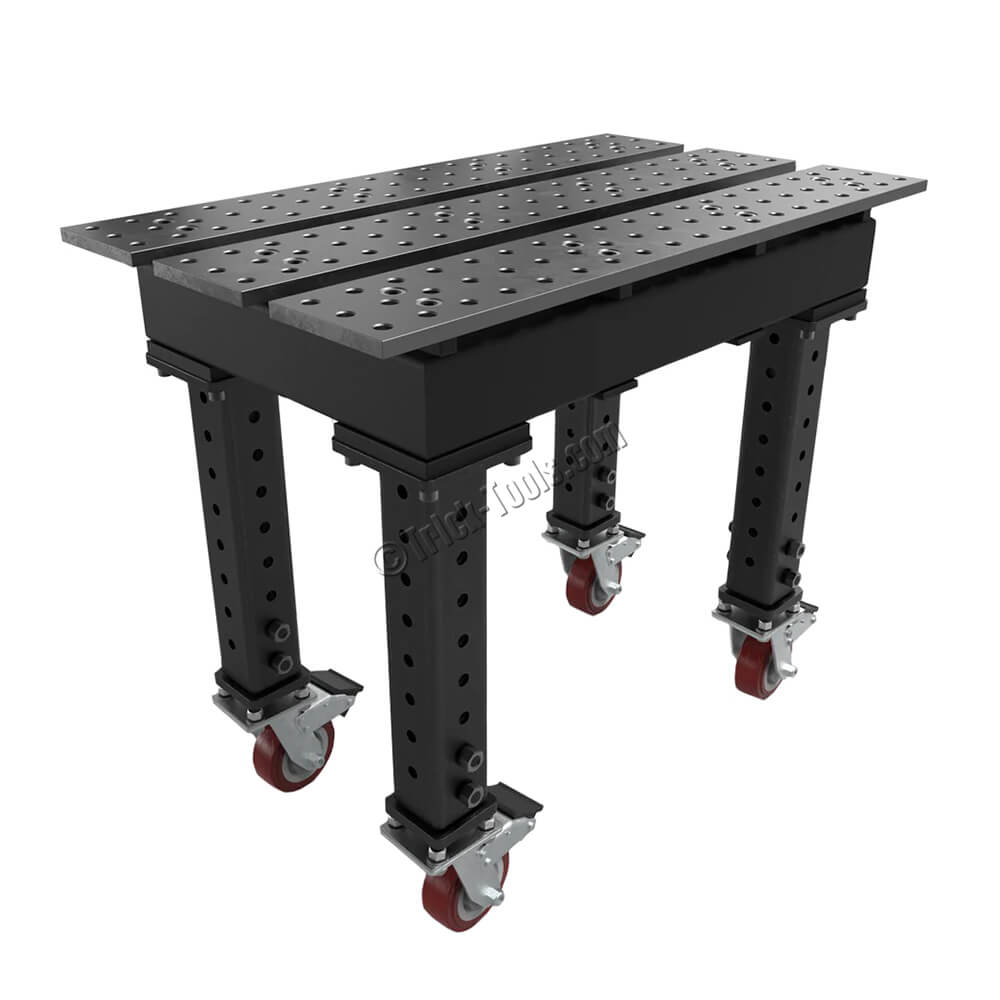

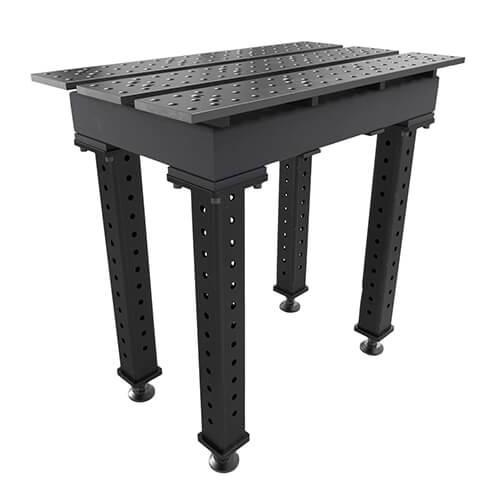

BuildPro Welding Table, 22 x 46 inch, Nitrided

Part #: TMQ52246
 Model: TMQ52246, TMQA52246,TMQB52246,TMQR52246,TMQRC52246, TMQVC52246
Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $2,200.00
FREE SHIPPING
  • Tables can be easily linked together for large projects
  • 5/8 inch holes spaced 2 inches apart
  • Table flatness of .004 per foot
  • Nitride coating for corrosion protection and anti-spatter
FREIGHT:
Freight
ORIGIN:
Import
BRAND:
Strong Hand Tools logo
Options:
Quantity:

Configuration

DESCRIPTION

The BuildPro welding table by Strong Hand Tools offers faster fixturing and greater productivity with more consistent results. Their flexible, modular design makes them easy to adapt to your project, no matter the size. All tables feature a 4-beam support base, precision-ground steel plates and heavy-duty steel legs with self-leveling feet.

The nitride finish featured on this table is a heat treating oxidative process that will keep your table looking and working great for years. The benefits of this process include: anti-spatter, corrosion protection, lubricity and resistance to wear and fatique.

The BuildPro Welding table will decrease fixture set-up time, and increase work space and efficiency. Utilize the many BuildPro clamps and accessories for the ultimate welding system.

Tolerances

  • 1-3/4 inch spacing between plates
  • Table flatness of .004 per foot
  • Hole diameter: .625 +/- .002
  • Hole spacing: 2.000 +/- .0015
  • Plate thickness: .625


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1300 lbs
•Size: 22 x 46 inches
•Flatness: +/- .004 inches per foot
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 280

DOCUMENTATION

PDFAdditional literature

VIDEO









ACCESSORIES

Questions & Answers
avatar
Popular Questions
4 years ago
See more »
4 years ago
These tables can be reconfigured by moving plates around and even offsetting them to make them wider. You can add a leg under any individual plate to get support in extreme cases. Also, you can link tables together with a BuildPro Table Joining Kit to make as large as you wish. There are no fixtures included with the table.
