Cleveland Steel Tool Porta-Punch, 35 ton

Part #: Porta-Punch
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $4,850.00

BEST SELLER

35 tons of punching power
115 volt, electric/hydraulic pump included
Punch up to 13/16 inch holes
Use as bench mount or portable unit

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

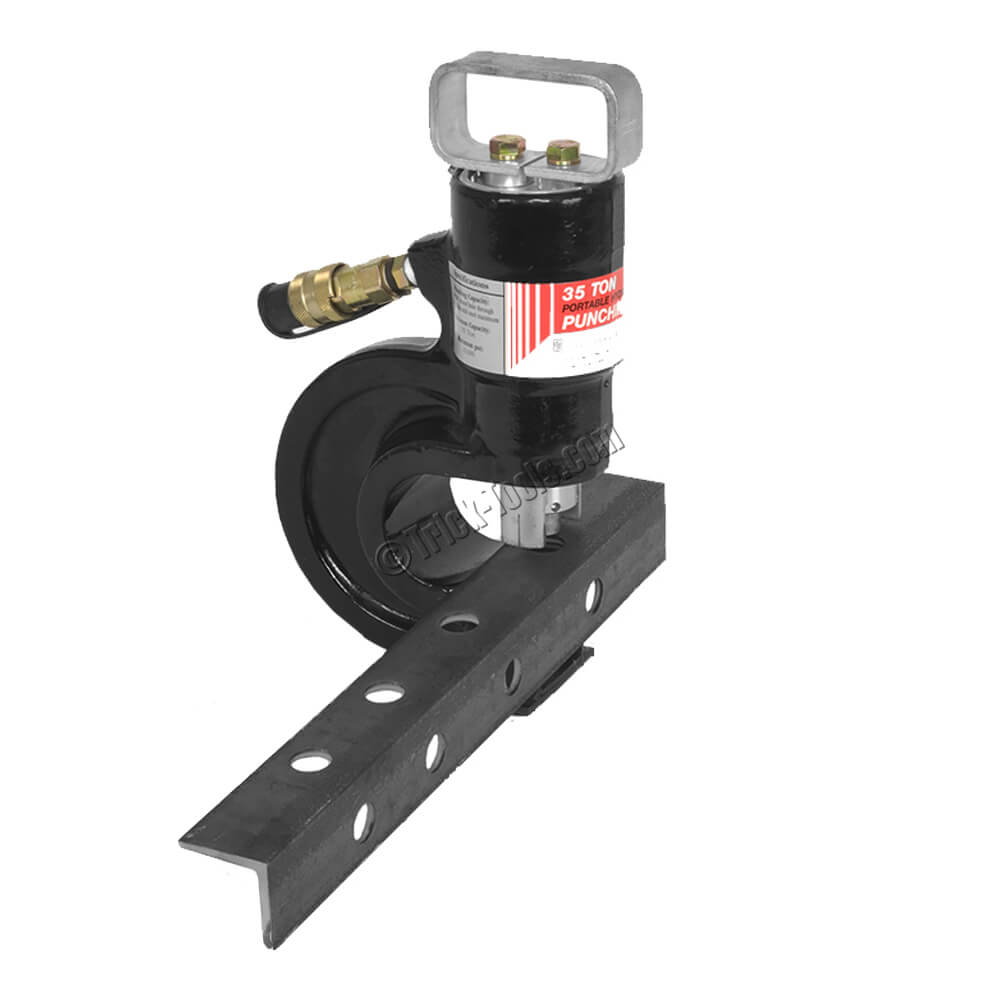

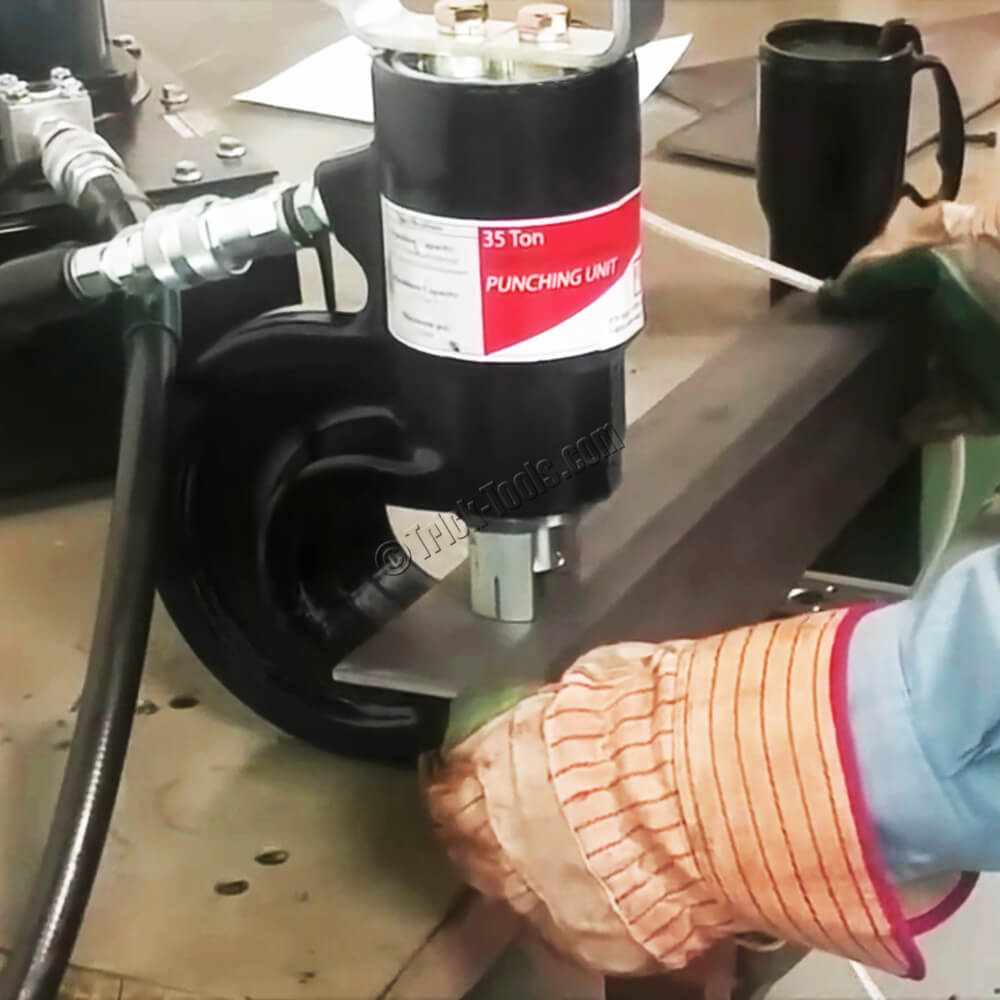

This 35-ton portable hydraulic punch press from Cleveland Steel Tool weighs just 31 pounds, is easy to use, and punches in seconds. The dual-action stripper holds the material being punched and then strips the material from the punch so you’re ready for the next hole in seconds. The Porta-Punch is ideal for punching bus bars, tower iron, railing, I-beams, and truck frames. Mount to your workbench or take it to the job site.

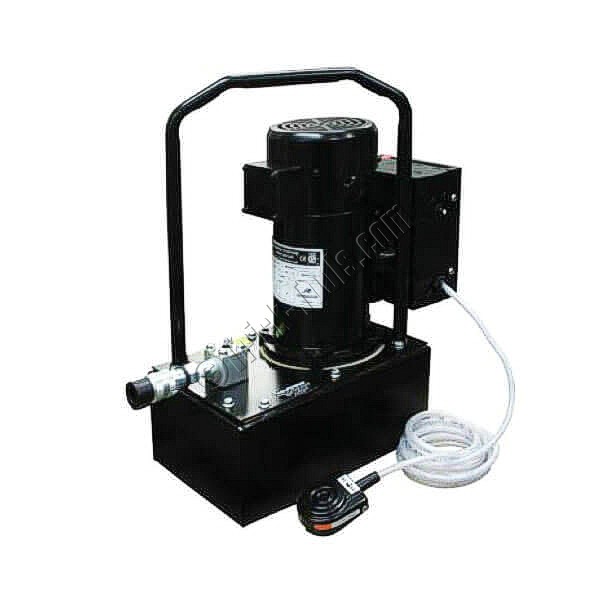

The included pump has a 1HP, 115-volt motor delivering 10,000 psi and includes a 10 or 20-foot high-pressure hose with quick disconnects at each end for fast setup and tear down. Capacity is 13/16 inch OD through 1/2 inch mild steel.

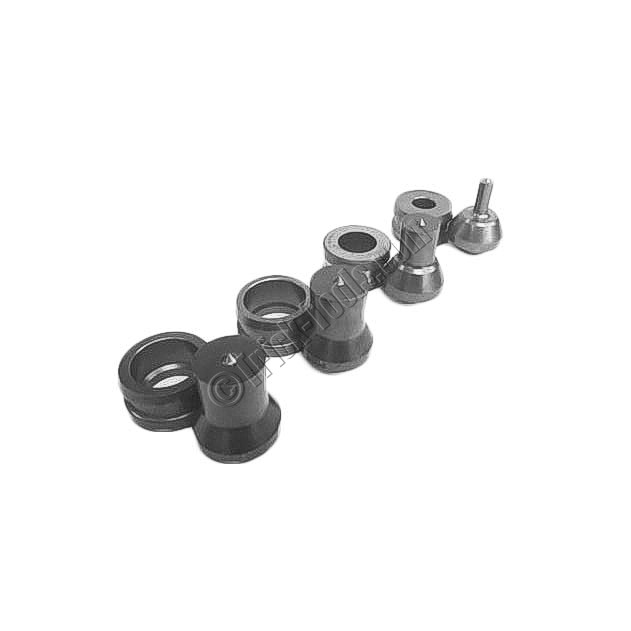

Included in this kit are 4 punch and die sets of your choice. Options are from 1/4 inch to 13/16 inch. Please include a note on your order with the requested sizes. If no notes are given, the package will include one each of 3/8, 1/2, 5/8, and 3/4 inch punch and die sets.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 35 ton
•Tool Opening (inches): 0.5625
•Throat Depth (inches): 2.75
•Hydraulics: 10,000 psi
•Motor: Electric
•Voltage: 110 volt
•Weight (pounds): 31

INCLUDES

35 Ton C-Frame
Electric pump with hand or foot control
Hydraulic hose with quick coupler (Select from 10 or 20 foot in the options drop down)
Metal carrying case for punch machine
4 punches and dies - 3/8, 1/2, 5/8, 3/4 (Substitutions are available. Please call or use order comments to specify)
