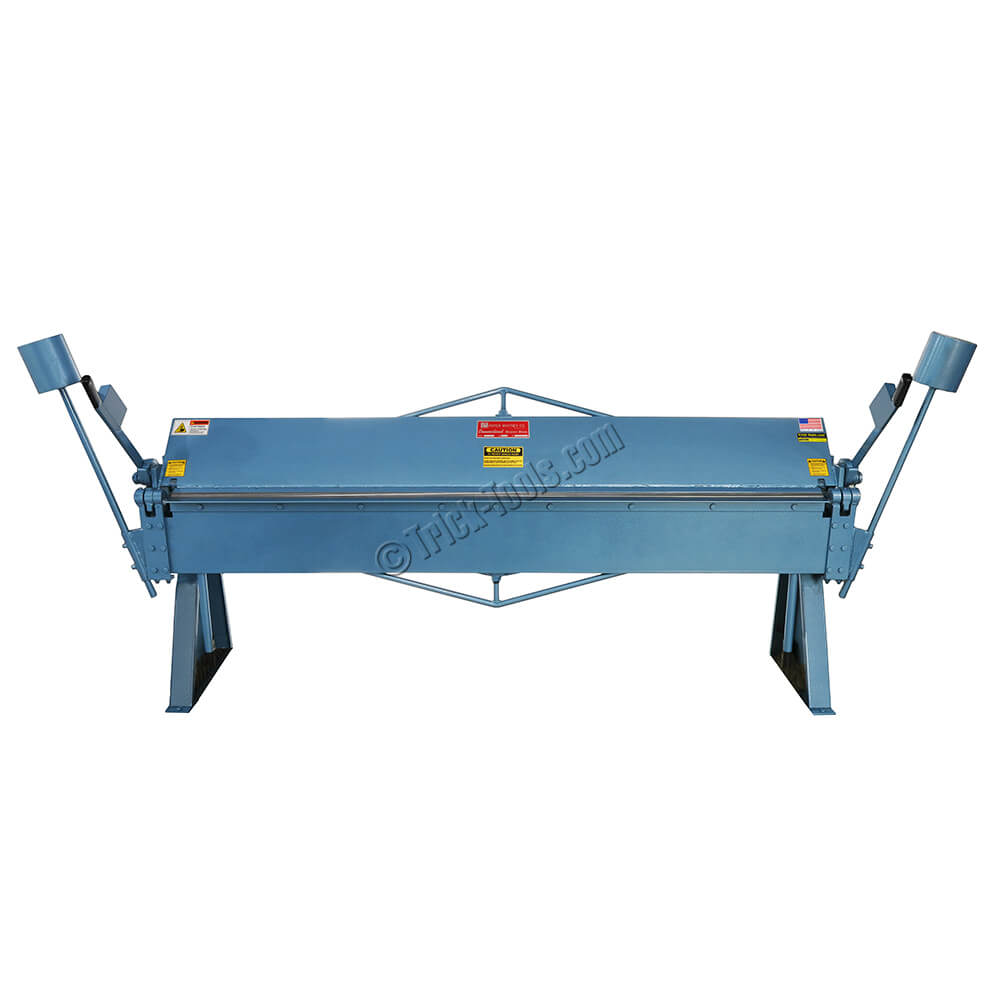

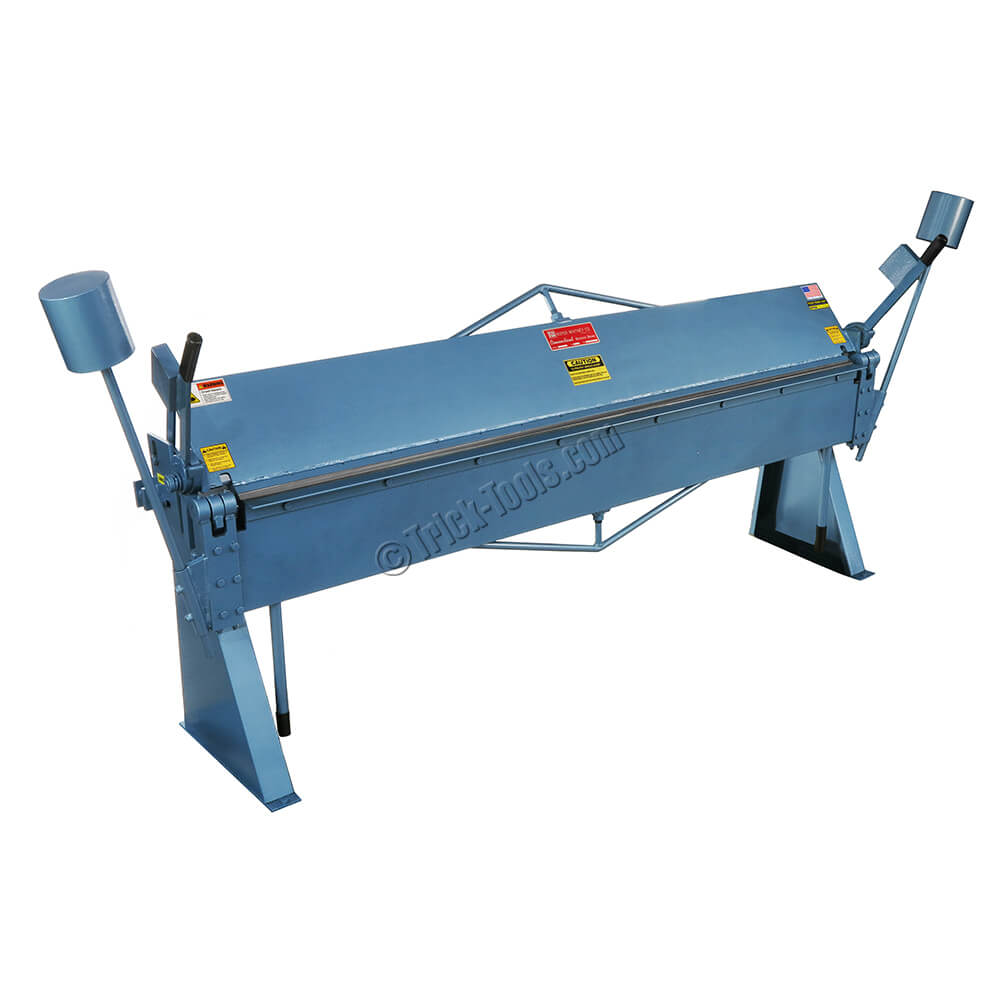

Roper Whitney 10 foot Straight Brake, 16 gauge

Part #: 157101016
Model: 1016
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,500.00

Welded steel construction
Easily adjusted
Replaceable nose bar and apron inserts
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

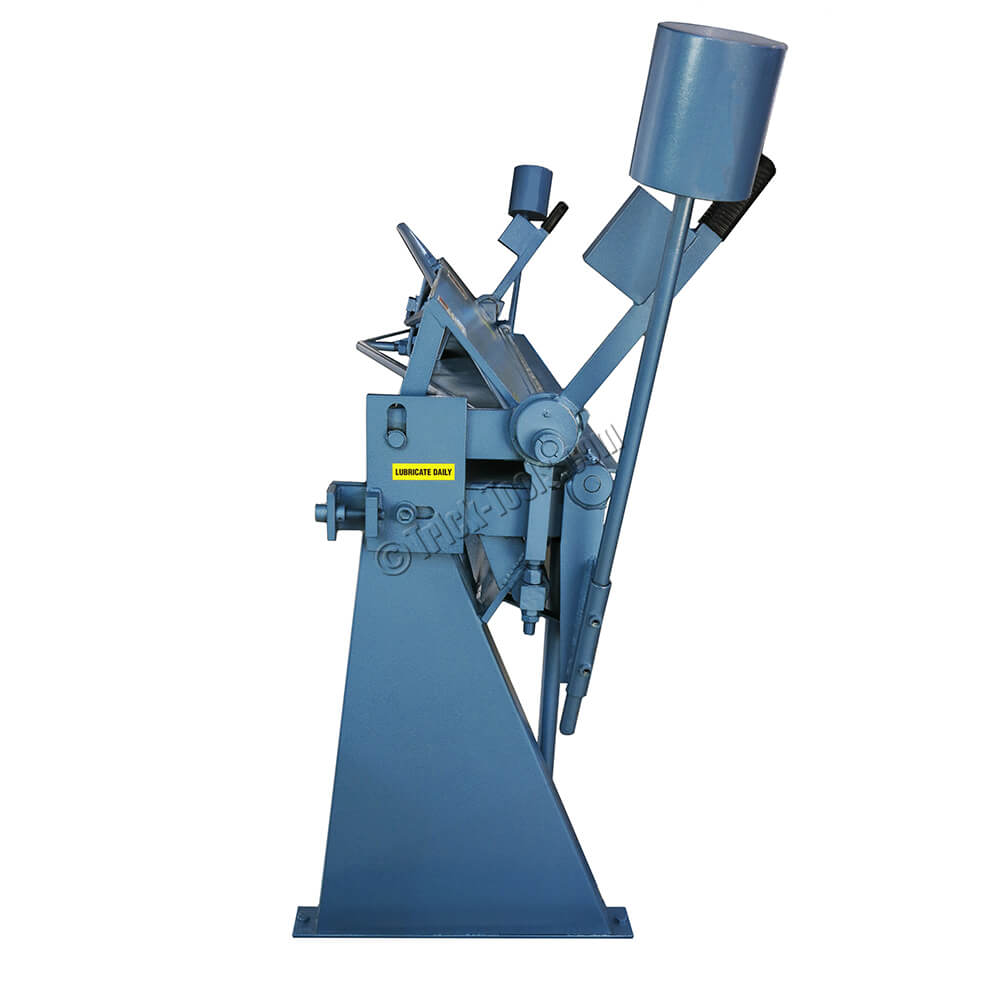

Roper Whitney's Connecticut hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability. With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.

Other adjustment features include:
- leveling screws and lock nuts on the pedestals;
- jack screws and tensioner bolts on the apron;

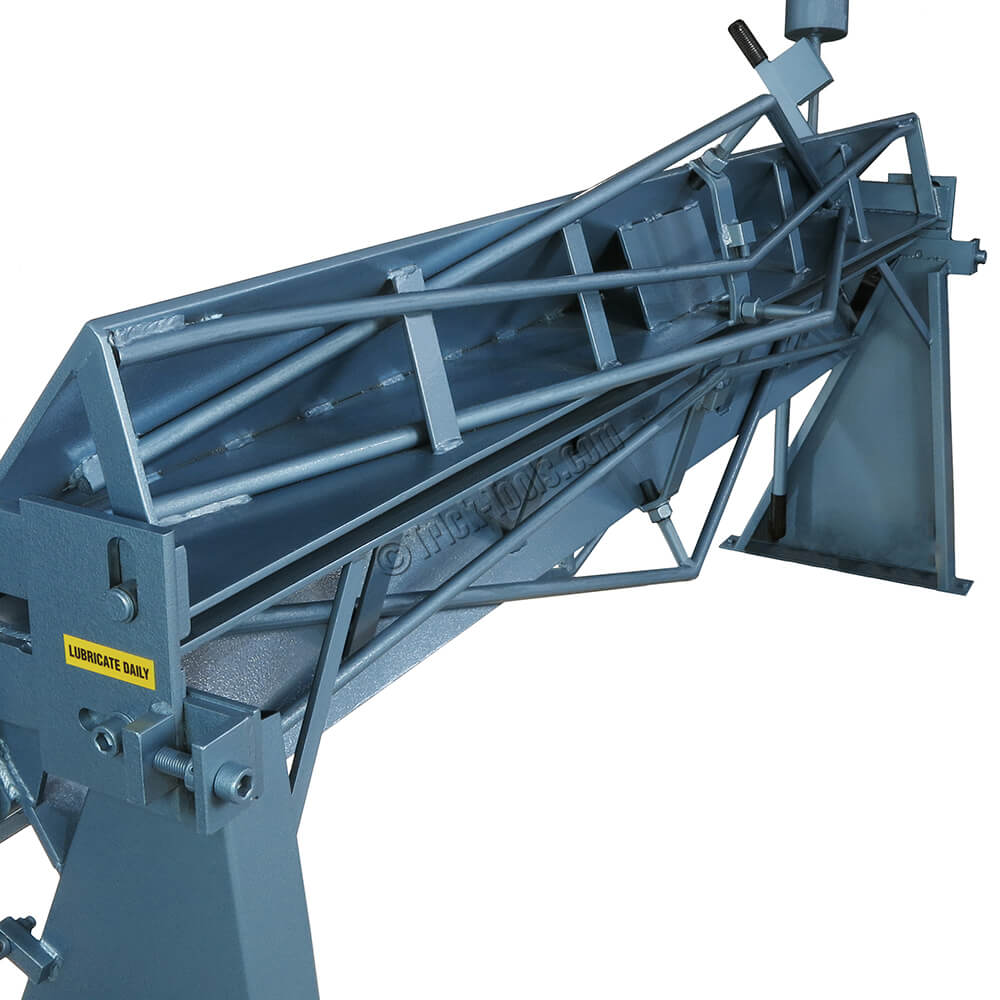

- truss rods on the apron, base and upper beam;

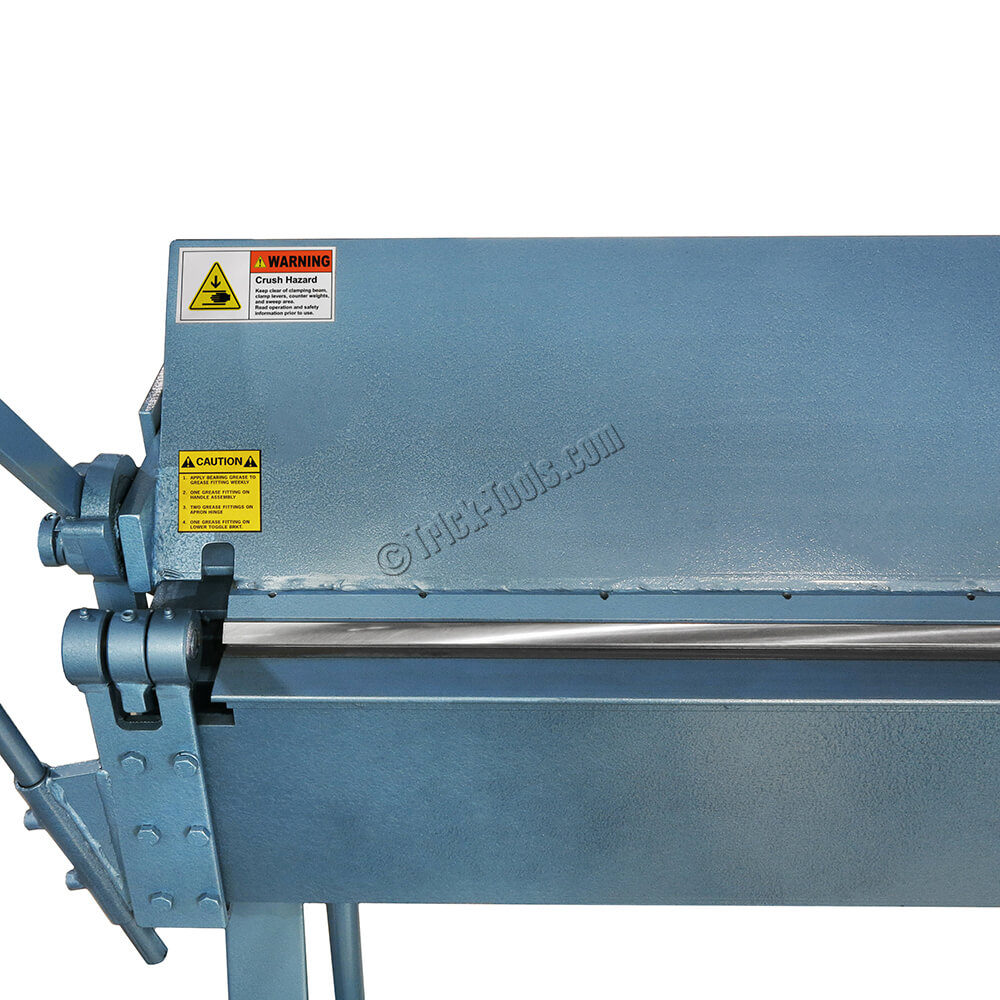

- replaceable nose bar and apron inserts.
Removable apron angle and insert permit 1/4-inch reverse bends in lighter material.

Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel.

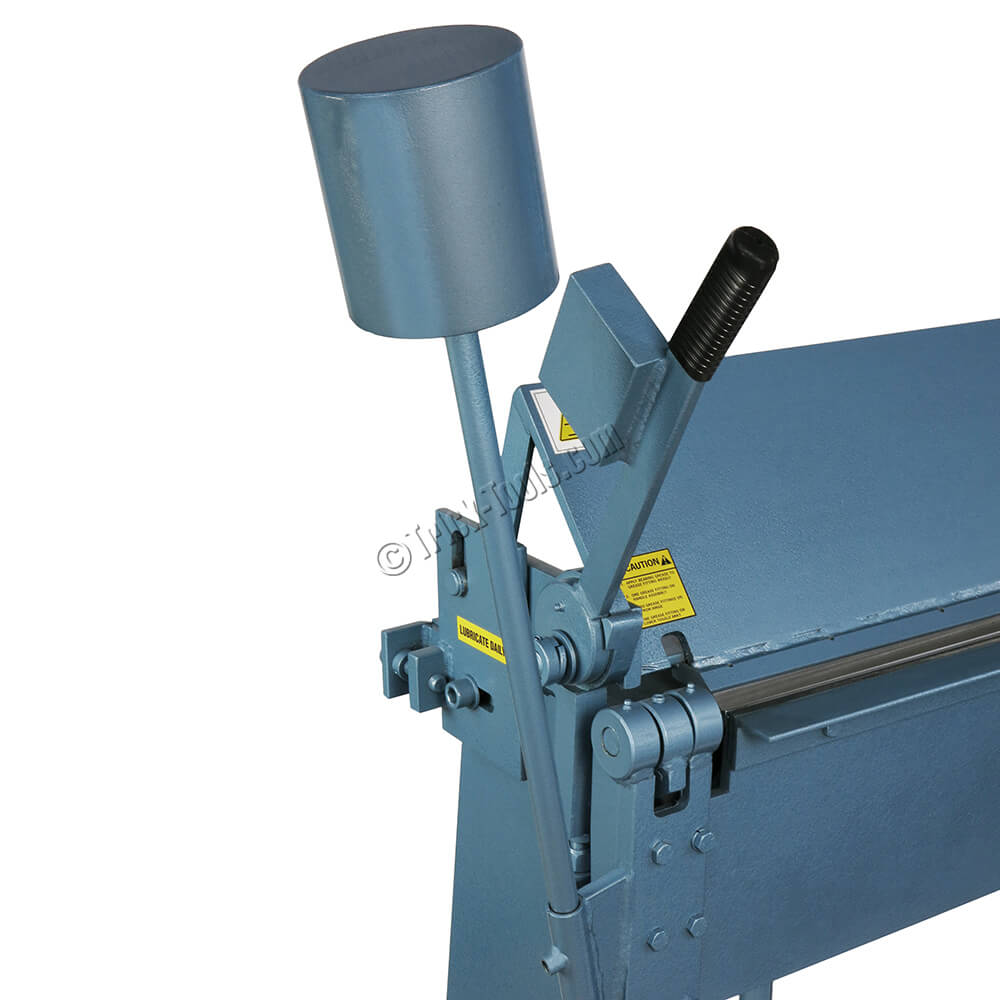

Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes.

Shipping Note: Flatbed shipping is recommended for this table. Please call or email for a quote.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 120
•Max Lift Of Beam (inches): 2.25
•Front To Rear Adj (inches): 1.375
•Min Reverse Bend (inches): .25
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 121
•Weight (pounds): 2660
•Dimensions (LxWxH): 140 x 52 x 60
