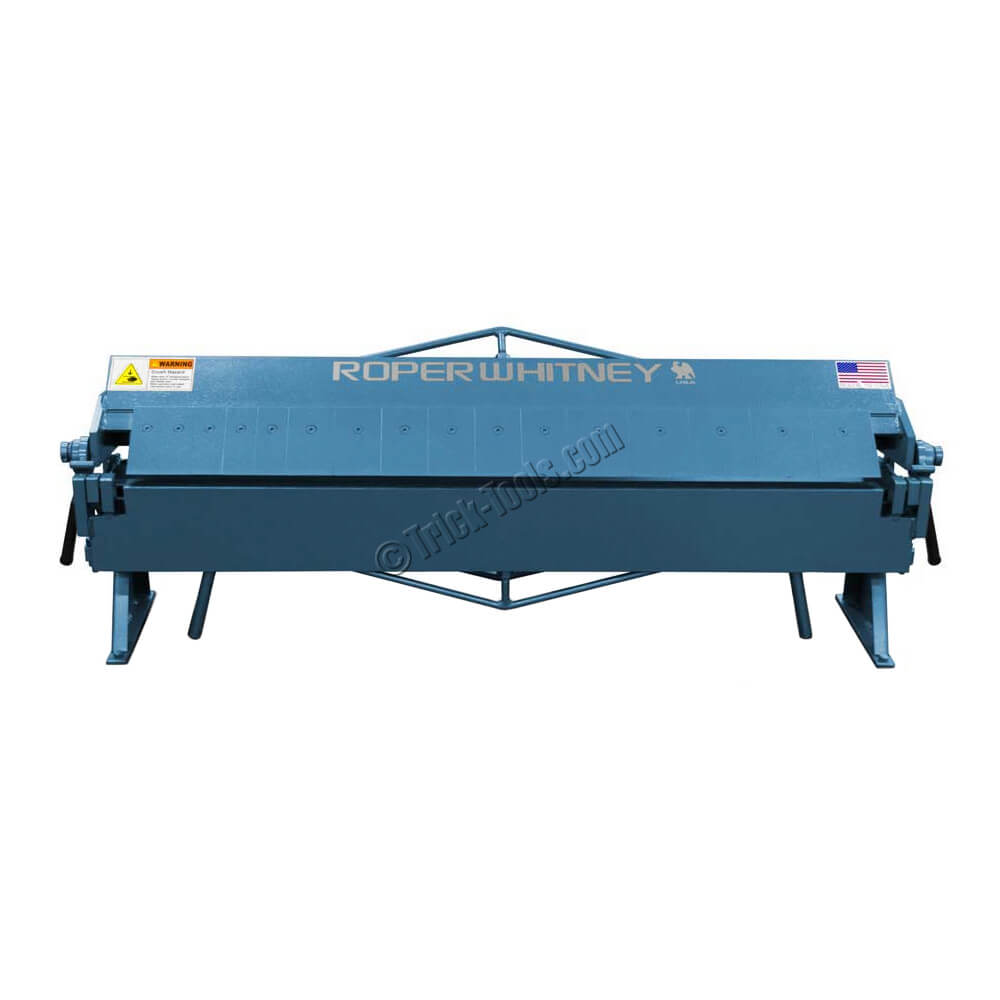

Roper Whitney 4 foot Box and Pan Brake, 22 gauge

Part #: 155100422
Model: U-422
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,150.00

Welded steel construction
Mount on a bench or optional stand
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

Roper Whitney's Connecticut 4 foot 22 gauge box and pan brake is an ideal piece of equipment for HVAC and other shops that use 22 ga and lighter steel. The brake features welded heavy steel construction, an apron stop rod for repeat bends, and extension handles.

The brake is designed to be mounted on an existing bench or to the optional work stand listed in the accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 22 gauge (.75mm)
•Stainless Capacity: 26 gauge (.5mm)
•Working Length (inches): 48
•Max Depth Of Box (inches): 3
•Max Lift Of Beam (inches): .875
•Front To Rear Adj (inches): .25
•Min Reverse Bend (inches): .3125
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 48.25
•Weight (pounds): 280
•Dimensions (LxWxH): 60 x 24 x 24
