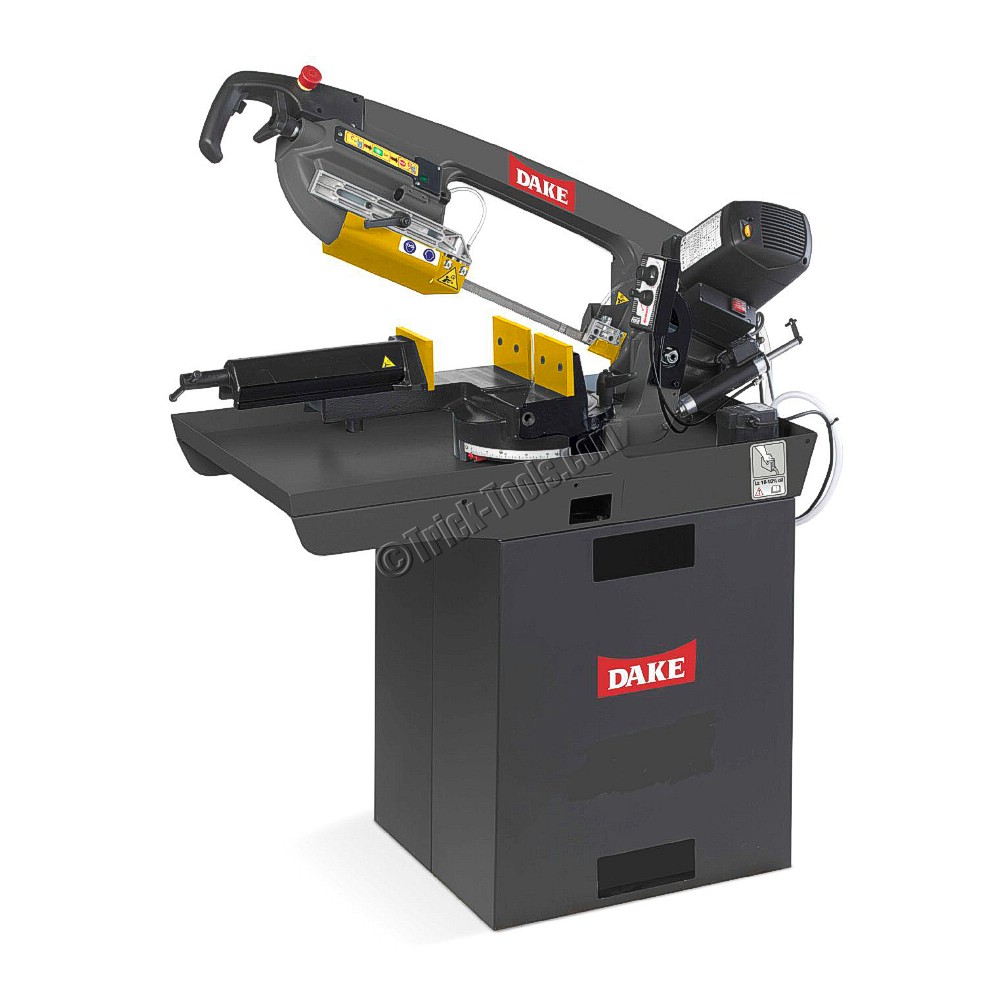

Dake SE 6.5 M Mitering Head Horizontal Band Saw

Part #: 983110-1
Model: SE 6.5 DM
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,850.00

NEW

2.5 hp motor
Cutting head miters 60 degrees right
Hydraulic controlled downfeed with manual return
Steel fabricated base

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Dake SE-6.5-M Mitering Head Band Saw has a 6.5 inch OD capacity and is great in a light production setting. The 2.5 HP, 120 volt variable speed motor is adjustable from 114 - 262 FPM and features an automatic shut off at the end of the cut.
Additional features include a controlled hydraulic down feed with manual return, a blade tension system with LED to take the guesswork out of tensioning the blade, and an integrated self-contained coolant system to keep the blade free of chips and aid in cut quality. The head miters up to 60 degrees right and utilizes mitering presets with flip-up stops for fast and easy angle adjustments. Horizontally mounted guide arms assist in straight cuts and are fully adjustable for consistency.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 2.5 hp, 120V
•Blade Width (inches): 3/4
•Blade Length (inch): 84-1/4
•Number of Speeds: variable
•Speed(s): 114-263 Feet Per Minute
•Work Height (inches): 37
•Mitering Range: Head pivots 60 degrees right
•Capacity (inches): 6-1/2" OD Round
•Round Tube Capacity 90 Deg (inches): 6-1/2
•Round Tube Capacity 45 Deg (inches): 4-1/4
•Square Tube Capacity 90 Deg (inches): 6-3/4
•Square Tube Capacity 45 Deg (inches): 4-1/2
•Rectangle Tube Capacity 90 Deg (inches): 7-3/4 x 3
•Rectangle Tube Capacity 45 Deg (inches): 6 x 4-1/4
•Weight (pounds): 308
•Dimensions (LxWxH): 65 x 48 x 25
