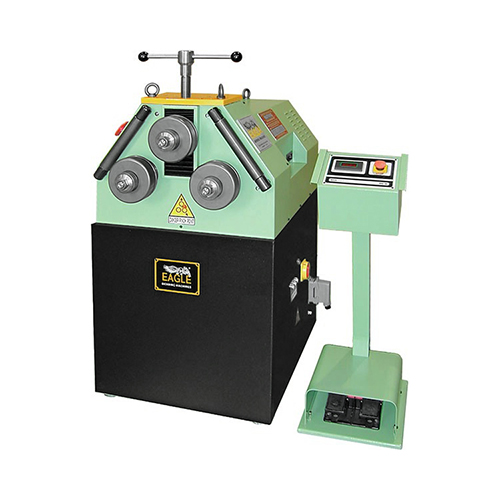

Eagle CP40-M Roll Bending Machine

Part #: CP40-M
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $14,900.00
Sale Price: $13,940.00

SALE

2.750 x .075 inch round tube capacity
2 x .125 inch square tube capacity
2 driven rolls
Manual upper roll adjustment

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The Model CP40-M is one of the most used roll benders in the world. It is equipped with LED digital display to monitor the bending roll and aid in precise positioning for greater accuracy in rolling.

The unit uses a pyramid geometry with lower rolls driven and fixed in position while the top roll is manually adjustable to obtain different bending diameters. Universal tooling supplied in 18 components permit bending of most all standard sections.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-3/4 x .075
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .120
•Solid Bar Mild Steel Capacity (inches): 1-3/8
•C Channel Mild Steel Capacity (inches): 3 x 1-3/4
•Minimum OD (inches): 1
•Max Bending Speed: 14 feet per minute
•Driven Rolls: 2
•Bending Style: roll bending
•Size: 40mm shafts
•Max Degree of Bend: 360
•Motor: 3.6 hp, 220 volt 3 phase
•Control Method: foot pedal controls
•Repeatability Control: LED readout
•Bending Roll Adjustment: manual
•Maximum OD (inches): 2-3/4
•Weight (pounds): 1450
•Dimensions (LxWxH): 32 x 54 x 57
