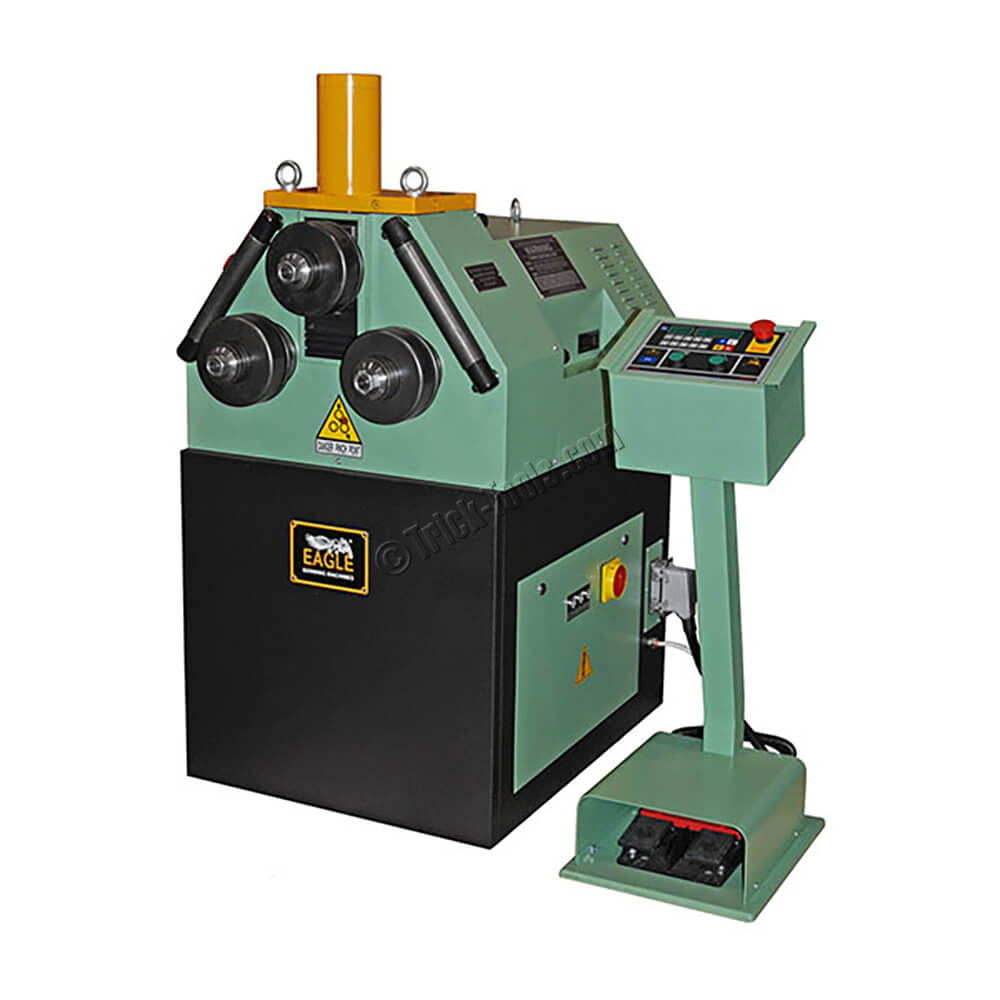

Eagle CP60-H Roll Bending Machine

Part #: CP60-H
Ships From: Factory shipped
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $26,650.00
Sale Price: $23,650.00
  • 4 x .067 inch round tube capacity
  • 2-3/4 x .120 inch square capacity
  • Mobile control station with LED readout
  • Automatic position repeat system
FREIGHT:
Freight
WARRANTY:
Eagle
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

The Eagle CP60H Universal Section Benders offer unmatched features such as 400 position auto-repeat controls, LED readouts, limited lifetime frame warranties and more! Solid steel main frames, CNC machined & stress relieved are the heaviest in the industry, have a limited lifetime warranty, and eliminate troublesome castings.

Each CP60H has MPR-40 auto-repeat controls with 40-position memory for repetitious jobs and large, high-brightness LED readouts for precision bend positioning. Large, easy to use controls have industrial polycarbonate protective overlays. Our Powerful Pyramid Geometry combines superior bending capacity with simple operation and low maintenance.

The CP60H features a standard 18 component universal roll set, in hardened tool steel, which bends most standard profiles the day your machine arrives. Set-up for different profiles fast by simply sliding rollers onto the large 2.36 inch (60 mm) OD shafts and tighten the nut. Hardened honed shafts have large dual tapered roller bearings. Lower shafts are motorized with knurled rollers for traction. The idle top shaft uses smooth surfaced rollers.

The patented Z-Block Top Journal moves on 4 hardened guides with adjustable gibs for maximum rigidity and true-to-plane rolling. Heavy duty lateral material guides roll on quadruple bearings and are the easiest to use. Thrust adjustment studs have a large OD with knurling for easy adjustment by hand and ratchet hex receiver for adjustment under load.

Other features include:

  • Horizontal/vertical operation
  • Mobile control console
  • Dual foot pedal controls for forward & reverse
  • Accordion anti-pinch mill scale covers
  • Concealed oil lines on the ram
  • Emergency stops on both machine & console
  • Safe 24 volt controls
  • Flush mounted electrical panels
  • Large convenient tool storage compartment
  • Non-proprietary OEM components are available worldwide


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity (inches): 4 x .067
Nominal PIPE Capacity: 2-1/2 inch schedule 40
Square Mild Steel Capacity (inches): 2-3/4 x .120
Solid Bar Mild Steel Capacity (inches): 2
C Channel Mild Steel Capacity (inches): 5 x 2
Minimum OD (inches): 1
Max Bending Speed: 14 feet per minute
Driven Rolls: 2
Bending Style: roll bending
Size: 60mm shafts
Max Degree of Bend: 360
Motor: 3.4 hp, 220 volt 3 phase
Control Method: mobile control station
Repeatability Control: auto repeat positioning
Bending Roll Adjustment: hydraulic
Maximum OD (inches): 4
Weight (pounds): 2850
Dimensions (LxWxH): 37 x 51 x 63

INCLUDES

Standard tooling for most square and flat profile materials
