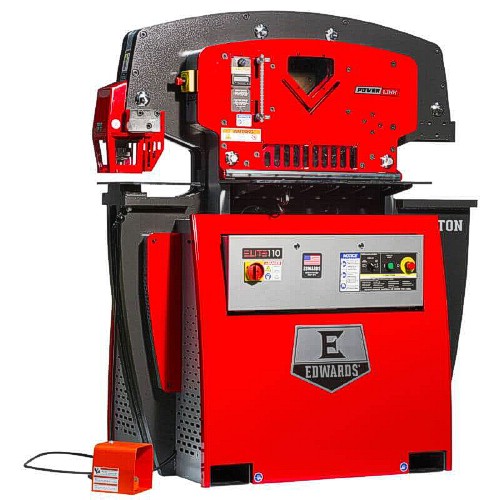

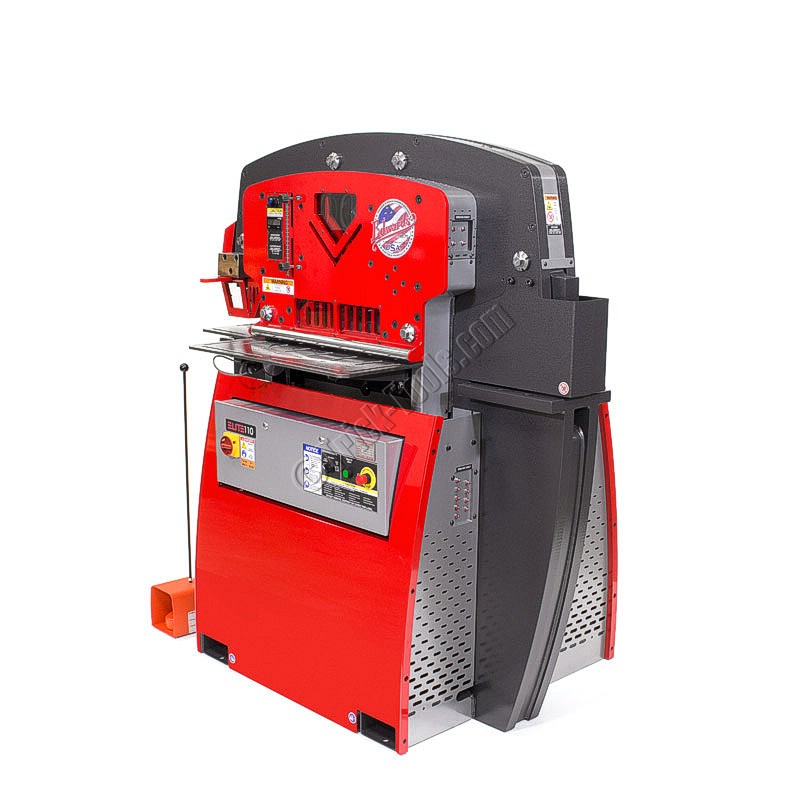

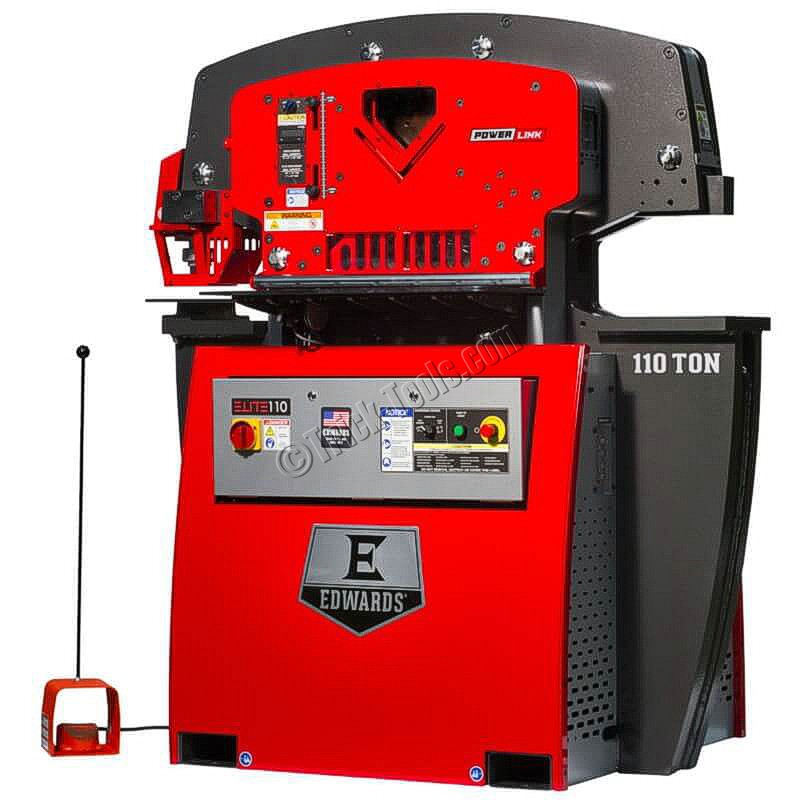

Edwards Elite 110 ton Ironworker

Name: Edwards Elite 110 ton Ironworker
Brand: Edwards Mfg. Co
SKU: ELT110
Price: 37241.10 USD
Availability: InStock

Part #: ELT110
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $48,885.69
Sale Price: $37,241.10

FREE SHIPPING

Hydraulic Hold Down places firm hold on part
Roller Encoder Measuring System comes standard
Gauging Tables and Hydraulic Accessory Pack come standard
Includes 4 work stations and 1 universal open cavity
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Elite Ironworker line from Edwards Manufacturing features the same USA made quality and long-lasting performance as their standard Jaws counterparts, only with a few more features aimed to increase part-to-part accuracy and ease of use. Elite Series Ironworkers include a Hydraulic Hold-Down that places a firm hold on your part before shearing, an Electric Stroke Control allowing for precise control of the up and down stroke of the hydraulics, and a Central Lubrication System for industrial applications with all-day-everyday use.

Other features like the quick change punch and swing away stripper assemblies work together to simplify the process of changing punches and dies, while the Roller Encoder Measuring System grants precise measurements to increase accuracy for production applications. Elite machines also feature a Hydraulic Accessory Pack for use of external accessories, Premium Gauging Tables, and LED lighting, all of which are optional on smaller machines.

The Edwards Elite 110 ton Ironworker is a workhorse with plenty of power for nearly any job. Other standard features include four available work stations, a universal open tooling cavity that can hold a variety of optional tool sets, a 14-inch bar shear, angle shear, and heavy-duty punch station. Like all Edwards machines, this unit works in a completely vertical motion - straight down on the work. There is no arc of tool against the material to be cut or punched. All stations operate as a unit so you can move from punch to shear to angle shear without changing or adding any new equipment.

Note: Liftgate delivery is not available for this item.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 110
•Punching Capacity (Std): 1-3/8 inch diameter in 1 inch plate
•Punching Throat Depth (inches): 11-3/4
•Punching Work Height (inches): 41
•Flat Bar Shearing Max Width (inches): 3/4 x 14
•Flat Bar Shearing Max Thickness (inches): 1 x 12
•Flat Bar Shearing Max Round Cap (inches): 1-1/4
•Flat Bar Shearing Max Square Cap (inches): 1-1/4
•Flat Bar Shearing Work Height (inches): 41-1/2
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 1/2
•Angle Shear Work Height (inches): 50-7/8
•Open Station Work Height (inches): 39-3/16
•Throat Depth (inches): 15-1/2
•Open Height (inches): 8-5/8
•Shut Height (inches): 6-13/16
•Brake Capacity (inches): 12
•Stroke (inches): 1.875
•Cycle Time: 2 seconds
•Motor (Std): 7.5 hp, 1765 rpm
•Hydraulics: 10.5 gpm - 2 stage
•Valve Pressure: 3000 psi
•Reservoir Capacity: 17 gallon
•Cylinder: 3-1/2 inch ram
•Weight (pounds): 5380
•Dimensions (LxWxH): 42.375 x 57.25 x 66.0625

INCLUDES

Receive a FREE 20 ton H-Frame Press (HAT2000) or Tube Bender (HAT1000) Accessory for a limited time!
4 stations
Universal open tooling station
Hydraulic Hold-Down
E-Stop/Lockout-Tagout
Electric Stroke Control
Hydraulic Accessory Pack
Central Lubrication System
Swing Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Premium Gauging Tables
LED Lighting
14 inch capacity bar shear
Punching station: 1-3/8 inch thru 1 inch plate
Angle shear 6 x 6 x 1/2
