Edwards Jaws 120 ton Ironworker

Part #: IW120
Model: Jaws 120
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $55,592.79
Sale Price: $45,249.99

FREE SHIPPING

5 stations
Universal open tooling station
Dedicated notching station
24 inch capacity bar shear
Punching station: 1-1/2 inch thru 1 inch plate
Angle shear 6 x 6 x 1/2

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

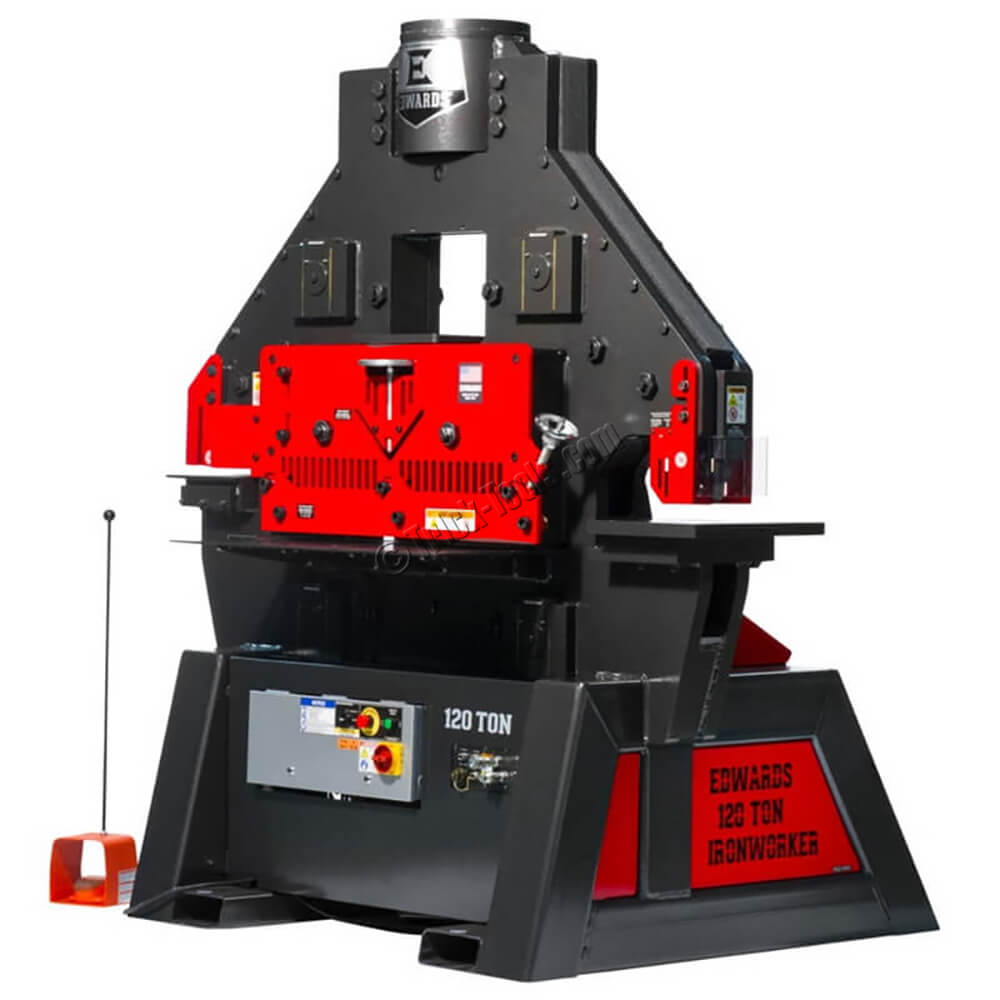

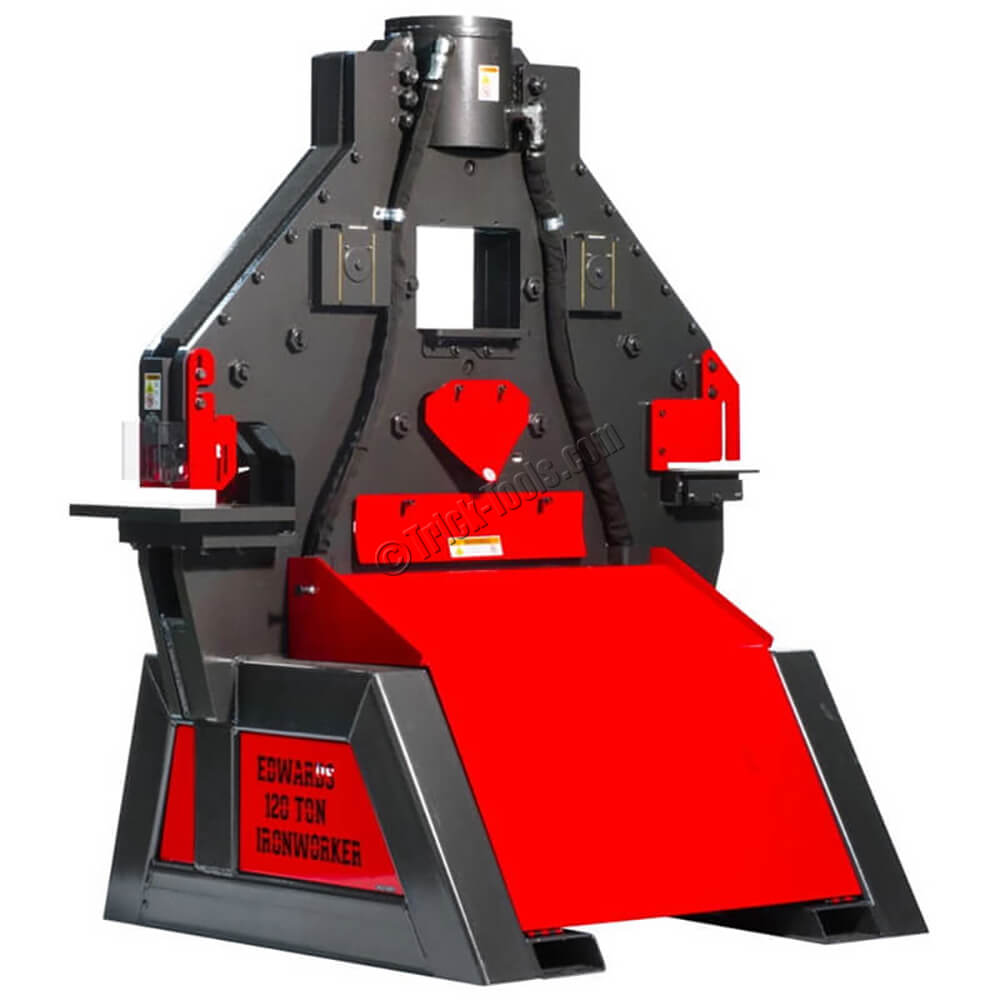

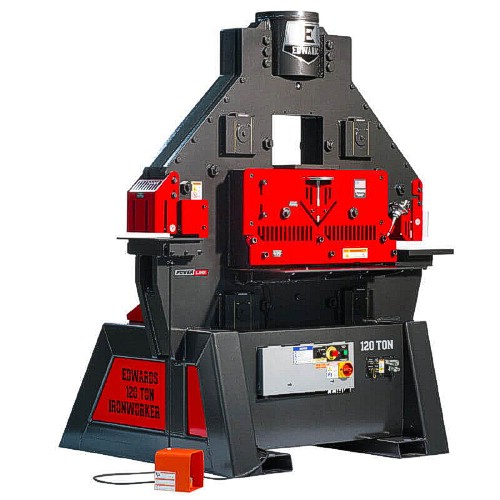

The Edwards 120-ton is the powerhouse of the Edwards Ironworker line of products. Featuring five available workstations, the 120-ton incorporates a universal open tooling cavity, 24-inch bar shear, angle iron shear, heavy-duty punch station, and integrated notching station.

All Edwards machines now come with PowerLink Hydraulic Accessory Ports! See the Accessories tab for a growing selection of accessories like Shop Presses, Press Brakes, Tubing Benders, and Rollers that utilize your Edwards Ironworker hydraulics to run.

For increased productivity this Edwards Ironworker includes electric stroke control. This easy-to-adjust system speeds up production time and decreases wear on tooling by limiting the stroke to just enough to complete the task at hand efficiently. It can also be helpful when using special tooling that requires a limited stroke to perform properly.

Like all Edwards machines, this unit works in a completely vertical motion - straight down on the work. There is no arc of tooling against the material to be cut or punched. All stations operate as a unit so you can move from punch to shear to angle shear without changing or adding tools.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Stations: 5
•Rated Capacity (tons): 120
•Punching Capacity (Std): 1-1/2 inch diameter in 1 inch plate
•Punching Throat Depth (inches): 11
•Punching Work Height (inches): 36.625
•Flat Bar Shearing Max Width (inches): 1/2 x 24
•Flat Bar Shearing Max Thickness (inches): 1 x 12
•Flat Bar Shearing Max Round Cap (inches): 1-1/4
•Flat Bar Shearing Max Square Cap (inches): 1-1/4
•Flat Bar Shearing Work Height (inches): 33.75
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 1/2
•Angle Shear Work Height (inches): 40
•Coper Notcher Max Cap (inches): 3 x 6 x 1/2
•Coper Notcher Work Height (inches): 40
•Open Station Size (inches): 11.75 x 9
•Open Station Work Height (inches): 51.75
•Throat Depth (inches): 11
•Open Height (inches): 9.125
•Shut Height (inches): 7
•Brake Capacity (inches): 10
•Stroke (inches): 2.5
•Cycle Time: 2.5 seconds
•Motor (Std): 10 hp, 1725 rpm
•Hydraulics: 24 gpm
•Valve Pressure: 4500 psi
•Reservoir Capacity: 17 gallon
•Cylinder: 2-3/4 inch ram
•Weight (pounds): 5500
•Dimensions (LxWxH): 60 x 60 x 84
