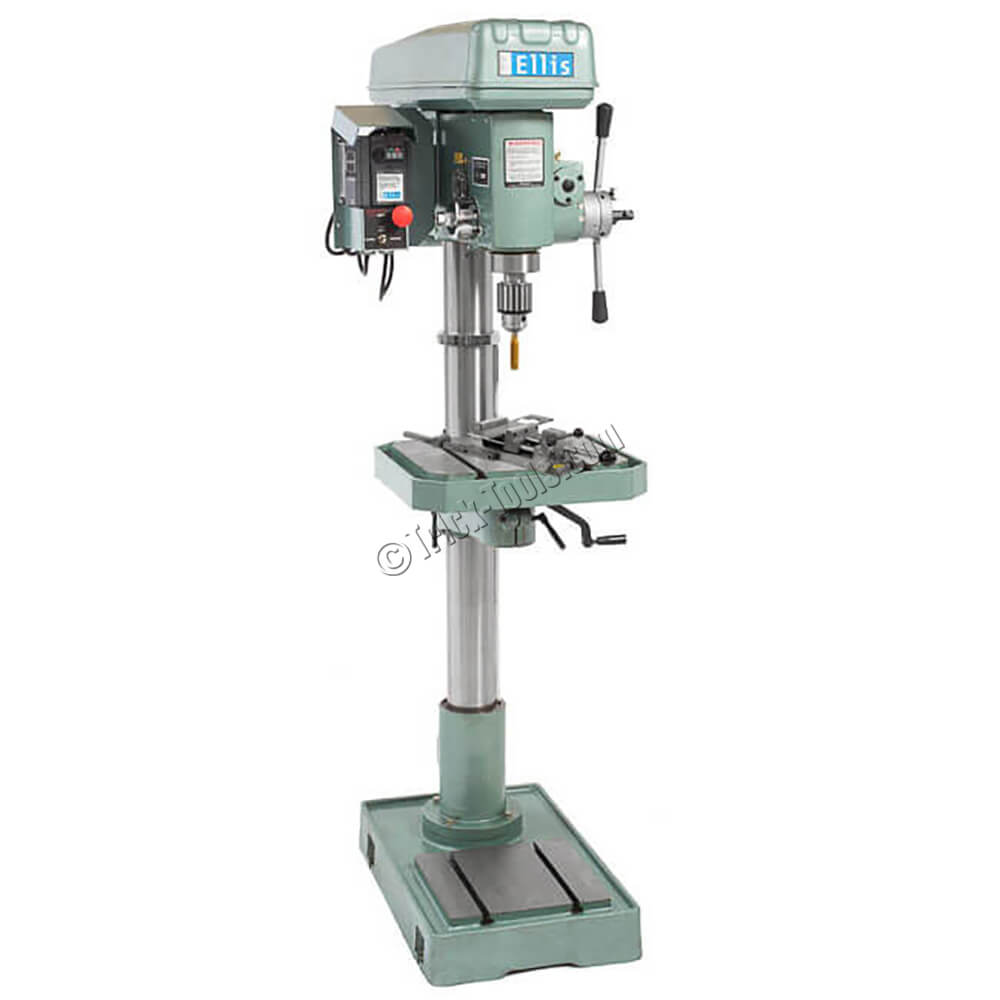

Ellis 9400 Floor Model Drill Press Deluxe Kit

Part #: 9400-ELL-Deluxe
Model: 9400
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $5,765.00
Sale Price: $5,490.00

NEW

Deluxe kit includes drill, chuck, and vise
Tapping capability up to 3/4 inch
Drilling capacity up to 1-1/16 inch
Variable speed

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

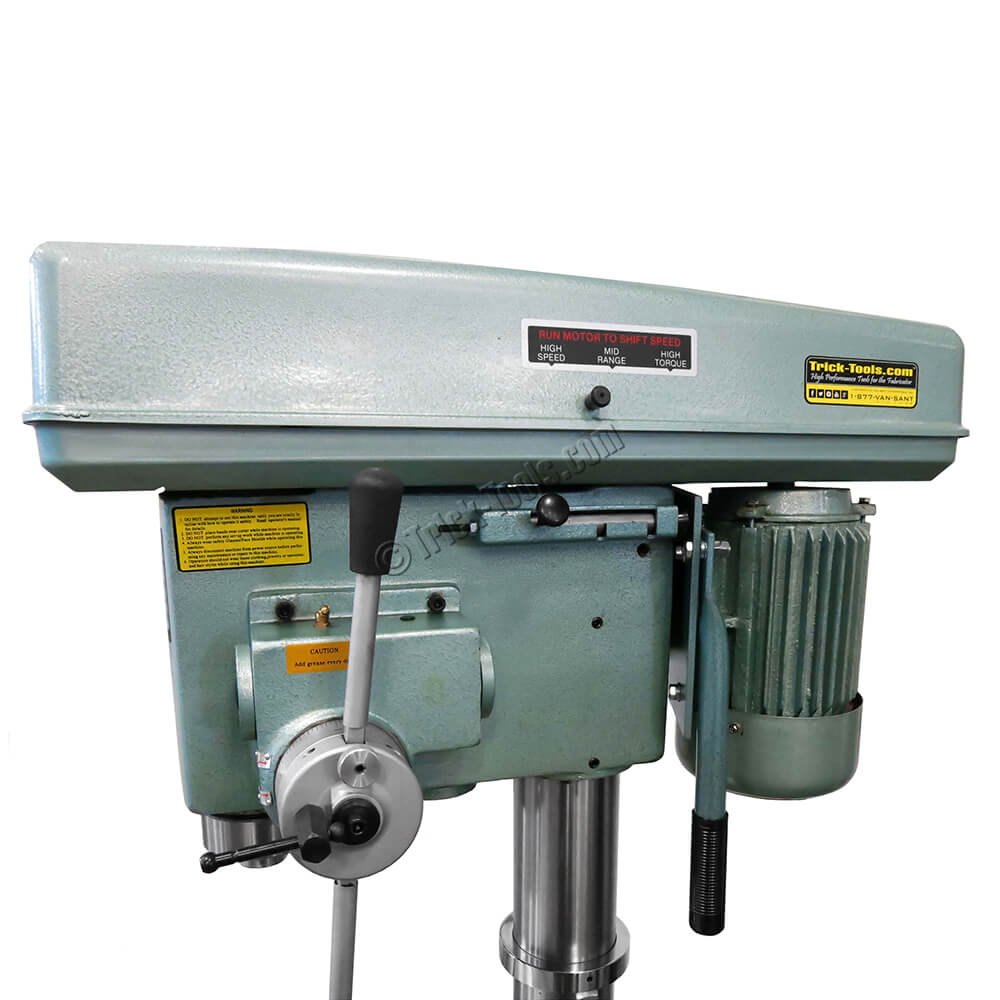

The Ellis 9400 Drill Press is one of the most versatile drill presses available. With standard features such as power down-feed, variable frequency drive speed control, and instantaneous reverse for tapping; the value is unsurpassed. The Ellis drill press is built to be extremely durable, featuring a 4-inch diameter column, 3-inch diameter quill, and a 2 HP motor. The movable table, as well as the base, has 1/2 inch t-slots for flexibility of fixturing or vise mounting options.

Included in this Deluxe Kit is a ball bearing chuck that features a #3 Morse Taper and can accept 1/8 inch through 3/4 inch bits, and a 6.25 inch capacity vise. The vise features a quick cam lock system for fast loading and removal of all materials and its unique clamping arm design allows for quick and easy positioning without need to further secure the vise.

Note: 220 volt available. Call for details.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 2 hp, 110 volt
•Number of Speeds: electronic variable speed
•Spindle Speed(s)Range: 0-1200 rpm
•Drills To Center (inches): 18.125
•Drilling Capacity (inches): steel 1-1/16, cast iron 1-1/4
•Tapping Capacity (inches): 3/4
•Spindle Taper: Morse no. 3
•Quill Diameter (inches): 3
•Column Diameter (inches): 4
•Spindle Travel (inches): 5.375
•Spindle To Table Max (inches): 27.25
•Spindle To Base (inches): 46.25
•Table Size (inches): 15.875
•Base (inches): 16.375 x 26.625
•Weight (pounds): 675
•Dimensions (LxWxH): 69.5 x 20 x 29
