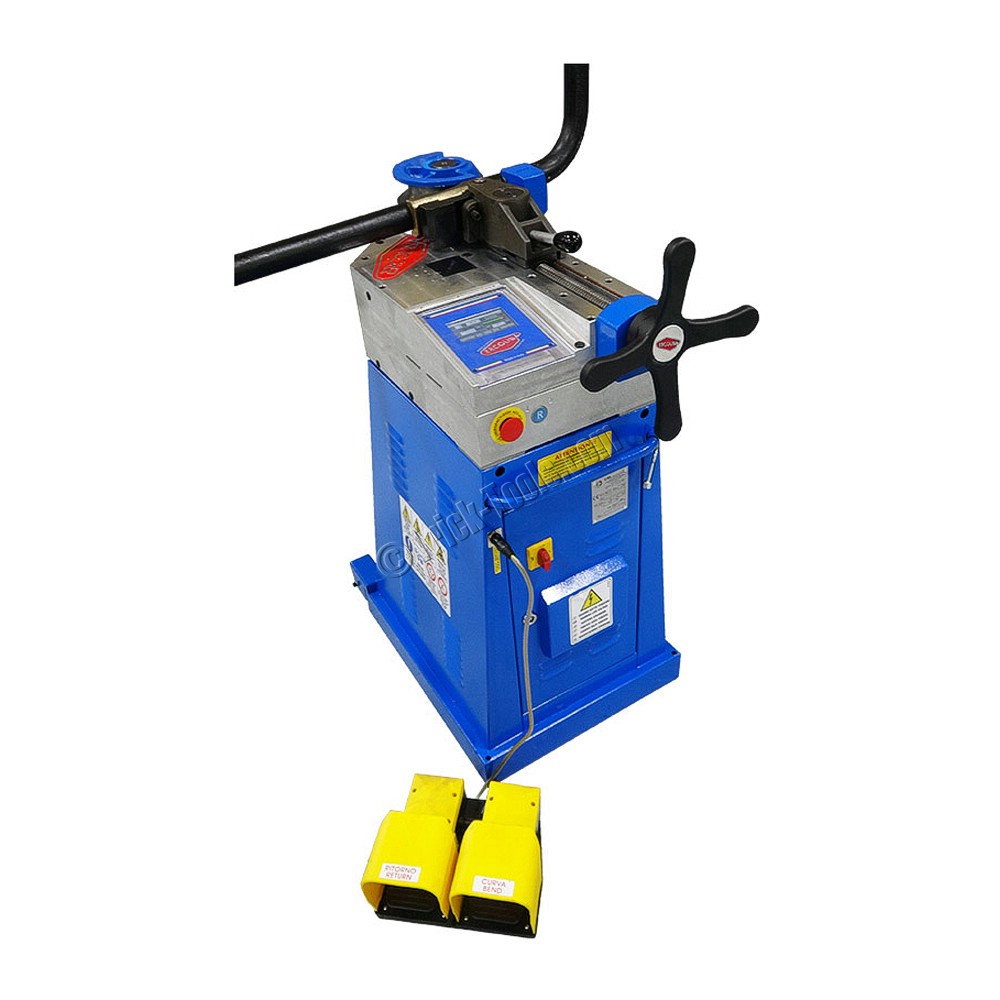

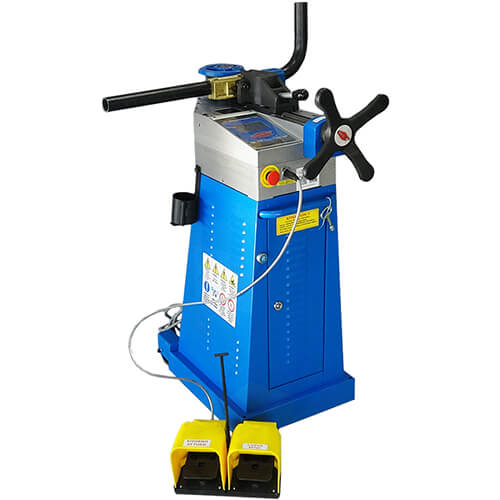

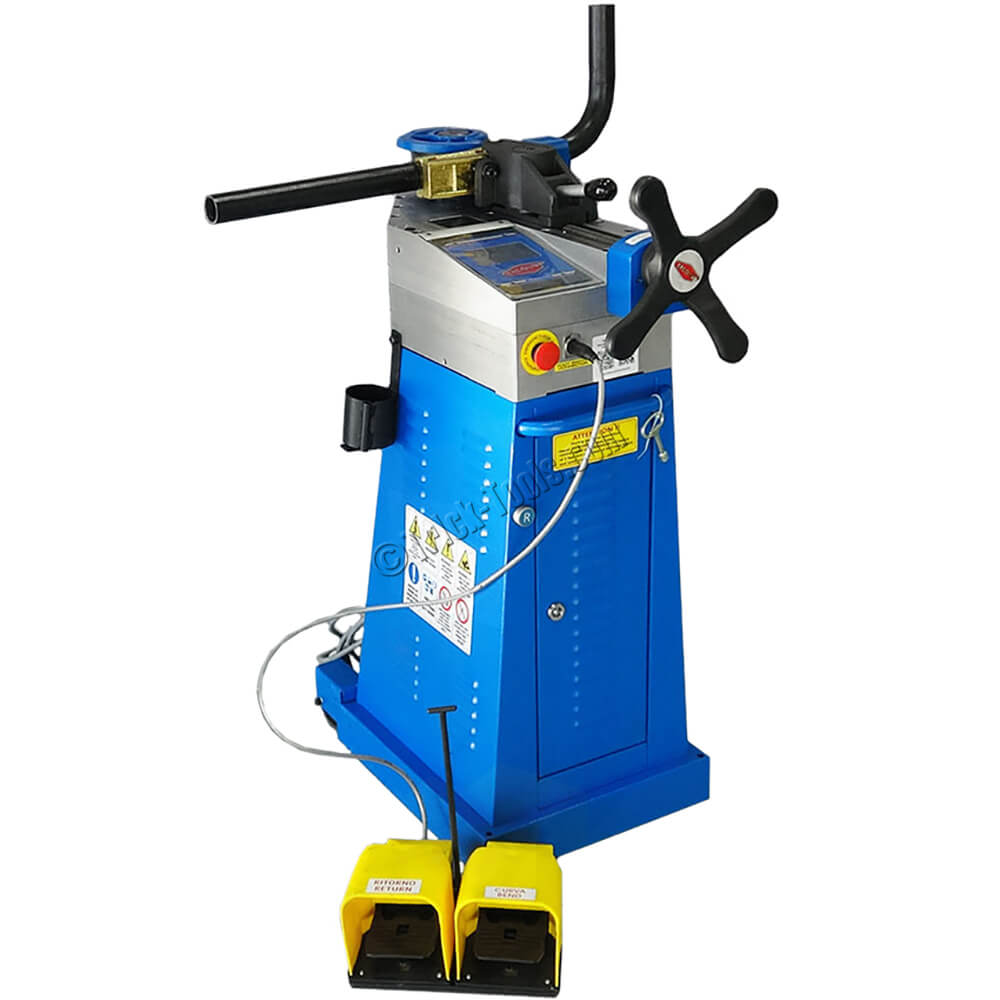

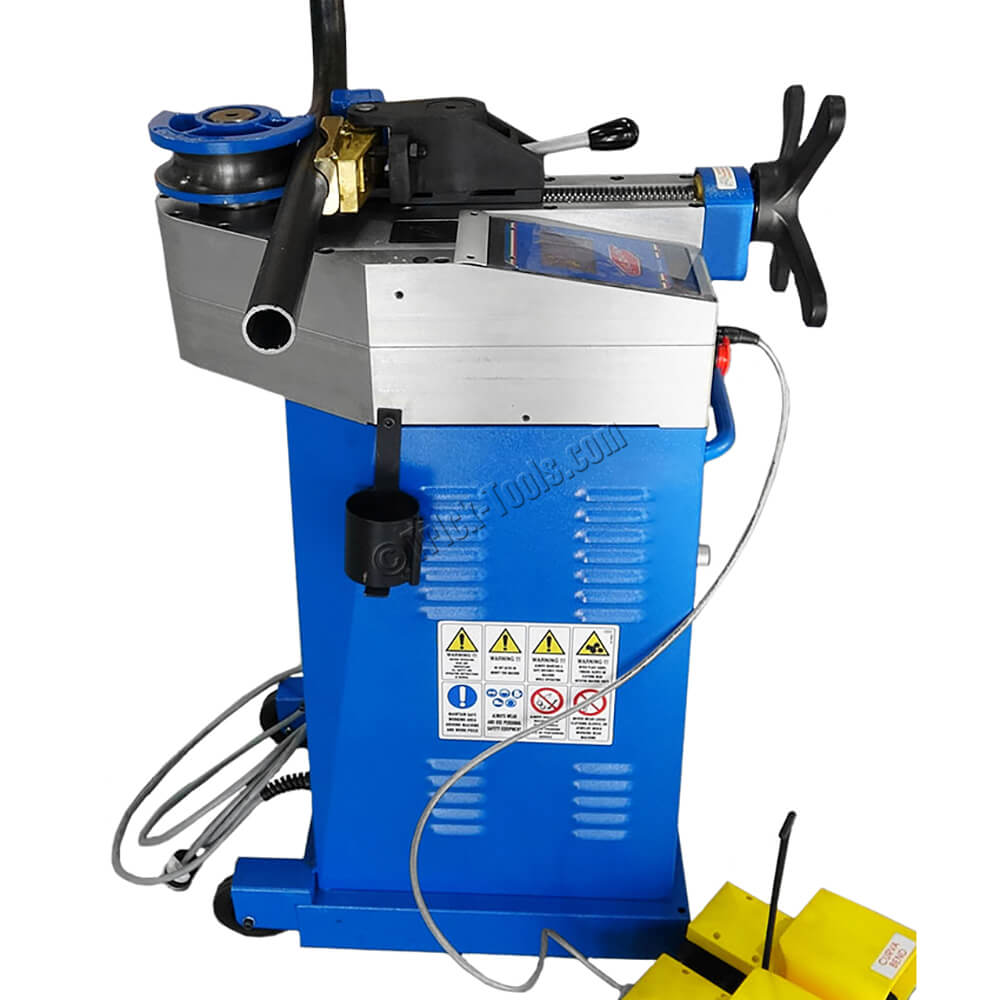

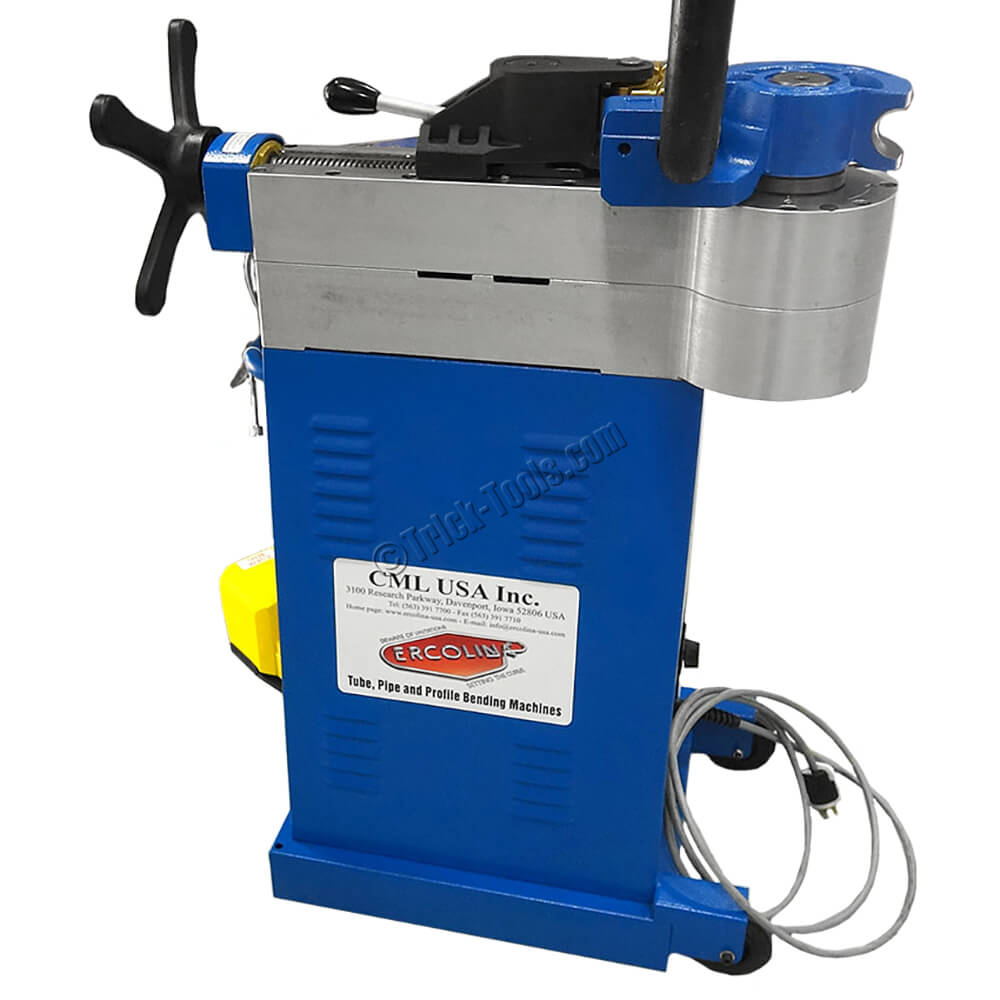

Ercolina TB60-TC Top Bender Tubing Bender

Part #: TB60-TC
Ships From: Factory shipped

Lead Time: Backordered - Lead time unknown

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $20,900.00

2-1/2 inch OD capacity
Electric gear drive

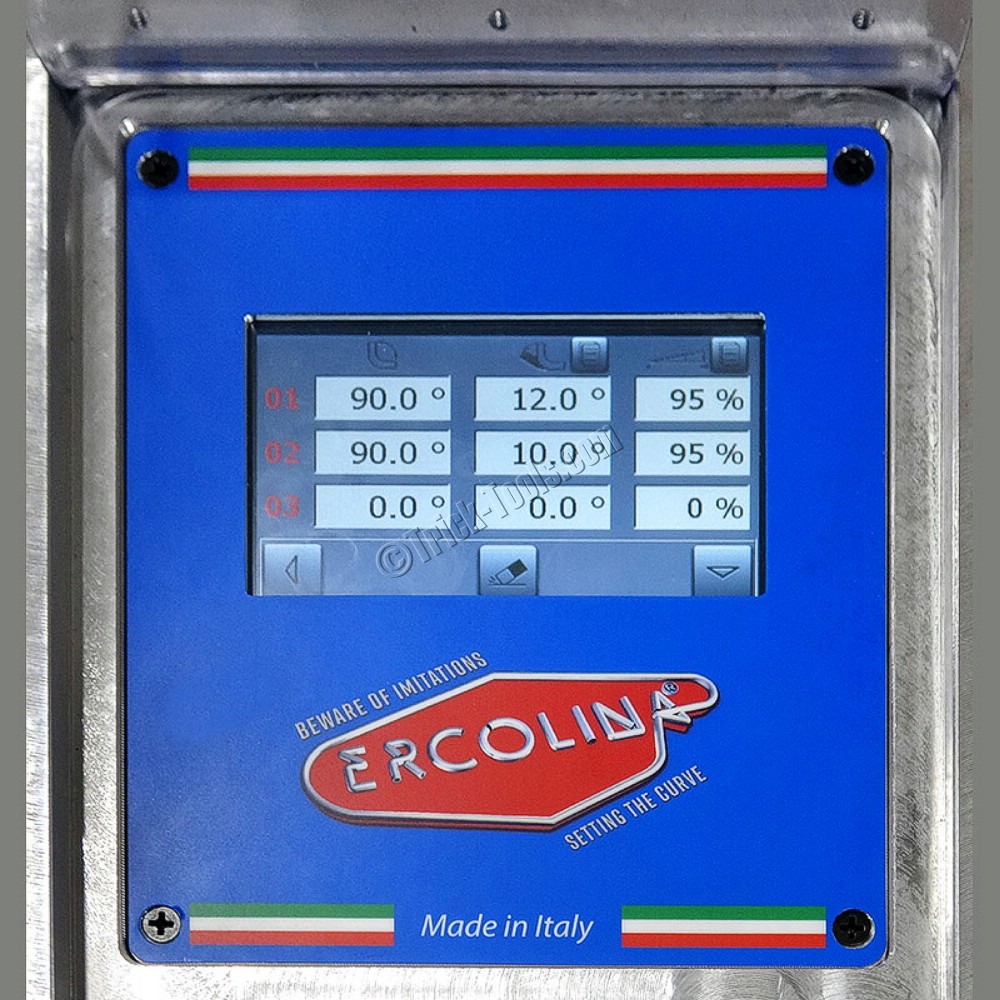

Windows based touch screen
Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

Ecrolina offers a large variety of high-quality benders and one of the most popular is the TB60-TC Top Bender which has a 2-1/2 inch round tubing or 2-inch Schedule 40 pipe capacity. The windows based programmable touch screen can handle up to 30 bends per program and an unlimited number of programs when used with a removable USB drive.

Select a tooling package when purchasing this bender and SAVE!

PIPEKIT1 (6 piece kit)

1/2 NPS (.840 inch OD) x 1.8 inch CLR
3/4 NPS (1.050 inch OD) x 2.2 inch CLR
1 NPS (1.315 inch OD) x 2.6 inch CLR
1-1/4 NPS (1.660 inch OD) x 3.5 inch CLR
1-1/2 NPS (1.900 inch OD) x 3.9 inch CLR
2 NPS (2.375 inch OD) x 5.9 inch CLR

TUBEKIT1SR (6 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.2 inch CLR
1 inch OD x 2.6 inch CLR
1-1/4 inch OD x 3.2 inch CLR
1-1/2 inch OD x 3.9 inch CLR
2 inch OD x 5.9 inch CLR

TUBEKIT1 (7 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.6 inch CLR
1 inch OD x 3.2 inch CLR
1-1/4 inch OD x 4.4 inch CLR
1-1/2 inch OD x 5.9 inch CLR
1-3/4 inch OD x 6.7 inch CLR
2 inch OD x 7.5 inch CLR

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .188
•Round Dom Capacity (inches): 2-1/2 x .134
•Nominal PIPE Capacity: 2 inch Sch 40 (1-1/2 Sch 40 Stainless)
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 15
•Max Degree of Bend: 180
•Motor: 220v single phase
•Control Method: programmable on board computer
•Maximum OD (inches): 2-1/2
•Weight (pounds): 430
•Dimensions (LxWxH): 27 x 15 x 36 inches
