Grit GI150/GIR 6 inch Abrasive Tube Notcher Bundle

Part #: GIR-Bundle
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,292.00

FREE SHIPPING

6 inch wide belt
Dual speed 5hp motor
3/4 to 6 inch OD notching capacity

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

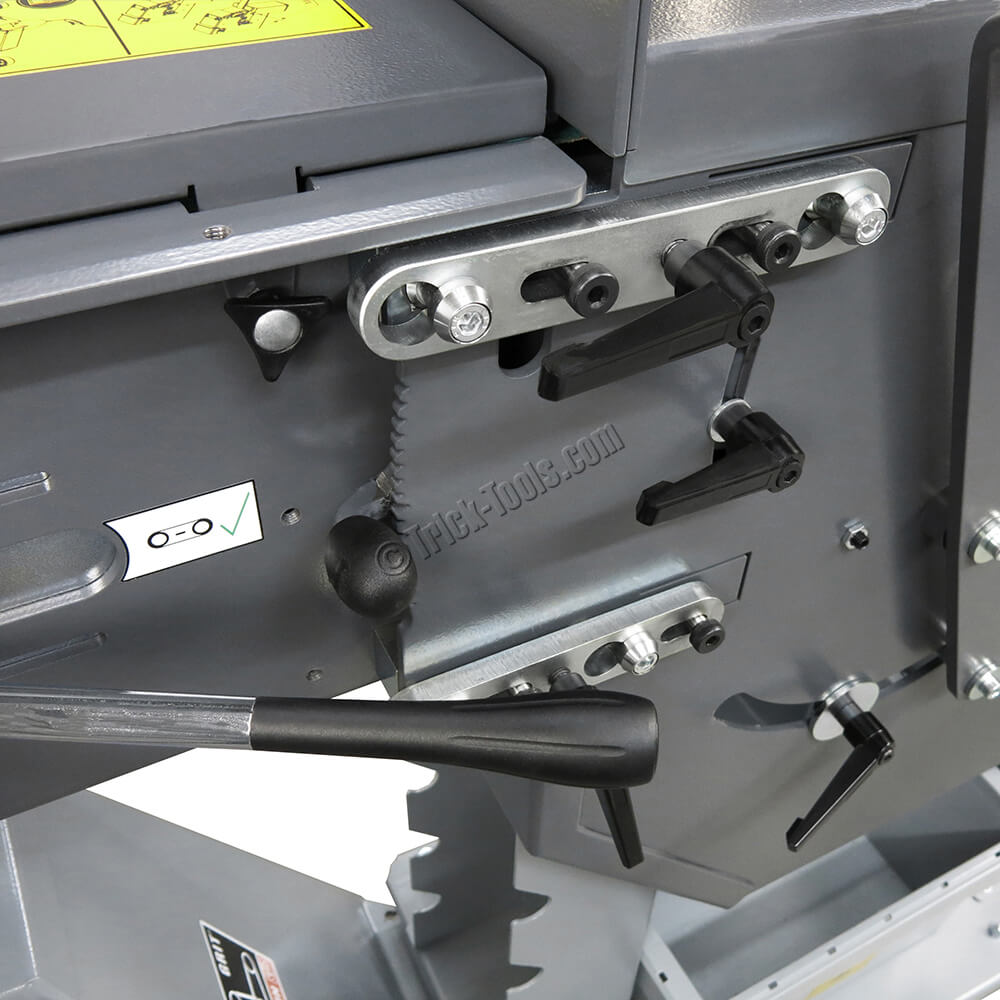

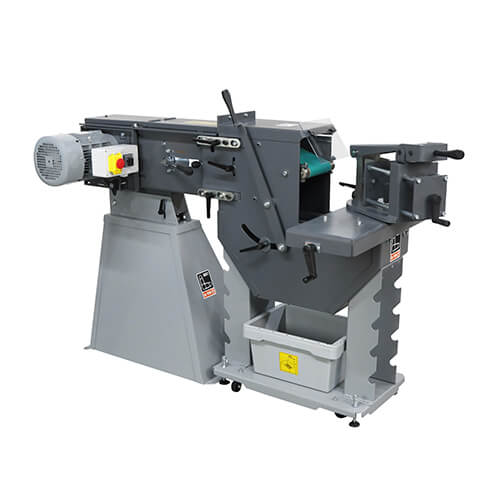

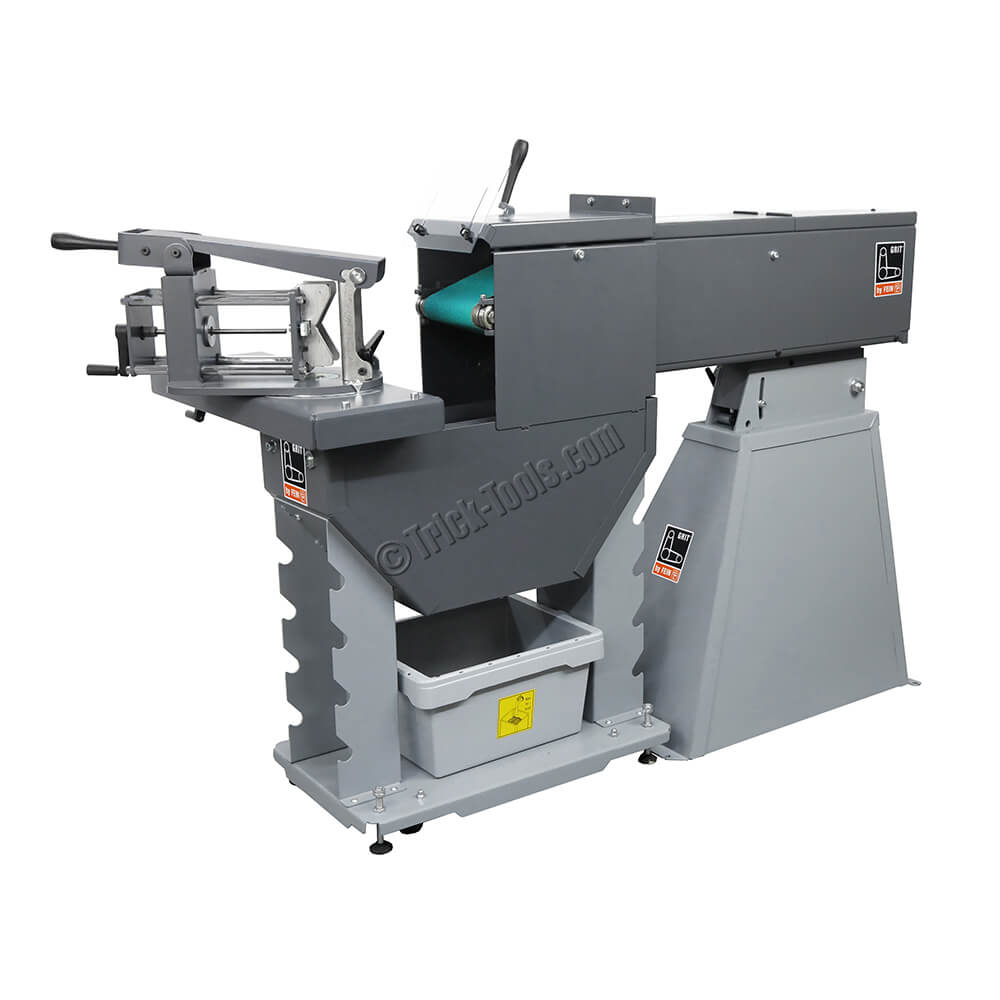

The Grit GI150/GIR Notcher Bundle is the perfect solution for pipe and tube notching. Attaching the GIR module to the GI 150 belt grinder allows you to convert to the ideal platform for precise radius profiles on pipe and round or square stock. Standard features include a quick clamping system, traverse carriage, indexed degree table, offset notching adjustment, and depth stop. This machine is capable of coping materials from 3/4 inch to 6-inch OD with a maximum notch size of 7-5/8 inches and has two speeds which make it optimal for running processes such as stainless steel. It also includes four casters, making it easy to convert your GI 150 back into a belt grinder and move your notching module out of the way. There is also an extensive contact roller selection available to match almost all of your notching needs

Other features include:

7-5/8 inch notch in up to 6 inch OD material
30 deg - up to 5-1/2 inch OD
45 deg - up to 5 inch OD
60 deg - up to 4-1/2 inch OD
6 inch x 88-1/2 inch belt (Qty 1 included)
On casters for portability
Stainless steel jaws
Integrated depth stop

Warranty:

3 year manufacturer's warranty
