Grit GXR Pipe Notching Module for Grit GX75 Grinder

Part #: 99001001110
Model: GXR
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,289.00

Stainless steel jaws
Includes casters for portability
Integrated depth stop

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

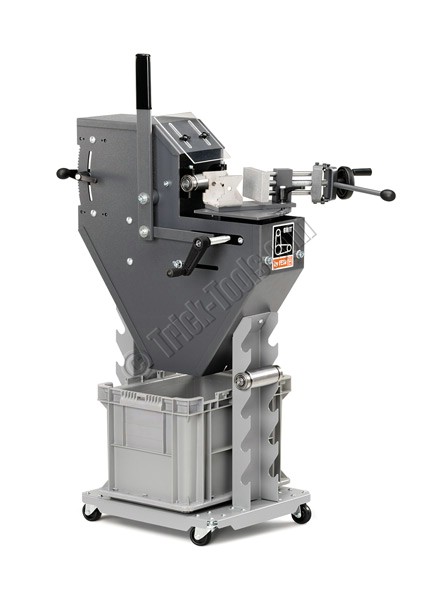

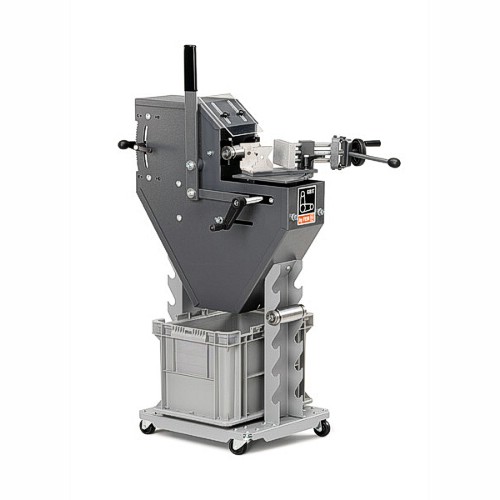

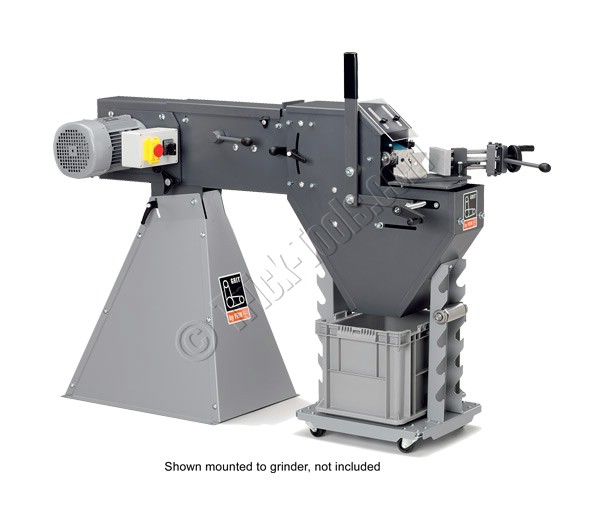

The Grit GXR radius grinding module by Fein is the perfect solution for tube pipe and tube notching. By attaching the GXR module onto the GX75 or GI75 belt grinder, you can convert to the ideal platform for precise radius profiles on pipe and round or square stock. Standard features include a quick clamping system, traverse carriage, indexed degree table and depth stop. User friendly with professional results, quickly and effortlessly. This machine is for precise notching or coping of profiles and tube or pipe from 5/8 inch to 3 inch. Is has low speed which is optimal for running processes such as stainless steel. It also includes four casters which make it easy to convert your GX 75 back into a belt grinder and move your notching module out of the way. There is also an extensive contact roller selection available to match almost all of your notching needs

Other features include:

90 deg - up to 3 inch OD
60 deg - up to 2-1/2 inch OD
45 deg - up to 2 inch OD
30 deg - up to 1-1/2 inch OD
3 inch x 88-9/16 inch belt (Qty 1 included)
On casters for portability
Stainless steel jaws
Integrated depth stop
Weight: 119 lbs

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Max Notch Angle: 30 to 90 degrees
•Max Diameter: 3 inch
•Min Diameter: 5/8 inch
•Works With: Grit GX75 and GI75 Belt Grinders
•Belt Width (inches): 3
