Eckold HF100 Hand Operated Shrinker/Stretcher Kit

Part #: 020.200.2537
Ships From: Factory shipped
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: HF 100
Price: $4,268.82
  • Includes shrinking/stretching dies
  • 16 ga mild steel .079 aluminum capacity
  • 4 inch throat depth
  • Air powered upgrade available

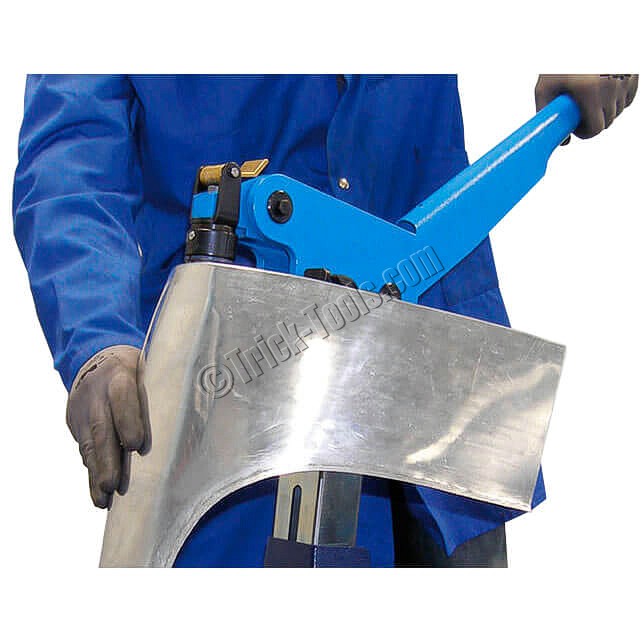

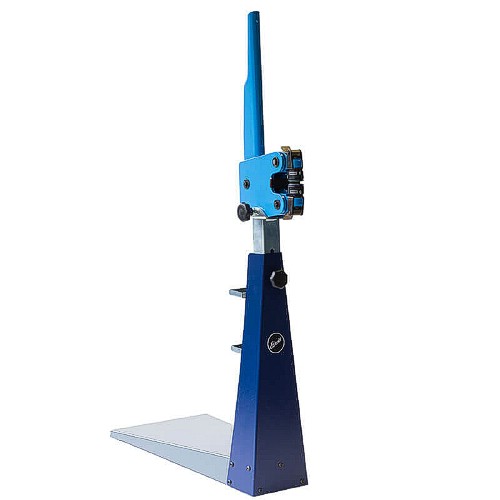

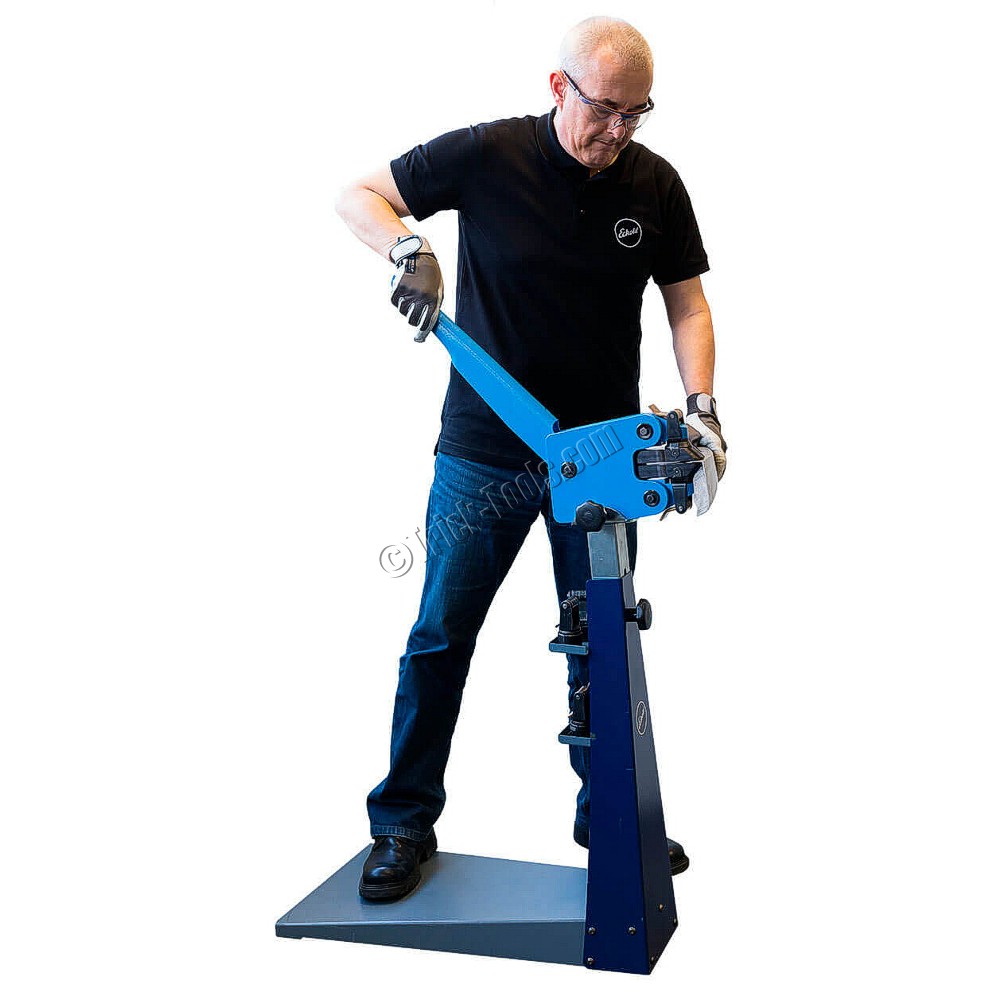

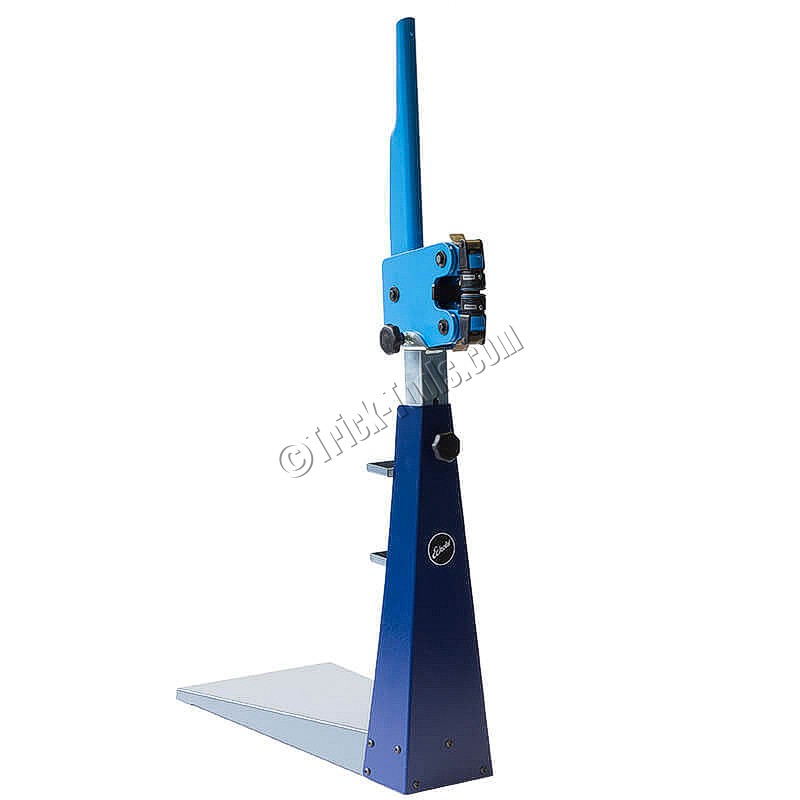

The Eckold HF100 Handformer is a hand operated shrinker/stretcher that features an adjustable work height base, quick tool change, depth limit stop, and can be upgraded to pneumatic power. Made in Switzerland, this high quality shrinker/stretcher is built to last for the professional metal shaper.

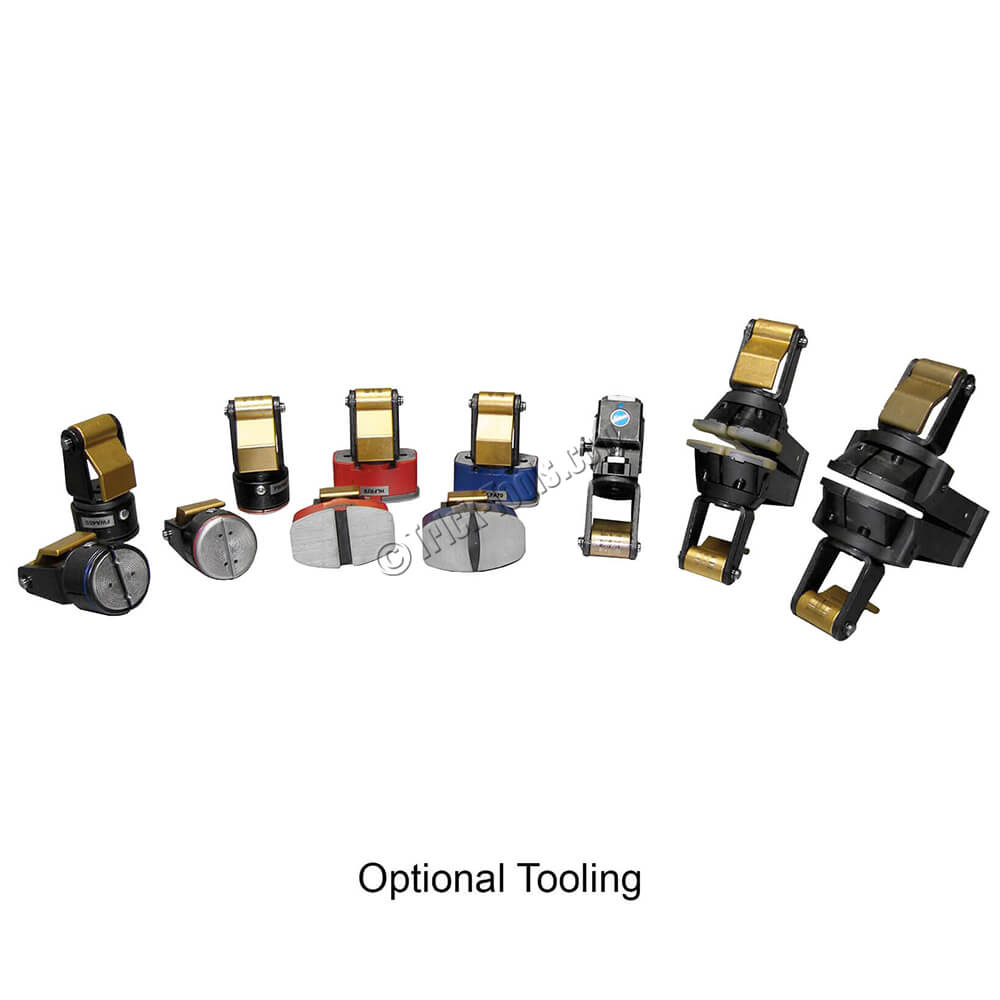

This kit includes 40mm round shrinking and stretching dies for up to 16 gauge (1.5 mm) mild steel or .079 (2.0 mm) aluminum. Optional tooling is also available for punching, notching, edging, and clinching.


Throat Height (inches): 2.4
Throat Depth (inches): 3.9
Steel Capacity: 16 gauge (1.5mm)
Aluminum Capacity (inches): .079 (2.0mm)
Stainless Capacity: 20 gauge (1.0mm)
Weight (pounds): 60
Dimensions (LxWxH): 28 x 15.5 x 46.25


  • HF 100 with handle
  • Adjustable height base

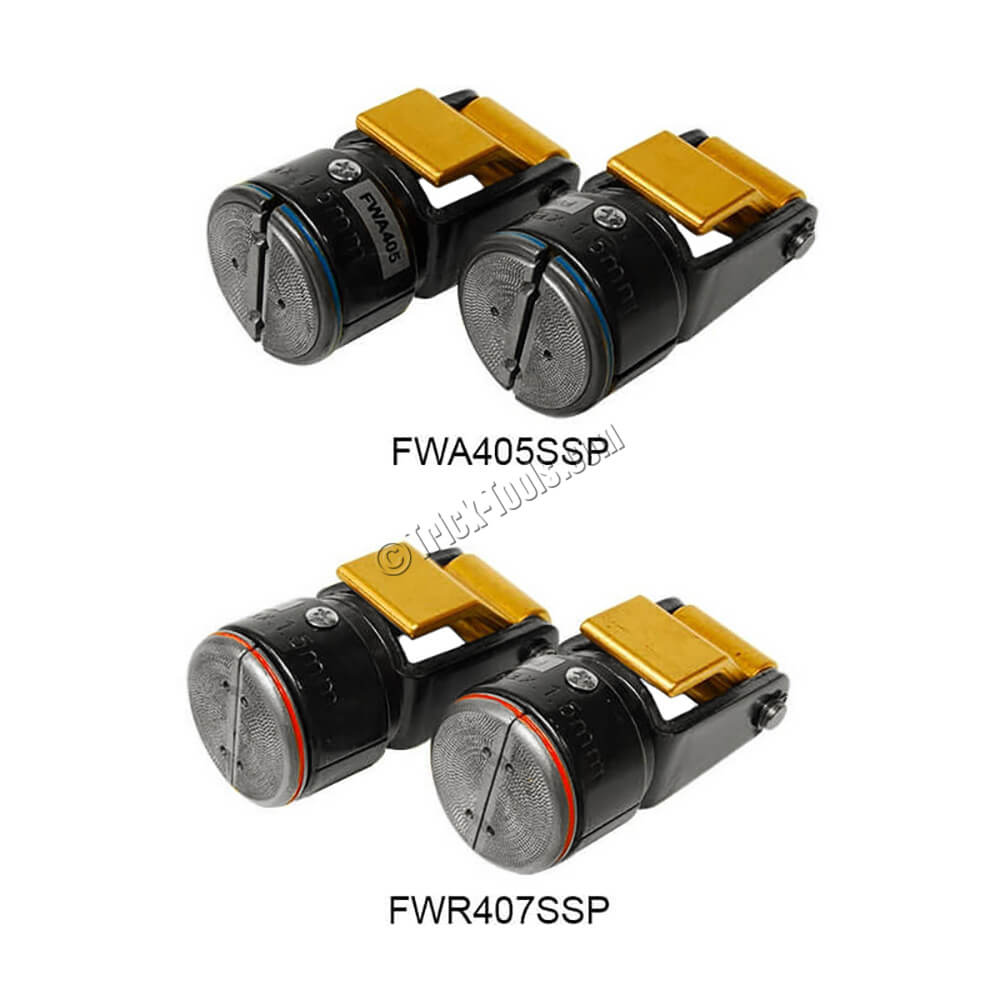

  • FWA405SSP shrinking dies
  • FWR407SSP stretching dies
  • Additional dies sold separately (see accessories tab)
