Huth 1685S Mitey Mate Jr.

Part #: 1685S
Ships From: Factory shipped
Availability: Usually ships within 1-2 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,602.50
Sale Price: $1,499.95
  • Operates on 80-120 psi of shop air
  • Expanding capacity from 1-1/2 inch to 4 inch
  • Features Huth's Accu-Sizer for quick, precise expanding
  • Rugged but lightweight for easy portability

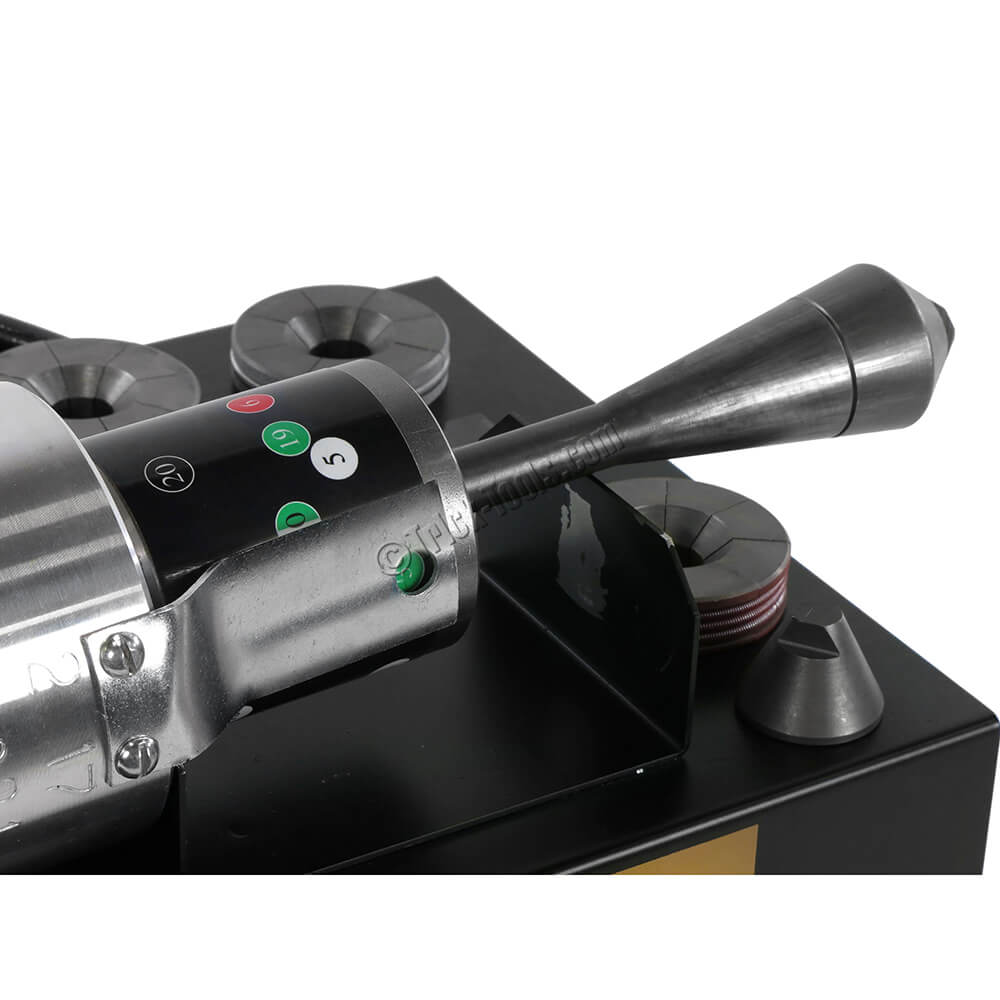

Huth redefines expanding portability and convenience with the Mitey Mate Jr, an air powered offspring of it's larger expanding units such as the 1673 and 1674. Operating off of 80-120 psi of shop air, this unit will produce 17,000 lbs of expanding force. Expanding tubing is easy with Huth's Accu-Sizer system, for perfect expansions every time.

The unit will include tooling to expand 1-1/2 inch to 3 inch exhaust tubing and has the capacity to expand up to 4 inch tubing with additional tooling.

Tube beading tooling is also available for turbocharger and automotive air intake plumbing. The Mitey Mate Jr. is extremely portable, the pistol-grip expander weighing only 7 lbs. and the complete unit weighing only 34 lbs.


1 year manufacturer's warranty


Maximum Od (Inches): 4
Minimum Id (inches): 1
Wall Thickness (inches): .065
Weight (pounds): 34
Dimensions (LxWxH): 10.5 x 10.5 x 9

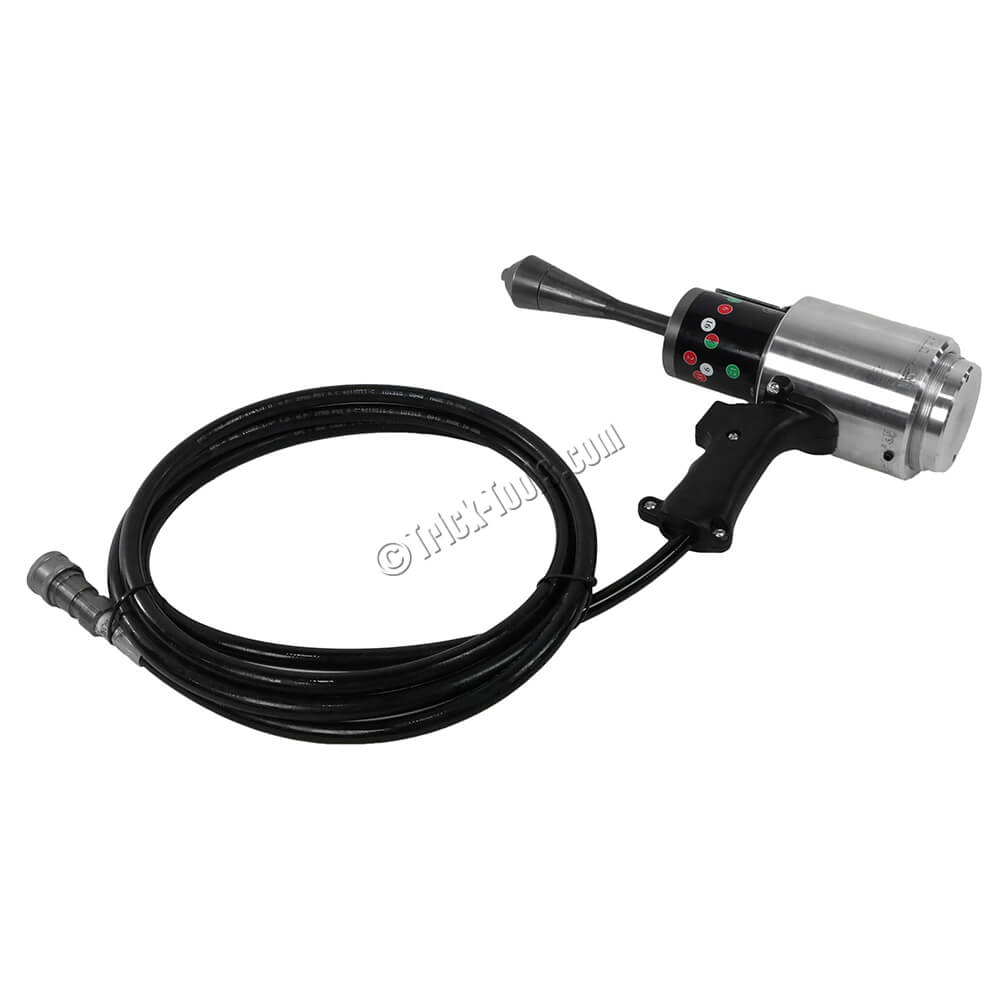

  • Mitey Mate portable expander
  • Accu-Sizer system
  • Tooling to expand 1-1/2 inch to 3 inch .065 inch tubing
  • 497 arbor with 498 and 499 tips

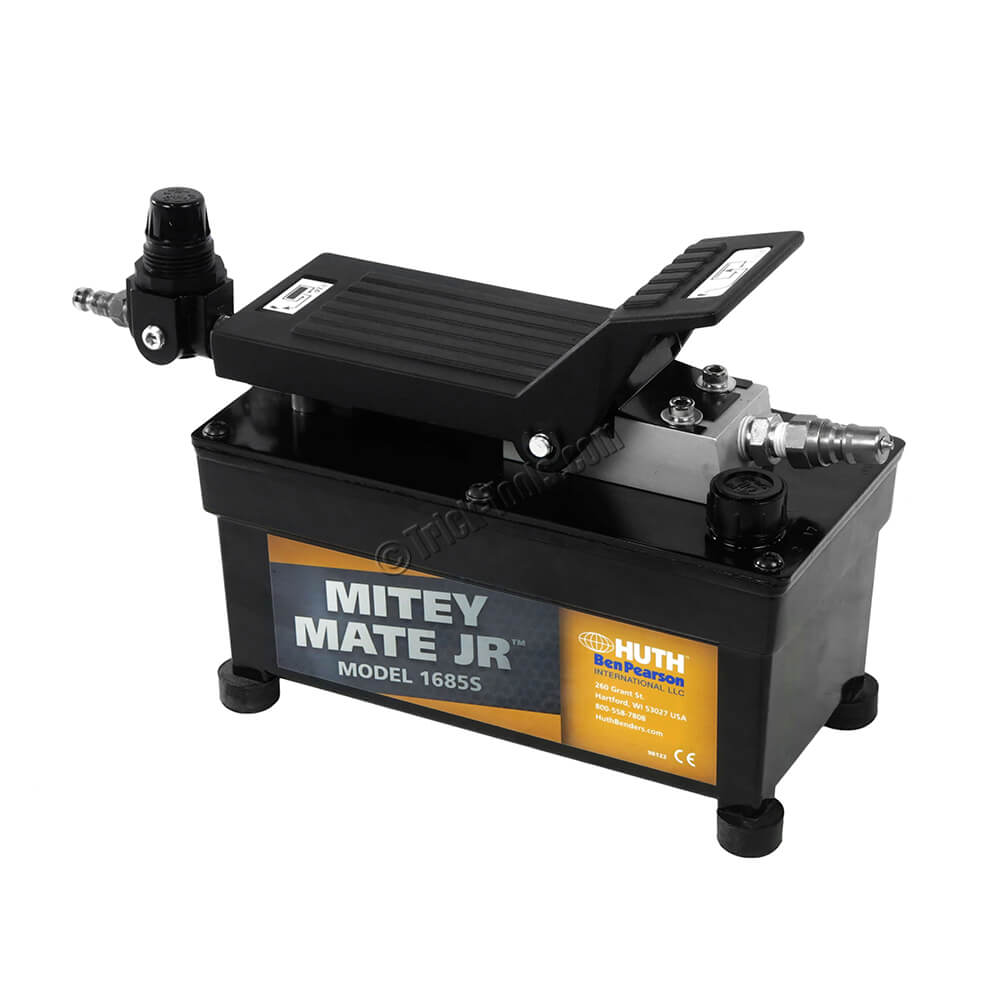

  • Air/hydrualic pump

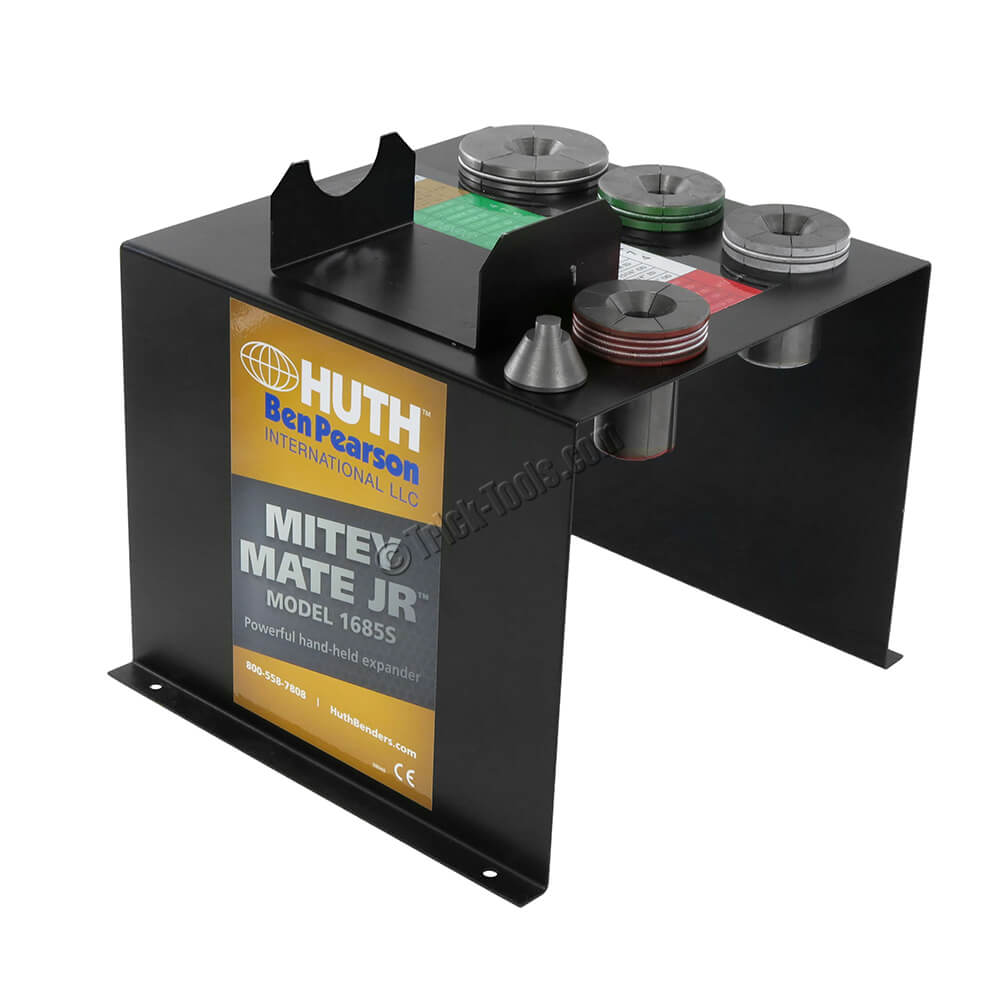

  • Storage unit
  • Instructions
