Huth 1674 Dual Head Portable Expander

Part #: 1674
Ships From: Factory shipped
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $5,594.50
Sale Price: $5,314.78
  • Powerful 5 hp 220 volt motor
  • Expanding capacity from 1 inch to 6 inch
  • Features Huth's Accu-Sizer for quick, precise expanding
  • Mounted on heavy duty rolling cart for easy portability

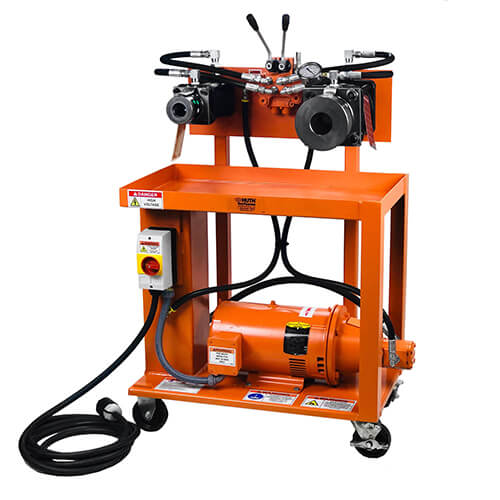

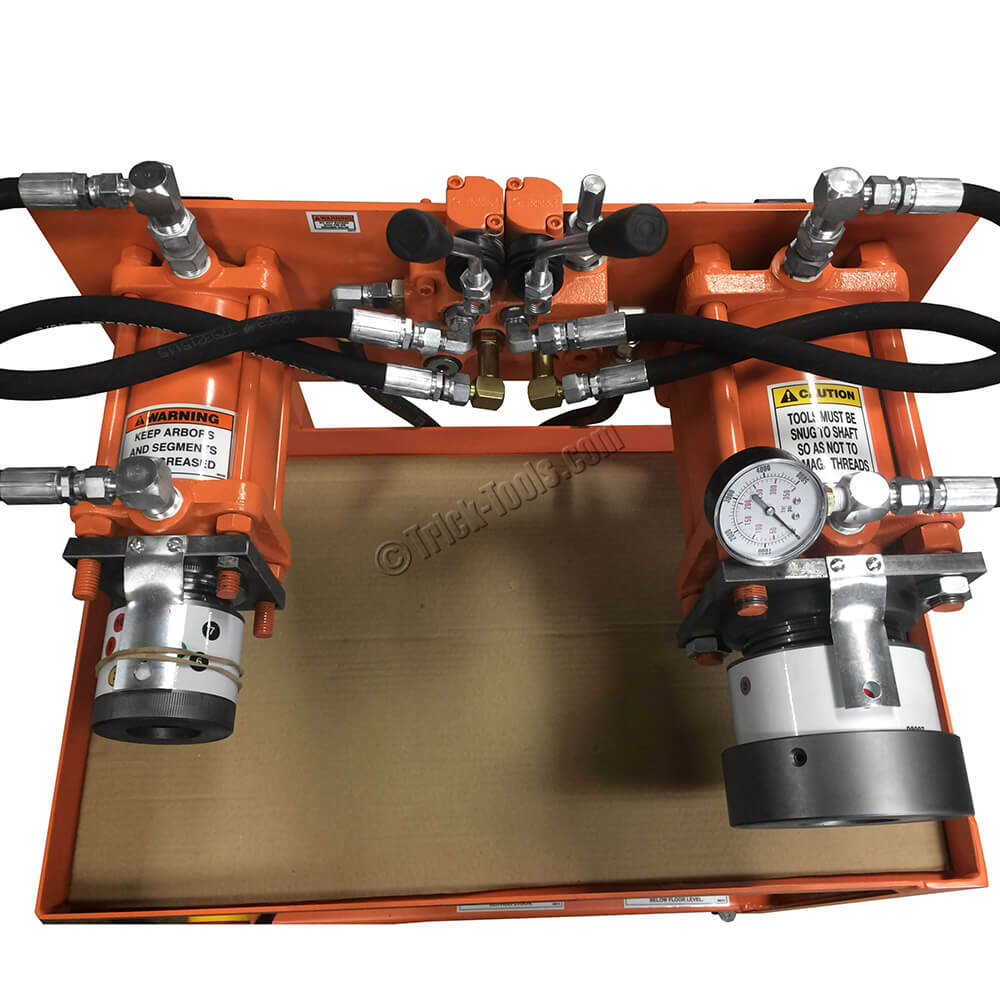

Mounted on its own easy wheeling cart, Huth's Model 1674 portable expander equips you to use all existing Huth expanding type tooling with two hydraulic cylinders. The machine is powered by a 5 hp electric/hydraulic pump giving the 3-1/2 inch cylinder 25,000 lbs of expanding capacity and the 5 inch cylinder 49,000 lbs.

With the 5 inch cylinder you can expand tubing from 3 inch up to 6 inch diameter (with additional tooling), 3 inches deep. The 3-1/2 inch cylinder is equipped with Huth's Accu-Sizer system for quick, precise expanding every time. The built-in tray allows you to keep your tooling within easy reach.


1 year manufacturer's warranty


Maximum Od (Inches): 6
Minimum Id (inches): 1
Motor: 5 hp
Dimensions (LxWxH): 39 x 24 x 48


  • 1674 Portable expander
  • Accu-Sizer adjustable collar for 3-1/2 inch cylinder
  • Adjustable collar for 5 inch cylinder
  • Collar extension for 5 inch cylinder
  • Instructions
