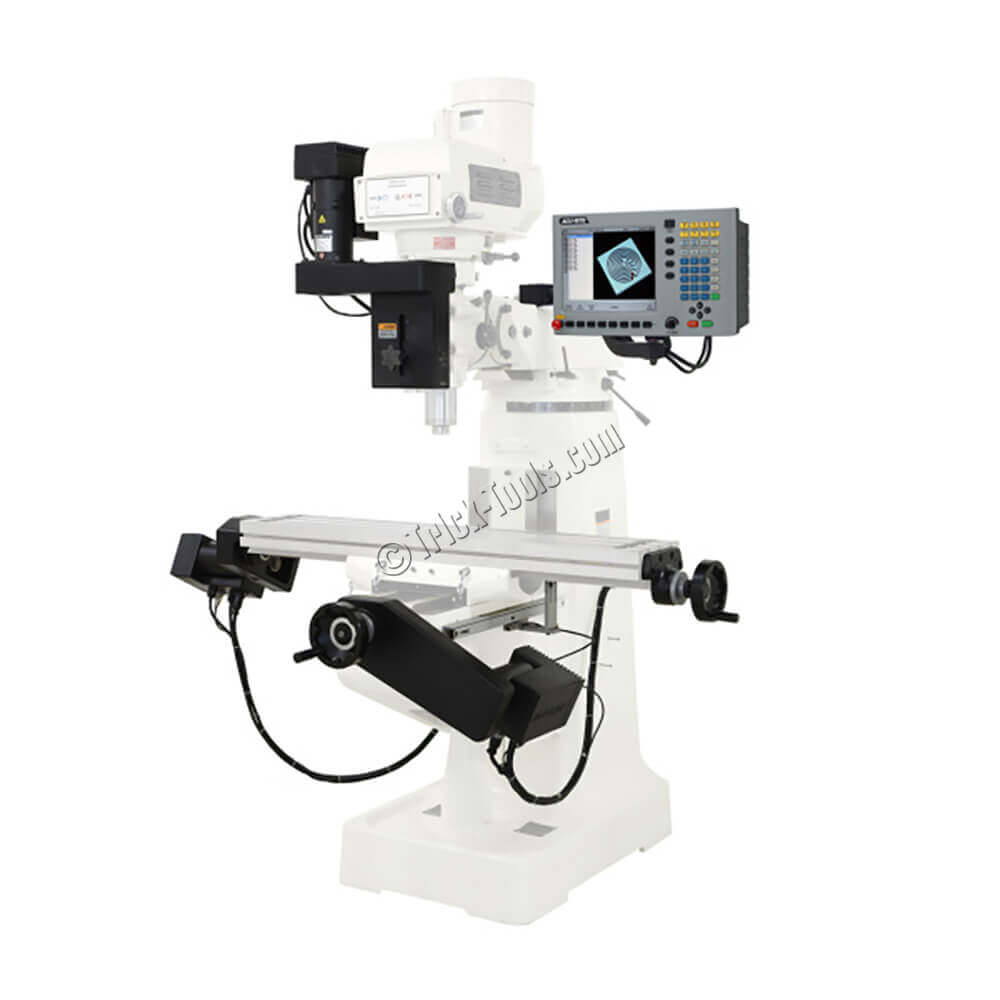

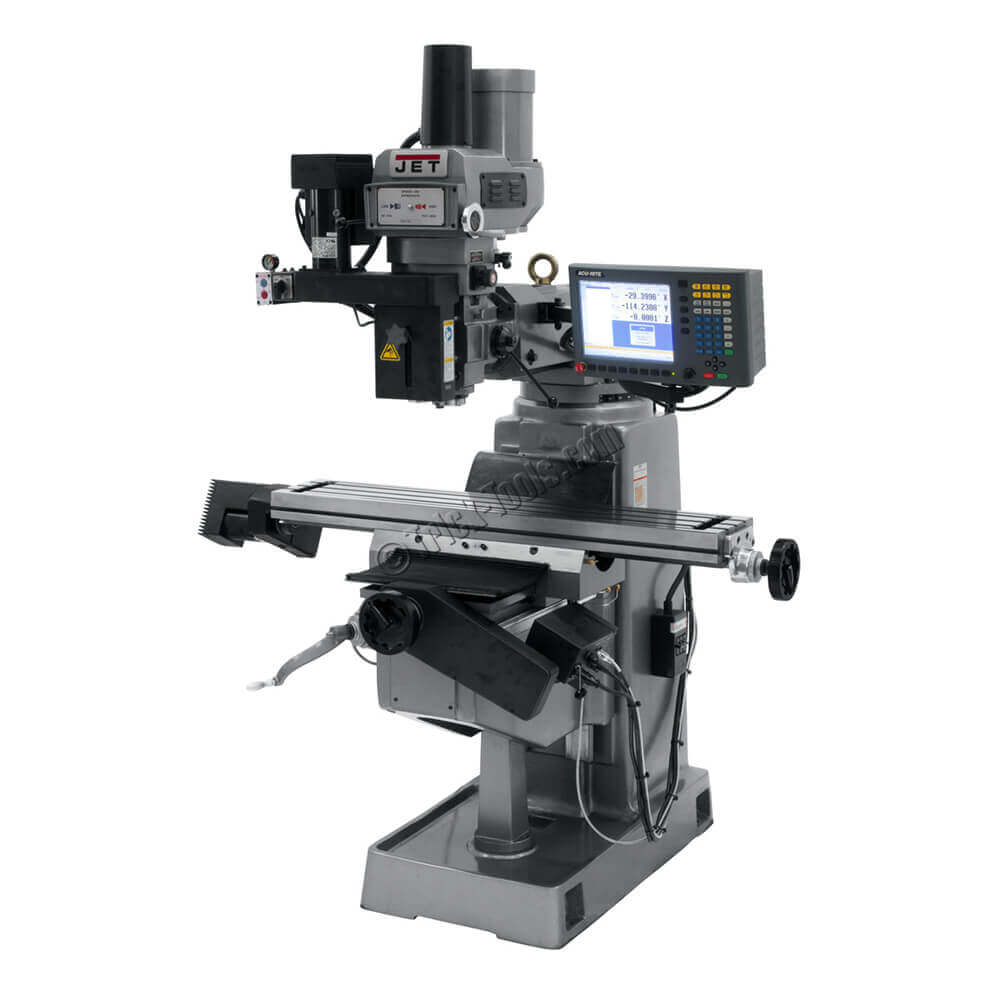

JET 9 x 49 Vertical Mill with ACU-RITE MILLPWR G2 CNC

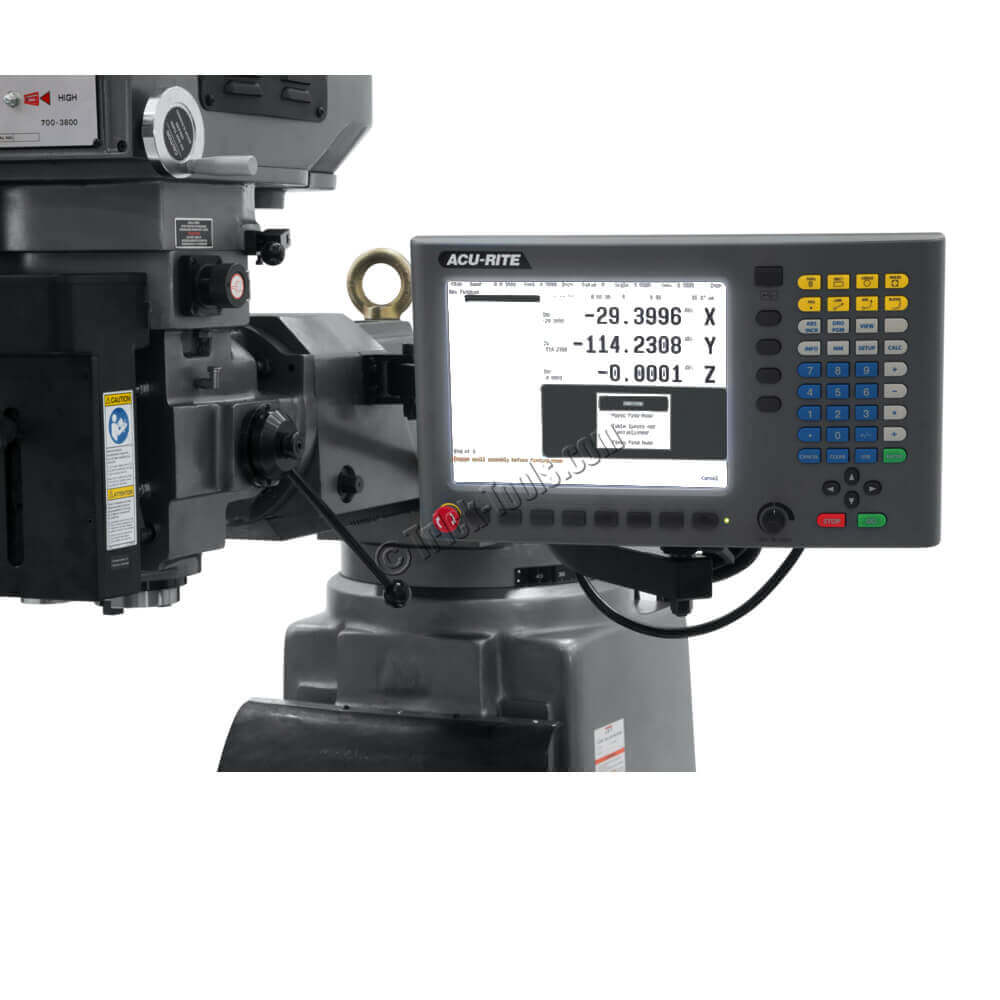

The JET JTM-4VS-CNC Vertical Milling Machine brings precision and automation to your workshop and comes standard with the factory installed ACU-RITE MILLPWR G2 CNC system. Choose from either 2-Axis or 3-Axis control as well as an optional air-powered draw bar to quickly change tooling and reduce the chance of over-tightening. The 12.1 inch high-resolution display on the ACU-RITE MILLPWR G2 display is easy to use and includes USB and Ethernet ports, a built in calculator for standard, trig, or geometry calculations, menu-prompted programming to easily edit or repeat programs, estimated run time feature, and more. Handwheels are included for manual operation as well.

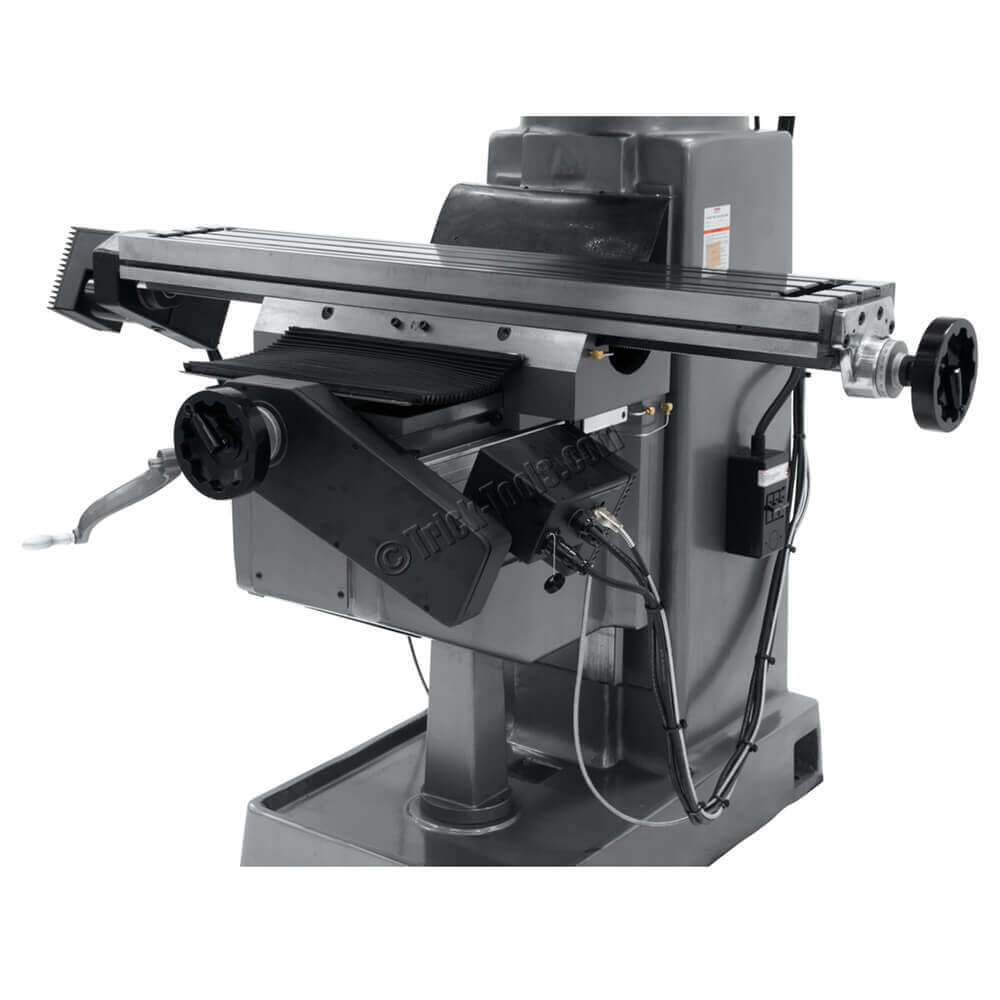

The JTM-4VS-CNC is constructed using the certified Meehanite® casting process for a rigid foundation and features precision hardened and ground ways and table, one shot lubrication system, a large chromed quill, internally cooled spindle head, internal coolant tank for use with optional coolant system, and adjustable gibs throughout. This mill is equipped with powerful 3hp, 230v 3ph motor and variable speed pulley that is adjustable from 60 - 4,200 rpm with a convenient hand wheel to quickly set your spindle to the optimal cutting speed. The precision bored and honed milling head ensures quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use.

All JET mills are uncrated here in the US to go through a 30-point inspection and are backed by the industry-leading JET Red Assurance Two-Year Warranty.

Not seeing the configuration you are wanting or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

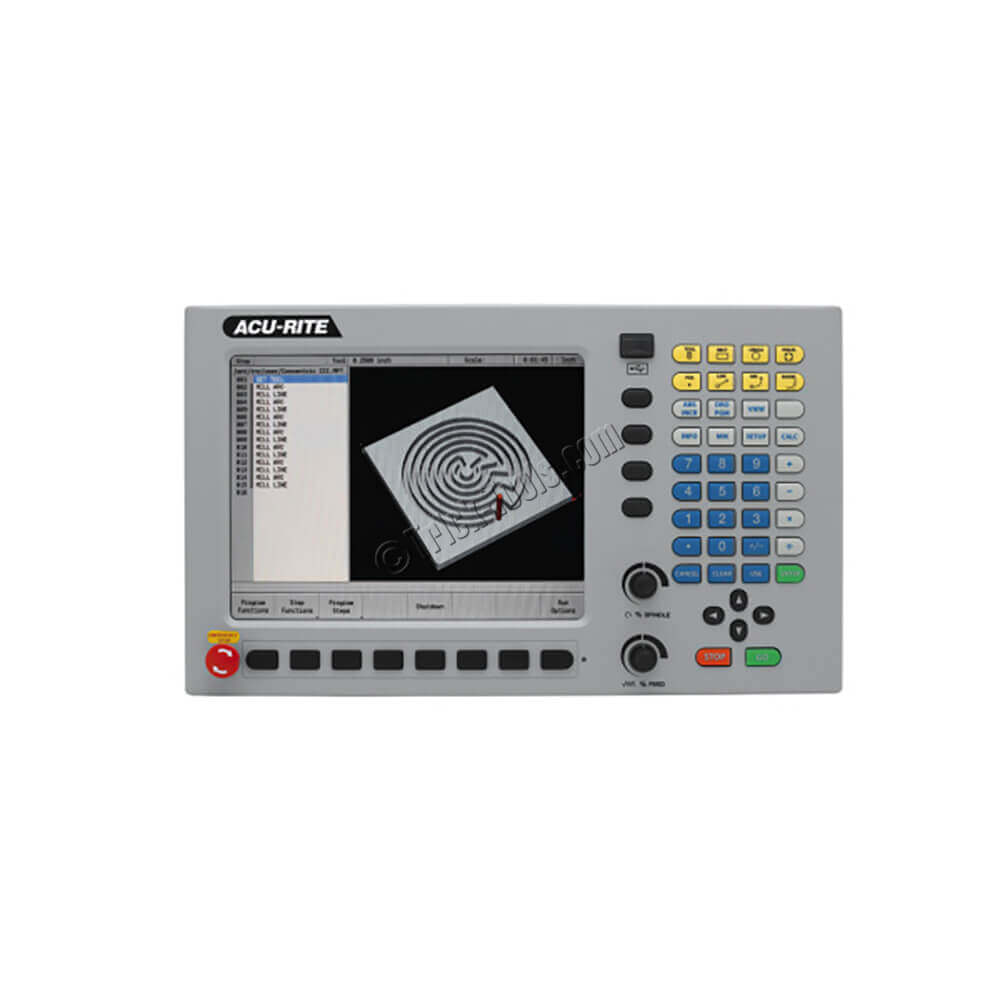

CNC Control Specs/Features:
• Display: 12.1 inch full color, high-resolution LED screen (1024 x 768) with 3D graphics
• Processor: 1.4 GHz Dual Core Celeron Processor
• Internal Storage: 2.5 GB
• External Interface: (1) Ethernet Port, (2) USB Ports
• Multiple Datums (Fixture Offset): 99
• Zero Reset: Yes
• Near Zero Warning: Yes
• Estimated Machining Time: Yes
• View Graphics: 2D Line / 3D Line / 3D Solid
• Block Form: Yes, with User Override
• Custom Pocket & Islands: Yes, Ramp Feed & Optimized Path
• Replication (Repeat, Rotate, Mirror): Yes
• Engrave (Line/Arc): Yes
• Program Manager Navigation: Tree with Program Type Filter
• Long Program Names: Yes
• Program Preview: Listing & Graphic with Estimated Machining Time
• Explode Step: Hole Patterns & Repeat/Rotate/Mirror
• Reverse (Step/Path): Yes
• Shift Steps: Yes
• Auto Save (Program): Yes
• Program Size Limit (MPT only): 9999 steps
• DXF File Import: Yes
• G-code Program: Yes, with Graphics Support / Simple Edit
• On-Screen Help: User Manual Viewer (Text & Graphics)
• Parts Counter & Clock: Yes
• Manual / Auto Z Control: Yes on 3-Axis machines
• Options Stop (G-code only): Yes
• Feed Override: Potentiometer
• Error Compensation: Linear & Bidirectional Non-linear

Mill Specs:
• Motor/Voltage: 3hp, 230v, 3ph (460v available by request)
• Style: Variable Speed (Belt/Clutch)
• Work Table Size: 9 x 49 inches
• Work Table Capacity: 660 lbs
• Dimensions: 66 x 63 x 85 inches
• Weight: 2420 lbs
• Spindle Taper: R-8
• Collet Capacity: 1/8 - 7/8 inch
• Distance Spindle to Column: 19 inches
• Max Distance Spindle to Table: 17-1/2 inches
• Quill Diameter: 3-3/8 inches
• Quill Downfeed Rates: .0015 - .003 - .006 (IPR)
• Range of Spindle Speeds: 60 - 4,200 rpm
• Spindle Travel: 5 inches
• Table Cross Travel: 12 inches
• Table Longitudinal Travel: 34 inches (28-3/4 with powerfeed)
• Travel of Knee: 14-1/2 inches
• Travel of Ram: 13-3/8 inches
• T-Slot Centers: 2-1/2 inches
• Made in Taiwan
