MetalAce 44F Classic Series English Wheel

Part #: MA44F
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $2,995.00
  • Floor model
  • Includes 6 anvil wheels made from 4140HT
  • 44 inch throat depth
  • 16 gauge capacity
No Junk

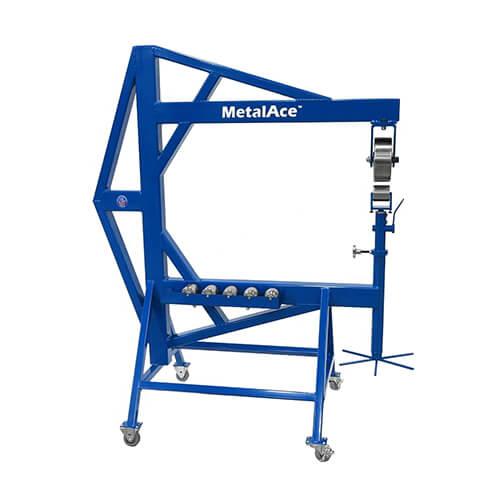

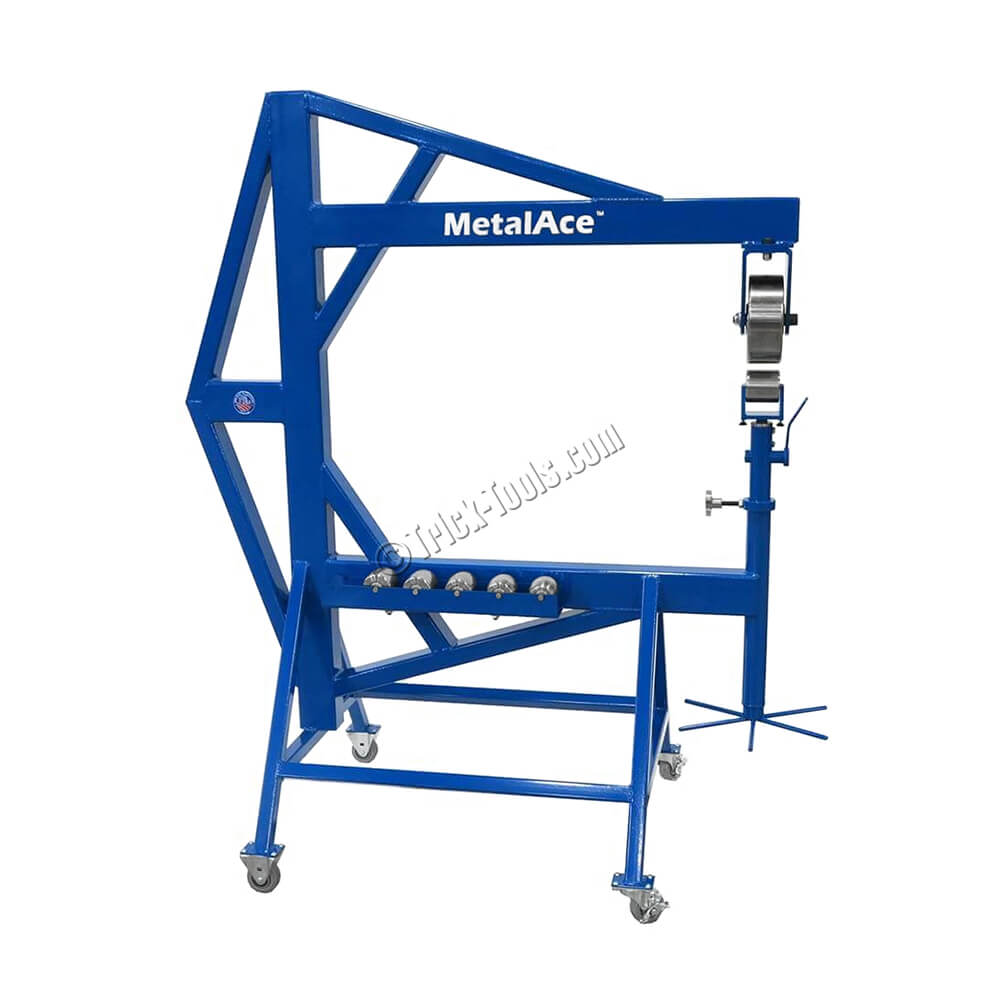

The MetalAce 44F English Wheel is a workhorse wheeling machine for crafting metal with a huge 44 inch capacity. Mounted on 3 inch casters, the sturdy welded frame offers extreme durability and proven stiffness for race car fabrication, auto restoration and aircraft rebuilding. This is the same machine seen in top NASCAR and hot rod shops around the country and is recommended by renowned metal shaper Ron Covell.

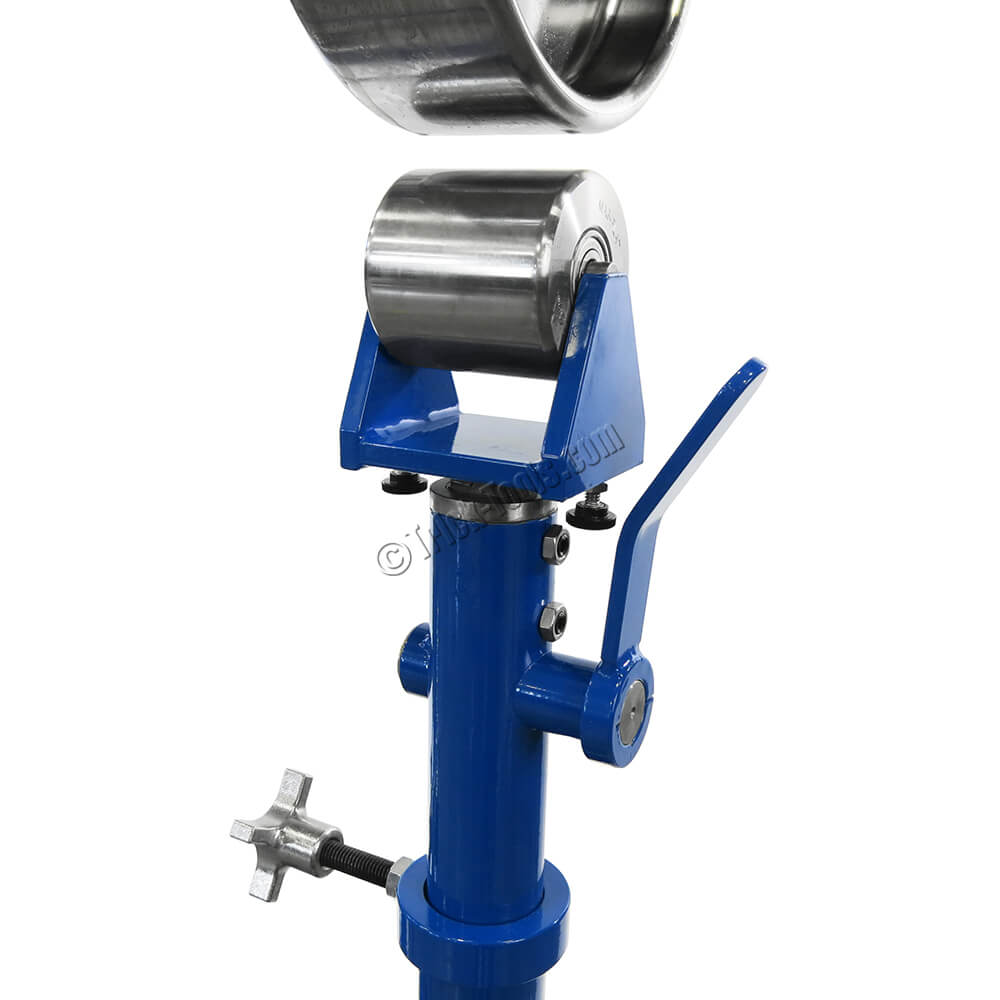

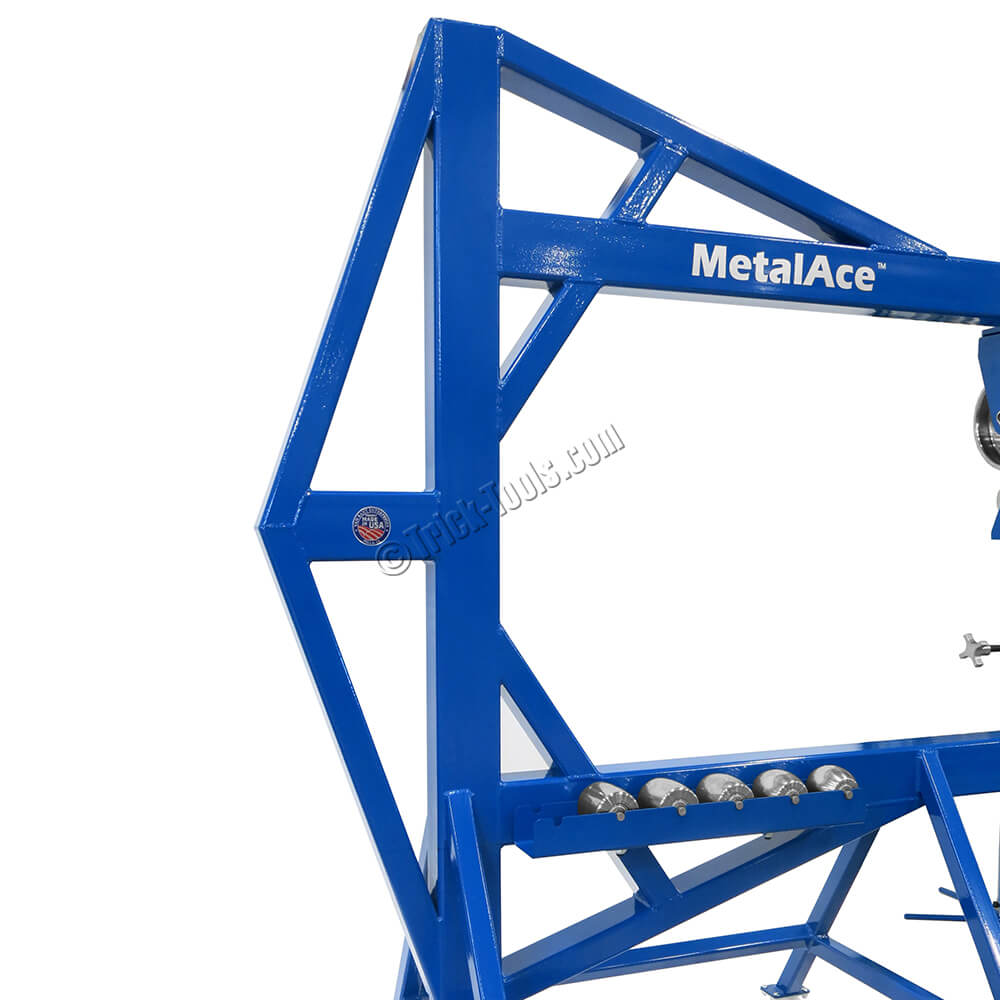

This machine features a quick-release screw lift assembly that raises and lowers the anvil wheel with a 90 degree rotation of the handle. This makes it easy to get the material out and returns back to the original pressure setting, plus the anvils can be changed quickly in this fashion. The anvil yoke has precision adjustments on both sides of the axle support to true the anvil with the upper wheel which can be articulated in any axis. Our anvils are made from 4140HT material and feature industry standard flat spots for ideal wheeling. Proudly made in the USA using heavy wall tubular construction and powdercoated for extra durability. Brand new features include gusseted throat and new anvil tray.


1 year manufacturer's warranty


Throat Height (inches): 30
Throat Depth (inches): 44
Steel Capacity: 16 gauge
Aluminum Capacity (inches): .125
Work Height (inches): 48

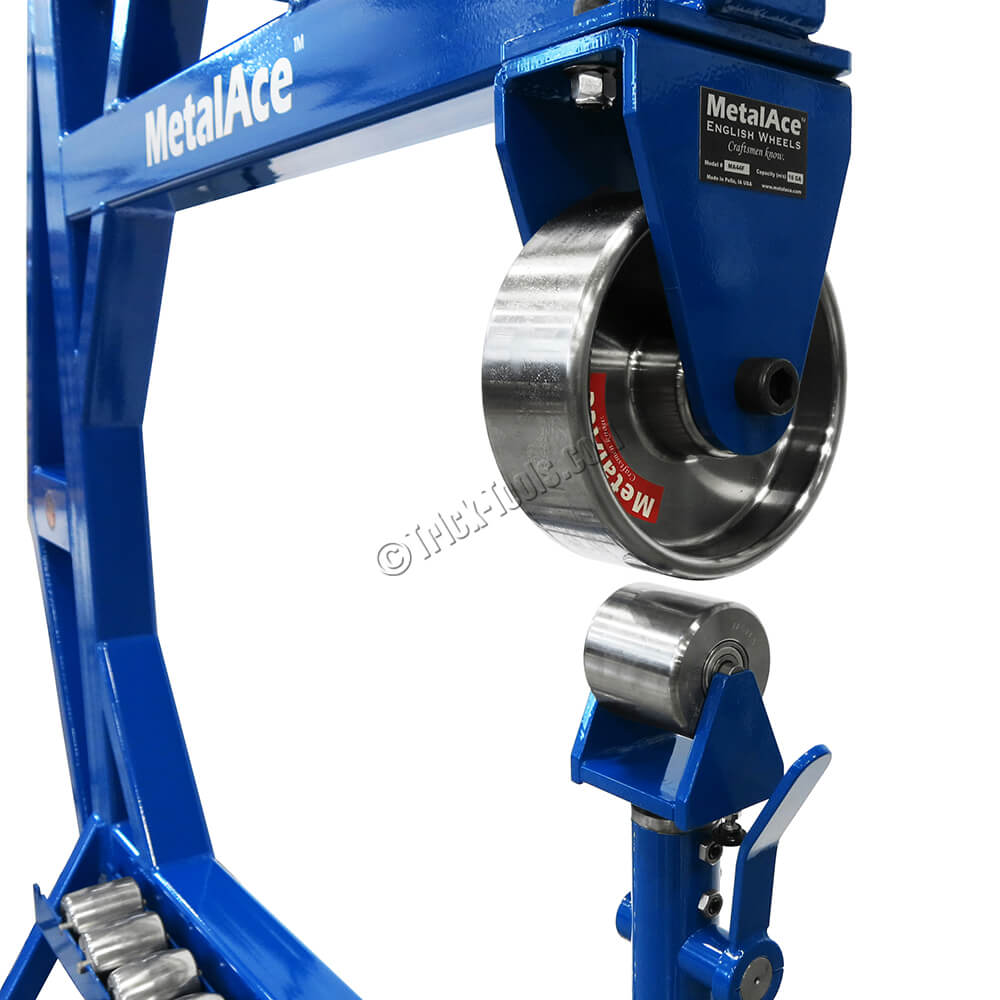

Upper Wheel (inches): 8 x 3
Anvil Wheels (inches): 3 x 3
Weight (pounds): 340
Dimensions (LxWxH): 60 x 33 x 70

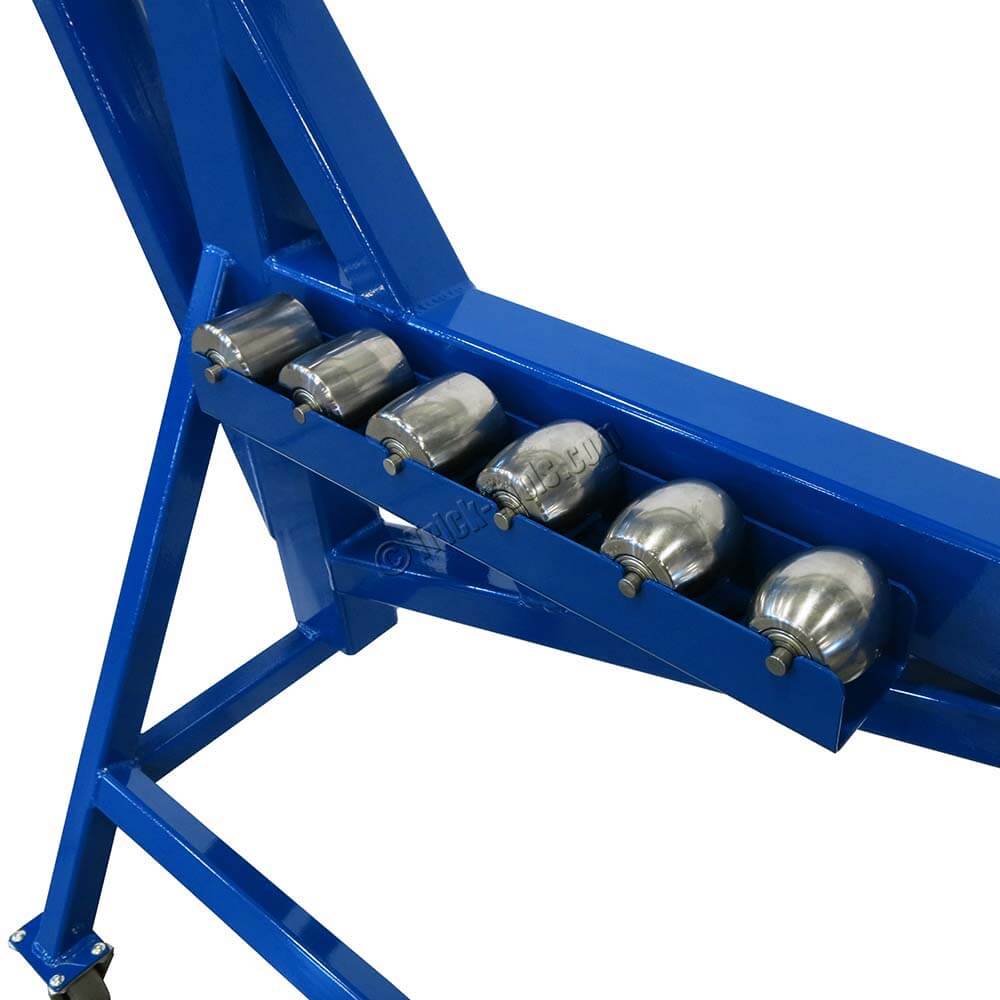

  • (6) 3 inch wide anvil wheels made from 4140HT: Flat, 2.5, 3.75, 6.0, 12.0, and 24.0 inch radii
  • 8 x 3 inch upper wheel

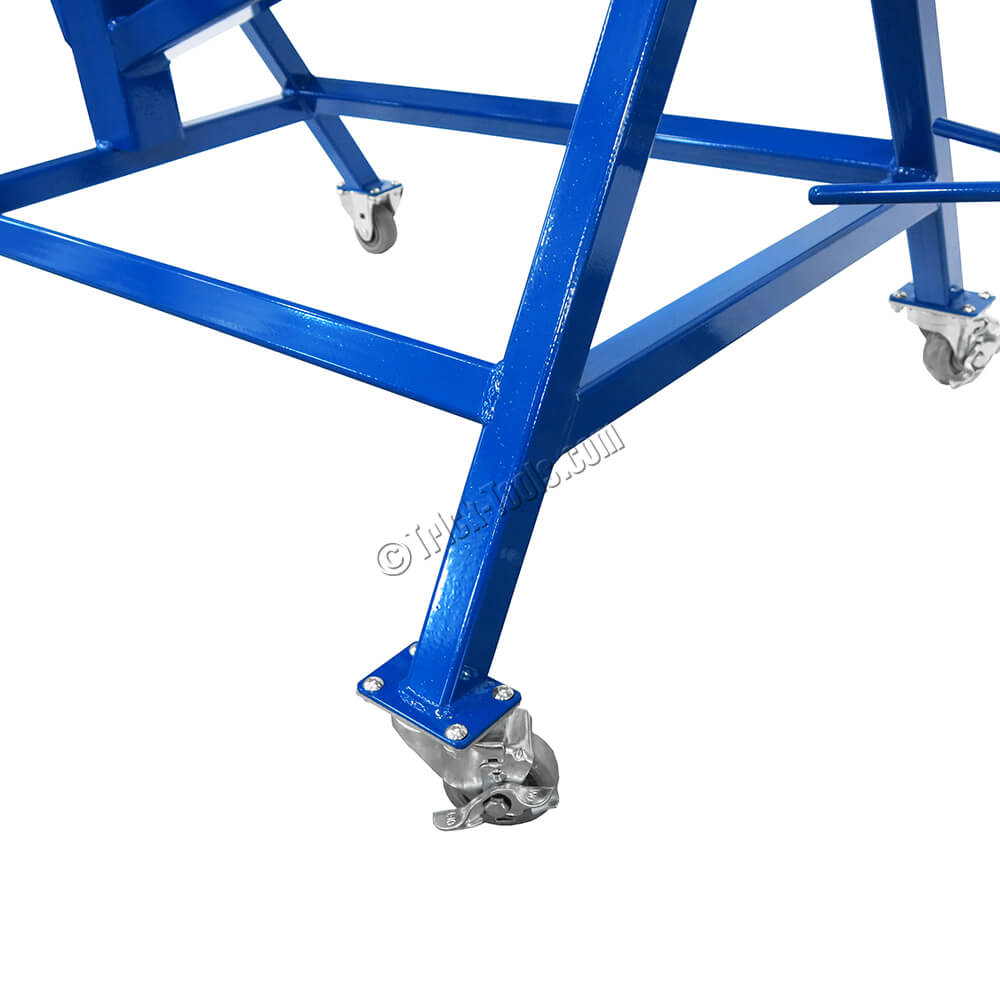

  • Casters
