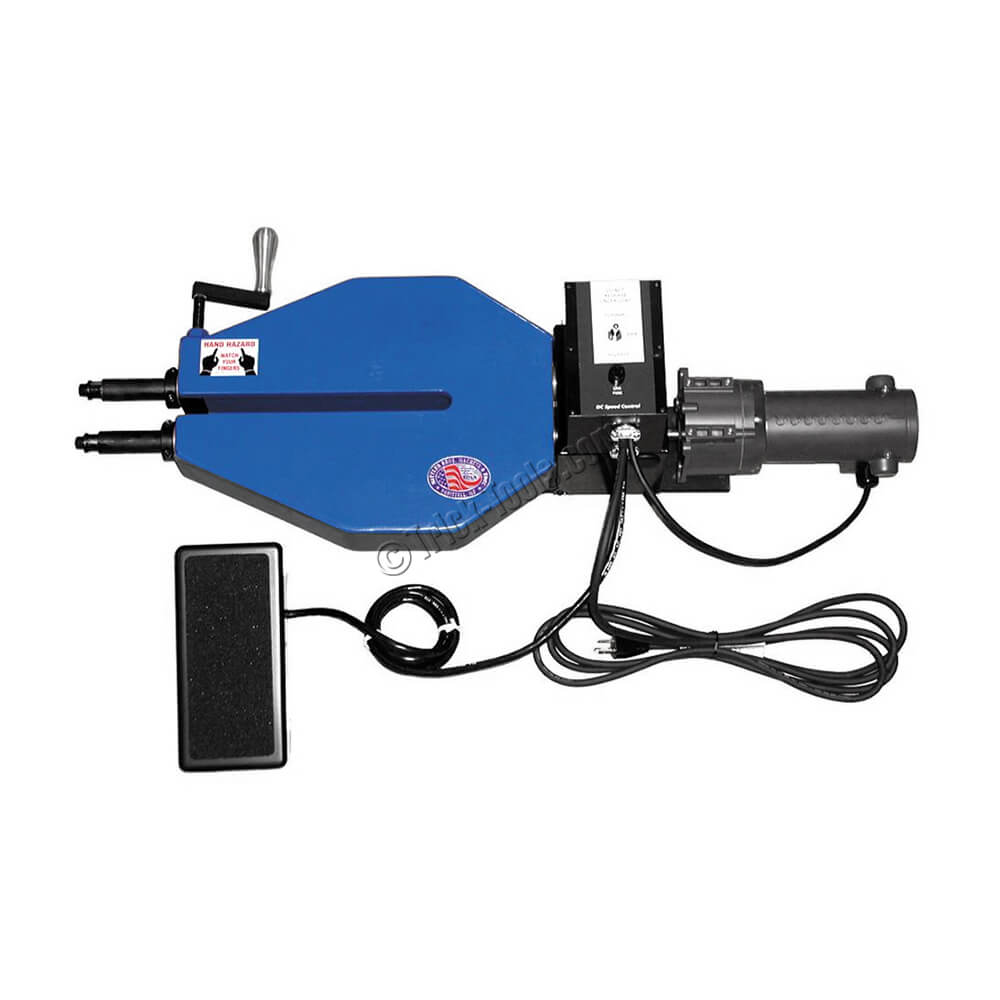

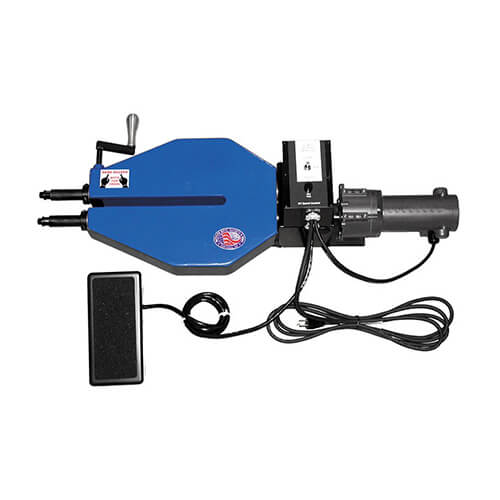

Mittler Bros. 14 inch Powered Rotary Machine

Part #: 200-14NV
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,360.00

14 inch throat depth
.074 mild steel capacity
Variable speed foot pedal control

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

The Mittler Brothers 14-inch throat rotary machine is the most heavy-duty rotary machine in the Mittler Brothers line-up. Designed for beading up to 14 gauge mild steel material, it features heavy 3/8 inch plate steel construction, a heavy-duty variable speed and reversible industrial motor, and foot pedal controls.

New for 2014 is the speed range adjustment dial, which allows the operator to limit the maximum speed of the bead roller motor.

With additional features such as heat-treated gears and Oilite bushings, this bead roller is sure to last a very long time in any shop. Free depth stop included, roll sets sold separately.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Steel Capacity (inches): .075 (14 gauge)
•Aluminum Capacity: .075
•Stainless Capacity (inches): .050
•Throat Depth (inches): 14
•Throat Height (inches): 1-1/8
•Motor: 1/8 hp 110 volt
•Construction: steel
•Weight (pounds): 98
