Mittler Bros. Industrial Tube Beading Machine

Part #: 200-14NV-Tube
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,715.00

14 inch throat depth
.043 stainless steel capacity
Variable speed foot pedal control

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

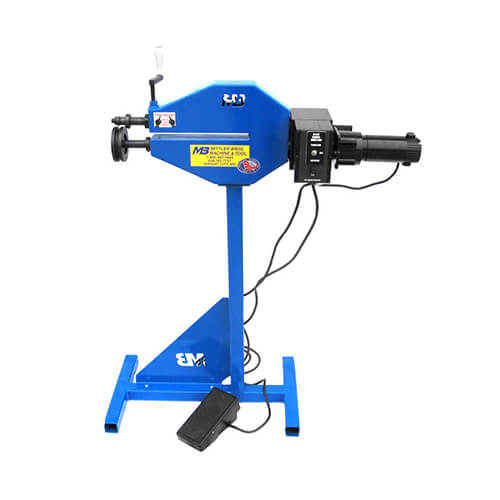

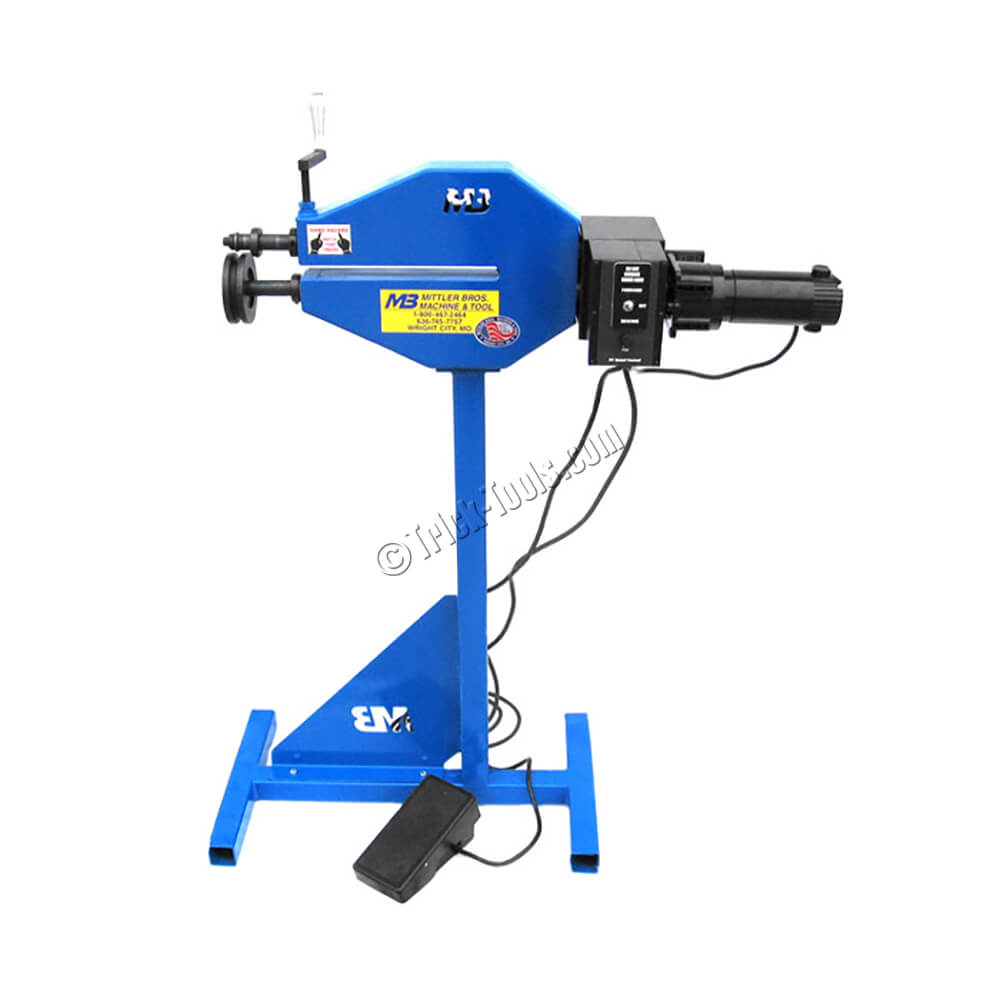

The Mittler Brothers 14 inch throat rotary machine is the most heavy duty rotary machine in the Mittler Brothers line-up. Designed with the 16 gauge tubing application in mind, it features heavy 3/8 inch plate steel construction, a heavy duty variable speed and reversible industrial motor, and foot pedal controls. With additional features such as heat treated gears and oilite bushings, this bead roller is sure to last a very long time in any shop. The machine includes a floor stand and a set of tube beading rolls.

Optional rolls available for beading up to .065 stainless steel.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Minimum Id (inches): 1-1/2
•Steel Capacity (inches): .075 (14 gauge)
•Aluminum Capacity: .075
•Stainless Capacity (inches): .043 (.065 w/ optional tooling)
•Bead Dimensions (inches): .250 wide x .090 tall
•Throat Depth (inches): 5/8 to 1-1/4 to center of bead with stop, 14 inch overall
•Throat Height (inches): 1 1/8
•Motor: 1/8 hp 110 volt
•Construction: steel
