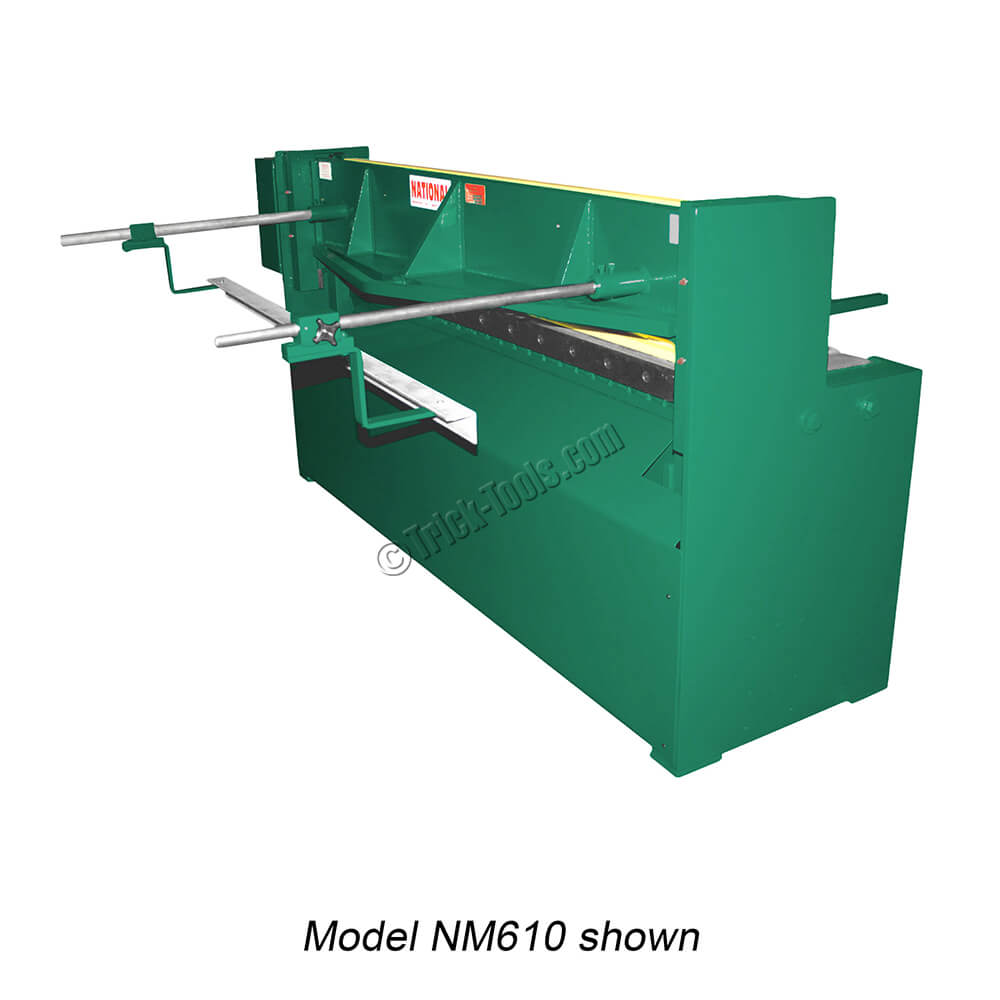

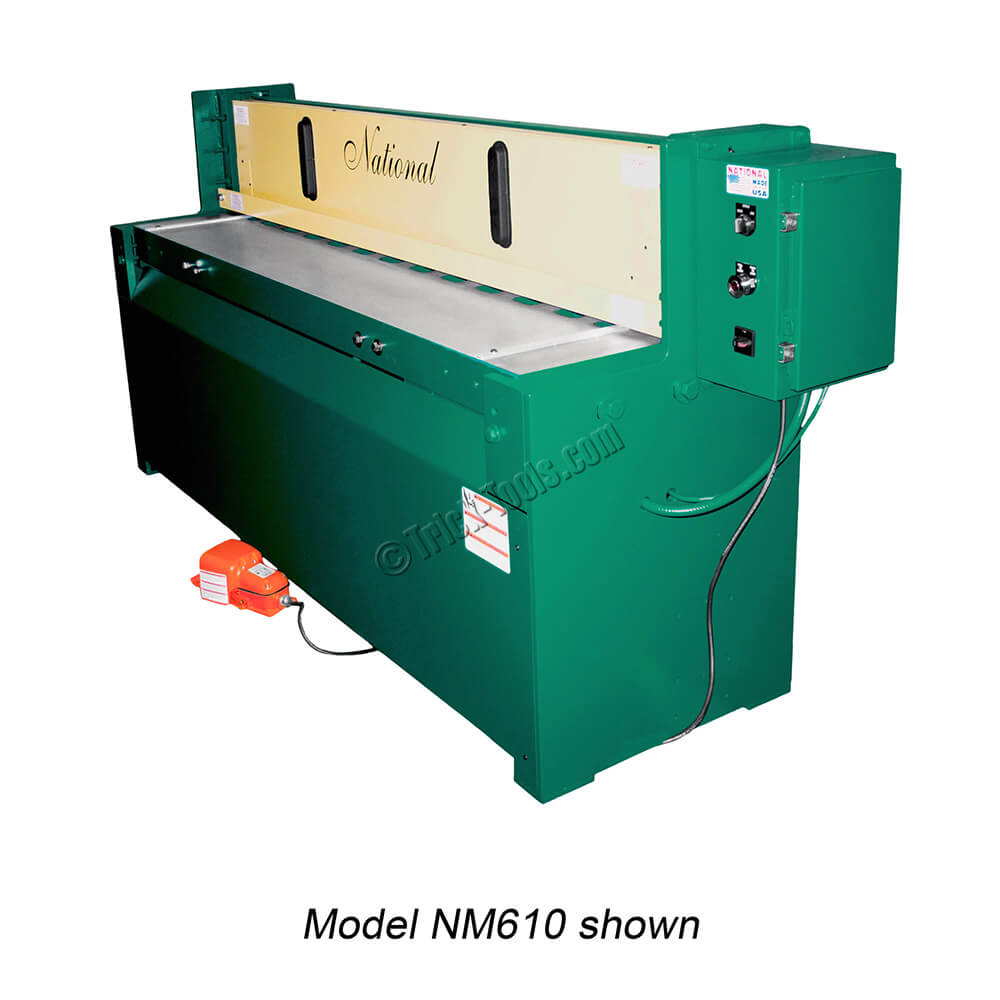

National NM610 73 inch Shear, 10 gauge

Part #: NM610
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $26,609.00

NEW

Low maintenance mechanical design
Up to 40 strokes per minute
Optional quick adjust 32 inch back gauge
High carbon, high chrome blades

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The National NM series of low profile mechanical shears feature a low maintenance design and heavier cutting capacity than is found in smaller manual, air, and hydraulic powered shears. The front operated power back gauge can move 32 inches in two seconds with just two turns of the handle. This combination of capacity and solid design make these shears a great choice for many shops.

Features

Interchangeable upper and lower high carbon, high chrome blades
Hold down and finger guard with non-marring urethane and positive spring action
Reversible motor with controls for single, continuous, and job stroke cycles
Inch bed scales
Non-metallic gibs
Maintenance free, self-lubricating bearings
7.5hp 3 phase motor for quiet operation

Optional Accessories Available

4 foot, 8 foot, or 12 foot squaring arms
Front return sheet support
Front operated power back gauge with manual or digital read out
Front extensions
Work light

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: electric
•Mild Steel Capacity: 10 gauge (3.4mm)
•Stainless Capacity: 14 gauge (2.0mm)
•Working Length (inches): 72
•Cutting Length (inches): 73
•Motor: 7.5hp 60hz
•Strokes: Approx. 40/minute
•Weight (pounds): 4900
•Dimensions (LxWxH): 92 x 89 x 53
