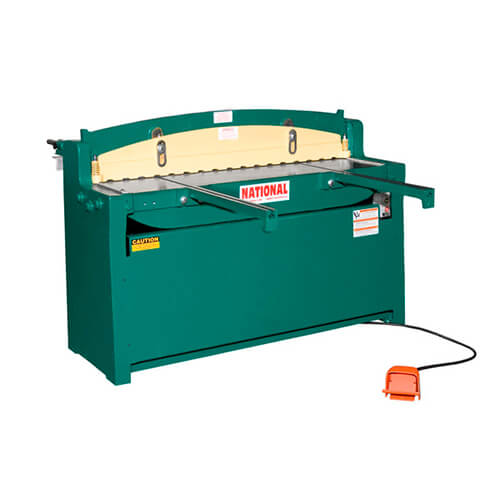

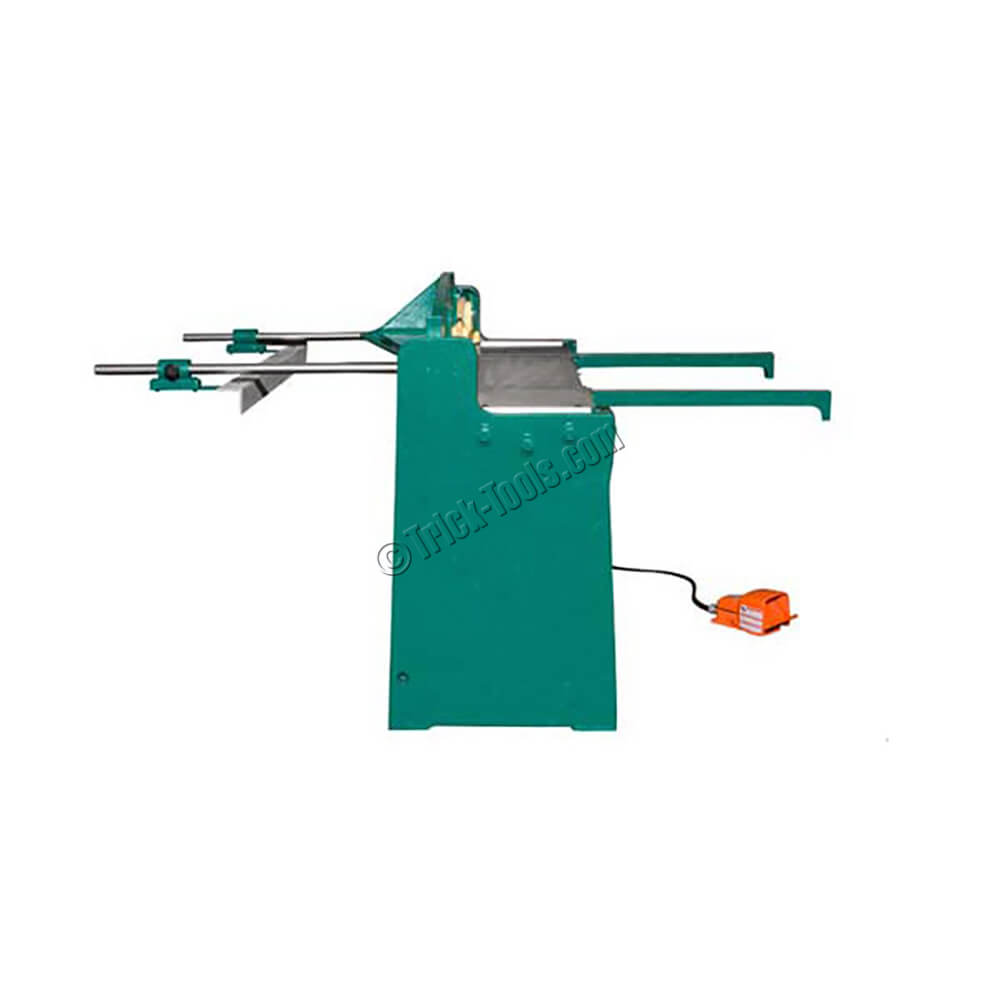

National 36 inch Hydraulic Shear, 12 gauge

Part #: NH3612
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,312.00

Heavy cast iron body
Four cutting edge high carbon, high chromium blades
Actuated by electric foot switch
Standard back gauges

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated pressure relief valve, heavy duty foot switch, heavy duty double acting cylinders, and a fully enclosed control panel.

National hydraulic shears are actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be placed in a comfortable position for the operator. They are constructed with an extra heavy cast iron body with solid, 4-edge high carbon, high chromium blade and feature a quick adjusting back gauge for direct reading with a positive lock. Table gauges and front arm extensions are standard.

Images may differ from actual product

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: hydraulic
•Mild Steel Capacity: 12 gauge (2.6mm)
•Stainless Capacity: 16 gauge (1.6mm)
•Cutting Length (inches): 36
•Cutting Width (inches): 36
•Weight (pounds): 1200
•Dimensions (LxWxH): 45 x 76 x 43
