National 8 foot Hydraulic Shear, 1/4 inch

Part #: NH9625
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $35,712.00

Heavy cast iron body
Four cutting edge high carbon, high chromium blades
Hydraulic holdown
Standard back gauges

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

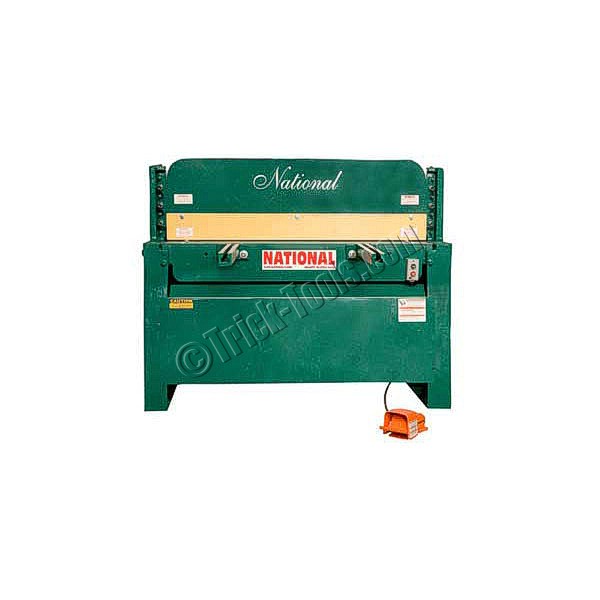

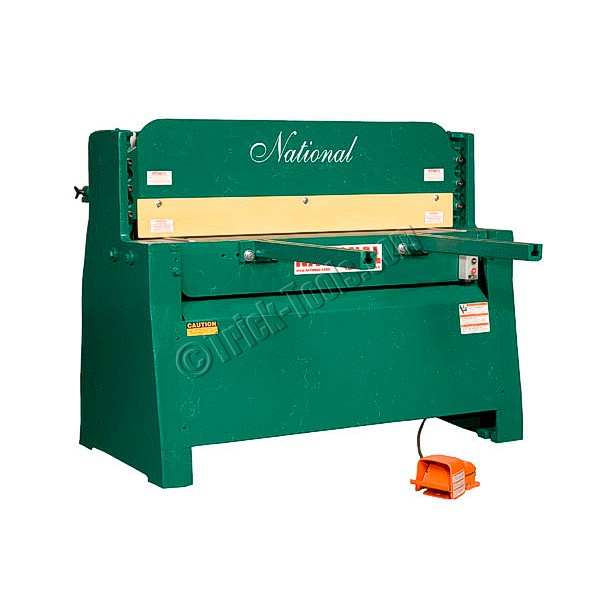

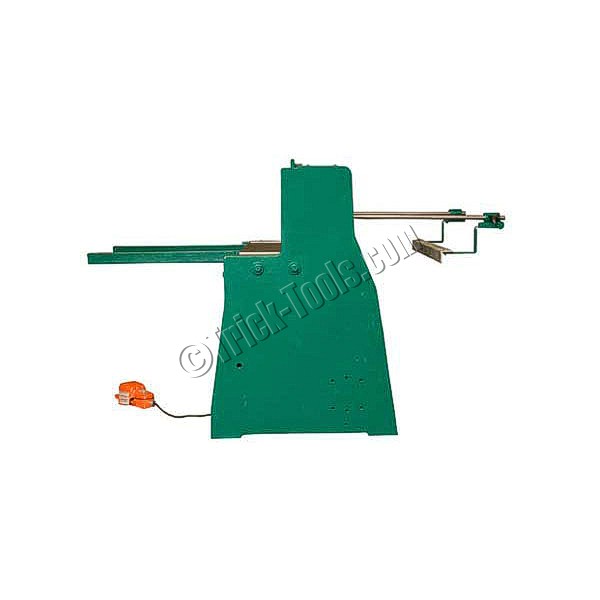

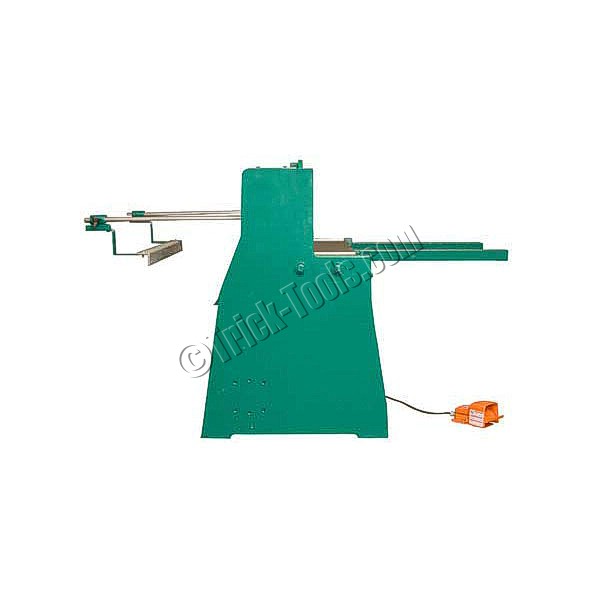

This 8 foot National shears features all steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator.

National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flat head screws through countersunk holes in blades. Complete cuts of full width pieces are 2 inches longer than specified cutting length. The high strength cast iron constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Underdrive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile.

Note: This brake must ship via flat-bed semi. Please call us for a shipping quote.

Images may differ from actual product

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: hydraulic
•Mild Steel Capacity: 1/4 inch (6.0mm)
•Stainless Capacity: 1/8 inch (3.1mm)
•Cutting Length (inches): 96
•Strokes: 12/min
•Cutting Width (inches): 96
•Weight (pounds): 7000
•Dimensions (LxWxH): 116 x 98 x 60
