Piranha P110, 110 ton Ironworker

Part #: P110
Model: P-110
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $50,995.00

NEW

5 stations
20.5 inch flat bar shear
Punching station: 1-7/16 inch hole through 1 inch steel plate
Angle shear 6 x 6 x 5/8

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

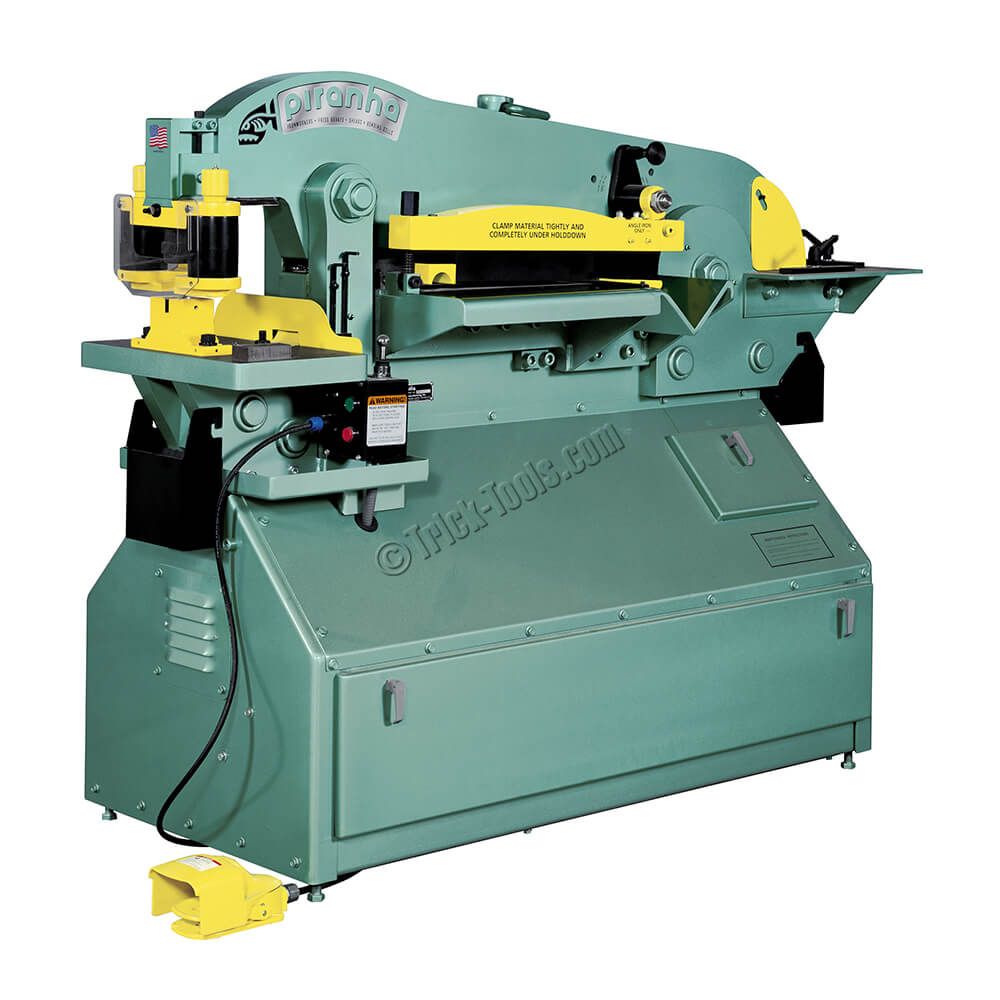

The Piranha P110 Ironworker features a 110 ton punch station with a 12-inch throat depth that can punch a 1-7/16 inch hole through 1-inch plate, a 20-inch flat bar shear, 6x6 angle iron shear, and a coping/notching station. Optional accessories include bending attachments for flat stock and angle iron, oversized punch holders, tube/pipe notching, channel shears, and more.

Shipping Note: This machine ships via flat-bed only. Please call or email for a quote.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Stations: 5
•Rated Capacity (tons): 110
•Punching Capacity (Std): 1-7/16 inch OD in 1 inch plate
•Punching Throat Depth (inches): 12
•Punching Work Height (inches): 44
•Flat Bar Shearing Max Width (inches): 1/2 x 20
•Flat Bar Shearing Max Thickness (inches): 1 x 12
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 5/8
•Coper Notcher Max Cap (inches): 4 x 6 x 3/8
•Round Bar Shear Capacity (inches): 1/2 to 2
•Square Bar Shear Capacity (inches): 1/2 to 1-3/8
•Stroke (inches): 5-1/4
•Cycle Time: 30 at 3/4 inch (41 at 3/4 with optional Speed-Up Kit)
•Motor (Std): 10 hp, 220/440 volt, 3 phase
•Motor (Opt): 10 hp, 220 volt, 1 phase
•Hydraulics: 10.5 gpm
•Valve Pressure: 3200 psi
•Reservoir Capacity: 25 gal
•Weight (pounds): 5800
•Dimensions (LxWxH): 90 x 35 x 66.5
