ProLine Portable Planishing Hammer

Part #: 050097
Ships From: Our warehouse
Availability: Usually ships within 1-2 days
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $4,995.00
BEST SELLER
  • 22 inch deep yoke
  • Converts to hand held with optional handle
  • Includes upper die and 3 lower dies
  • Made in the USA
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

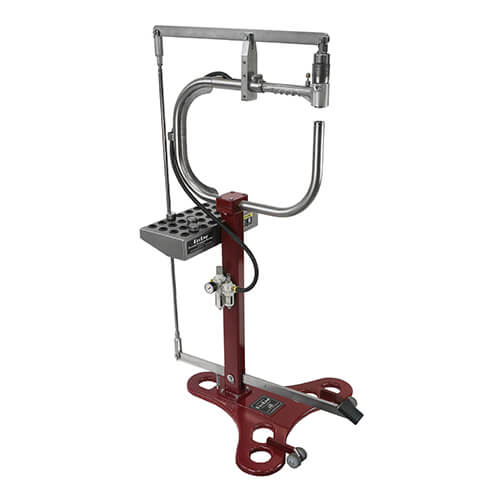

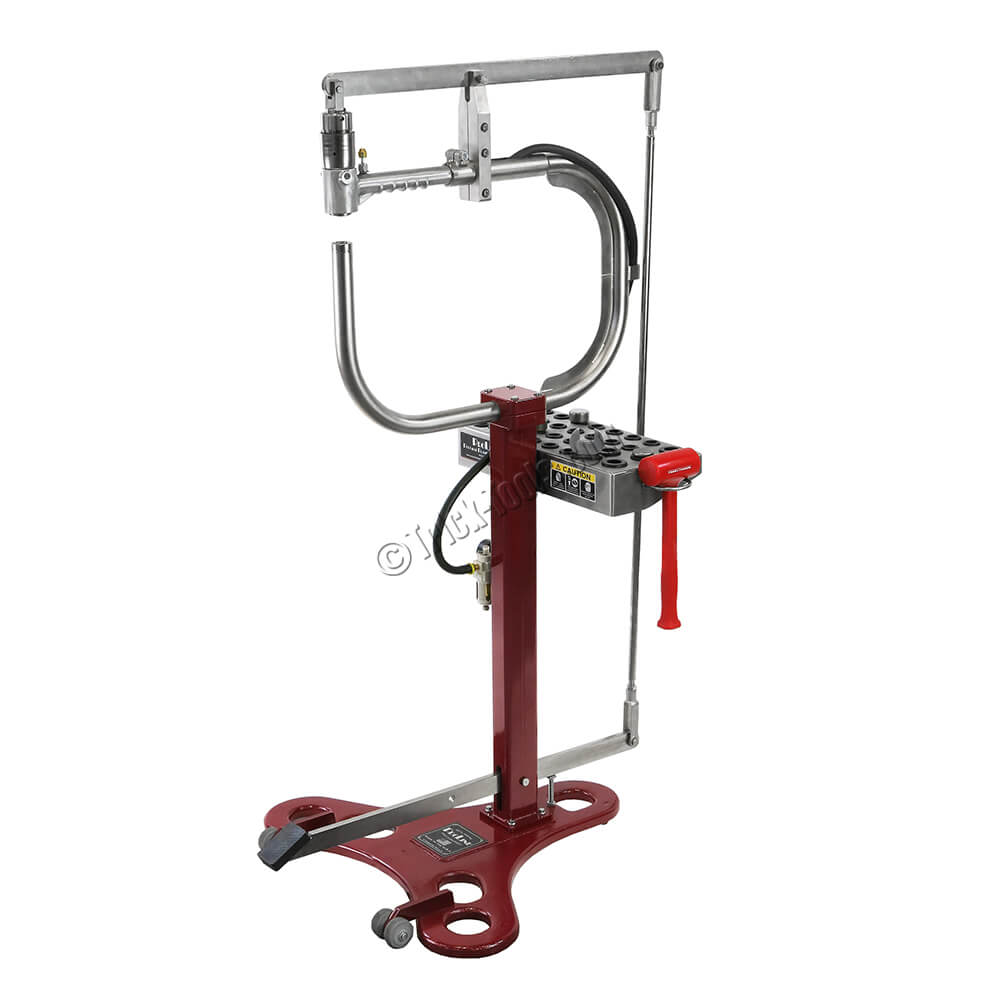

The ProLine Portable Pneumatic Planishing Hammer is designed for forming and smoothing compound curves in sheet metal. It is used in many industries, including automobile and aircraft restoration, race car fabrication, sheet metal stamping shops, artistic applications, etc. A ProLine planishing hammer takes the work out of metal work and saves the metal worker hours of time, leading to increased production.

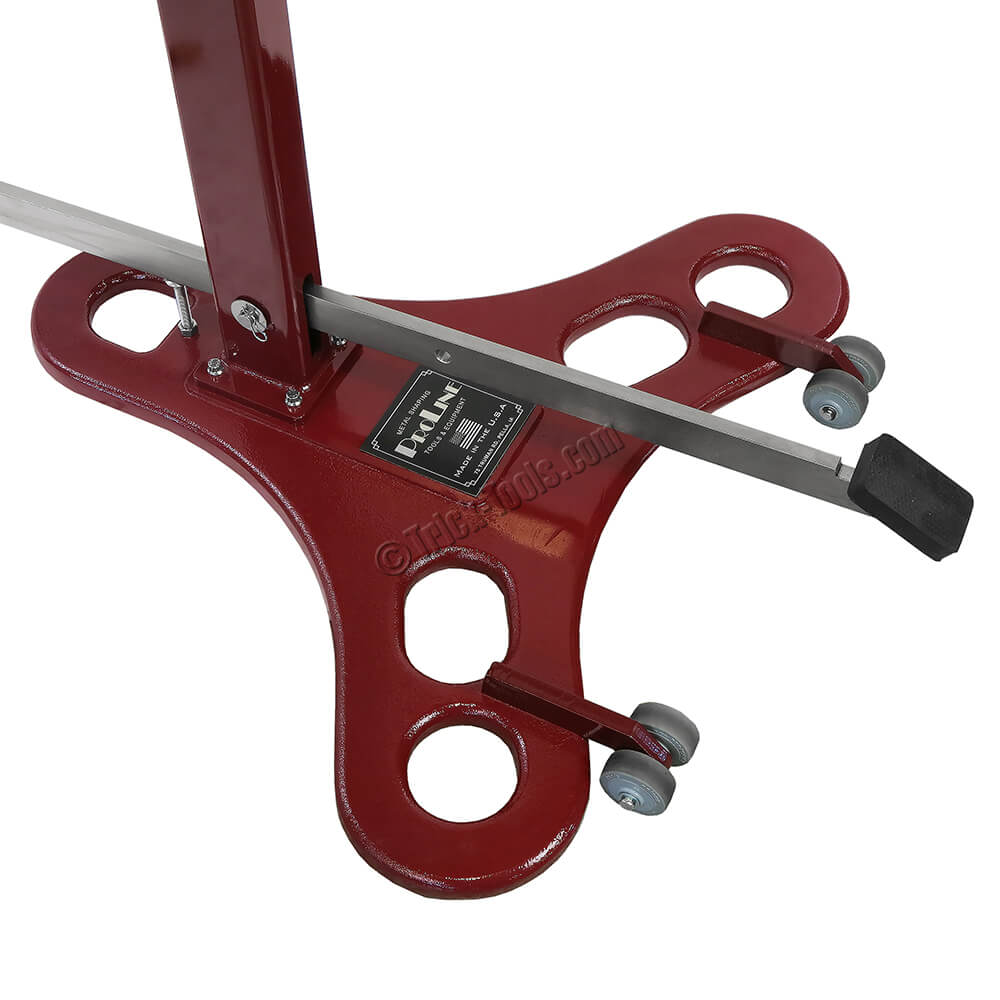

One huge advantage with the design of the ProLine hammers is the foot pedal activation. By pressing the foot pedal down once the material is in place, you bring the dies together and start the air motor in one step. This not only allows for easy removal of your part when open, but gives very precise control of the pressure and allows for feathering off at the end of a shape. This is not possible with most planishing hammers that have a fixed die gap.

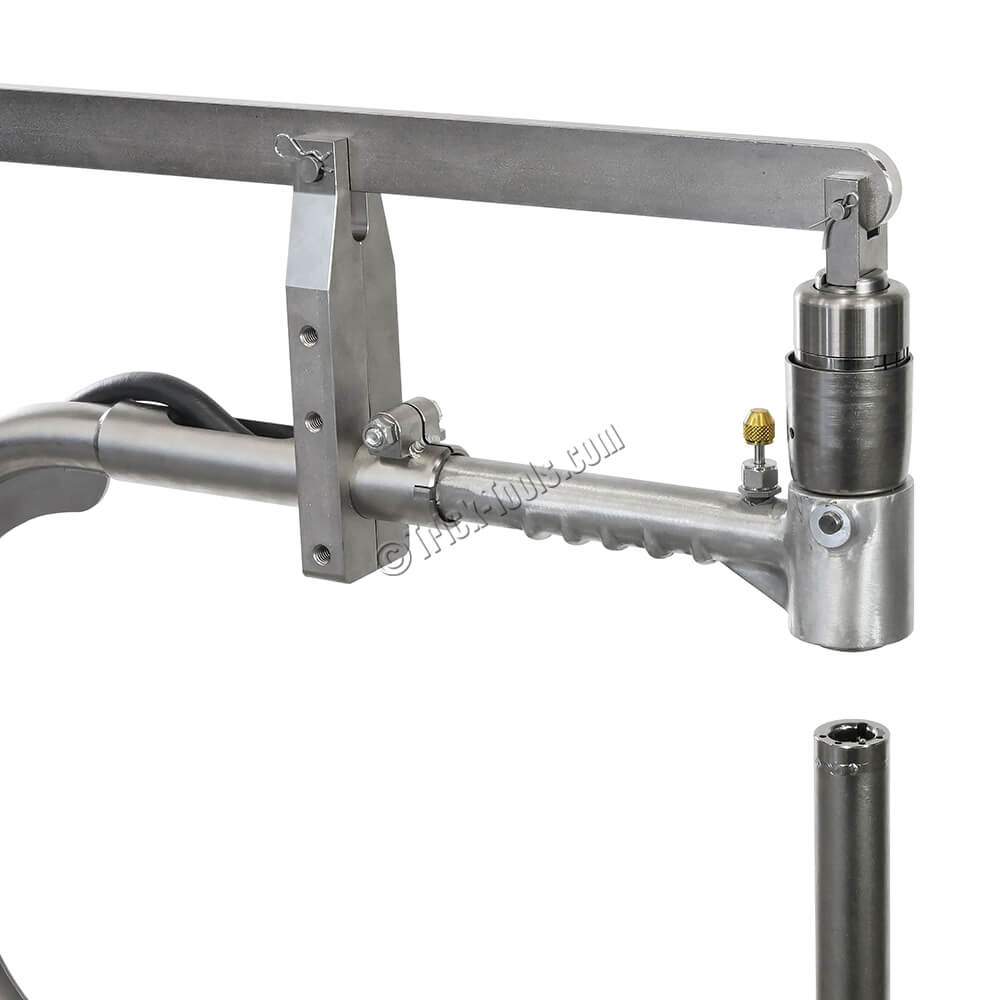

This portable unit features a heavy cast base that absorbs vibration and gives a stable work platform while the tip back wheels make it easy to move around the shop. The purpose built air motor head can be easily removed to fit an optional hand-held yoke or this unit can be converted to a hand-held hammer for use off of the mounting stand with an optional hand trigger. ProLine hammers use CP style tooling.

ProLine planishing hammers are completely fabricated in the USA. If you are looking for quality, then you have found the finest planishing hammers made.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Throat Height (inches): 12.375
Throat Depth (inches): 22
Radius (inches): 3, 12, 36
Air Consumption: 0-6.5
Air Pressure: 125 psi
Weight (pounds): 300

INCLUDES

  • Upper die
  • 3R, 12R and 36R lower dies
  • Die extraction tool
  • Dead blow mallet
  • Oil and special oil bottle

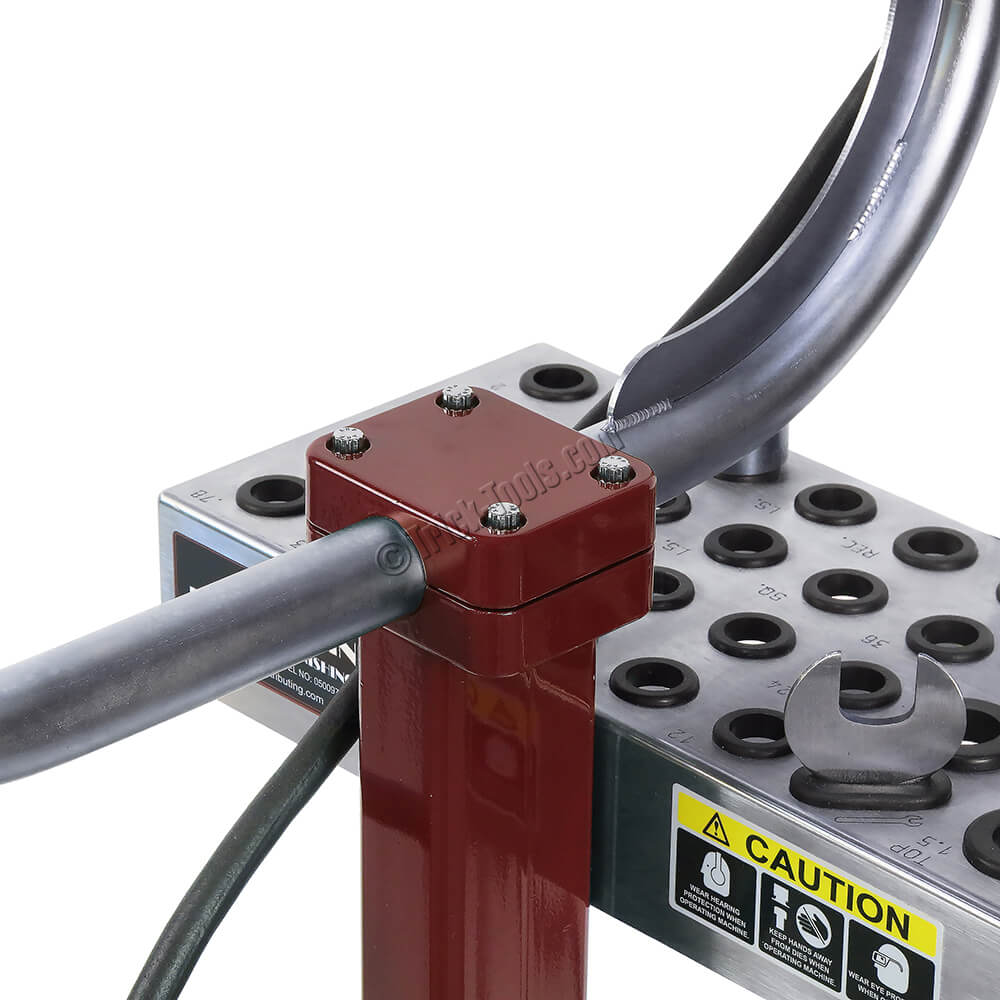

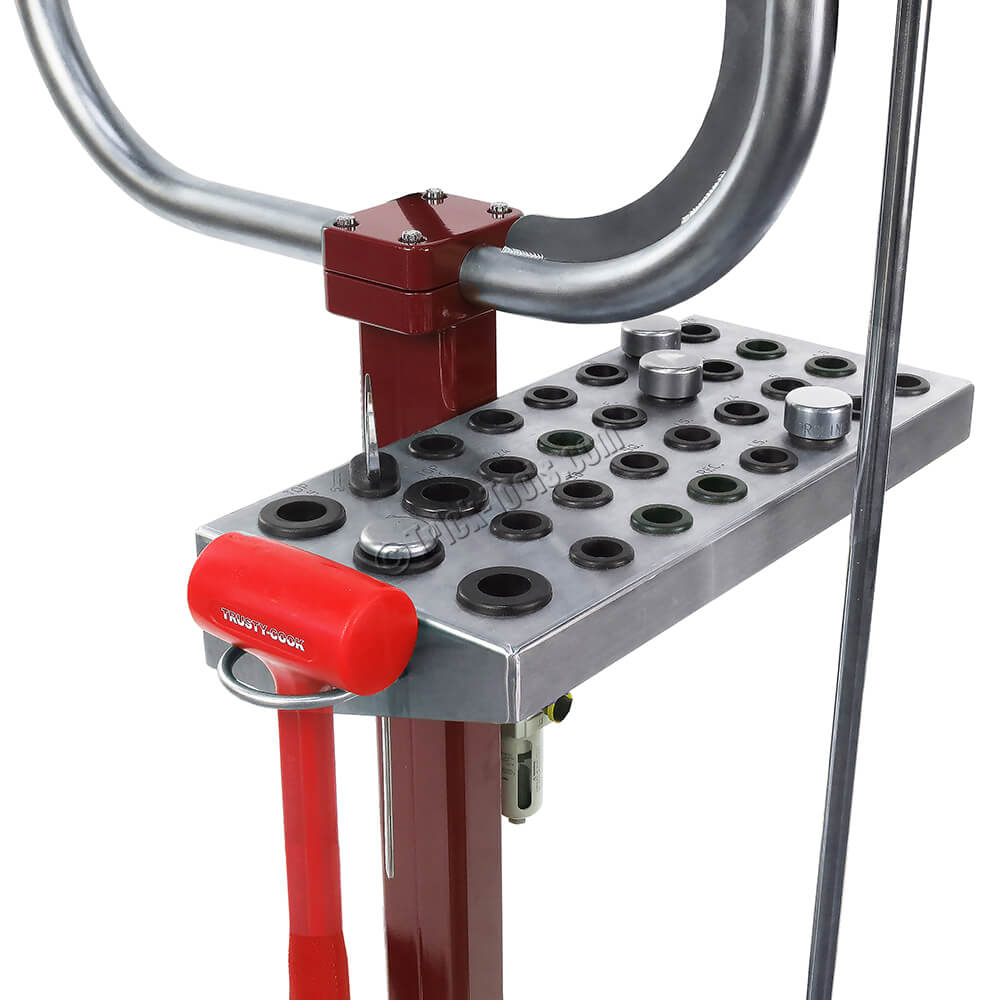

  • Stainless steel engraved die rack with grommets

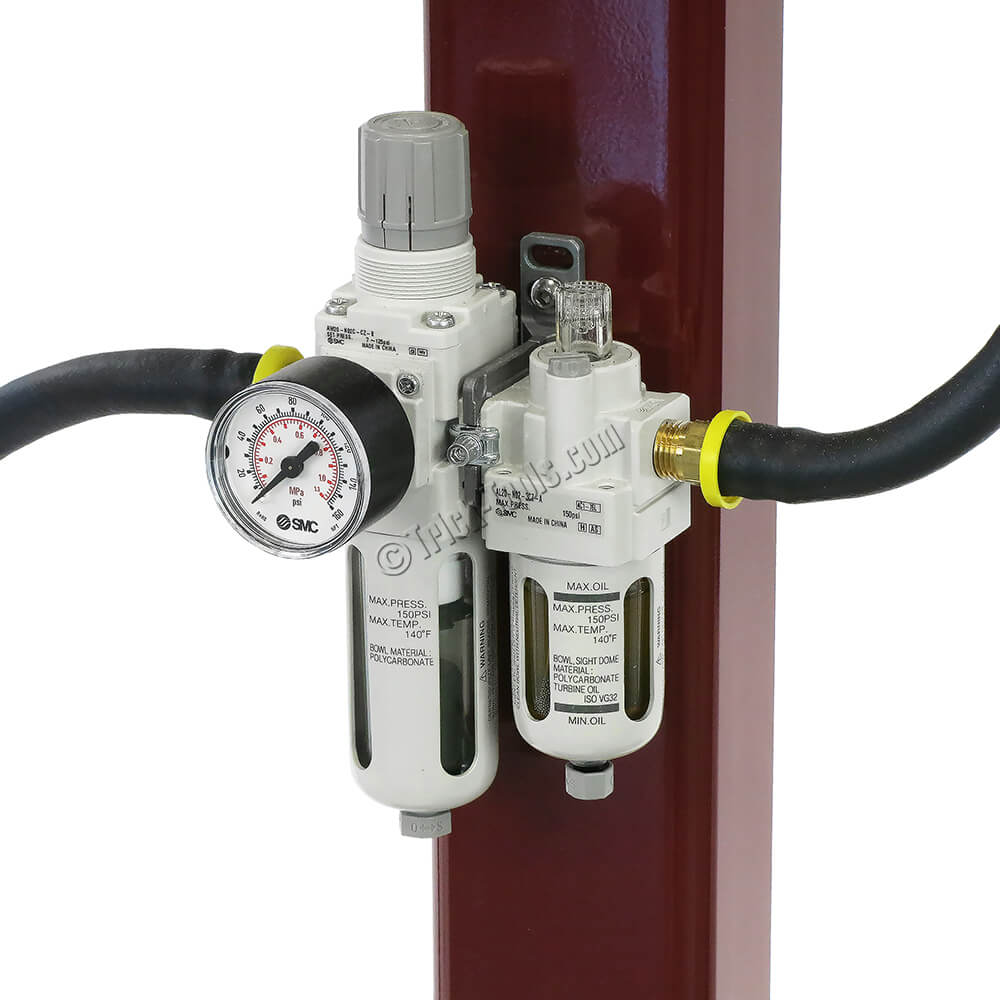

  • Air regulator and oiler assembly
