Roper Whitney 36 inch Slip Roll, 3 Driven Rolls, 22 gauge

Part #: 167072381
Model: 381
Ships From: Factory shipped
Lead Time: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,675.00
  • Three driven rolls
  • Heavy cast end frames
  • 36 inch, 22 ga capacity
  • Includes wire grooves
FREIGHT:
Freight
WARRANTY:
No Junk
ORIGIN:
BRAND:
Roper Whitney logo
Quantity:

DESCRIPTION

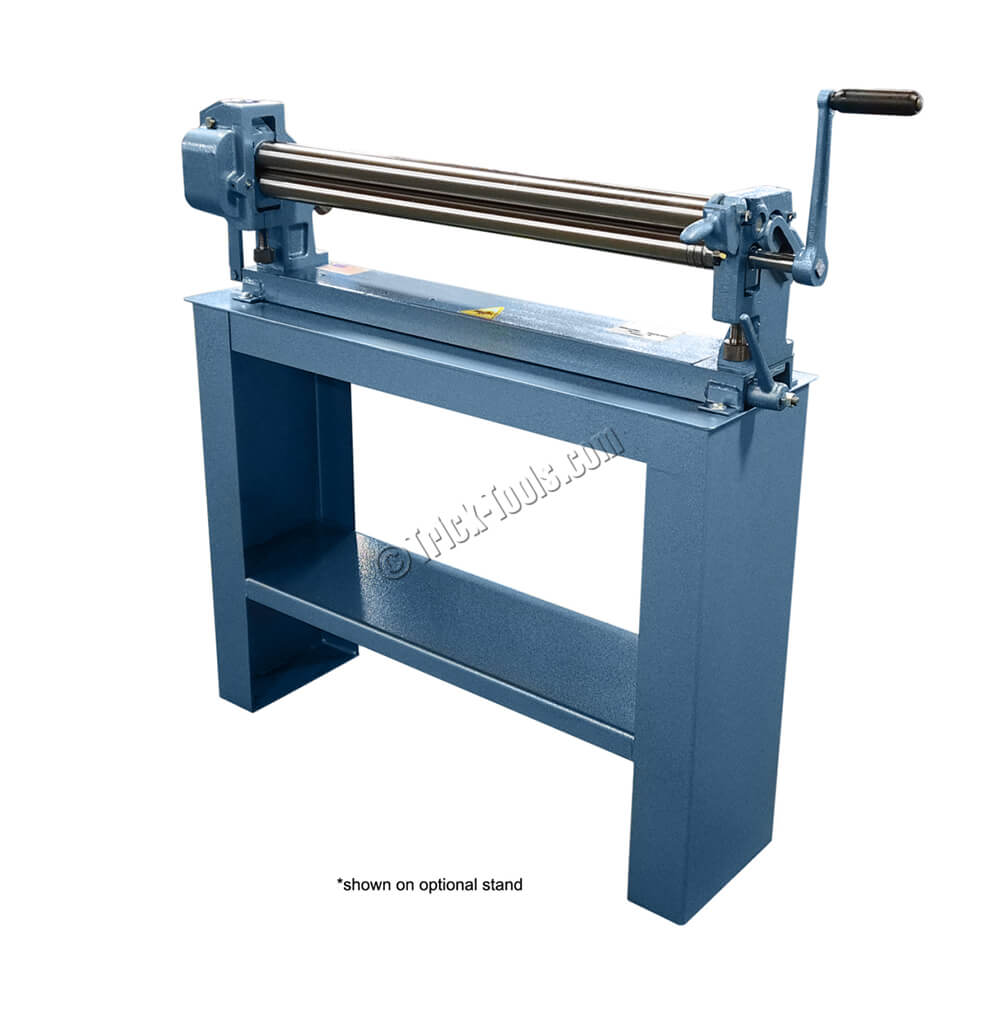

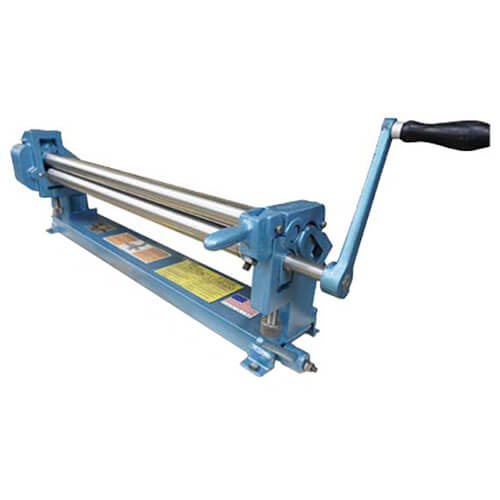

Roper Whitney's 381 slip roll combines precision-turned, ground, and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool.

These machines have three gear-driven rolls that ensure even starting and feeding of materials. All three rolls are constantly driven throughout their adjustment range.

Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front mounted handle to lift the upper roll for material removal. Wire grooves are also standard.



Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity: 22 gauge (.75mm)
Stainless Capacity: 26 gauge (.5mm)
Working Length (inches): 36
Min Forming Radius (inches): 1
Number/Dia Of Rolls: (3) 2 inch
Driven Rolls: 3
Wire Grooves: 3/16 inch, 1/4 inch, 5/16 inch
Weight (pounds): 245
Dimensions (LxWxH): 55 x 11 x 15
